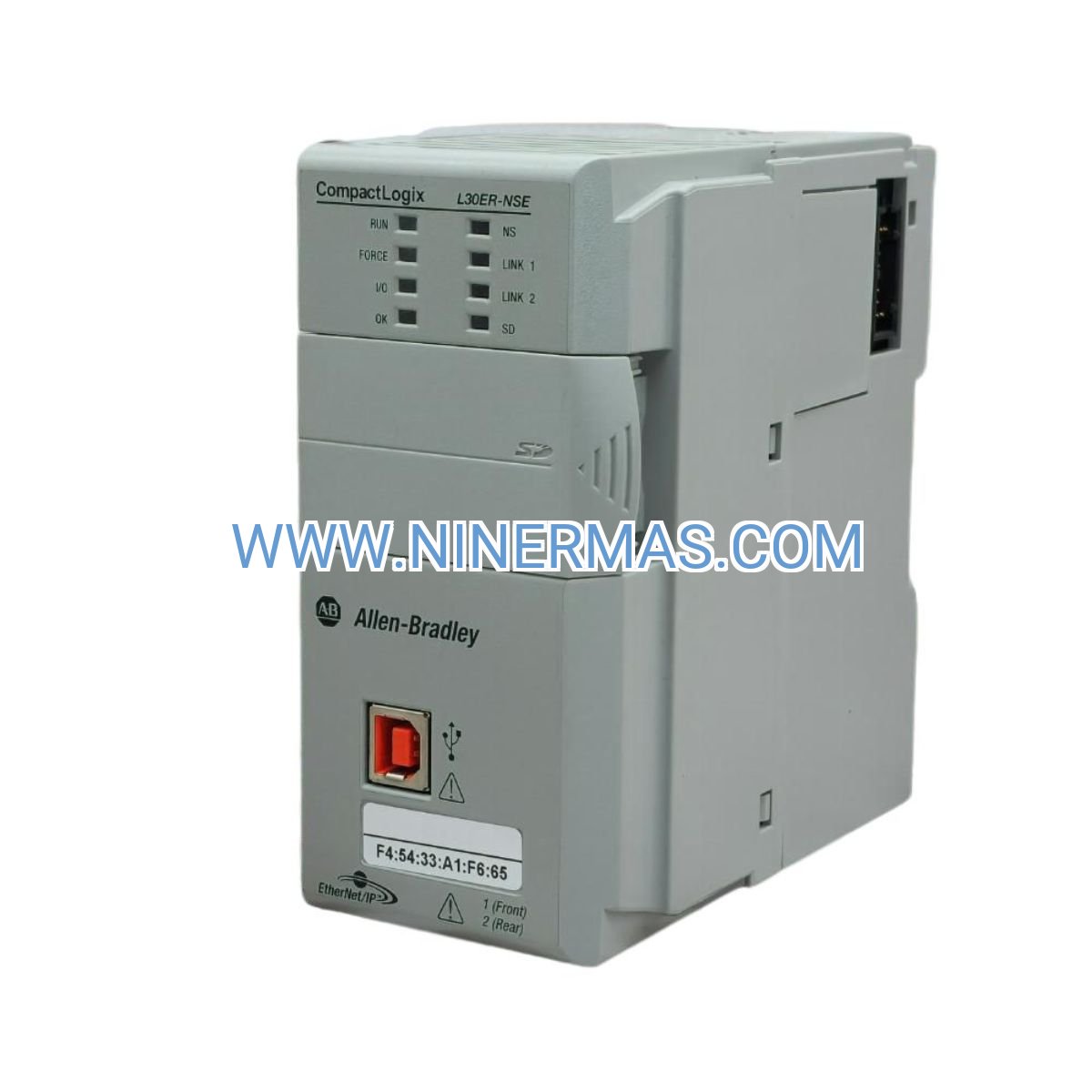

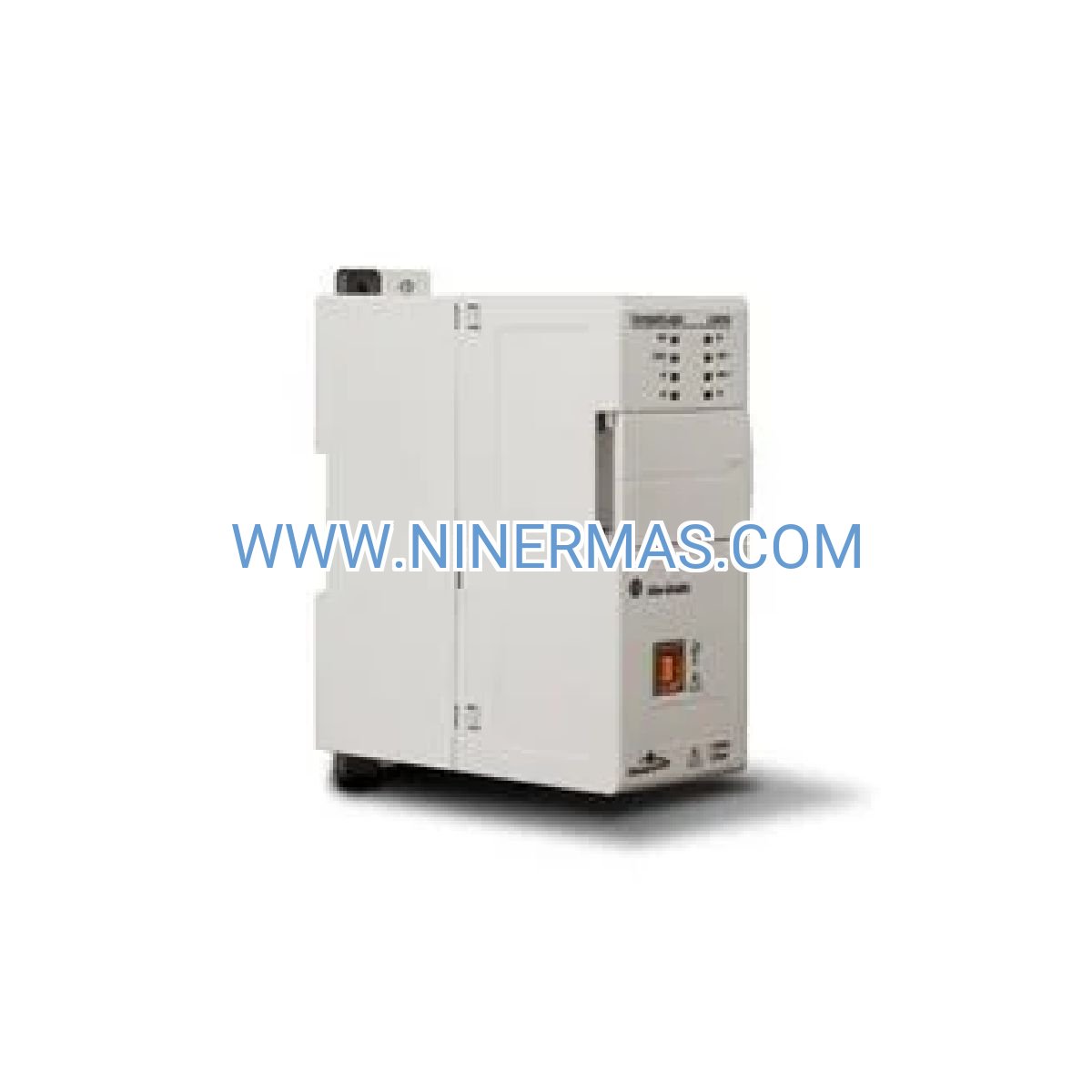

1769-L30ER-NSE CompactLogix Controller (Industrial-Grade Network Redundancy Solution)

The 1769-L30ER-NSE represents a mission-critical automation controller designed for environments where network failure is not an option. This CompactLogix platform combines 1 megabyte of user memory with dual embedded Ethernet/IP ports featuring Device Level Ring (DLR) protocol, delivering seamless failover protection for production lines that demand 24/7 uptime.

Manufacturing facilities facing costly downtime from network disruptions rely on this controller to maintain continuous operation. Target users include automation engineers managing packaging systems, process control specialists in pharmaceutical plants, and maintenance teams responsible for automotive assembly lines where every second of production matters.

What sets this controller apart: automatic network path switching within milliseconds, compatibility with existing CompactLogix I/O infrastructure, and proven reliability in harsh industrial environments ranging from freezing warehouses to high-temperature processing areas.

Core Capabilities & Business Impact

→ Zero-Downtime Network Architecture
Dual Ethernet ports with DLR create a self-healing ring topology that reroutes traffic instantly when cable damage or switch failure occurs, protecting your production schedule from network-related stoppages.

✓ Scalable Memory for Complex Logic
1 MB user memory accommodates sophisticated control algorithms, recipe management, and data logging without performance degradation—eliminating the need for costly controller upgrades as your application grows.

→ Rapid System Integration
Native EtherNet/IP communication enables plug-and-play connectivity with HMI panels, variable frequency drives, vision systems, and SCADA platforms, reducing commissioning time by up to 40% compared to legacy protocols.

✓ Extended I/O Flexibility
Supports up to 30 local CompactLogix modules plus 16 distributed EtherNet/IP adapters, allowing you to build systems from compact machine controls to plant-wide automation networks using a single controller platform.

→ Deterministic Performance
High-speed scan execution ensures consistent response times for motion control, safety interlocks, and time-sensitive process regulation—critical for applications like robotic welding or precision filling operations.

✓ Industrial-Hardened Design
Operates reliably in 0°C to 60°C environments with resistance to electrical noise, vibration, and dust ingress, meeting UL/CE/C-Tick certifications for global deployment.

Industry-Specific Applications

Automotive Manufacturing: Coordinates robotic assembly cells with vision inspection and torque monitoring across body-in-white welding lines. DLR redundancy prevents line stoppages from accidental cable disconnections during maintenance, protecting just-in-time production schedules.

Food & Beverage Processing: Manages multi-zone temperature control, CIP sequencing, and batch tracking in dairy processing plants. Network redundancy ensures recipe integrity and regulatory compliance even during equipment moves or facility expansions.

Pharmaceutical Packaging: Synchronizes blister packaging machines with serialization systems and reject mechanisms. Dual Ethernet paths maintain FDA-required traceability data flow to MES systems without interruption during network maintenance windows.

Water Treatment Facilities: Controls pump stations, chemical dosing, and SCADA telemetry across distributed sites. DLR topology simplifies fiber optic ring installations while providing failover protection for critical municipal infrastructure.

Material Handling Systems: Orchestrates conveyor networks, sortation equipment, and warehouse management interfaces in distribution centers. Redundant communication paths prevent order fulfillment delays from single-point network failures.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this controller when your application requires network redundancy but doesn't need motion control or safety integration. For applications with 500KB or less program memory, consider the 1769-L32E. If you need motion coordination, evaluate the 1769-L36ERM with 3MB memory. The NSE suffix indicates no secure digital card is included—order separately if you require program backup or recipe storage on removable media.

Advanced Integration Options

SCADA & MES Connectivity: Built-in OPC-UA server capability (via add-on profile) enables direct data exchange with Ignition, Wonderware, and other enterprise platforms without middleware gateways.

Remote Access & Diagnostics: Compatible with FactoryTalk Remote Access for secure VPN connections, allowing off-site troubleshooting and program updates without site visits—reducing mean time to repair by 60%.

Custom Application Development: Add-On Instructions (AOI) and User-Defined Data Types allow standardization of control logic across multiple machines, accelerating deployment of new production lines.

Delivery Timeline & Support Services

Standard Delivery: 5-7 business days for in-stock units via express courier with tracking. Expedited 2-3 day shipping available for urgent replacements.

Custom Configuration: Pre-programmed controllers with your application code and network settings ship within 10-12 business days, ready for plug-and-play installation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, firmware issues, and hardware failures. Advanced replacement available to minimize downtime.

Technical Resources: Access to application engineers for integration support, sample ladder logic for common tasks, and wiring diagrams. Post-installation phone support included for 90 days.

Documentation Package: User manual, quick-start guide, DLR configuration examples, and EDS files for device integration provided with every order.

Frequently Asked Questions

How does DLR redundancy improve uptime compared to standard Ethernet?
DLR creates a ring topology where each device has two network paths. If a cable is cut or a switch fails, the ring automatically reconfigures within 3 milliseconds, maintaining communication without manual intervention—eliminating the 15-30 minute downtime typical of star topology repairs.

What programming software is compatible with this controller?
Requires Studio 5000 Logix Designer (version 20 or later) or legacy RSLogix 5000 (version 20). Programming licenses are sold separately. Free RSLinx Classic software handles device discovery and online monitoring.

Can I mix this controller with ControlLogix or MicroLogix systems?
Yes, via EtherNet/IP messaging. The controller can exchange data with ControlLogix L7x processors and communicate with MicroLogix PLCs using MSG instructions, enabling hybrid system architectures during phased upgrades.

Does the NSE version support program backup to SD card?
No, NSE (No Secure Element) models lack the SD card slot. For automatic program backup and recipe storage, specify the standard 1769-L30ER model with SD card capability, or add a 1784-SD1 card separately.

What's the maximum distance between DLR ring nodes?
Up to 100 meters (328 feet) using standard Cat5e/Cat6 copper cable per segment. For longer distances, use fiber optic media converters to extend the ring up to 2 kilometers between nodes.

How many concurrent CIP connections does this controller support?
Supports 32 total CIP connections, with 16 available for HMI/SCADA clients. This allows simultaneous connections from multiple operator panels, data historians, and engineering workstations without connection limits.

Request Your Quote Today

Protect your production uptime with proven network redundancy technology. Contact our automation specialists for application-specific recommendations, volume pricing, or technical consultation on integrating this controller into your existing infrastructure.

Next Steps: Add to cart for instant checkout, or email your project requirements to receive a customized proposal within 4 business hours. Bulk orders qualify for tiered discounting and extended payment terms.
