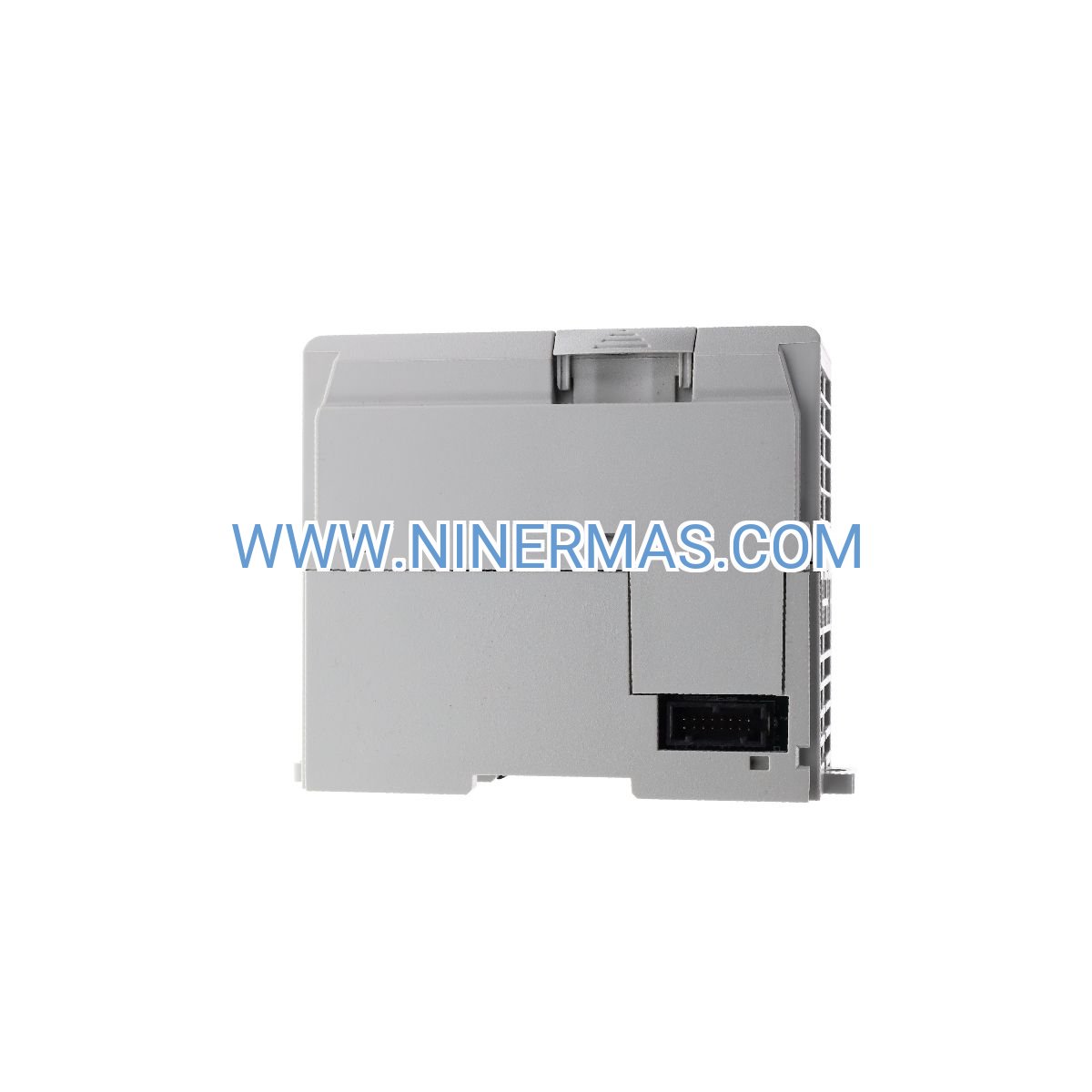

1769-L30ER CompactLogix Controller (Industrial-Grade Programmable Logic System)

The 1769-L30ER represents a proven solution for mid-range industrial control applications requiring reliable EtherNet/IP connectivity and expandable I/O architecture. Designed for manufacturers seeking scalable automation platforms, this CompactLogix controller combines 1MB user memory with dual embedded network ports to support distributed control topologies across manufacturing floors, process facilities, and OEM machinery installations.

Built on Rockwell Automation's Integrated Architecture framework, the 1769-L30ER addresses common challenges in legacy system upgrades, multi-zone coordination, and real-time data acquisition. Target users include automation engineers, system integrators, and maintenance teams managing complex production environments where network resilience and programming flexibility are non-negotiable.

Key advantages include hot-swappable I/O modules for reduced downtime, native support for Device Level Ring topologies, and seamless integration with Studio 5000 development environments—delivering a future-ready control foundation that scales with operational demands.

Core Features & Business Value

→ Dual 10/100 Mbps EtherNet/IP Ports
Built-in network switch functionality eliminates external infrastructure costs while enabling linear and ring topologies for fault-tolerant communications. Reduces cabling complexity by 40% compared to single-port architectures.

→ 1MB User Memory Capacity
Accommodates complex ladder logic, structured text programs, and data logging routines without performance degradation. Supports applications requiring up to 128K I/O points and 1000 program tags.

→ Modular I/O Expansion (16+14 Slots)
Accepts any combination of 1769 digital, analog, specialty, and communication modules. Hot-swap capability allows module replacement during operation—critical for 24/7 production environments.

✓ Integrated Motion Control
Coordinates up to 16 servo axes via CIP Motion over EtherNet/IP, eliminating standalone motion controllers. Reduces bill-of-materials costs while simplifying programming through unified Logix platform.

✓ FactoryTalk Security Integration
Enforces role-based access control, audit trails, and encrypted communications to meet cybersecurity compliance requirements in regulated industries (FDA 21 CFR Part 11, IEC 62443).

✓ Compact DIN-Rail Mounting
Occupies just 87mm (3.43") of panel width—ideal for space-constrained enclosures. Operates reliably in 0-60°C ambient temperatures with conformal coating options for harsh environments.

Typical Application Scenarios

Automated Packaging Lines
Manages high-speed filling, capping, labeling, and case packing operations with synchronized motion control. Addresses variable product changeovers through recipe management and quick I/O reconfiguration. Delivers 99.7% uptime through predictive maintenance diagnostics.

Water & Wastewater Treatment
Controls pump stations, chemical dosing systems, and filtration processes with real-time SCADA integration. Solves remote site monitoring challenges via cellular EtherNet/IP gateways. Ensures regulatory compliance through timestamped event logging.

Material Handling Conveyors
Orchestrates multi-zone accumulation, diverters, and sortation systems across warehouse distribution centers. Eliminates bottlenecks through distributed control architecture and peer-to-peer messaging. Reduces energy consumption by 25% via intelligent motor control.

CNC Machine Tool Integration
Interfaces with machining centers for tool management, part counting, and quality data collection. Resolves production tracking gaps by bridging legacy RS-232 equipment to modern MES platforms. Cuts setup time by 30% through standardized HMI templates.

HVAC & Building Automation
Regulates chillers, boilers, air handlers, and lighting systems in commercial facilities. Addresses energy optimization through demand-based scheduling and occupancy sensors. Achieves 15-20% utility cost savings versus pneumatic control systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-L30ER when your application requires network redundancy, moderate memory capacity (500-1000 rungs), and local I/O expansion up to 16 modules. For larger programs exceeding 1MB, consider the 1769-L33ER (2MB). For applications without EtherNet/IP requirements, the 1769-L30 (no embedded port) offers cost savings.

Extended Functions

IIoT & Cloud Connectivity: Integrate with FactoryTalk Analytics or third-party MQTT brokers for predictive maintenance and remote diagnostics. Supports OPC-UA server functionality for Industry 4.0 data exchange.

Advanced Motion Capabilities: Execute coordinated motion profiles (cam, gearing, electronic line shafting) for packaging and converting machinery. Supports CIP Sync for sub-millisecond axis synchronization.

Custom Configuration Services: Pre-programmed controllers available with customer-specific logic, I/O mapping, and HMI screens. Reduces commissioning time by 50% for repeat installations.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-2 business days. Custom configurations require 5-7 business days for programming and testing.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranties available for critical infrastructure applications.

Technical Support: Lifetime access to application engineers for programming assistance, troubleshooting, and system optimization. Remote support via TeamViewer or phone within 4-hour response window.

Documentation Package: Includes user manual, wiring diagrams, sample ladder logic, and Studio 5000 AOP (Add-On Profile) installation files. Compliance certificates (CE, UL) provided upon request.

Frequently Asked Questions

How do I connect the 1769-L30ER to my existing EtherNet/IP network?
Use standard Cat5e/Cat6 Ethernet cables to connect either port to your managed switch. Configure IP addressing via Studio 5000 or BootP/DHCP. Both ports share the same IP address and function as a 2-port switch.

What is the maximum I/O capacity for this controller model?
The 1769-L30ER supports 128,000 digital inputs and 128,000 digital outputs (total 256K I/O points). Practical limits depend on scan time requirements—typical installations use 500-2000 I/O points.

Can this PLC reduce energy costs in my facility?
Yes—through optimized motor control (VFD integration), demand-based scheduling, and real-time power monitoring. Customers report 15-30% energy savings in HVAC and pumping applications versus relay-based systems.

What are the physical installation requirements?
Mounts on standard 35mm DIN rail. Requires 1769-PA2, PA4, or PB3 power supply (sold separately). Minimum clearances: 50mm top/bottom for ventilation, 25mm sides for wiring access.

Does the controller support remote monitoring capabilities?
Yes—via FactoryTalk View SE, Ignition SCADA, or third-party HMI platforms over EtherNet/IP. Supports VPN tunneling for secure remote access. Mobile apps available through FactoryTalk TeamONE.

How does the 1769-L30ER compare to ControlLogix for smaller applications?
CompactLogix offers 70% cost savings versus ControlLogix for applications under 2000 I/O points. Shares identical programming environment (Studio 5000) for easy migration. ControlLogix recommended for redundant systems or >4000 I/O.

Take the Next Step

Ready to modernize your control system with proven CompactLogix technology? Our automation specialists will help you configure the optimal I/O mix, select compatible power supplies, and provide programming templates to accelerate your deployment.

Request a technical consultation today—contact our team for application-specific recommendations and volume pricing.
