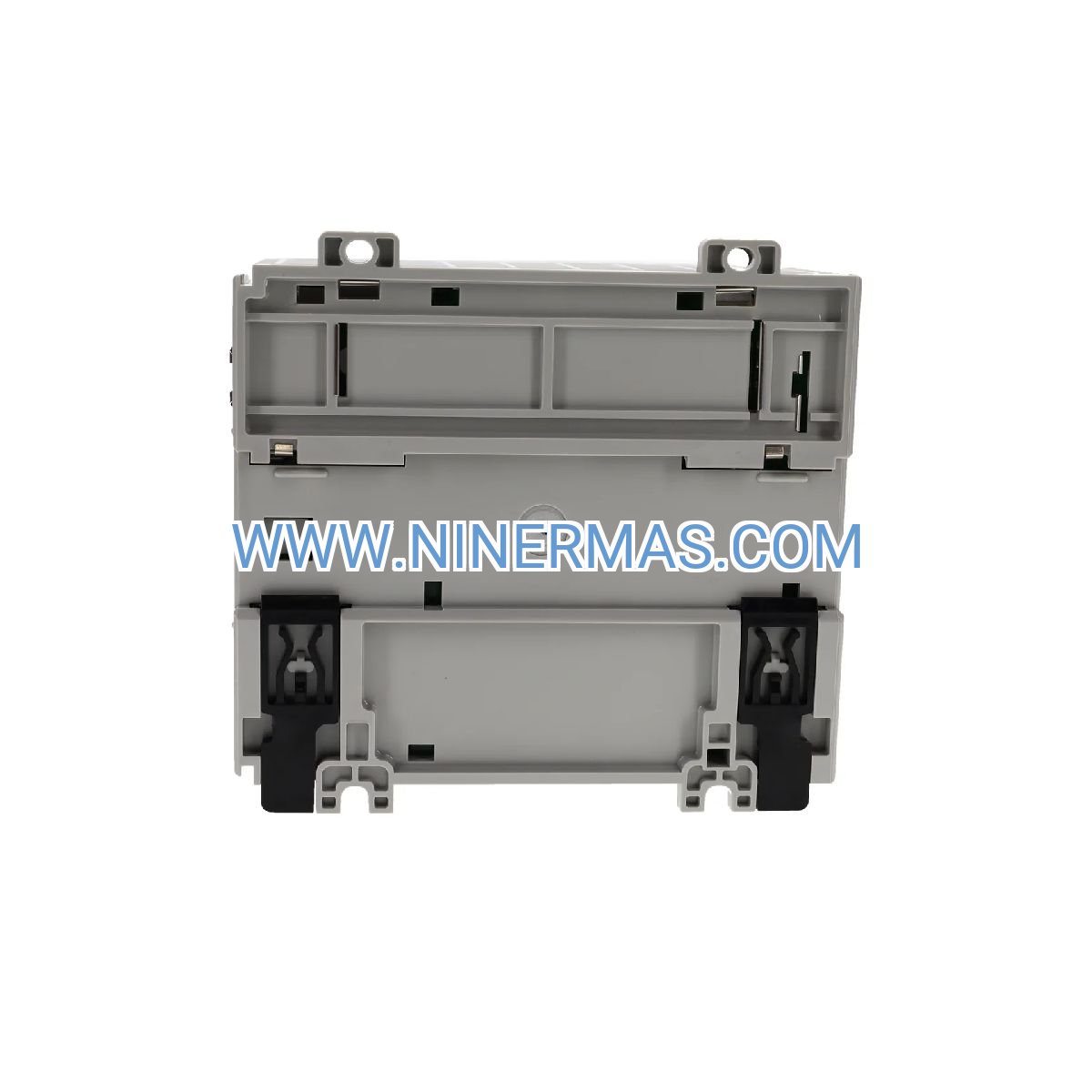

1769-L24ER-QBFC1B CompactLogix Controller (Industrial-Grade Automation Platform)

The 1769-L24ER-QBFC1B represents Allen-Bradley's solution for mid-tier automation challenges requiring integrated analog processing and network resilience. This CompactLogix 5370 L2 series controller combines 750KB programmable memory with factory-embedded digital and analog I/O, eliminating the need for separate signal conditioning modules in space-constrained installations.

Designed for operations where network continuity directly impacts production metrics, the dual EtherNet/IP architecture with Device Level Ring (DLR) protocol delivers sub-3-millisecond failover performance. Target users include process engineers managing batch operations, OEM machine builders requiring compact footprints, and facility managers overseeing distributed control systems across manufacturing, water treatment, and HVAC infrastructure.

Key differentiators include native support for six thermocouple types and four RTD configurations without external signal converters, onboard SD card slot for firmware management, and seamless integration with Studio 5000 programming environments. The controller's ability to handle 30 distributed I/O modules while maintaining deterministic scan times positions it as a scalable foundation for evolving automation requirements.

Core Features & Benefits

→ Multi-Signal Analog Input Flexibility
Process thermocouples (J/K/T/E/N/R/S/B), RTDs (Pt100/Pt1000/Ni120 in 2/3/4-wire), voltage (0-10V/±10V), and current (4-20mA) signals through four universal analog channels. Eliminates $800-1,200 in external signal conditioning hardware per installation while reducing panel space by 35%.

✓ Network Redundancy Without Complexity
DLR-enabled dual Ethernet ports create self-healing ring topologies that automatically reroute traffic during cable failures. Maintains communication integrity in critical applications where 99.9% uptime translates to $15,000-50,000 monthly revenue protection for typical mid-scale operations.

→ Embedded I/O Reduces Installation Time
16 digital inputs and 16 outputs (24V DC, 0.5A per point) built into the controller chassis cut commissioning time by 40% compared to modular-only architectures. Sink/source input compatibility accommodates diverse sensor types without additional interface modules.

✓ Scalable Memory for Application Growth
750KB user memory supports 10,000-15,000 rungs of ladder logic or equivalent structured text, sufficient for 80% of machine-level and small process applications. Onboard SD card enables non-volatile program backup and data logging up to 2GB capacity.

→ Studio 5000 Ecosystem Integration
Full compatibility with Logix Designer software provides unified programming across ControlLogix, CompactLogix, and GuardLogix platforms. Reduces engineering training costs and enables code portability for multi-site deployments.

✓ Certified for Global Deployment
UL/cUL/CE/C-Tick certifications streamline compliance for international projects. Operating range of 0-60°C (32-140°F) covers 95% of industrial environments without supplemental cooling.

Typical Application Scenarios

Packaging Line Control Systems
Manages conveyor synchronization, product counting, and reject mechanisms in food/beverage packaging operations. The integrated analog inputs monitor tension control and temperature zones, while DLR networking ensures uninterrupted communication with HMI panels and upstream ERP systems. Typical deployment reduces PLC panel footprint by 30% versus distributed I/O-only designs.

HVAC Chiller Plant Optimization
Controls variable-speed drives for chilled water pumps and cooling tower fans based on real-time temperature and pressure feedback. Four analog inputs process RTD signals from supply/return water lines, while digital outputs stage multiple chiller units. Network redundancy prevents costly HVAC shutdowns in data centers and pharmaceutical cleanrooms.

Water Treatment Chemical Dosing
Regulates pH adjustment and chlorination systems through precise 4-20mA control of metering pumps. Thermocouple inputs monitor reaction tank temperatures, triggering safety interlocks when parameters exceed setpoints. The controller's ability to log data to SD card satisfies regulatory compliance requirements for municipal water facilities.

Machine Tool Automation
Coordinates hydraulic press operations, monitoring pressure transducers and limit switches through embedded I/O. EtherNet/IP connectivity enables real-time production data exchange with MES platforms, supporting OEE tracking initiatives. Compact design fits standard 19-inch control cabinets used by machine builders.

Renewable Energy Monitoring
Aggregates data from solar inverters and battery management systems via Modbus TCP/IP gateways. Analog inputs track DC voltage/current from photovoltaic arrays, while digital outputs control grid interconnection relays. DLR topology maintains communication across distributed generation sites spanning 500+ meters.

Technical Parameters & Selection Guide

Selection Workflow: Start by auditing I/O requirements—if analog points exceed 4 or digital points surpass 32, budget for expansion modules. Evaluate network criticality: DLR justifies dual-port usage when downtime costs exceed $500/hour. For motion control needs (servo/stepper axes), specify 1769-L3xERM models instead. Confirm Studio 5000 software licensing covers CompactLogix 5370 series (version 21 or later recommended).

Extended Functions

IoT Gateway Integration: Connect to Ignition SCADA, Kepware ThingWorx, or Rockwell FactoryTalk Analytics via native EtherNet/IP or third-party protocol converters. Enables cloud-based predictive maintenance and remote diagnostics without compromising control network security.

Advanced Diagnostics: Built-in web server (accessible via standard browser) provides real-time I/O status, communication health, and memory utilization metrics. Reduces troubleshooting time by 50% compared to offline diagnostic tools.

Customization Options: Factory-configured I/O mapping and pre-loaded application templates available for OEM partnerships exceeding 50 units annually. Consult engineering team for conformal coating (harsh chemical environments) or extended temperature variants (-25 to 70°C).

Delivery & Service Assurance

Lead Time: Stock units ship within 24-48 hours via DHL/FedEx International Priority. Custom configurations (firmware pre-loading, I/O testing) require 5-7 business days. Expedited same-day shipping available for critical downtime scenarios (additional fees apply).

Warranty: 18-month comprehensive coverage from ship date, including component-level failures and firmware defects. Warranty honors Rockwell Automation's global service network—advance replacement units dispatched within 72 hours for qualifying claims.

Technical Support: Unlimited email/phone consultation during warranty period, covering programming assistance, network troubleshooting, and I/O configuration. Remote desktop support available for Studio 5000 integration challenges (requires customer-provided VPN access).

Documentation Package: Each unit includes installation quick-start guide, I/O wiring diagrams, EDS file for device configuration, and sample ladder logic for analog scaling. Full user manual and technical specifications accessible via QR code on product label.

Frequently Asked Questions

What communication protocols does the 1769-L24ER-QBFC1B support for third-party device integration?
The controller natively supports EtherNet/IP (implicit and explicit messaging), Modbus TCP (via Add-On Instructions), and ASCII serial communication through the USB port. For PROFINET or DeviceNet integration, use protocol gateway modules like the 1769-AENTR or ProSoft MVI series.

Can this controller handle safety-rated I/O for machine guarding applications?
No—the 1769-L24ER-QBFC1B is a standard controller without SIL certification. For safety functions (emergency stops, light curtains), pair with GuardLogix 5370 controllers (1769-L1xS series) or use standalone safety relays compliant with ISO 13849-1 Category 3.

How much energy savings can I expect from the controller's sleep mode features?
The controller draws 8W typical during operation and does not feature a sleep mode (continuous operation design). Energy optimization occurs at the system level—use the controller to manage VFDs and smart actuators, achieving 20-40% facility-wide energy reduction through demand-based control strategies.

What installation clearances are required for proper thermal management?
Maintain 50mm (2 inches) top/bottom clearance and 25mm (1 inch) side clearance when mounting on DIN rail. For ambient temperatures exceeding 50°C, install cooling fans rated at 20 CFM minimum or relocate controller to climate-controlled sub-panel.

Is remote firmware updates supported over EtherNet/IP networks?
Yes—Studio 5000 Logix Designer version 24 and later supports ControlFLASH firmware updates via Ethernet. Requires controller to be in Program mode and uninterrupted network connection during 8-12 minute update cycle. Always backup programs to SD card before initiating firmware changes.

Can I migrate existing SLC 500 programs to this CompactLogix platform?
Direct program conversion is not supported due to architectural differences. Rockwell's Legacy Conversion Tool assists with tag mapping and instruction translation, but expect 40-60% manual rework for complex programs. Budget 8-16 engineering hours per 1,000 rungs for migration projects.

Request Technical Consultation

Uncertain whether the 1769-L24ER-QBFC1B matches your application requirements? Our automation specialists provide complimentary system architecture reviews, including I/O sizing calculations, network topology design, and ROI analysis for controller upgrades. Submit your project specifications via the contact form below or schedule a 30-minute consultation call to discuss integration challenges, programming support, and volume pricing for multi-unit deployments.
