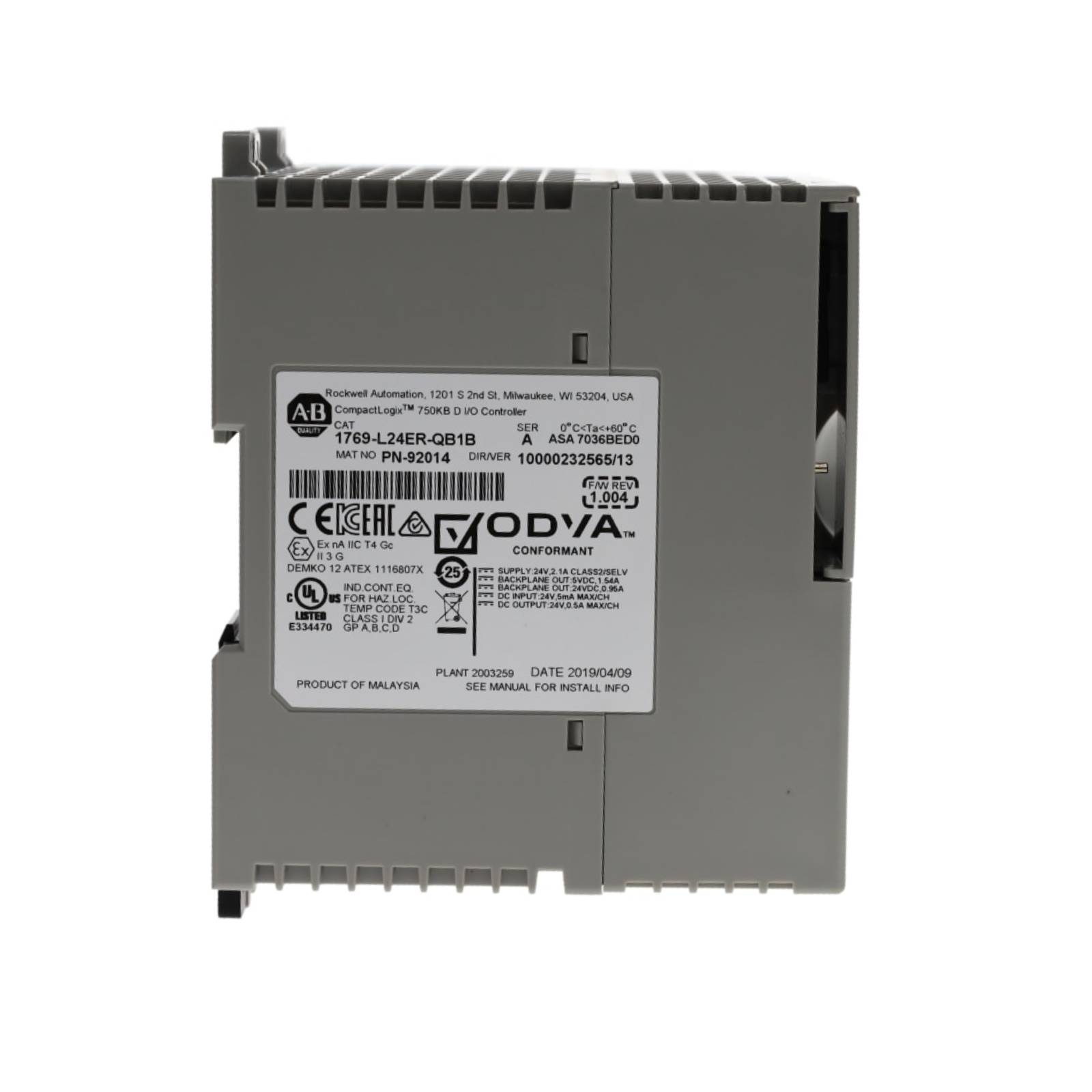

Allen-Bradley 1769-L24ER-QB1B — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Allen-Bradley 1769-L24ER-QB1B stands out as a cornerstone component in any modernization initiative. Whether you are upgrading aging SLC 500 or MicroLogix platforms to a contemporary EtherNet/IP-based architecture, this CompactLogix 5370 L2 controller delivers the processing headroom, communication flexibility, and programming continuity needed to elevate your facility’s operational performance without disrupting production schedules. Its 750KB user memory and dual embedded EtherNet/IP ports provide the bandwidth and scalability that legacy controllers simply cannot match.

The Allen-Bradley 1769-L24ER-QB1B is engineered with backward-compatible I/O architecture, making it an ideal migration hub for facilities still running 1769 Compact I/O modules from earlier generations. Rather than replacing your entire I/O infrastructure, this controller allows you to reuse existing field wiring and I/O hardware, dramatically reducing retrofit capital expenditure. Its native support for Device Level Ring (DLR) topology further ensures that your upgraded network achieves the redundancy and fault tolerance that modern industrial environments demand.

From a migration risk perspective, the transition to the 1769-L24ER-QB1B is structured to minimize downtime. The Studio 5000 Logix Designer environment supports offline simulation and incremental commissioning, enabling engineering teams to validate logic before cutover. This phased approach reduces the probability of production interruptions and accelerates ROI on your modernization investment — a critical advantage when managing multi-site upgrade programs across global manufacturing or power generation facilities.

Upgrade Highlights & Compatibility

Drop-in I/O Compatibility: Directly interfaces with existing 1769 Compact I/O modules — no rewiring required for most retrofit scenarios, preserving field device investments.

✅ Dual EtherNet/IP Ports with DLR: Enables Device Level Ring topology for network redundancy, a critical upgrade from single-port legacy controllers prone to single-point failure.

750KB User Memory: Substantially expands program and data capacity versus SLC 500 and earlier CompactLogix variants, supporting complex logic migration without architectural compromise.

✅ Studio 5000 Unified Environment: Consolidates programming, diagnostics, and motion configuration into a single platform — eliminating the multi-tool complexity of legacy RSLogix 500 workflows.

Future-Proof Architecture: Active product lifecycle status ensures continued firmware support, security patches, and Rockwell Automation ecosystem compatibility for years ahead.

✅ Seamless SCADA & HMI Integration: Native EtherNet/IP communication enables direct connectivity to FactoryTalk View, Ignition, and third-party SCADA platforms without protocol converters.

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing Plants: Facilities operating legacy Distributed Control Systems with proprietary fieldbus protocols have successfully migrated supervisory logic to the 1769-L24ER-QB1B, leveraging its EtherNet/IP backbone to interface with modern DCS gateways. The result: a 40% reduction in scan cycle time and elimination of obsolete communication cards that were no longer supportable.

Turbine Supervisory Instrumentation (TSI) Retrofit: Power generation sites running aging TSI platforms have deployed the 1769-L24ER-QB1B as the primary logic controller for vibration monitoring and trip logic modernization. Its high-speed execution and deterministic I/O scanning ensure that turbine protection sequences meet OEM response time specifications — a non-negotiable requirement in retrofit projects where safety integrity must be preserved.

Packaging Line Upgrade Programs: OEM machine builders retrofitting legacy relay-logic panels have standardized on the 1769-L24ER-QB1B for its compact footprint and scalable I/O expansion. Integration with Kinetix servo drives via EtherNet/IP has enabled coordinated multi-axis motion control on lines previously limited to single-axis cam-driven mechanisms, delivering measurable throughput gains.

Water & Wastewater Infrastructure Modernization: Municipal utilities replacing end-of-life PLCs in pump stations and treatment facilities benefit from the controller’s wide operating temperature range and DIN rail mounting flexibility. Remote diagnostics via EtherNet/IP reduce on-site service visits, lowering operational expenditure across distributed infrastructure networks.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1769-L24ER-QB1B unit is sourced as genuine Rockwell Automation hardware, factory sealed with full traceability documentation. No refurbished or grey-market components — critical for retrofit projects where firmware version control and warranty validity are non-negotiable.

Expedited Global Logistics: We maintain strategic inventory to support urgent retrofit timelines. Express shipping to manufacturing hubs across Asia, Europe, the Americas, and the Middle East ensures that unplanned downtime events or accelerated upgrade schedules are met without compromise. DDP (Delivered Duty Paid) options available for simplified customs clearance.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in bridging the gap between legacy control architectures and modern platforms. From I/O mapping analysis and logic conversion guidance to Studio 5000 migration templates, we provide the technical depth that generic distributors cannot. Whether you are replacing an end-of-life SLC 500 or integrating the 1769-L24ER-QB1B into an existing CompactLogix network, our support team is available to guide your project from planning through commissioning.

Retrofit FAQ — Upgrade Guide

Q1: Will the 1769-L24ER-QB1B physically fit in the same panel space as my existing SLC 500 controller?
A: Panel space requirements differ between SLC 500 and CompactLogix form factors. The 1769-L24ER-QB1B uses a modular 1769 backplane system, so a panel layout assessment is recommended. In most cases, the compact footprint allows installation within existing enclosures with minor modifications to DIN rail positioning. Our team can provide dimensional drawings and mounting templates upon request.

Q2: How does the 1769-L24ER-QB1B communicate with legacy devices still using DF1 or DH+ protocols?
A: The controller natively supports EtherNet/IP. For legacy DF1 or DH+ devices, a 1761-NET-AIC or 1784-PKTX communication interface module can bridge the protocol gap during phased migration, allowing new and legacy devices to coexist on the same network until full cutover is complete.

Q3: Can existing RSLogix 500 programs be directly imported into Studio 5000 for use with this controller?
A: RSLogix 500 programs cannot be directly imported into Studio 5000 due to architectural differences between SLC 500 and Logix instruction sets. However, Rockwell Automation’s migration tools and our engineering support team can assist with logic translation, I/O tag remapping, and functional equivalence validation to accelerate the conversion process.

Q4: What is the recommended spare parts strategy when deploying the 1769-L24ER-QB1B in a critical retrofit application?
A: For mission-critical installations, we recommend maintaining at least one cold-standby unit on-site. Given the controller’s Active lifecycle status, long-term availability is assured; however, having a spare eliminates mean-time-to-repair risk in the event of unexpected hardware failure. We offer volume pricing for spare unit procurement alongside primary retrofit orders.

Q5: Does the 1769-L24ER-QB1B support integration with third-party SCADA platforms beyond FactoryTalk?
A: Yes. The controller’s EtherNet/IP interface is an open standard, enabling connectivity with Ignition (Inductive Automation), Wonderware, Citect, and other OPC-UA or EtherNet/IP-compatible SCADA platforms. This makes it a versatile choice for facilities operating mixed-vendor automation environments during and after the retrofit transition.

Q6: What firmware version should be used for optimal performance in a retrofit scenario involving mixed CompactLogix generations?
A: Firmware version 30 or later is recommended for maximum feature compatibility and security patch coverage. When integrating with older CompactLogix controllers on the same EtherNet/IP network, ensure all controllers are updated to a common major revision to avoid CIP communication incompatibilities. Our technical team can provide a firmware compatibility matrix specific to your network topology.
