Allen Bradley 1756-IF16IH | 16-Ch Isolated HART Analog Input Module

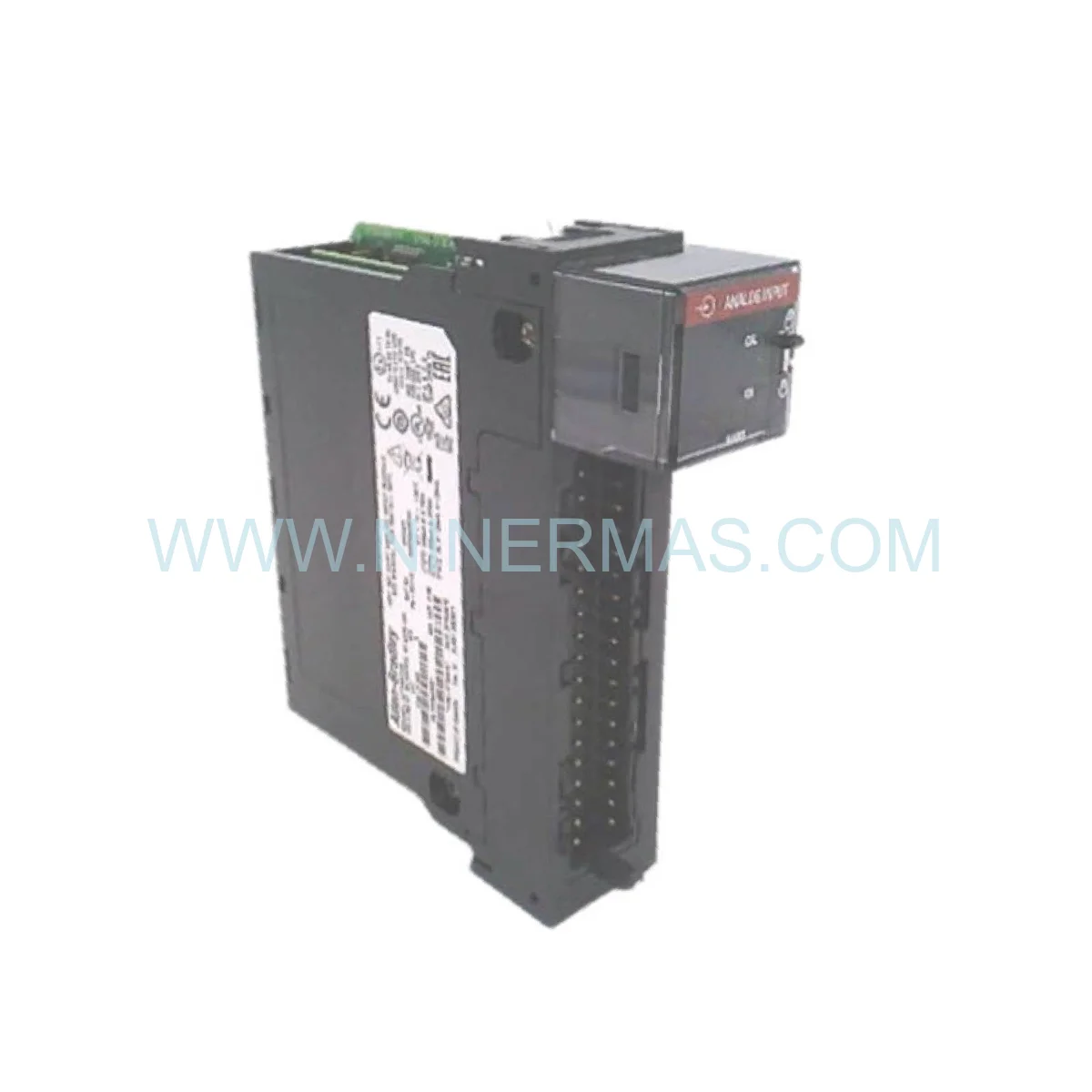

Allen Bradley 1756-IF16IH ControlLogix HART Analog Input Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of a seasoned Industrial Solution Architect, few components carry as much operational weight as a high-integrity analog input module in a live Distributed Control System. The Allen Bradley 1756-IF16IH is precisely that kind of asset — a 16-channel, individually isolated HART-enabled analog input module engineered for the ControlLogix platform, where Process Control demands zero compromise on signal fidelity. Deployed across refineries, chemical plants, and power generation facilities worldwide, this module serves as the sensory backbone of DCS Hardware architectures that cannot afford measurement drift or ground loop interference.

What distinguishes the Allen Bradley 1756-IF16IH from generic analog I/O alternatives is its dual-layer intelligence: simultaneous 4-20mA process variable acquisition and HART 7 digital communication over the same two-wire loop. This technical compatibility makes it the preferred Legacy Component for facilities upgrading from older Fieldbus-based architectures while retaining existing smart transmitter investments. Its 16-bit A/D resolution and ±0.1% full-scale accuracy position it as a Factory Sealed precision instrument, not merely a signal conditioner.

Original stock of this module is increasingly scarce. As Allen Bradley continues to evolve the ControlLogix ecosystem, procurement windows for Factory Sealed units narrow. For maintenance engineers managing aging DCS Hardware, securing verified original inventory now is a strategic imperative — not a deferred decision.

Key Technical Highlights

16 Individually Isolated Channels — 250V continuous channel-to-backplane isolation eliminates ground loop risk in multi-transmitter loops
Full HART 7 Protocol Compliance — Pass-through digital communication to smart field devices without interrupting analog measurement
16-Bit A/D Conversion — Superior resolution for precision Process Control in pharmaceutical, petrochemical, and power applications
Configurable Update Rate — 10ms to 10 seconds per channel; optimized for both fast-loop and slow-scan DCS Hardware configurations
Redundancy Architecture Support — Fully compatible with ControlLogix redundancy modules for Safety Instrumented System (SIS) adjacent deployments
Removable Terminal Blocks — Rapid field replacement without disturbing Fieldbus or 4-20mA wiring infrastructure
Studio 5000 / RSLogix 5000 Native Integration — Per-channel configuration of ranges, filters, alarms, and HART parameters from a single engineering environment

Vertical Industry Applications

Petrochemical & Oil Refining: In continuous distillation and catalytic cracking units, the module’s isolated architecture prevents cross-channel interference from high-voltage equipment, while HART pass-through enables remote diagnostics of pressure and flow transmitters — reducing unplanned shutdowns by enabling predictive maintenance without process interruption.

Mining & Mineral Processing: Harsh electromagnetic environments in grinding circuits and flotation cells demand robust channel isolation. This module’s 250V isolation rating and Factory Sealed construction ensure measurement integrity even in electrically noisy conveyor and crusher control panels.

Marine & Offshore Platforms: Space-constrained control rooms on FPSOs and drilling rigs benefit from the module’s single-slot ControlLogix footprint. Sixteen isolated HART channels replace multiple discrete signal conditioners, reducing panel density and simplifying Fieldbus integration with topside instrumentation.

Pharmaceutical & Life Sciences: FDA-regulated batch processes require audit-ready calibration records. HART communication enables in-situ transmitter calibration verification and electronic documentation directly through the ControlLogix controller — supporting 21 CFR Part 11 compliance workflows.

Power Generation & Utilities: Turbine control and boiler management systems rely on millisecond-accurate analog feedback. The module’s 10ms minimum update rate and redundancy support make it a Critical Part for Industry Safety in generation assets where measurement latency translates directly to equipment risk.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the Allen Bradley 1756-IF16IH supplied through our inventory is 100% Original — sourced directly from authorized distribution channels and verified against Rockwell Automation’s factory serialization records. No refurbished, remanufactured, or counterfeit components enter our supply chain. Each module ships in its original Factory Sealed packaging with full documentation, including the original product label, revision markings, and firmware version identification.

Our 12-Month Comprehensive Warranty covers all defects in materials and workmanship from the date of delivery. For emergency maintenance scenarios — where a DCS Hardware failure threatens production continuity — we offer priority dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express, with same-day shipping available for in-stock units. Global delivery to over 150 countries ensures that whether your facility is in the Middle East, Southeast Asia, Europe, or the Americas, critical spare parts reach your site within the shortest possible window.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a 1756-IF16IH unit is genuinely original and not a counterfeit?
Authentic Allen Bradley 1756-IF16IH modules carry a Rockwell Automation holographic label on the module body, a unique serial number traceable through Rockwell’s product verification portal, and consistent revision markings on both the module and inner packaging. Factory Sealed units will show unbroken tamper-evident seals. We provide full photographic documentation of each unit’s label and packaging upon request before shipment.

Q2: Where can I obtain the official datasheet and wiring diagrams for the 1756-IF16IH?
The official publication is Rockwell Automation document 1756-UM009, available through the Rockwell Automation Literature Library. We also provide application notes and wiring reference guides with every order to support commissioning teams in the field.

Q3: Is the 1756-IF16IH compatible with all ControlLogix chassis and controller revisions?
The module is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot). Controller firmware compatibility depends on the specific revision of the module; we confirm firmware revision at time of order and advise on any Studio 5000 version requirements to ensure seamless integration with your existing DCS Hardware.

Q4: Can this module be used in a Safety Instrumented System (SIS) application?
The 1756-IF16IH is a standard ControlLogix I/O module and is not SIL-rated for use as a primary SIS element. However, it is widely deployed in process control layers adjacent to SIS architectures, providing process variable data to safety logic solvers via the ControlLogix backplane. For SIL-rated applications, consult Rockwell’s GuardLogix or AADvance product lines.

Q5: What is the lead time for emergency orders, and do you support partial shipments?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 local time. Partial shipments are fully supported — if your maintenance schedule requires phased delivery across multiple sites, we coordinate split shipments with individual tracking for each consignment. Emergency Repair scenarios receive priority handling with dedicated logistics coordination.

Q6: How does HART pass-through work in practice within a ControlLogix system?
The 1756-IF16IH acts as a HART master on each channel, polling connected smart transmitters for secondary variables, device status, and diagnostic data. This information is mapped into the controller’s I/O data table and accessible via ladder logic, function block, or structured text programs. No additional HART multiplexers or modems are required — the module handles all Fieldbus-layer HART communication natively, reducing infrastructure cost and complexity.

Emergency Repair — Why Stocking the 1756-IF16IH Is a Strategic Decision

In process industries, an analog input module failure is rarely a scheduled event. When a 1756-IF16IH fails mid-shift in a refinery’s crude distillation unit, the clock starts immediately — every hour of unplanned downtime carries six-figure cost implications. This module is a Critical Part for Industry Safety: its failure can cascade into loss of process visibility, forcing manual operation or emergency shutdown of entire process trains.

Maintenance Stock strategy for the 1756-IF16IH is straightforward: facilities operating more than four ControlLogix chassis with HART analog inputs should maintain a minimum of one spare module per eight installed units. Given the tightening availability of Factory Sealed original stock and the extended lead times from standard distribution channels, proactive procurement is the only reliable hedge against emergency downtime. Our global sourcing network maintains verified inventory specifically to serve this critical spare parts demand — ensuring that when your DCS Hardware needs it most, the part is already on its way.
