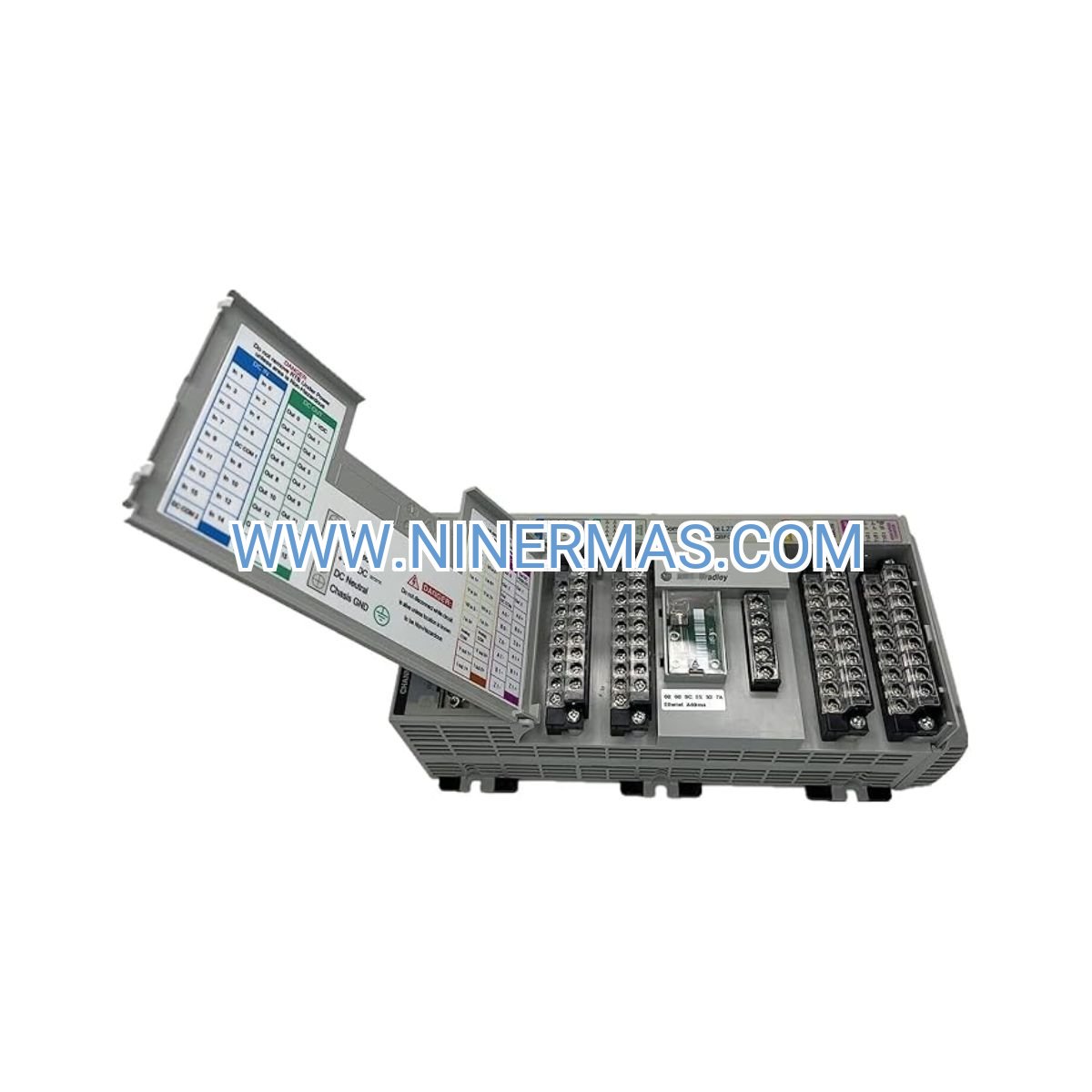

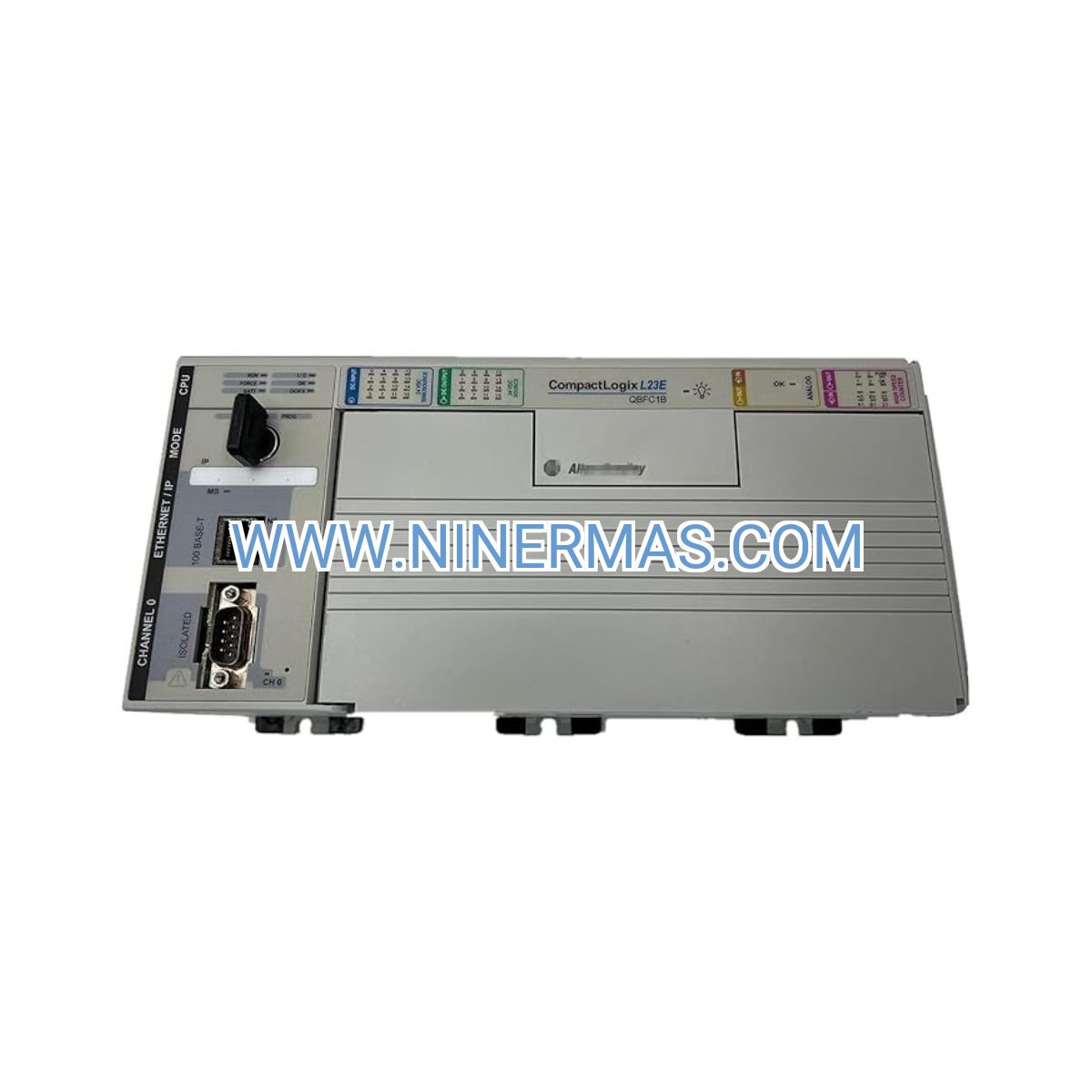

1769-L23E-QBFC1B CompactLogix Controller (Industrial-Grade Programmable Logic Controller)

The 1769-L23E-QBFC1B represents a breakthrough in compact automation architecture, delivering enterprise-class control in a space-saving form factor. This programmable logic controller integrates 512KB of user memory, native Ethernet/IP networking, and onboard digital plus analog I/O channels into a single DIN-rail module. Designed for manufacturers seeking to consolidate system components without sacrificing performance, it eliminates the need for standalone communication adapters and discrete I/O modules in small to mid-scale applications.

Industrial facilities face mounting pressure to reduce panel footprint, minimize wiring complexity, and accelerate commissioning timelines. Traditional PLC architectures require separate modules for networking and I/O expansion, increasing both hardware costs and installation labor. The 1769-L23E-QBFC1B addresses these challenges by embedding critical functions directly into the controller chassis, cutting installation time by up to 35% compared to modular configurations.

Key differentiators include factory-calibrated analog channels for precise process measurement, dual Ethernet ports for linear topology deployment, and compatibility with the full CompactLogix I/O ecosystem. Whether you're retrofitting legacy relay panels or designing greenfield automation systems, this controller delivers the reliability and scalability demanded by 24/7 production environments.

Core Capabilities & Business Value

→ Unified Control Platform
Combines logic processing, network communication, and I/O handling in one compact unit. Reduces bill-of-materials complexity and simplifies spare parts inventory management.

→ Native Ethernet/IP Connectivity
Built-in dual-port switch enables daisy-chain network topologies without external switches. Supports CIP Safety, motion control, and SCADA integration over standard Ethernet infrastructure.

→ Embedded Digital I/O
16 configurable digital points (source/sink) handle discrete sensors and actuators directly. Eliminates need for entry-level I/O modules in compact machine designs.

→ Integrated Analog Channels
4 analog inputs (voltage/current) and 2 analog outputs provide process variable monitoring and setpoint control. Factory-calibrated to ±0.1% accuracy for instrumentation-grade performance.

✓ 512KB Program Memory
Accommodates moderately complex ladder logic, structured text, and function block programs. Sufficient capacity for 3,000+ rungs with data logging and recipe management.

✓ Hot-Swappable I/O Expansion
Supports up to 30 additional 1769 modules on the same backplane. Scale from 20 to 500+ I/O points without controller replacement.

Industry Applications & Problem Resolution

Packaging Machinery Control
Manages servo-driven filling stations, conveyor indexing, and reject mechanisms in food & beverage lines. The integrated analog I/O monitors fill weights and adjusts valve timing in real-time, reducing product giveaway by 2-5%. Ethernet/IP connectivity enables recipe downloads from plant MES systems.

Water Treatment Automation
Controls pump sequencing, chemical dosing, and filtration cycles in municipal and industrial facilities. Analog inputs track pH, turbidity, and flow rates while outputs modulate chemical feed pumps. Remote monitoring via Ethernet reduces site visits by 60%.

Material Handling Systems
Coordinates conveyor networks, sortation gates, and barcode scanners in distribution centers. Digital I/O interfaces with photoelectric sensors and pneumatic actuators, while Ethernet links to warehouse management systems for real-time routing decisions.

HVAC & Building Automation
Regulates air handlers, chiller plants, and VAV boxes in commercial facilities. Analog channels measure temperature, pressure, and airflow; outputs drive damper actuators and VFDs. BACnet/IP gateway integration enables enterprise energy management.

OEM Machine Builders
Embedded into CNC routers, laser cutters, and assembly stations sold globally. Compact footprint fits tight electrical enclosures; global voltage compatibility (85-265VAC) simplifies international deployments.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this controller when your application requires 50-200 I/O points, moderate program complexity (under 3,000 rungs), and Ethernet-based communication. For applications exceeding 512KB memory or requiring motion control beyond basic positioning, consider the 1769-L33ER (2MB) or 1769-L36ERM (3MB with motion). If analog I/O is not needed, the 1769-L23E-QB1B (digital-only variant) offers cost savings.

Advanced Integration Features

Studio 5000 Ecosystem Compatibility
Full support for Add-On Instructions (AOI), User-Defined Data Types (UDT), and Logix5000 tag-based programming. Import/export routines across ControlLogix and CompactLogix platforms for code reusability.

Embedded Web Server
Built-in diagnostics portal accessible via standard web browser. View controller status, I/O health, and network statistics without specialized software. Supports custom HMI pages using HTML5.

CIP Safety Integration
Seamlessly integrates with GuardLogix safety I/O and safety relays over standard Ethernet. Reduces safety system wiring and enables centralized safety logic management.

Third-Party Device Support
Communicates with 5,000+ ODVA-certified Ethernet/IP devices including VFDs, servo drives, vision systems, and RFID readers. EDS file import simplifies device configuration.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (ships from regional distribution centers in North America, Europe, and Asia-Pacific).

Custom Configuration: 10-15 business days for pre-programmed controllers with customer-specific firmware and I/O mapping.

Warranty Coverage: 18-month manufacturer warranty covering defects in materials and workmanship. Extended service plans available for mission-critical applications.

Technical Support: Lifetime access to application engineering team for programming assistance, network troubleshooting, and system optimization. Remote diagnostics via VPN available 24/7.

Documentation Package: Includes quick-start guide, wiring diagrams, sample ladder logic programs, and Studio 5000 project templates. Multilingual manuals available in English, Spanish, German, and Mandarin.

Frequently Asked Questions

Can this controller replace an existing SLC 500 or MicroLogix system?
Yes, migration tools in Studio 5000 convert SLC 500 and MicroLogix programs to Logix5000 format. Expect 70-80% automatic conversion; remaining logic requires manual validation. I/O mapping must be reconfigured for CompactLogix hardware.

What is the maximum Ethernet/IP network size supported?
Supports up to 250 nodes per network segment. For larger installations, use managed switches with IGMP snooping to segment traffic. Recommended maximum: 50 I/O devices per controller for optimal scan time.

Does the integrated analog I/O support HART protocol devices?
No, onboard analog channels are standard voltage/current only. For HART communication, add a 1769-IF4XOF2 analog module with HART pass-through capability.

How do I configure the digital I/O as sinking vs. sourcing?
Digital points are electronically configurable via Studio 5000 software. No physical jumpers required. Each point can be independently set as source (PNP) or sink (NPN) to match sensor wiring.

Is redundant controller configuration possible with this model?
No, the L23E series does not support redundancy. For fault-tolerant applications, specify ControlLogix redundant systems (1756-L7x series) with hot-backup capability.

What cybersecurity features are included?
Supports role-based access control, encrypted firmware updates, and audit logging. Compatible with Cisco Industrial Security Appliances and Rockwell FactoryTalk AssetCentre for centralized security management.

Get Started with Your Automation Project

Ready to simplify your control system architecture? Our application engineers will review your I/O requirements, network topology, and program complexity to confirm compatibility. Request a detailed quotation including controller, power supply, and recommended I/O modules. Volume pricing available for OEM and system integrator partners.

Next Steps: Contact our sales team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application. Mention catalog number 1769-L23E-QBFC1B for priority processing.
