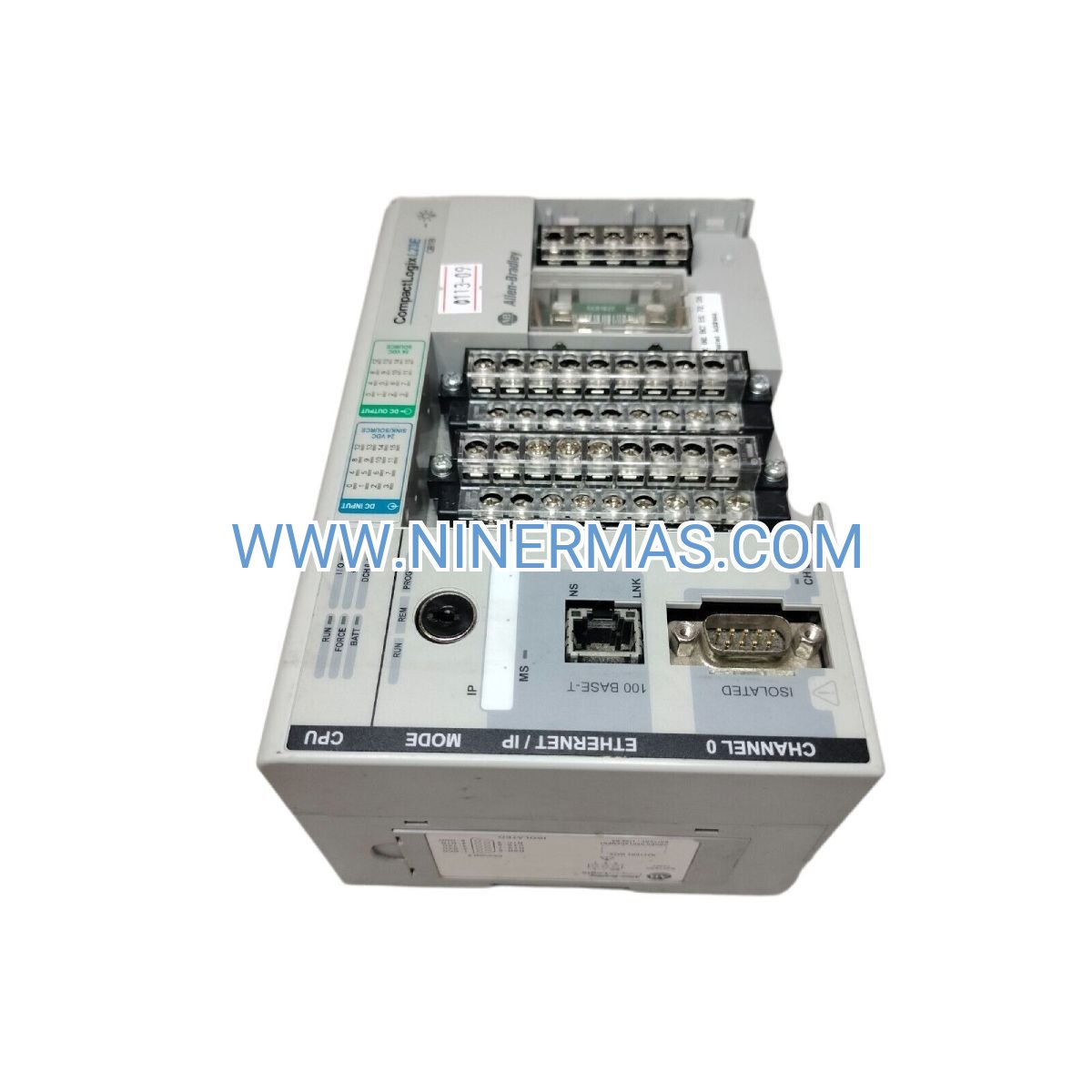

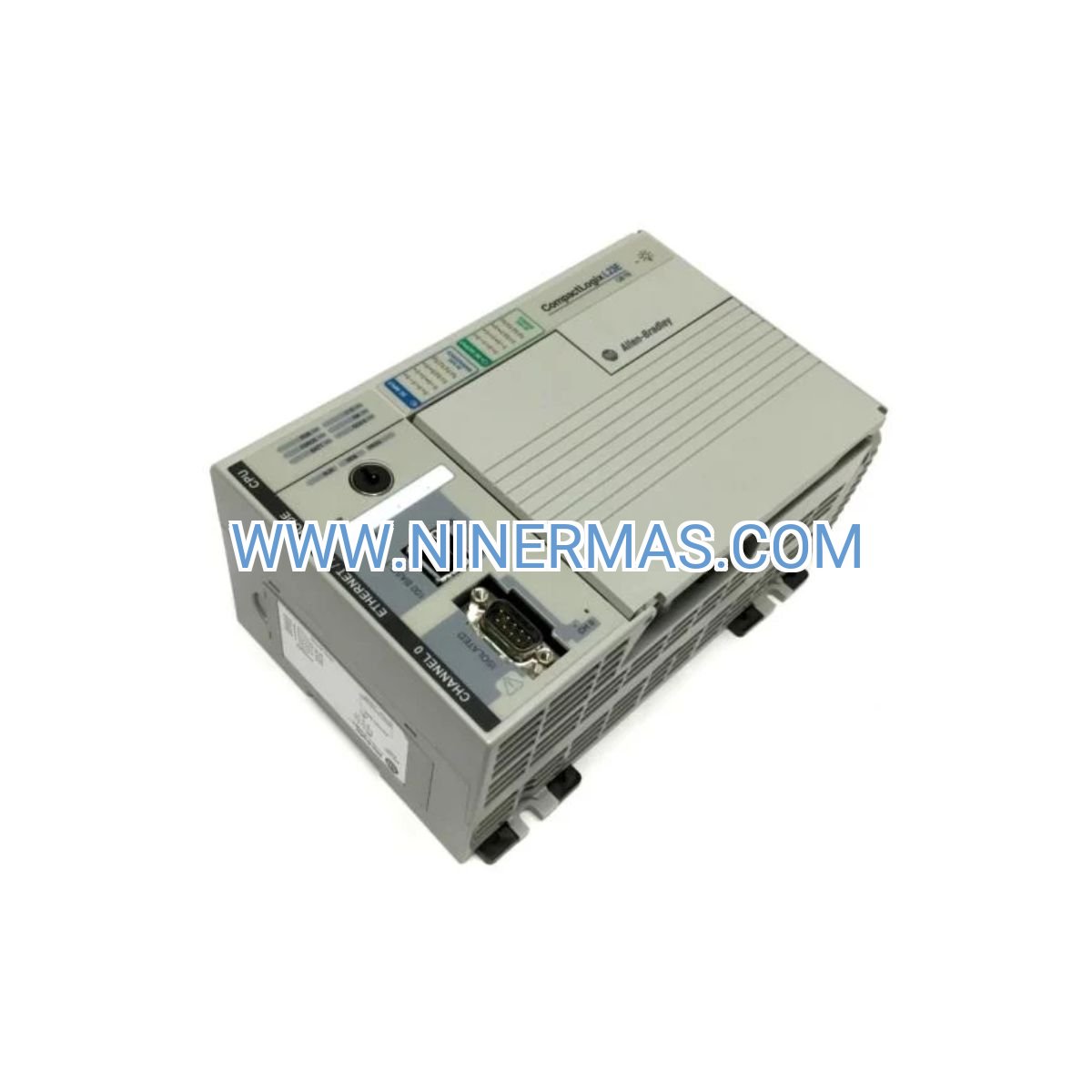

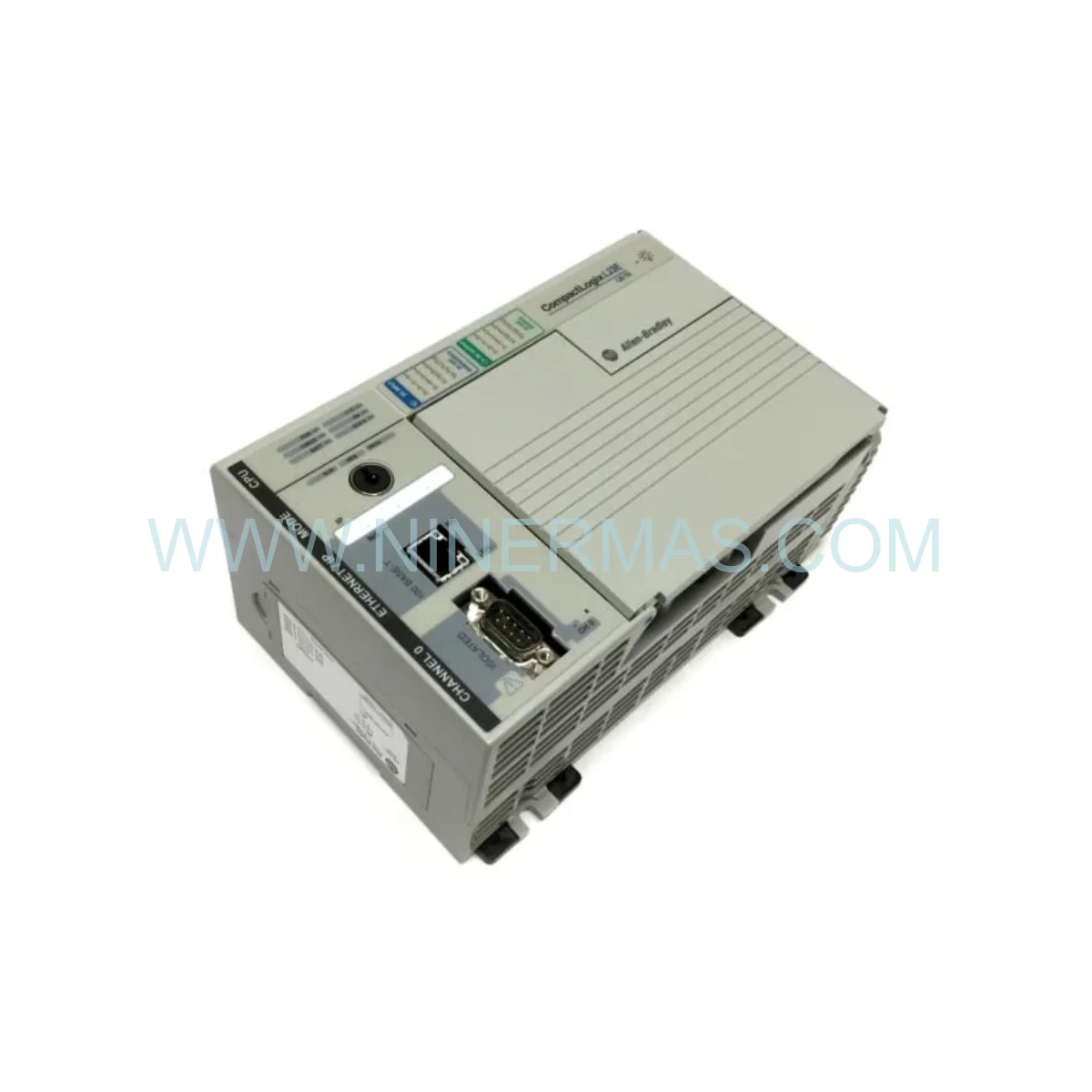

1769-L23E-QB1B CompactLogix Ethernet Controller (Industrial-Grade Automation Solution)

The 1769-L23E-QB1B represents a versatile programmable logic controller engineered for mid-tier industrial automation deployments. This CompactLogix platform combines 512KB user memory capacity with native Ethernet/IP communication and factory-integrated digital I/O—delivering a consolidated control solution that minimizes footprint while maximizing operational flexibility. Designed for manufacturers seeking reliable, scalable automation without excessive complexity, this controller bridges the gap between basic relay logic and enterprise-level distributed control systems.

Manufacturing facilities, packaging lines, and material handling operations demand controllers that balance processing capability with practical integration. The 1769-L23E-QB1B addresses these requirements through its embedded 16-input/16-output configuration, eliminating the need for separate I/O modules in compact machine designs. Whether you're retrofitting legacy equipment or building new production cells, this controller provides the processing headroom and connectivity options essential for modern industrial networks.

Key advantages include reduced wiring complexity through integrated I/O, seamless network integration via built-in Ethernet, and compatibility with the extensive 1769 I/O ecosystem. The controller's 512KB memory supports moderately complex logic programs while maintaining fast scan times, making it ideal for applications requiring responsive control without the overhead of high-end processors.

Core Features & Business Value

✓ 512KB User Memory Architecture: Sufficient capacity for 10,000+ ladder logic rungs or structured text programs, supporting complex sequencing, recipe management, and data logging without performance degradation.

✓ Native Ethernet/IP Connectivity: Eliminates communication adapters—direct connection to plant networks enables real-time data exchange with HMI systems, SCADA platforms, and MES databases for production visibility.

✓ Embedded 16-Point Digital I/O (24VDC): Factory-integrated inputs and outputs reduce module count by 30-40% in typical installations, cutting panel space requirements and installation labor by 4-6 hours per system.

✓ DIN Rail Mounting Compatibility: Standard 1769 form factor allows seamless integration with existing CompactLogix systems—add up to 30 local expansion modules or 16 distributed I/O racks via Ethernet.

✓ Studio 5000 Programming Environment: Leverage industry-standard IEC 61131-3 languages (ladder, structured text, function block) with built-in diagnostics, online editing, and version control for efficient development cycles.

✓ Industrial Temperature Rating (0-60°C): Proven reliability in harsh manufacturing environments—conformal coating and robust enclosure design ensure 100,000+ MTBF hours in typical applications.

Typical Application Scenarios

→ Packaging Machinery Control: Coordinate servo drives, vision systems, and conveyor networks in high-speed packaging lines. The integrated I/O handles sensor inputs (product detection, jam monitoring) while Ethernet connectivity synchronizes with upstream ERP systems for batch tracking and quality data collection.

→ Material Handling Automation: Manage conveyor routing, sortation logic, and warehouse automation systems. The controller's fast scan time (sub-10ms typical) ensures precise timing for diverter gates and pusher mechanisms, while network connectivity enables real-time inventory updates to WMS platforms.

→ Process Control & Monitoring: Regulate temperature loops, pressure control, and flow management in chemical processing or food production. Integrated I/O connects directly to 4-20mA transmitters and control valves, with Ethernet enabling historian integration for compliance documentation and trend analysis.

→ Machine Tool Integration: Coordinate CNC machining centers, robotic load/unload systems, and tool changers. The controller manages interlock logic and safety circuits through embedded I/O while communicating part programs and cycle counts to production scheduling systems via Ethernet.

→ Water/Wastewater Treatment: Automate pump sequencing, level control, and chemical dosing systems. The controller's reliability and diagnostic capabilities reduce unplanned downtime by 25-35%, while network connectivity enables remote monitoring and alarm notification to reduce site visits.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-L23E-QB1B when your application requires 200-500 I/O points, moderate program complexity (under 10,000 rungs), and Ethernet connectivity without motion control. For applications exceeding 750KB memory or requiring integrated motion, consider the 1769-L33ERM or L36ERM models. If Ethernet is unnecessary, the 1769-L23E-QBFC1B offers similar capabilities with ControlNet instead.

Extended Functions

IoT & Industry 4.0 Integration: The controller supports MQTT publish/subscribe messaging through add-on instructions, enabling direct cloud connectivity to AWS IoT Core, Azure IoT Hub, or private MQTT brokers. This facilitates predictive maintenance analytics, remote diagnostics, and production KPI dashboards without middleware servers.

Advanced Diagnostics: Built-in web server provides real-time controller status, I/O health monitoring, and network diagnostics accessible via standard web browsers—reducing troubleshooting time by 40-50% compared to traditional HMI-only interfaces.

Customization Options: Factory configuration services available for pre-loaded application templates, custom I/O mapping, and network parameter pre-configuration. Bulk orders (10+ units) qualify for custom firmware versions and extended temperature range testing (-25 to 70°C) for specialized environments.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units via express courier (DHL/FedEx). Expedited same-day shipping available for critical downtime situations (additional fees apply).

Custom Configuration: 7-10 business days for factory-programmed controllers with customer-specific logic, I/O configurations, or network settings pre-loaded and tested.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance issues. Warranty includes advance replacement service—receive replacement unit before returning defective hardware to minimize downtime.

Technical Support: Lifetime access to application engineering support via email and phone. Support includes programming assistance, network troubleshooting, I/O configuration guidance, and firmware update recommendations. Average response time: 4 hours for critical issues, 24 hours for general inquiries.

Documentation Package: Each controller ships with installation quick-start guide, wiring diagrams, Studio 5000 sample programs, and Ethernet/IP configuration templates. Full technical manuals and CAD drawings available for download via product support portal.

Frequently Asked Questions

Q: What communication protocols does the 1769-L23E-QB1B Ethernet port support?
A: The controller natively supports Ethernet/IP (industrial protocol), Modbus TCP (via add-on instructions), and standard TCP/IP socket communications. It can simultaneously manage up to 32 Ethernet/IP connections for distributed I/O, HMI panels, and SCADA systems.

Q: How does the integrated I/O capacity compare to adding separate modules?
A: The embedded 16-input/16-output configuration eliminates the need for two standard I/O modules (typically 1769-IQ16 and 1769-OB16), saving approximately $600-800 in hardware costs plus 4-6 hours of installation labor. The integrated I/O shares the controller's power budget, reducing overall system power consumption by 8-12W.

Q: Can this controller achieve energy monitoring or power metering functions?
A: Yes, when paired with 1769-IF4XOF2 analog modules or PowerMonitor devices via Ethernet/IP, the controller can log energy consumption data, calculate efficiency metrics, and trigger alarms based on power thresholds. Sample energy monitoring programs available in our technical library.

Q: What are the physical installation requirements for panel mounting?
A: The controller requires standard 35mm DIN rail (EN 50022 specification), minimum 15cm clearance above and below for ventilation, and 24VDC power supply rated for 10W minimum (recommend 20W for headroom). Panel ambient temperature must remain below 50°C for full-rated operation; above 50°C, derate by 10% per 5°C increment.

Q: Does the 1769-L23E-QB1B support remote firmware updates over Ethernet?
A: Yes, firmware updates can be performed remotely via Studio 5000 software over Ethernet/IP connection. The controller supports online firmware updates (no downtime required for minor revisions) and offline updates for major version changes. Always verify compatibility with existing I/O modules before updating firmware.

Q: How do I implement redundant Ethernet connectivity for critical applications?
A: While this controller has a single Ethernet port, you can implement network redundancy using external managed Ethernet switches with ring topology (DLR - Device Level Ring protocol). For controller-level redundancy, consider the 1769-L3xER series with dual Ethernet ports and built-in redundancy features.

Take the Next Step

Ready to streamline your automation architecture? Contact our application engineering team for a free system design consultation. We'll review your I/O requirements, network topology, and performance objectives to confirm the 1769-L23E-QB1B is the optimal solution—or recommend alternative configurations if your application demands different capabilities.

Request a quote: Email your project specifications to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Volume pricing available for orders of 5+ units.
