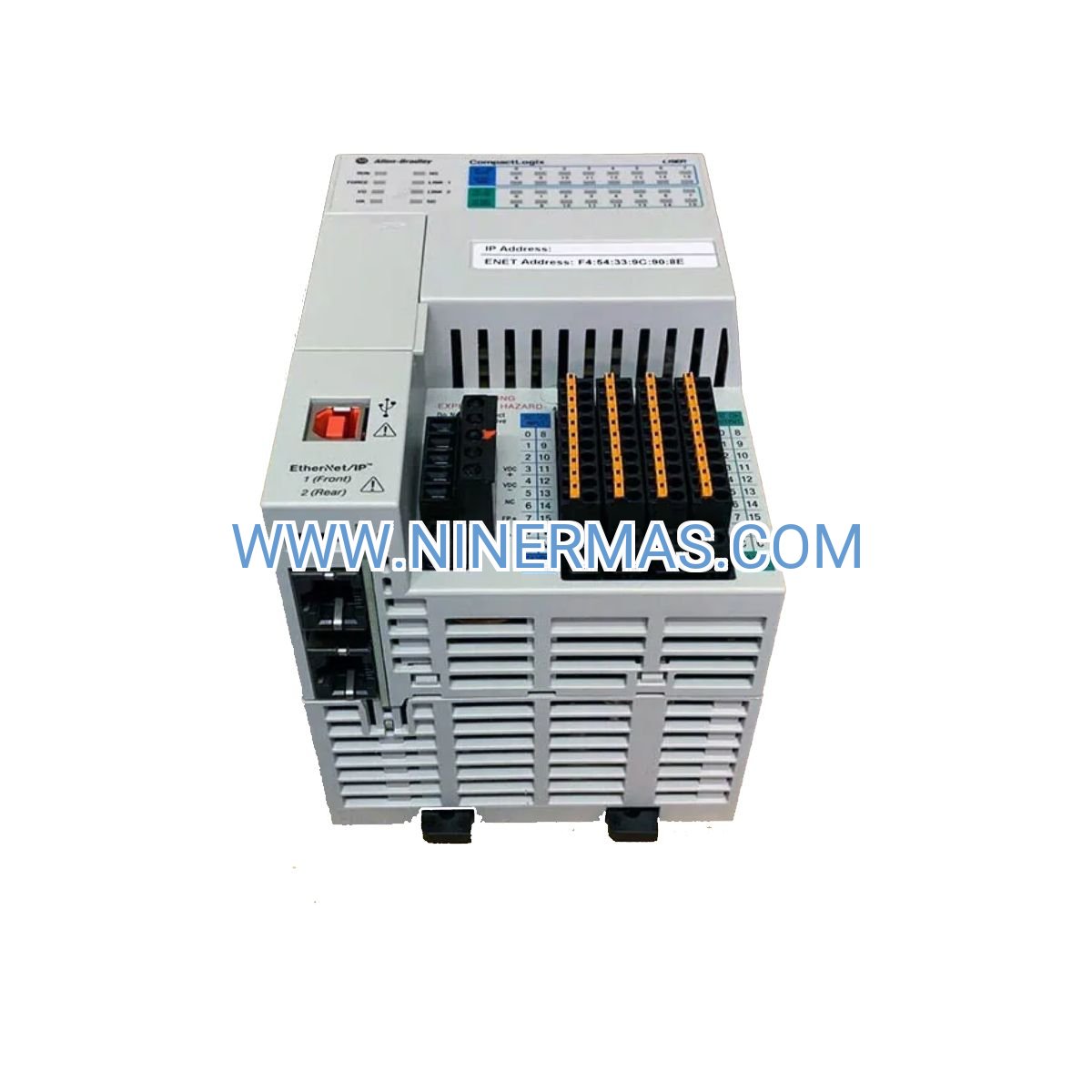

1769-L19ER-BB1B CompactLogix Controller (Industrial-Grade Network Redundancy Solution)

The 1769-L19ER-BB1B represents Allen-Bradley's advanced approach to compact automation control, combining 1MB user memory capacity with 16 configurable embedded digital I/O points and dual EtherNet/IP communication interfaces. This CompactLogix L19 controller delivers Device Level Ring (DLR) network redundancy in a space-efficient form factor, eliminating single points of failure in mission-critical manufacturing environments.

Designed for industrial applications where continuous uptime is non-negotiable, this controller addresses the challenge of maintaining operational continuity during network disruptions. Manufacturing engineers, system integrators, and automation professionals rely on the 1769-L19ER-BB1B to build resilient control architectures that minimize unplanned downtime and reduce total cost of ownership.

Key differentiators include integrated I/O that reduces panel footprint by up to 40%, dual communication ports that enable seamless DLR topology integration, and compatibility with the entire 1769 I/O ecosystem for unlimited scalability. Whether you're retrofitting legacy systems or designing new automation solutions, this controller delivers enterprise-class reliability in a compact package.

Core Features & Business Value

✓ Dual EtherNet/IP Ports with DLR Support
Built-in network redundancy ensures continuous operation even when one communication path fails. Eliminates costly downtime and maintains production schedules during network maintenance or cable damage incidents.

✓ 16 Embedded Digital I/O Points
Configurable input/output channels reduce external I/O module requirements, cutting hardware costs by 25-35% and simplifying wiring complexity. Ideal for compact machine designs with limited panel space.

✓ 1MB User Memory Architecture
Ample program and data storage supports complex control logic, recipe management, and data logging applications without performance degradation. Accommodates future feature additions without controller replacement.

→ Scalable I/O Expansion (Up to 8 Modules)
Seamless integration with 1769 digital, analog, specialty, and communication modules enables system growth as production demands evolve. Protects initial investment through modular expansion capability.

→ Studio 5000 Programming Environment
Leverages industry-standard Logix Designer software for rapid development, troubleshooting, and maintenance. Reduces engineering time through reusable code libraries and proven programming practices.

→ Wide Operating Temperature Range (0-60°C)
Reliable performance in harsh industrial environments including foundries, chemical processing, and outdoor installations. UL/cUL/CE certifications ensure global compliance and safety standards adherence.

Application Scenarios

Packaging Line Automation
High-speed packaging operations demand zero-downtime control systems. The 1769-L19ER-BB1B's DLR capability maintains continuous operation during network cable replacement or switch failures, preventing costly production stoppages that can exceed $10,000 per hour in lost output.

Material Handling & Conveyor Systems
Distributed conveyor networks spanning multiple zones benefit from embedded I/O that reduces wiring runs by 60% compared to remote I/O architectures. DLR topology ensures seamless handoffs between control zones even during communication disruptions.

Process Control & Batch Manufacturing
Recipe-driven production requires reliable data retention and precise sequencing. The 1MB memory capacity supports complex batch formulas, alarm management, and production tracking while maintaining deterministic control performance.

Machine Tool & CNC Integration
Compact machine designs benefit from the controller's small footprint (35mm width) and integrated I/O. Dual EtherNet ports enable simultaneous HMI communication and plant-floor network connectivity without additional switches.

Water/Wastewater Treatment Systems
Remote pump stations and treatment facilities require robust controllers that operate reliably in temperature extremes. The 1769-L19ER-BB1B's industrial-grade construction and network redundancy ensure continuous monitoring and control of critical infrastructure.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-L19ER-BB1B when your application requires network redundancy (DLR topology), integrated I/O to minimize panel space, and memory capacity between 512KB-2MB. For applications without DLR requirements, consider the 1769-L18ER model. For motion control needs, evaluate the 1769-L37ERM with integrated motion capabilities.

Extended Functions

IoT & Industry 4.0 Integration: EtherNet/IP connectivity enables seamless data exchange with MES systems, cloud platforms, and analytics tools through standard OPC-UA gateways. Real-time production data flows directly from controller tags to enterprise dashboards without custom programming.

Advanced Diagnostics: Built-in web server provides remote access to controller status, I/O health, and network diagnostics without requiring Studio 5000 software. Reduces troubleshooting time by 50% through browser-based monitoring from any connected device.

Customization Options: Factory configuration services available for pre-programmed controllers with customer-specific logic, reducing commissioning time by 3-5 days. Custom I/O configurations and network settings can be pre-loaded before shipment.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom-configured units require 7-10 business days for programming and testing.

Warranty Coverage: Comprehensive 12-month warranty covers defects in materials and workmanship. Extended warranty options available for critical applications requiring 24/7 uptime.

Technical Support: Complimentary pre-sales application engineering assistance and post-sales technical support via phone and email. Remote troubleshooting services available for network configuration and programming issues.

Documentation Included: User manual, installation guide, wiring diagrams, and sample ladder logic programs provided with every controller. Quick-start guide enables installation in under 30 minutes.

Frequently Asked Questions

What power supply module is compatible with the 1769-L19ER-BB1B controller?
The controller requires either a 1769-PA2 power supply (85-265V AC input) or 1769-PA4 (18-32V DC input) mounted on the same DIN rail. Power supplies are sold separately and must be ordered based on your facility's available voltage.

How many I/O modules can I connect to this CompactLogix controller?
The 1769-L19ER-BB1B supports up to 8 local 1769 I/O modules on the same DIN rail, plus unlimited distributed I/O via EtherNet/IP remote adapters. Total I/O capacity depends on memory allocation and scan time requirements.

Does the dual EtherNet/IP configuration improve network performance?
Dual ports primarily provide redundancy through DLR topology rather than increased bandwidth. In DLR mode, one port serves as the primary path while the second provides automatic failover if the primary connection is lost, ensuring zero-downtime communication.

What installation requirements should I consider for DIN rail mounting?
Standard 35mm DIN rail is required. Ensure adequate ventilation with 50mm clearance above and below the controller for proper heat dissipation. Ambient temperature must remain within 0-60°C for reliable operation.

Can I monitor this controller remotely without Studio 5000 software?
Yes, the built-in web server allows browser-based access to controller status, I/O diagnostics, and network health from any device on the same network. Full programming and logic editing still requires Studio 5000 Logix Designer software.

Is the embedded I/O suitable for high-speed counting applications?
The 16 embedded digital points are designed for standard discrete I/O (sensors, pushbuttons, indicators) with typical scan rates of 1-10ms. For high-speed counting (>10kHz) or motion applications, add a dedicated 1769 high-speed counter module.

Ready to Enhance Your Automation Reliability?

Eliminate network downtime and simplify your control architecture with the 1769-L19ER-BB1B CompactLogix controller. Our automation specialists are available to discuss your specific application requirements, recommend compatible I/O modules, and provide detailed technical specifications.

Contact our team today: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Request a detailed datasheet, pricing quote, or application engineering consultation.
