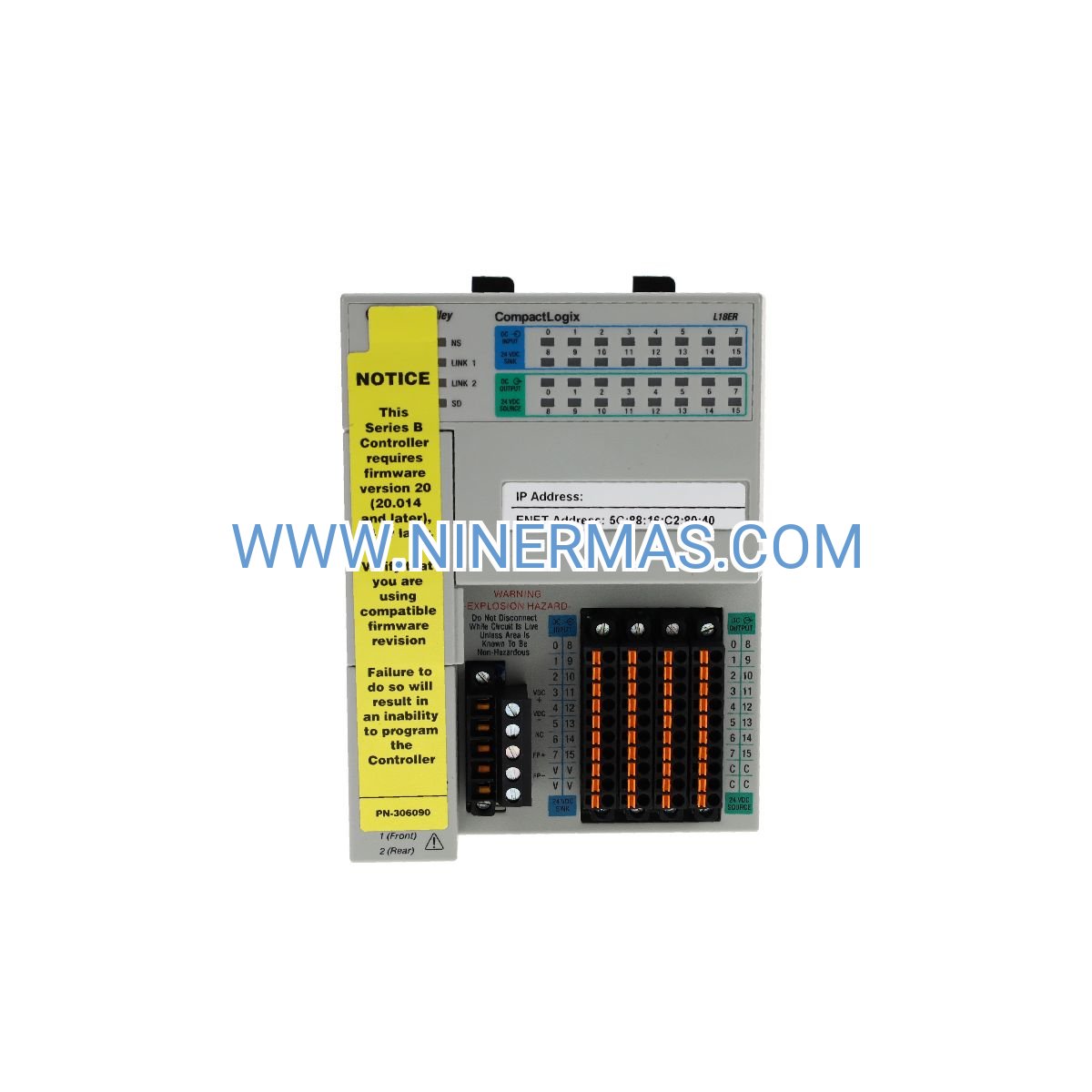

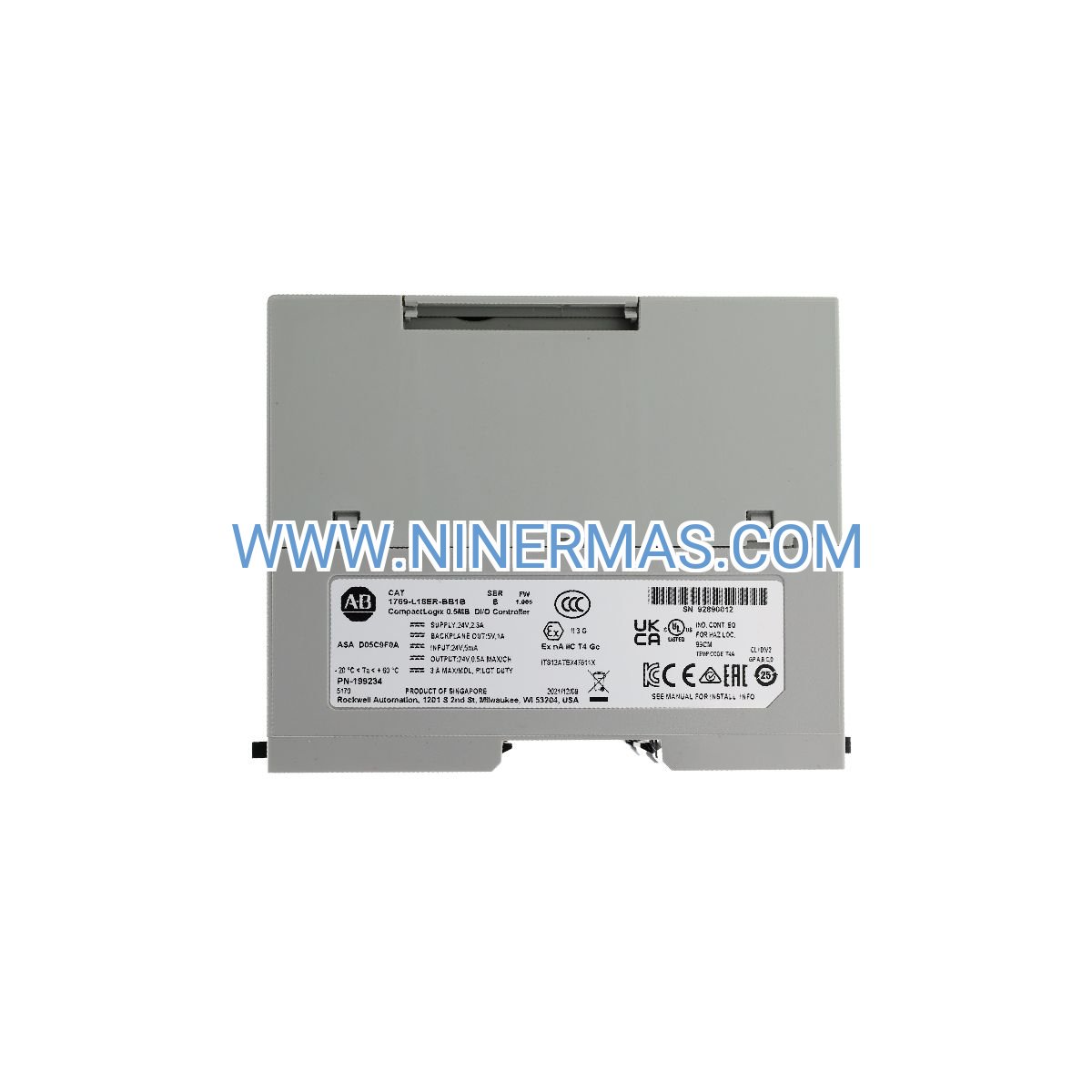

1769-L18ER-BB1B CompactLogix L18 Controller (Industrial-Grade Programmable Logic Platform)

The 1769-L18ER-BB1B represents a versatile programmable automation controller designed for mid-tier manufacturing and process control deployments. Built around a 512KB user memory architecture with integrated dual-port EtherNet/IP switching, this CompactLogix L18 platform addresses the connectivity, scalability, and performance demands of modern industrial environments—from discrete manufacturing cells to continuous process loops.

Engineered for system integrators and OEM machine builders who require deterministic control with flexible network topologies, the controller eliminates the need for external Ethernet infrastructure while supporting up to 16 coordinated servo axes. Whether you're retrofitting legacy relay logic or designing greenfield automation systems, the 1769-L18ER-BB1B delivers a proven foundation for mission-critical operations.

With certifications spanning UL, CE, RCM, and EAC standards, this controller meets global compliance requirements while maintaining compatibility with the broader Rockwell Automation Integrated Architecture ecosystem—enabling seamless integration with PowerFlex drives, Kinetix motion platforms, and FactoryTalk visualization tools.

Core Capabilities & Technical Advantages

→ Dual Embedded EtherNet/IP Ports
Integrated 10/100 Mbps switch functionality supports Device Level Ring (DLR) and linear topologies, reducing infrastructure costs by up to 40% compared to external switch-based architectures. Enables real-time producer/consumer messaging and CIP Motion synchronization across distributed I/O networks.

→ 512KB User Memory Capacity
Accommodates complex ladder logic programs, structured text algorithms, and function block diagrams with headroom for future expansion. Supports up to 250 program tasks and 1,000 tags for comprehensive process orchestration and data logging applications.

✓ 16-Axis Coordinated Motion Control
Native CIP Motion support delivers sub-millisecond servo update rates for synchronized multi-axis applications including gantry systems, pick-and-place robots, and electronic cam profiling. Eliminates standalone motion controllers in compact machine designs.

✓ Scalable I/O Architecture
Local expansion supports 8 CompactLogix 1769 modules (extendable to 16 with adapter), while distributed EtherNet/IP connectivity accommodates 32 remote I/O adapters—totaling 128,000 digital I/O points and 4,000 analog channels for enterprise-scale deployments.

✓ Embedded Web Diagnostics Server
Browser-based interface provides real-time controller status, I/O health monitoring, and fault diagnostics without requiring Studio 5000 software—accelerating troubleshooting by 60% during commissioning and maintenance cycles.

✓ Studio 5000 Logix Designer Integration
Unified programming environment supports IEC 61131-3 languages (Ladder, ST, FBD, SFC) with Add-On Instructions (AOI) for modular code reuse. Version 21+ compatibility ensures access to latest firmware enhancements and cybersecurity patches.

Industrial Application Scenarios

Packaging & Material Handling Lines
Deploy in high-speed cartoning machines, palletizers, and conveyor systems where coordinated motion between servo-driven axes and pneumatic actuators is critical. The controller's deterministic scan times (≤10ms) ensure precise product registration and reject mechanisms, reducing material waste by 15-25% compared to asynchronous control methods.

Process Manufacturing & Batch Control
Ideal for pharmaceutical mixing vessels, food & beverage pasteurization loops, and chemical dosing systems requiring ISA-88 batch sequencing. Analog I/O modules interface with 4-20mA transmitters for PID temperature/pressure control, while recipe management capabilities store 500+ formulations in non-volatile memory.

OEM Machine Integration
Machine builders leverage the compact 1769 form factor (35mm width) for CNC routers, laser cutting systems, and textile looms where panel space is constrained. EtherNet/IP connectivity simplifies wiring to remote operator stations and centralized SCADA systems, cutting installation time by 30-40%.

Water/Wastewater Treatment Facilities
Utilized in pump control skids, filtration systems, and chemical feed applications demanding 24/7 reliability. Dual Ethernet ports enable redundant network paths to supervisory HMIs, while the controller's -20°C to 60°C operating range accommodates outdoor enclosures in harsh climates.

Building Automation & HVAC Systems
Controls chiller plants, air handling units, and energy management systems with BACnet/IP gateway integration. Supports trend logging of 10,000+ data points for predictive maintenance analytics and LEED certification compliance reporting.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 1769-L18ER-BB1B when your application requires 256-4,000 I/O points, moderate motion control (≤16 axes), and dual Ethernet connectivity. For safety-rated applications, specify the GuardLogix 1769-L18ERM-BB1B variant with integrated CIP Safety protocol. Applications exceeding 512KB memory should consider the 1769-L36ERM (2MB) or 1769-L33ERM (1.5MB) processors.

Advanced Integration & Connectivity Options

IoT & Industry 4.0 Readiness
Native support for FactoryTalk Analytics LogixAI enables predictive maintenance algorithms and OEE tracking without third-party middleware. MQTT publish/subscribe capabilities (via Studio 5000 v33+) facilitate cloud data pipelines to AWS IoT Core, Azure IoT Hub, or on-premise historians.

Cybersecurity Features
CIP Security extensions provide role-based access control (RBAC), encrypted communications (TLS 1.2), and audit logging compliant with IEC 62443-4-2 standards. Change detection and firmware validation prevent unauthorized program modifications in regulated industries.

Custom Configuration Services
OEM partners can request factory-loaded application code, custom firmware bundles, and serialized asset tagging for streamlined machine commissioning. Consult with authorized Rockwell distributors for volume pricing on pre-configured controller kits.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders with custom configurations
Warranty Coverage: 12-month manufacturer defect warranty from ship date; extended 36-month plans available
Technical Support: Lifetime access to Rockwell Automation Knowledgebase, firmware updates, and application engineering hotline
Documentation Package: Includes installation manual (publication 1769-UM011), programming reference (1756-RM003), and sample ladder logic templates

Frequently Asked Questions

What programming software version is compatible with the 1769-L18ER-BB1B controller?
Studio 5000 Logix Designer v21 or later is required for full feature access. Legacy RSLogix 5000 v20 provides basic programming support but lacks motion control and cybersecurity enhancements. Firmware v32+ is recommended for optimal performance.

Can this controller interface with third-party variable frequency drives over Modbus TCP?
Yes, via the ProSoft MVI56-MCM communication module or native Add-On Instructions (AOI) for Modbus TCP client/server functions. The controller supports up to 16 simultaneous Modbus connections for integrating non-Rockwell devices like ABB, Siemens, or Schneider drives.

How does the dual Ethernet port configuration improve system uptime compared to single-port controllers?
Dual ports enable Device Level Ring (DLR) topologies with <3ms failover recovery during network cable breaks or switch failures. This architecture eliminates single points of failure in critical production lines, achieving 99.9% network availability versus 95-98% for linear topologies.

What is the maximum distance between the controller and distributed I/O racks over EtherNet/IP?
Standard Cat5e/Cat6 cabling supports 100 meters per segment. Extend to 2km using fiber optic media converters (1783-BMS10CGL) or industrial Ethernet switches with fiber uplinks. Total network diameter can reach 250 hops with proper switch configuration.

Does the controller require a battery backup for program retention during power outages?
No—the controller includes non-volatile flash memory that retains programs and data tags indefinitely without battery power. An optional 1769-BA lithium battery (catalog #1769-BA) extends retention of real-time clock settings and I/O forcing tables during prolonged outages (>30 days).

Is the 1769-L18ER-BB1B suitable for SIL-rated safety applications in pharmaceutical clean rooms?
This standard controller does not support safety-rated I/O per IEC 61508 or ISO 13849. For safety functions (emergency stops, light curtains, safety interlocks), specify the GuardLogix 1769-L18ERM-BB1B variant with integrated CIP Safety protocol and TÜV certification up to SIL 3 / PLe.

Request a Quote or Technical Consultation

Our application engineering team provides complimentary system design reviews, I/O configuration worksheets, and bill-of-materials optimization for projects requiring 5+ controllers. Contact us to discuss volume pricing, extended warranty options, or integration with existing Rockwell Automation infrastructure.
