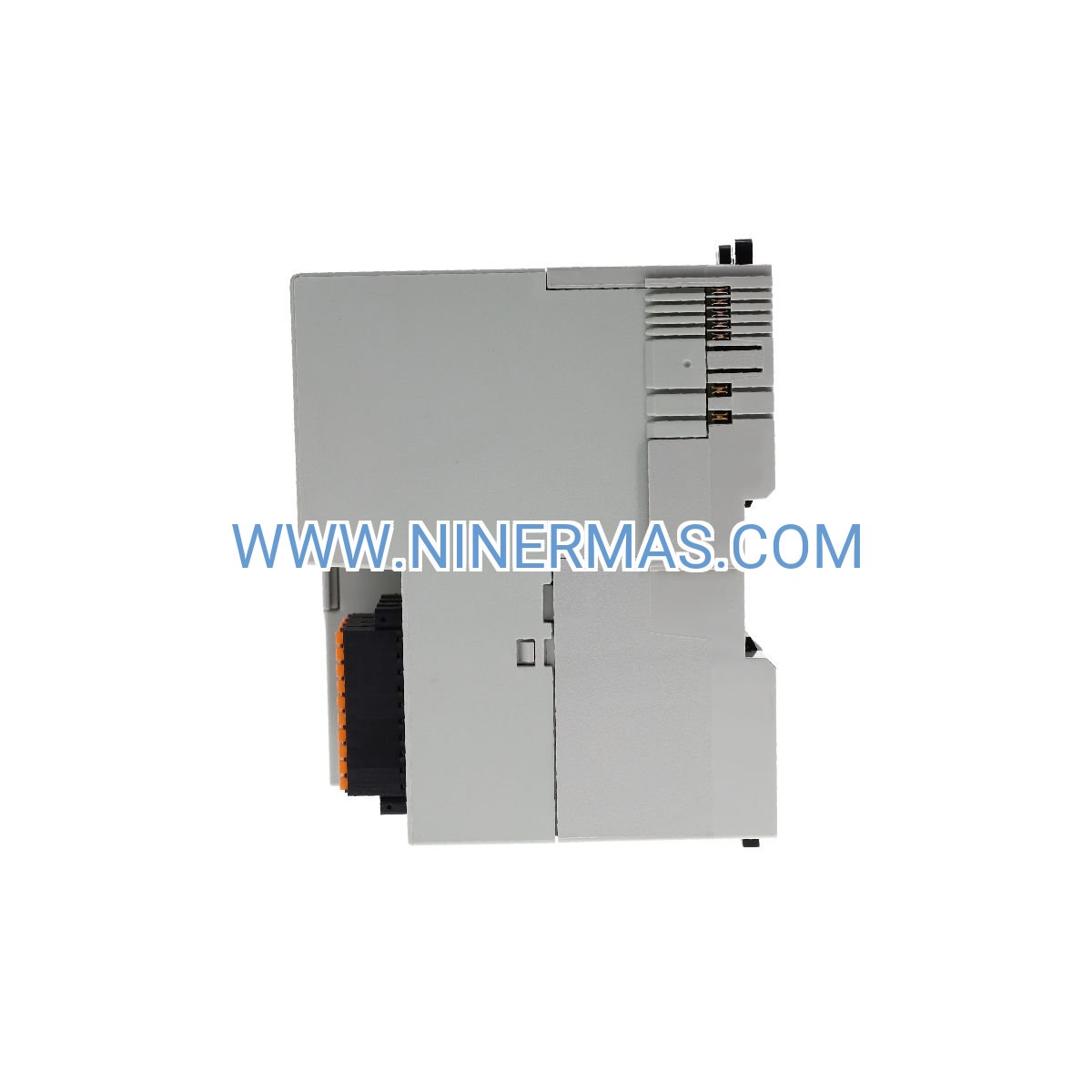

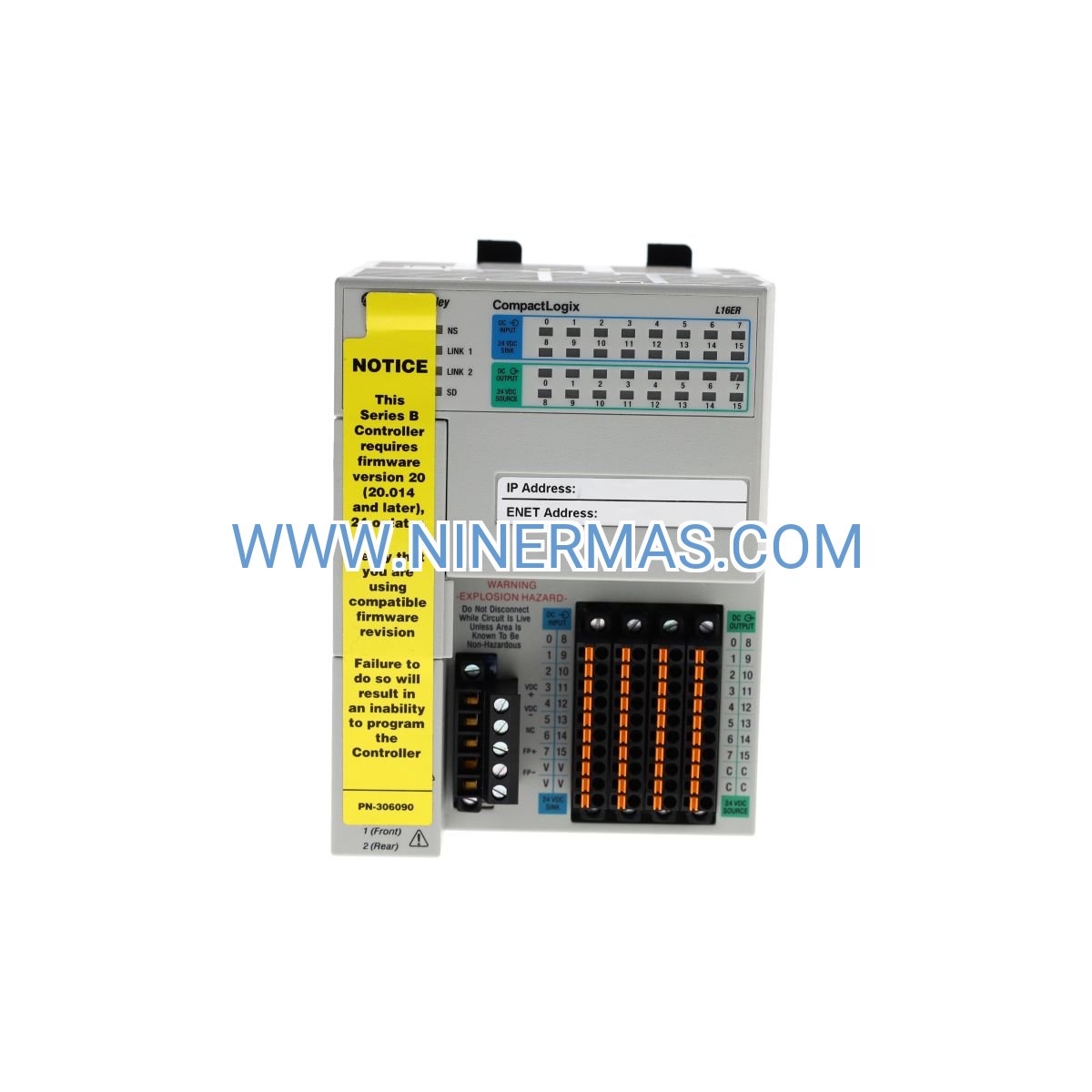

1769-L16ER-BB1B CompactLogix L16 Controller (Industrial-Grade Automation Platform)

The 1769-L16ER-BB1B represents Allen-Bradley's proven solution for mid-scale industrial control systems demanding network resilience and compact architecture. Engineered with 384KB user memory and dual EtherNet/IP communication ports, this CompactLogix L16 controller delivers deterministic performance for manufacturing, material handling, and process automation environments where downtime translates directly to revenue loss.

Designed for system integrators and plant engineers managing distributed control architectures, the 1769-L16ER-BB1B eliminates single points of network failure through Device Level Ring (DLR) protocol support. Whether you're retrofitting legacy relay logic or deploying greenfield automation projects, this controller provides the scalability and connectivity modern industrial operations require.

With certifications spanning UL, CE, and C-Tick standards, the 1769-L16ER-BB1B meets global compliance requirements while maintaining compatibility with the extensive 1769 I/O ecosystem. Factory-tested and backed by comprehensive technical documentation, this controller reduces commissioning time and long-term maintenance overhead.

Core Capabilities & Technical Advantages

→ Dual EtherNet/IP Architecture
Two embedded Ethernet ports enable linear daisy-chain or ring network topologies without external switches. Supports up to 32 CIP connections for seamless integration with HMIs, drives, and remote I/O racks. Reduces infrastructure costs by 30-40% compared to traditional star topologies.

→ Device Level Ring (DLR) Redundancy
Automatic network recovery in under 3ms during cable breaks or switch failures. Maintains continuous operation across production lines, packaging systems, and conveyor networks. Eliminates costly unplanned downtime in 24/7 manufacturing environments.

→ 384KB User Memory Capacity
Accommodates complex ladder logic, structured text programs, and function block diagrams with room for future expansion. Stores up to 128 PID loops, recipe management routines, and data logging functions without performance degradation.

✓ Modular I/O Expansion
Supports up to 16 local 1769 I/O modules including digital, analog, specialty, and communication cards. Hot-swappable modules reduce mean time to repair (MTTR) during maintenance windows. Compatible with over 60 I/O module variants for application-specific requirements.

✓ Studio 5000 Programming Environment
Full compatibility with Rockwell Automation's Studio 5000 Logix Designer (formerly RSLogix 5000). Leverages Add-On Instructions (AOIs), User-Defined Data Types (UDTs), and online editing capabilities. Supports IEC 61131-3 programming languages for global engineering teams.

✓ Compact DIN-Rail Footprint
Measures just 87mm (3.43") width × 118mm (4.65") height × 87mm (3.43") depth. Saves 40% panel space compared to rack-mounted PLC systems. Ideal for machine-mounted control cabinets and mobile equipment applications.

Industry-Specific Application Scenarios

Automotive Assembly Lines
Coordinates robotic welding cells, torque tool verification, and part tracking systems across multi-station assembly processes. DLR redundancy ensures zero-defect production during network maintenance. Integrates with RFID readers and vision systems via EtherNet/IP for quality traceability.

Food & Beverage Packaging
Controls high-speed filling, capping, and labeling equipment with synchronized motion profiles. Manages recipe changeovers and batch reporting for FDA 21 CFR Part 11 compliance. Withstands washdown environments when paired with IP67-rated I/O modules.

Water Treatment Facilities
Monitors pump stations, chemical dosing systems, and filtration processes across distributed SCADA networks. Logs flow rates, pressure trends, and alarm histories for regulatory reporting. Communicates with variable frequency drives (VFDs) for energy optimization.

Material Handling & Warehousing
Orchestrates conveyor sorting systems, automated storage/retrieval (AS/RS) cranes, and barcode scanning arrays. Handles up to 500 I/O points through remote I/O adapters. Reduces wiring costs by 60% in large-scale distribution centers.

Machine Tool & CNC Integration
Interfaces with servo drives, spindle motors, and tool changers for precision machining operations. Executes cam profiles and electronic gearing functions for synchronized multi-axis motion. Supports Modbus TCP and PROFINET gateways for hybrid automation ecosystems.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1769-L16ER-BB1B when your application requires network redundancy with moderate I/O density (under 128 points). For larger systems exceeding 16 local modules, consider the 1769-L33ER (2MB memory) or 1769-L37ERM (4MB memory). If safety-rated I/O is required, upgrade to GuardLogix 1769-L30ERMS controllers.

Advanced Integration & Connectivity Options

Industrial IoT & Cloud Connectivity
Integrate with FactoryTalk Edge Gateway for secure cloud data publishing to AWS, Azure, or on-premise historians. Supports OPC UA server functionality for Industry 4.0 initiatives. Enables predictive maintenance analytics through vibration, temperature, and energy consumption monitoring.

Third-Party Protocol Bridging
Communicate with legacy Modbus RTU/TCP devices, PROFIBUS networks, and DeviceNet systems via protocol gateway modules. Maintains investment protection during phased automation upgrades. Supports up to 8 simultaneous protocol conversions per controller.

Custom Function Block Libraries
Deploy pre-engineered Add-On Instructions (AOIs) for PID tuning, motor control, and alarm management. Reduces programming time by 50% for repetitive machine types. Access Rockwell Automation's online library with 200+ certified AOIs.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (express shipping available)
Custom Configuration: 7-10 business days for pre-programmed controllers with customer-specific logic
Warranty Coverage: 12-month manufacturer defect warranty from shipment date
Technical Support: Lifetime email/phone support for configuration, troubleshooting, and firmware updates
Documentation Package: Includes installation manual, wiring diagrams, sample ladder logic, and certification documents

Frequently Asked Questions

What programming software version is compatible with the 1769-L16ER-BB1B controller?
Requires RSLogix 5000 version 16.03 or later, or Studio 5000 Logix Designer v21 and above. Firmware updates available through ControlFLASH utility. Supports Windows 10/11 operating systems for programming workstations.

Can this controller handle motion control applications with servo drives?
Yes, supports coordinated motion profiles for up to 8 servo axes via EtherNet/IP. Executes cam profiles, electronic gearing, and point-to-point positioning. Requires Kinetix 5500/5700 servo drives for optimal performance. Not recommended for high-speed CNC applications exceeding 16 axes.

What is the maximum network distance between controllers in a DLR ring topology?
Supports up to 100 meters (328 feet) between nodes using standard Cat5e/Cat6 Ethernet cables. Extended distances up to 2km achievable with industrial fiber optic media converters. Ring recovery time remains under 3ms regardless of cable length within specifications.

Does the 1769-L16ER-BB1B support redundant controller configurations?
No, this model does not support hot-backup redundancy. For mission-critical applications requiring controller-level redundancy, specify ControlLogix 1756-L7x series with redundancy modules. DLR network redundancy is supported for communication path protection only.

How do I calculate power supply requirements for my I/O configuration?
Sum the current draw of all installed I/O modules from their datasheets. Add 1.5A for the controller base consumption. Select 1769-PA2 (5A total) for basic configurations or 1769-PA4 (10A total) for fully populated racks. Include 20% safety margin for future expansion.

Is remote firmware updates supported over EtherNet/IP networks?
Yes, firmware updates can be performed remotely using ControlFLASH software over Ethernet connections. Requires temporary production shutdown during 5-8 minute update process. Always backup controller program to .ACD file before initiating firmware changes.

Request Technical Consultation

Our automation specialists provide complimentary system design reviews for projects involving 5+ controllers or complex integration requirements. Contact our engineering team to discuss:

• Network architecture optimization for DLR topologies
• I/O module selection and power budget calculations
• Migration strategies from legacy PLC-5 or SLC 500 systems
• Custom programming services and commissioning support
• Volume pricing for OEM machine builders and system integrators
