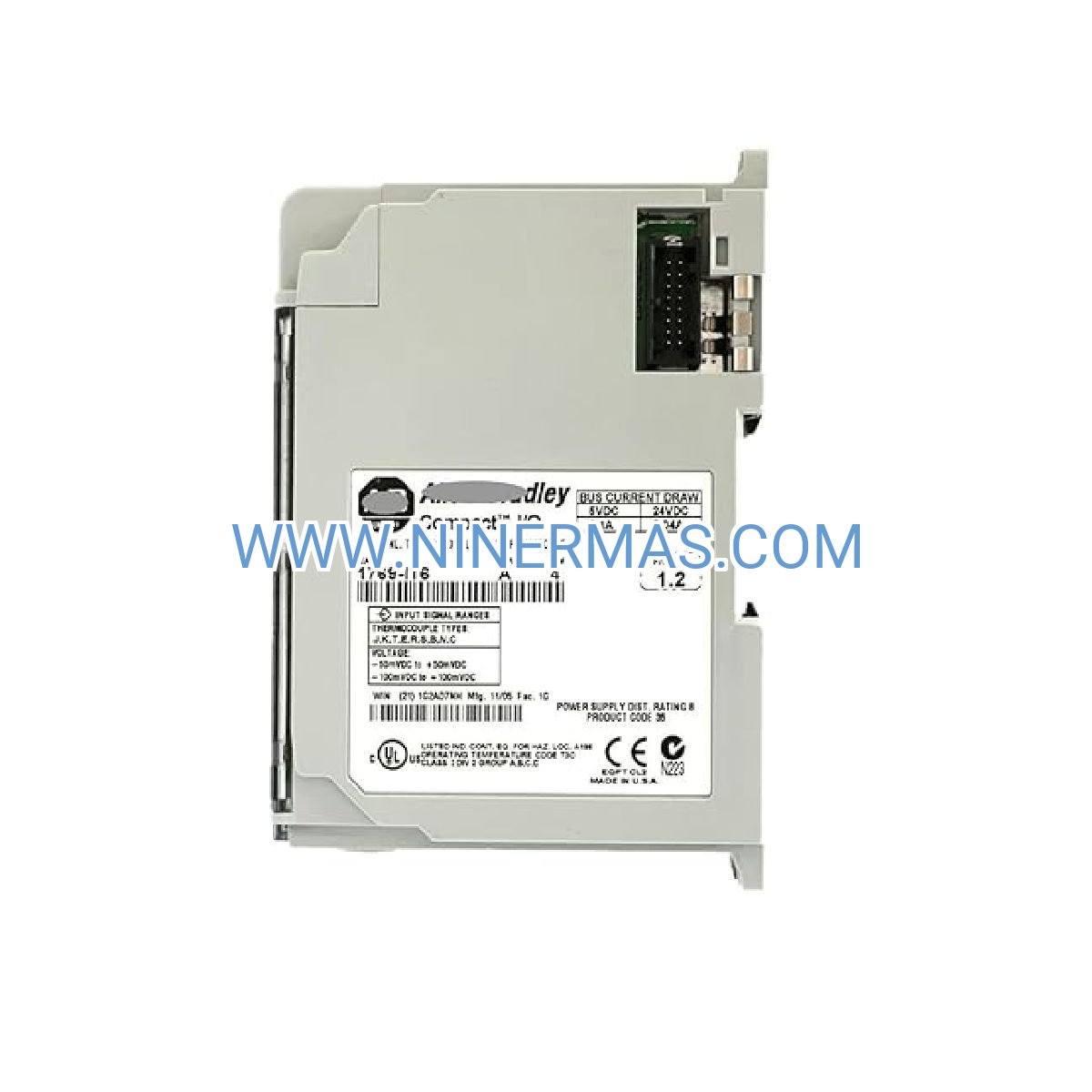

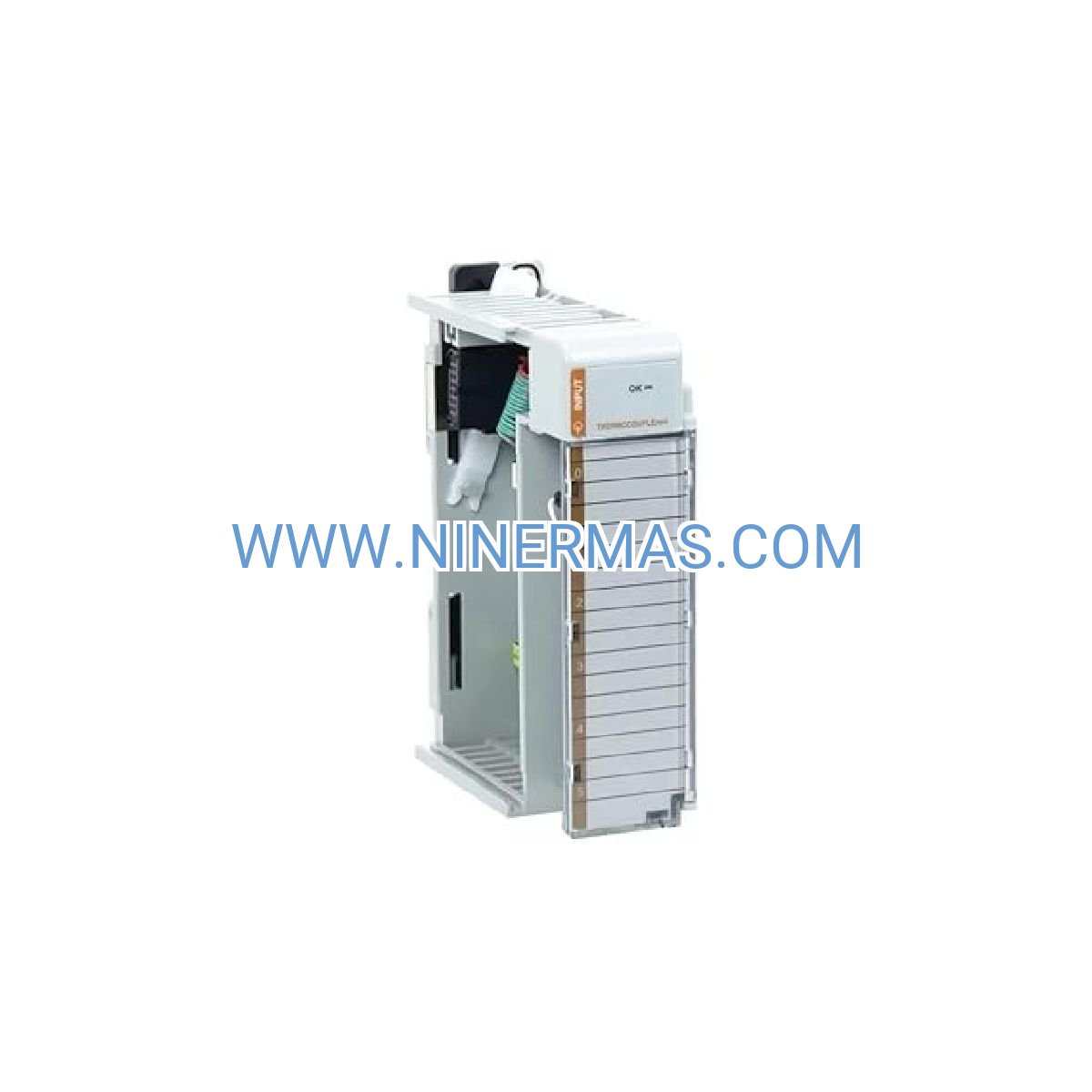

1769-IT6 Industrial-Grade Thermocouple Input Module (6-Channel Precision Temperature Acquisition)

The 1769-IT6 represents a professional-tier analog input solution engineered for mission-critical thermal monitoring in CompactLogix automation architectures. Featuring six galvanically isolated thermocouple channels with 720V DC channel-to-backplane protection, this module delivers laboratory-grade temperature measurement accuracy in electrically hostile industrial environments where conventional sensors fail.

Designed for process engineers and control system integrators who demand uncompromising reliability, the 1769-IT6 eliminates ground loop interference through true differential input topology while maintaining sub-7ms fault detection response times. Whether you're safeguarding turbomachinery in power generation facilities or maintaining pharmaceutical cold chain compliance, this module transforms raw thermocouple signals into actionable process intelligence.

With universal thermocouple compatibility spanning eight standardized types and 16-bit resolution across the entire measurement range, the 1769-IT6 adapts to diverse thermal monitoring requirements without hardware reconfiguration—reducing spare parts inventory while accelerating commissioning timelines.

Core Capabilities & Engineering Advantages

✓ Multi-Type Thermocouple Compatibility
Supports J, K, T, E, R, S, B, N, and C thermocouple types with software-selectable configuration per channel. Eliminates the need for multiple module variants and simplifies system design for mixed-temperature applications.

✓ High-Voltage Isolation Architecture
720V DC continuous isolation between each input channel and the I/O backplane prevents ground potential differences from corrupting measurements. Critical for installations with distributed grounding systems or high common-mode noise.

✓ Rapid Open-Circuit Fault Detection
7-millisecond sensor break detection with automatic status flagging enables predictive maintenance strategies and prevents undetected process deviations. Integrates seamlessly with alarm management systems via controller logic.

✓ 16-Bit Measurement Resolution
Analog-to-digital conversion at 16-bit precision delivers 0.1°C temperature discrimination across the full thermocouple range. Meets pharmaceutical GMP requirements and ISO 20816 vibration monitoring standards.

→ Backplane-Powered Operation
Draws only 1.5W from the 5V DC backplane supply, eliminating external power requirements and simplifying panel layout. Hot-swappable design with electronic keying prevents installation errors during maintenance.

→ Industrial Environmental Ratings
Operates reliably across 0°C to 60°C ambient temperatures with conformal coating protection against moisture, dust, and chemical exposure. Certified to UL 508, CE, and RCM standards for global deployment.

Industry-Specific Application Scenarios

Turbomachinery Vibration Monitoring Systems
In API 670-compliant rotating equipment protection schemes, the 1769-IT6 acquires bearing temperature data from RTD-backed thermocouples to detect incipient failures before catastrophic damage occurs. The module's high isolation voltage withstands VFD-induced electrical noise common in compressor and turbine installations, while 7ms fault detection ensures alarm systems respond within machinery protection time constants.

Petrochemical Reactor Temperature Profiling
Chemical process units require multi-point temperature mapping to maintain reaction kinetics within safe operating envelopes. The 1769-IT6's six independent channels monitor catalyst bed temperatures, reactor wall gradients, and product stream conditions simultaneously—feeding data to cascade control loops that optimize yield while preventing thermal runaway scenarios.

Power Generation Boiler Efficiency Optimization
Utility-scale boilers employ thermocouple arrays to balance combustion air distribution and minimize NOx emissions. By interfacing Type K thermocouples at economizer inlets, superheater outlets, and flue gas paths, the 1769-IT6 provides the thermal intelligence needed for trim control algorithms that improve heat rate by 2-4% while extending tube life.

Pharmaceutical Environmental Chamber Validation
GMP-regulated stability chambers and autoclave cycles demand traceable temperature documentation with ±0.5°C accuracy. The 1769-IT6's calibrated inputs generate audit-ready process records when paired with validated Studio 5000 HMI screens, supporting FDA 21 CFR Part 11 compliance for electronic batch records.

Food Processing Pasteurization Control
Dairy and beverage HTST systems rely on precise temperature control to achieve pathogen reduction without degrading product quality. The module's fast update rates enable tight PID loop tuning for holding tube temperature control, while isolated inputs prevent electrical interference from high-power heating elements.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1769-IT6 when your application requires six or fewer thermocouple inputs with high isolation. For applications needing 7-16 channels, consider the 1769-IT16 variant. Always pair with the 1769-CJC cold-junction compensator for accurate absolute temperature measurements. Verify that your CompactLogix controller firmware supports the module's feature set (minimum RSLogix 5000 v20 or Studio 5000 v21).

Advanced Integration & Customization Options

Studio 5000 Logix Designer Integration
The 1769-IT6 appears as a native I/O module in the Studio 5000 hardware tree with pre-configured Add-On Instructions (AOIs) for scaling, filtering, and alarm management. Engineers can implement custom linearization tables for non-standard thermocouple types or apply moving-average filters to dampen process noise without external function blocks.

FactoryTalk Historian Connectivity
When paired with FactoryTalk View SE or PanelView Plus HMIs, the module's temperature data streams directly to FactoryTalk Historian for long-term trending and regulatory compliance reporting. Built-in timestamp synchronization ensures data integrity for batch record reconstruction and process optimization analytics.

Redundant System Architectures
For high-availability applications, deploy dual 1769-IT6 modules in parallel with median-select voting logic to achieve SIL 2-rated temperature monitoring. The module's diagnostic status words enable automatic failover detection and operator notification through SCADA alarm systems.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-fresh sealed packaging
Expedited Shipping: DHL/FedEx express available for critical downtime scenarios (24-72 hour delivery to major industrial hubs)
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and calibration drift
Technical Support: Lifetime email/phone support for configuration assistance, troubleshooting, and integration guidance
Documentation Package: Includes factory calibration certificate, wiring diagrams, Studio 5000 sample code, and quick-start guide

Frequently Asked Questions

What cold-junction compensation hardware is required for the 1769-IT6 thermocouple module?
The 1769-CJC cold-junction compensator is mandatory for accurate absolute temperature readings and mounts directly to the CompactLogix backplane adjacent to the IT6 module. Without CJC, the module reports raw thermocouple millivolt signals requiring manual compensation calculations.

Can I configure different thermocouple types on each of the six input channels simultaneously?
Yes—each channel supports independent thermocouple type selection through Studio 5000 module configuration. You can monitor a Type K exhaust sensor, Type J process heater, and Type T ambient probe on the same module without hardware changes.

What is the maximum recommended thermocouple wire run length for the 1769-IT6 to maintain measurement accuracy?
Rockwell Automation recommends 100 meters (328 feet) maximum using shielded thermocouple extension wire with proper grounding practices. Longer runs may introduce noise pickup and voltage drop errors; consider transmitter-based solutions for distances exceeding 150 meters.

Does the 1769-IT6 support hot-swapping during live system operation?
Yes, when electronic keying is enabled in the controller configuration. The module can be removed and replaced under power without disrupting other I/O modules on the backplane, though active temperature measurements will fault during the swap interval.

How does the 1769-IT6 handle thermocouple burnout or open-circuit faults?
The module detects open circuits within 7 milliseconds and sets a diagnostic fault bit in the input data structure. Configure your ladder logic to trigger alarms, switch to backup sensors, or initiate safe shutdown sequences based on these fault flags.

Is the 1769-IT6 compatible with ControlLogix 5580 controllers or only CompactLogix platforms?
The 1769-IT6 is designed exclusively for CompactLogix 1769 I/O systems (5370/5380/5480 controllers). For ControlLogix applications, use the 1756-IT6I or 1756-IT6I2 thermocouple modules designed for the 1756 backplane architecture.

Request a Technical Consultation

Our application engineers are available to assist with thermocouple selection, wiring best practices, and Studio 5000 programming support. Contact our team for system integration quotes, volume pricing, or custom calibration services tailored to your process requirements.
