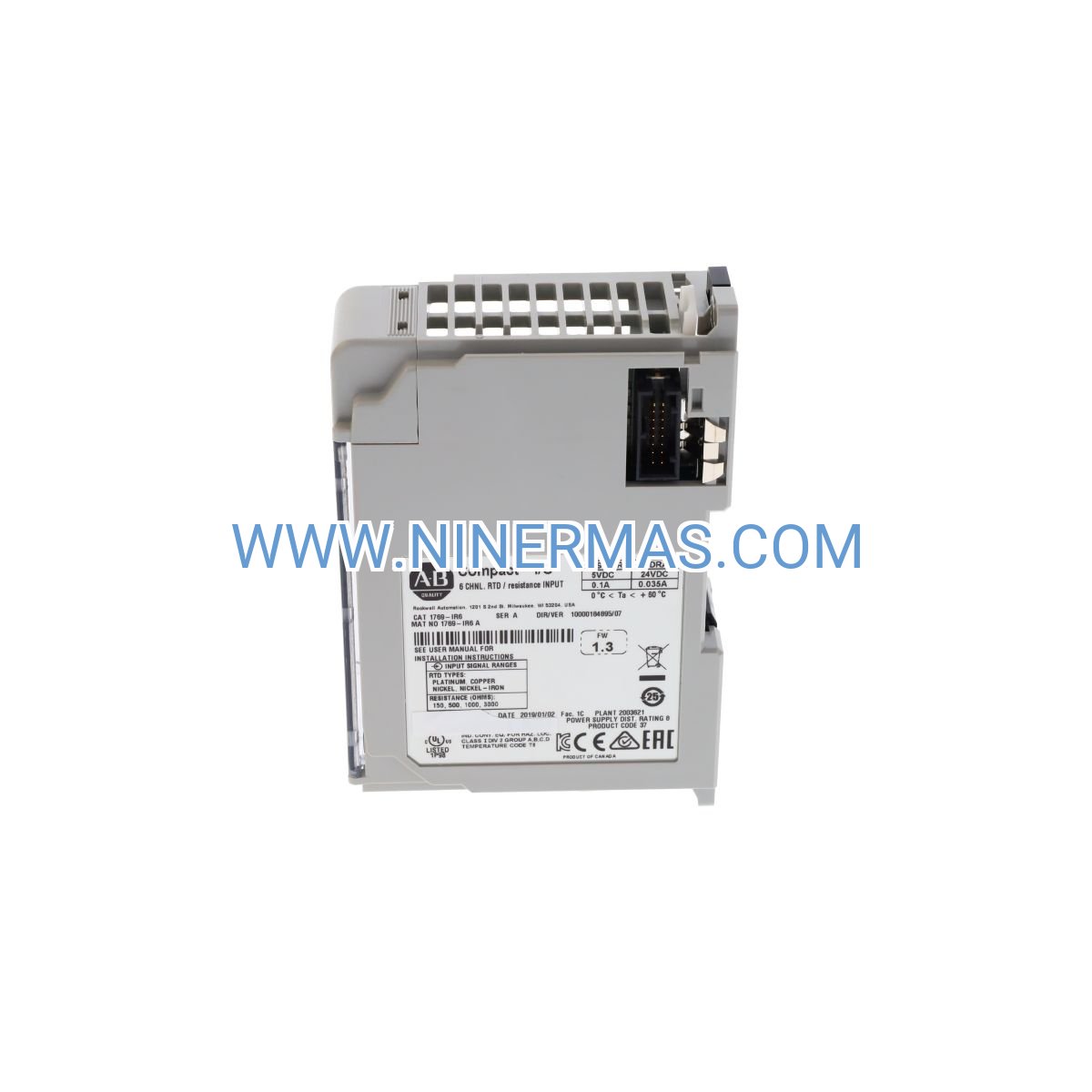

1769-IR6 RTD Temperature Input Module (Industrial-Grade Precision Sensing)

The Allen-Bradley 1769-IR6 is a high-performance resistance temperature detector (RTD) input module engineered for demanding industrial temperature measurement applications. Designed for seamless integration with CompactLogix control platforms, this 6-channel module delivers laboratory-grade accuracy in harsh production environments where thermal process control is mission-critical.

Process engineers and automation specialists rely on the 1769-IR6 to monitor critical temperature points across chemical reactors, heat treatment furnaces, pharmaceutical clean rooms, and food processing lines. With support for multiple RTD sensor types and flexible wiring configurations, this module adapts to diverse thermal monitoring requirements while maintaining exceptional measurement integrity.

Factory-calibrated and ready for immediate deployment, the 1769-IR6 eliminates time-consuming setup procedures and accelerates commissioning timelines. Its robust isolation architecture protects sensitive control circuits from electrical noise and ground loop interference, ensuring reliable data acquisition in electrically demanding industrial settings.

Core Features & Benefits

→ Six Isolated RTD Input Channels
Monitor multiple temperature zones simultaneously with independent channel isolation that prevents cross-talk and maintains signal integrity across all measurement points.

✓ Universal RTD Sensor Compatibility
Supports Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, and Cu10 sensors with automatic sensor type detection, eliminating the need for multiple specialized modules and reducing spare parts inventory.

→ Flexible Wiring Configurations
Accommodates 2-wire, 3-wire, and 4-wire RTD connections to match your existing sensor infrastructure without costly rewiring or sensor replacement.

✓ High-Resolution Sigma-Delta Conversion
Advanced 16-bit analog-to-digital conversion delivers ±0.1°C accuracy with exceptional noise rejection (110 dB CMRR at 50/60 Hz), ensuring precise measurements even in electrically noisy environments.

→ Configurable Input Filtering
Selectable 10/50 Hz or 10/60 Hz digital filters eliminate power line interference and provide stable readings in applications with variable electrical noise profiles.

✓ Hot-Swappable Design
Replace modules during system operation without shutting down the entire control network, minimizing production downtime and maintenance windows.

Application Scenarios

Chemical Processing & Petrochemical Plants
Monitor reactor vessel temperatures, distillation column profiles, and heat exchanger performance with the precision required for safe operation and optimal yield. The module's wide input range (0-3000 Ω) accommodates high-temperature industrial RTD sensors used in catalytic processes and thermal cracking units.

Food & Beverage Manufacturing
Ensure HACCP compliance and product safety by tracking pasteurization temperatures, fermentation vessel conditions, and cold chain integrity. Multi-channel capability allows simultaneous monitoring of critical control points throughout production lines.

Pharmaceutical & Biotechnology
Maintain strict environmental controls in clean rooms, incubators, and lyophilization chambers where temperature deviations of even 0.5°C can compromise product quality and regulatory compliance.

Metal Heat Treatment & Forging
Control annealing furnaces, quench tanks, and tempering ovens with the accuracy needed to achieve precise metallurgical properties and meet aerospace/automotive quality standards.

HVAC & Building Automation
Optimize energy efficiency in large commercial facilities by monitoring supply/return air temperatures, chilled water systems, and boiler operations across multiple zones from a centralized CompactLogix controller.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose 4-wire configuration for maximum accuracy in precision applications (±0.05°C achievable)
• Use 3-wire for standard industrial applications where lead resistance compensation is needed
• Select 2-wire only for short cable runs (<10m) where lead resistance is negligible
• Verify sensor compatibility: Pt100 (α=0.00385) is most common in North America; Pt100 (α=0.003916) prevalent in Europe
• Consider cable impedance: maximum 25 Ω total loop resistance for accurate measurements

Extended Functions

Advanced Diagnostics & Predictive Maintenance
Built-in sensor break detection, out-of-range alarms, and channel health monitoring enable proactive maintenance strategies. The module continuously validates sensor integrity and alerts operators to degraded connections before they cause process upsets.

EtherNet/IP Integration
When paired with CompactLogix controllers featuring EtherNet/IP communication, temperature data streams seamlessly to SCADA systems, historians, and cloud-based analytics platforms for real-time monitoring and long-term trend analysis.

Customization & Scaling Options
Combine multiple 1769-IR6 modules on a single CompactLogix chassis to create distributed temperature monitoring systems with 12, 18, or more measurement points. Mix with other 1769 I/O modules (analog, digital, specialty) to build complete control solutions.

Linearization & Engineering Units
Configure temperature display in °C, °F, or Kelvin directly within RSLogix/Studio 5000 programming software. Automatic RTD linearization eliminates manual lookup tables and simplifies PLC programming.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations or large quantity orders typically ship within 5-7 business days. Expedited shipping available for urgent requirements.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Access to certified automation engineers for application assistance, configuration guidance, and troubleshooting support. Remote diagnostic services available to minimize downtime.

Documentation Package: Each module includes installation manual, wiring diagrams, RSLogix/Studio 5000 Add-On Instructions (AOI), and sample ladder logic for rapid integration. Comprehensive technical specifications and compliance certificates available for download.

Frequently Asked Questions

Q: Can the 1769-IR6 interface with third-party RTD sensors or only Allen-Bradley sensors?
A: The module works with any industry-standard RTD sensor that meets the supported resistance and wiring specifications. You are not limited to Allen-Bradley sensors—Omega, Rosemount, Endress+Hauser, and other manufacturers' RTDs are fully compatible.

Q: What is the maximum cable distance between the RTD sensor and the 1769-IR6 module?
A: Maximum recommended cable length is 300 meters (1000 feet) for 3-wire and 4-wire configurations using shielded twisted-pair cable (Belden 9533 or equivalent). For 2-wire configurations, limit cable runs to 30 meters to minimize lead resistance errors.

Q: How does the 1769-IR6 improve energy efficiency compared to older analog input modules?
A: The module's low power consumption (1.5W max heat dissipation) reduces cooling requirements in control cabinets. Additionally, its high accuracy enables tighter process control setpoints, which can reduce energy waste in heating/cooling applications by 5-15%.

Q: Is the module suitable for hazardous area installations (Class I Div 2 or ATEX)?
A: The 1769-IR6 itself is not intrinsically safe rated. For hazardous locations, use approved barriers or isolators between field sensors and the module, or install the entire CompactLogix system in a purged/pressurized enclosure rated for the hazardous area classification.

Q: Can I monitor both Pt100 and Pt1000 sensors on the same module simultaneously?
A: Yes, each of the six channels can be independently configured for different RTD types and resistance ranges. This flexibility allows you to mix sensor types within a single module to accommodate diverse application requirements.

Q: Does the 1769-IR6 support remote monitoring via mobile devices or web browsers?
A: When connected to a CompactLogix controller with EtherNet/IP and paired with FactoryTalk View or third-party SCADA software, temperature data can be accessed remotely via web-based dashboards and mobile apps. The module itself does not have built-in web server functionality.
