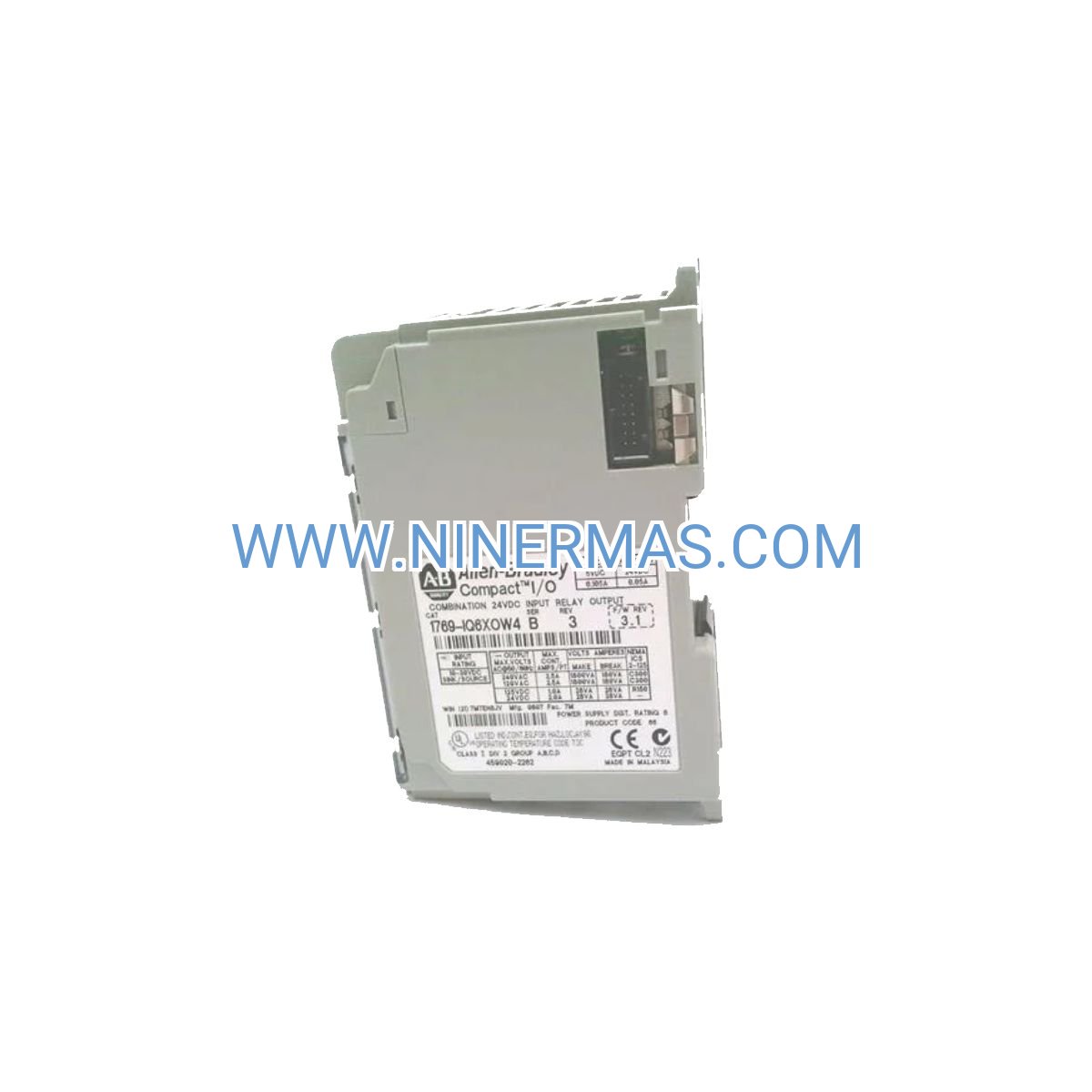

1769-IQ6XOW4 Combination I/O Module (Industrial-Grade Dual-Function Controller)

The 1769-IQ6XOW4 represents a space-efficient solution for industrial automation systems requiring simultaneous digital sensing and relay-based switching. Engineered for Allen-Bradley CompactLogix platforms, this dual-function module consolidates six 24V DC input channels and four Form C relay output contacts into a single compact housing, reducing backplane consumption while maintaining electrical isolation standards.

Designed for system integrators and plant engineers managing distributed control architectures, this module eliminates the need for separate input and output cards in applications where mixed I/O density is required. Its hot-swappable architecture and removable terminal blocks enable rapid field service without full system shutdown, minimizing production downtime during maintenance cycles.

Key differentiators include 1500V optical isolation between input circuits and backplane, factory-calibrated response timing for predictable logic execution, and universal relay contacts capable of switching both AC and DC loads without external interface hardware. The module ships with UL/cUL/CE certifications and integrates seamlessly with RSLogix 5000 and Studio 5000 programming environments.

Core Features & Benefits

→ Dual-Circuit Architecture: Combines 6-point DC input sensing with 4-point relay output switching in a single module slot, optimizing backplane real estate in space-constrained control panels.

→ Universal Load Compatibility: Form C relay contacts rated for 2A per point handle both AC and DC loads (24-250V range), eliminating the need for external solid-state relays or contactors in low-power applications.

→ Electrical Isolation: 1500V AC optical isolation between input circuits and system backplane protects controller integrity from field-side voltage transients and ground loop interference.

→ Hot-Swap Capability: Module replacement during live operation without powering down the entire CompactLogix chassis, reducing mean time to repair (MTTR) by up to 60% compared to non-hot-swap systems.

→ Removable Terminal Blocks: Spring-clamp or screw-type terminals (field-selectable) with 12-22 AWG wire acceptance enable rapid wiring changes during commissioning or process modifications.

✓ Diagnostic Integration: Built-in fault detection for input status, output coil continuity, and thermal overload conditions, accessible via controller tags for predictive maintenance algorithms.

Application Scenarios

Automated Packaging Lines: Monitor photoeye sensors and limit switches (inputs) while controlling pneumatic valve solenoids and conveyor motor starters (relay outputs) in high-speed cartoning and palletizing systems. Reduces wiring complexity by 40% compared to separate I/O modules.

Machine Safety Interlocks: Interface with safety door switches, emergency stop circuits, and light curtain systems (inputs) to control safety contactor coils and indicator lamps (outputs). Relay isolation ensures compliance with Category 3 safety architectures per ISO 13849-1.

Water Treatment Facilities: Process level switch signals and flow meter pulses (inputs) to activate chemical dosing pumps and valve actuators (relay outputs). Conformal coating option available for high-humidity environments (>95% RH non-condensing).

Material Handling Systems: Integrate proximity sensors and photoelectric switches (inputs) with conveyor diverter solenoids and gate actuators (relay outputs) in sortation and distribution centers. Supports up to 1000 Hz input frequency for high-speed counting applications.

HVAC Control Panels: Monitor thermostat contacts and airflow switches (inputs) while switching damper actuators and fan contactors (relay outputs) in building automation systems. Low power consumption (150mA @ 5VDC) suitable for solar-powered remote installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires fewer than 10 total I/O points with mixed input/output types. For higher density (>16 points), consider separate 1769-IQ32 (input) and 1769-OW16 (relay output) modules. If output switching speed is critical (<5ms), specify solid-state output modules (1769-OB series) instead of relay-based units.

Extended Functions

IoT Integration: When paired with 1769-L3x series controllers featuring embedded EtherNet/IP ports, I/O data streams to cloud-based SCADA platforms via MQTT or OPC UA protocols. Supports remote diagnostics and predictive maintenance analytics through Rockwell FactoryTalk Edge Gateway.

Advanced Diagnostics: Module-level fault codes (input overvoltage, output overcurrent, thermal shutdown) mapped to controller tags enable automated email/SMS alerts via integrated HMI systems. Timestamp logging for fault events supports root cause analysis during quality audits.

Custom Configurations: Factory customization available for non-standard voltage ratings (12V DC inputs, 120V AC relay outputs) with minimum order quantities of 25 units. Lead time: 6-8 weeks for engineered-to-order variants.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via DHL/FedEx International Priority. Custom configurations require 6-8 weeks manufacturing lead time plus transit.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended 36-month warranty available for +15% premium. Warranty excludes damage from improper wiring, overvoltage events, or environmental contamination.

Technical Support: Lifetime email/phone support for integration assistance, troubleshooting, and programming guidance. Remote desktop sessions available for complex commissioning scenarios. Average response time: <4 hours during business hours (GMT+8).

Documentation Package: Each unit includes installation manual (PDF), wiring diagrams, sample ladder logic code, and Add-On Instruction (AOI) files for Studio 5000. CAD drawings (DWG/STEP formats) available upon request for panel layout design.

Frequently Asked Questions

Q: What is the maximum cable length between field devices and the 1769-IQ6XOW4 input terminals?
A: For 24V DC inputs, maximum recommended cable length is 100 meters using shielded twisted-pair wire (18 AWG minimum). Longer runs require signal conditioning or 4-20mA transmitters to maintain noise immunity.

Q: Can the relay outputs control inductive loads like solenoid valves and motor starters?
A: Yes, each relay contact is rated for 80VA inductive load at 24V DC. For AC inductive loads (contactors, transformers), use external RC snubber networks (0.1µF + 100Ω) across relay contacts to extend electrical life and suppress EMI.

Q: Does this module support redundant controller configurations for high-availability systems?
A: The 1769-IQ6XOW4 is compatible with ControlLogix redundancy architectures when installed in a 1769-L3xER controller chassis. I/O data synchronization occurs automatically during controller switchover events with <50ms transition time.

Q: How do I verify proper module installation and communication with the CompactLogix controller?
A: After inserting the module into the 1769 backplane, the green "OK" LED should illuminate within 2 seconds. In RSLogix 5000, navigate to I/O Configuration tree and verify module appears with correct catalog number. Run "Module Info" diagnostic to confirm firmware revision and backplane slot position.

Q: What is the difference between sinking and sourcing input wiring configurations?
A: The 1769-IQ6XOW4 supports both modes. Sinking: Connect sensor common to +24V DC, sensor output to module input terminal (module sinks current to ground). Sourcing: Connect sensor common to ground, sensor output to module input terminal (module sources current from +24V). Consult wiring diagram in user manual for terminal assignments.

Q: Are conformal-coated versions available for harsh industrial environments?
A: Yes, conformal coating (acrylic-based per IPC-CC-830) is available as a factory option for applications in chemical processing, wastewater treatment, or marine environments. Coating provides protection against moisture, salt spray, and mild chemical vapors. Specify "-CC" suffix when ordering (e.g., 1769-IQ6XOW4-CC).

Ready to Optimize Your Control System?

Contact our automation specialists for application-specific recommendations, volume pricing, or technical integration support. Request a formal quotation with delivery timeline and warranty terms tailored to your project requirements.
