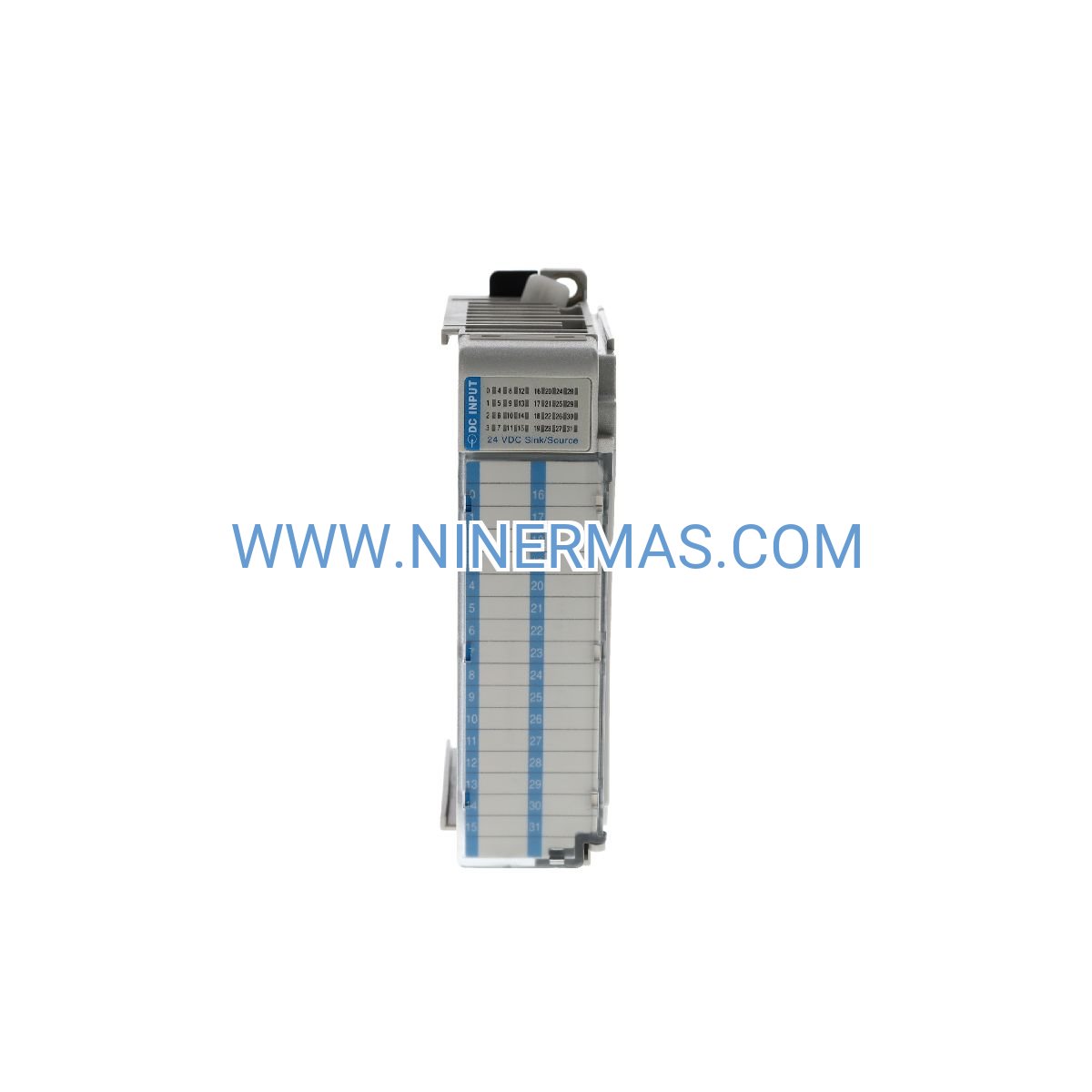

1769-IQ32T Digital Input Module (Industrial-Grade 32-Channel Sensor Interface)

The 1769-IQ32T represents a field-proven solution for high-density discrete signal acquisition in CompactLogix-based control architectures. Designed for manufacturers and system integrators who demand reliable 24VDC input processing, this module consolidates 32 independent sensor channels into a single-slot package with removable screw terminals for rapid commissioning and maintenance cycles.

Built to address the challenges of modern production environments—where cabinet space is limited, wiring complexity drives installation costs, and unplanned downtime erodes profitability—the 1769-IQ32T delivers optical isolation, per-point diagnostics, and hot-swappable terminal blocks that reduce mean time to repair (MTTR) by up to 40% compared to legacy fixed-terminal designs.

Whether you're retrofitting aging relay logic, expanding existing CompactLogix systems, or engineering new OEM machinery, this module provides the density, durability, and diagnostic intelligence required for mission-critical discrete sensing applications across automotive assembly, food processing, pharmaceutical packaging, and material handling operations.

Core Features & Benefits

→ High-Density Signal Consolidation
Acquire 32 discrete 24VDC inputs in a single CompactLogix slot, reducing panel footprint by 65% versus traditional 8-point or 16-point I/O configurations while lowering per-point installed cost.

→ Removable Terminal Block Architecture
Pre-wire field connections off-line and swap modules without disturbing sensor wiring—critical for scheduled maintenance windows and emergency replacements in 24/7 production facilities.

→ Optical Isolation & Noise Rejection
1500V channel-to-backplane isolation protects controller logic from ground loops and electrical transients, while programmable input filters (0-65ms) eliminate false triggers from inductive loads and EMI sources.

✓ Per-Point LED Diagnostics
Individual channel status indicators accelerate troubleshooting during commissioning and runtime faults—technicians can visually confirm sensor states without laptop connectivity or HMI access.

✓ Universal Sinking/Sourcing Compatibility
Accommodates both PNP and NPN sensor types with field-configurable common terminals, simplifying spare parts inventory and supporting mixed-vendor sensor installations.

✓ Electronic Keying & Auto-Configuration
Controller-stored module profiles prevent mis-insertion errors and automatically download I/O configuration upon module replacement, reducing commissioning time from hours to minutes.

Application Scenarios

Automotive Assembly Lines
Monitor limit switches, part-present sensors, and safety gate interlocks across multi-station body welding and powertrain assembly cells. The module's fast response time and noise immunity ensure reliable detection of high-speed transfer mechanisms and robotic tool changers, while removable terminals support rapid line reconfiguration during model changeovers.

Food & Beverage Packaging
Interface with photoelectric sensors, proximity switches, and reject gate confirmations in high-speed filling, capping, and labeling equipment. Optical isolation protects against voltage spikes from servo drives and VFDs, while IP20-rated terminal blocks withstand washdown environments when paired with appropriate enclosures.

Pharmaceutical Batch Processing
Capture valve position feedback, agitator motor status, and clean-in-place (CIP) cycle confirmations in FDA-regulated production environments. Electronic keying and audit-trail-ready diagnostics support 21 CFR Part 11 compliance requirements for validated manufacturing systems.

Warehouse Automation & Sortation
Track conveyor zone occupancy, diverter gate positions, and emergency stop circuits across multi-level distribution centers. The module's 32-point density reduces wiring runs by up to 200 meters per system, lowering installation labor and improving signal integrity over long cable distances.

Water/Wastewater Treatment
Acquire pump run status, level switch inputs, and alarm panel signals in SCADA-integrated lift stations and treatment plants. Wide operating temperature range (0-60°C) and conformal coating options ensure reliable operation in high-humidity outdoor enclosures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-IQ32T when your application requires more than 16 discrete inputs per controller slot, when field wiring must remain undisturbed during module replacement, or when sensor types (PNP/NPN) may vary across machine zones. For applications with fewer than 16 inputs, consider the 1769-IQ16 to optimize cost per point. For AC input sensing, specify the 1769-IA16 or IA8I modules instead.

Extended Functions

Programmable Input Filtering: Adjust per-channel response time via RSLogix/Studio 5000 software to match sensor characteristics—use shorter filters (1-5ms) for high-speed counting applications, or longer filters (20-65ms) to reject contact bounce from mechanical switches and relays.

Diagnostic Data Objects: Access real-time fault codes, input state arrays, and module health metrics through controller tags for integration with HMI alarm systems, predictive maintenance dashboards, and SCADA historian databases.

Distributed I/O Expansion: Combine with 1769-ADN DeviceNet adapter or 1769-AENTR EtherNet/IP adapter to deploy remote I/O racks up to 100 meters from the main controller, reducing long cable runs and improving system modularity.

Conformal Coating Option: Request factory-applied conformal coating (consult distributor for part number suffix) for installations in corrosive atmospheres, high-humidity environments, or applications subject to condensation and chemical exposure.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days via DHL, FedEx, or UPS with tracking. Custom configurations (conformal coating, extended temperature testing) require 2-3 weeks—contact our sales team for expedited processing.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship. Warranty includes free replacement and return shipping for confirmed failures under normal operating conditions.

Technical Support: Access to application engineers for pre-sales sizing, wiring diagram review, and troubleshooting assistance. Support available via email (response within 4 hours) and phone during business hours (GMT+8).

Documentation Package: Each module ships with quick-start guide, terminal block wiring diagram, and links to downloadable resources including user manual (publication 1769-UM011), installation instructions, and sample RSLogix code for common input configurations.

Frequently Asked Questions

Q: What CompactLogix controllers support the 1769-IQ32T module?
A: All 1769-L2x, L3x, and L4x series controllers with firmware v16 or later. Verify compatibility using Rockwell Automation's Product Compatibility and Download Center (PCDC) tool before ordering.

Q: Can I use shielded cable for input wiring to reduce noise?
A: Yes—shielded twisted-pair cable is recommended for cable runs exceeding 10 meters or installations near VFDs and welding equipment. Ground shield at one end only (typically at the module terminal block) to avoid ground loops.

Q: How do I configure the module for sinking versus sourcing sensors?
A: Connect the appropriate common terminal (COM) to either 24VDC+ (for sinking/NPN sensors) or DC- (for sourcing/PNP sensors). All 32 inputs must use the same configuration—mixed wiring is not supported on a single module.

Q: What is the maximum input cable length for reliable operation?
A: Up to 100 meters (328 feet) using 18 AWG shielded cable. For longer distances, use signal conditioners or remote I/O adapters to maintain signal integrity and reduce voltage drop.

Q: Does the module require external power beyond the backplane supply?
A: Yes—you must provide an external 24VDC field power supply to energize sensors and drive input circuits. The module draws logic power (150mA @ 5VDC) from the CompactLogix backplane but does not supply sensor excitation voltage.

Q: How do I replace a failed module without reconfiguring the controller?
A: Power down the system, remove the failed module, install the replacement, and power up. The controller automatically detects the new module via electronic keying and downloads the stored I/O configuration—no laptop or programming software required for basic replacement.
