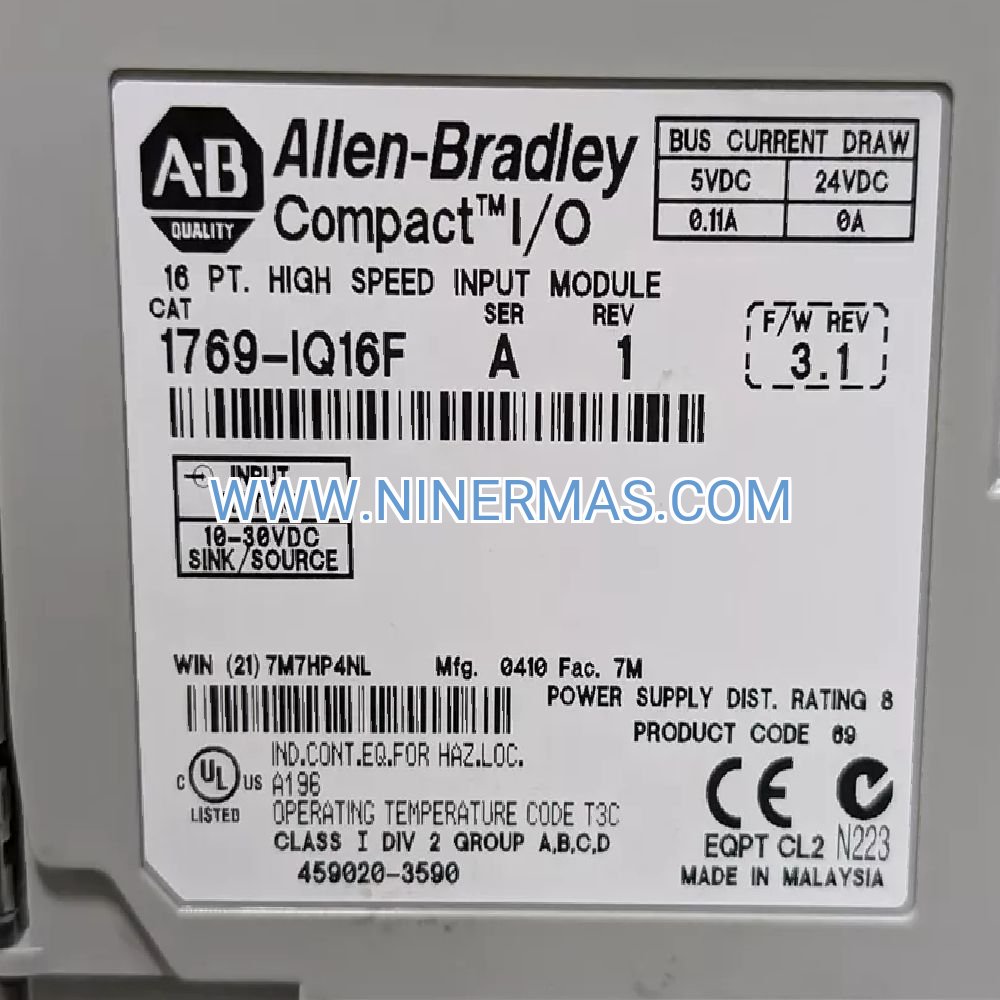

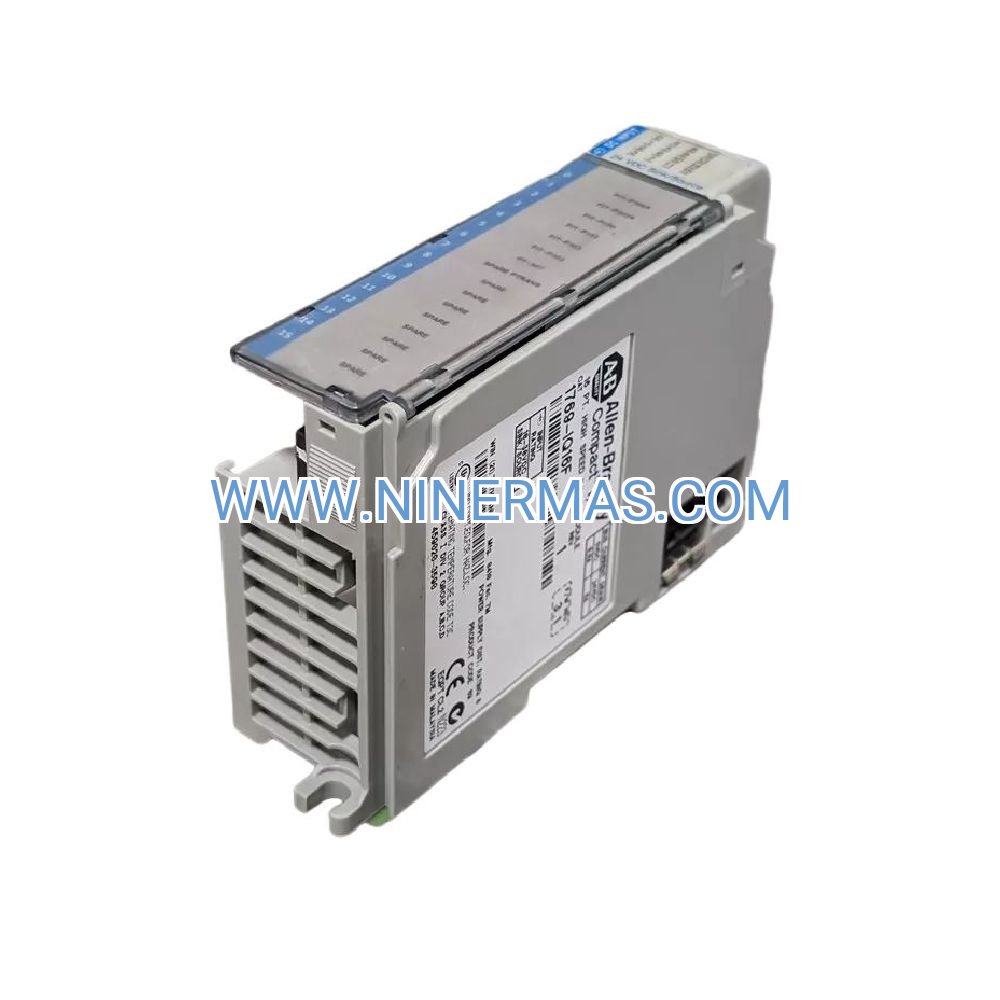

1769-IQ16F Digital Input Module (Industrial-Grade Signal Acquisition)

The 1769-IQ16F represents a professional-grade digital input solution for CompactLogix automation platforms, delivering 16 channels of sink/source DC signal acquisition with industrial reliability. Engineered for mission-critical control applications, this module combines flexible input configuration with robust 24V DC operation, making it the preferred choice for manufacturers requiring dependable sensor interface capabilities across diverse production environments.

Designed to address the challenges of modern industrial automation, the 1769-IQ16F eliminates signal compatibility issues through its dual sink/source architecture while providing rapid 1-millisecond response times for time-sensitive control sequences. Whether you're integrating proximity sensors, photoelectric devices, or safety interlocks, this module delivers the performance and versatility demanded by today's smart manufacturing operations.

With factory calibration, hot-swappable installation, and comprehensive diagnostic LEDs, the 1769-IQ16F reduces commissioning time and simplifies ongoing maintenance—enabling your team to focus on production optimization rather than troubleshooting I/O infrastructure.

Core Features & Benefits

✓ Dual Sink/Source Input Architecture
Eliminate sensor compatibility constraints with simultaneous PNP and NPN device support on a single module, reducing spare parts inventory and simplifying panel design.

✓ Rapid 1ms Response Time
Capture high-speed events and enable precise control sequences with industry-leading on-to-off and off-to-on transition speeds, critical for packaging, material handling, and assembly automation.

✓ 1500V Optical Isolation
Protect sensitive control logic from field-side electrical noise and ground potential differences, ensuring reliable operation in electrically harsh industrial environments.

✓ Hot-Swappable Design
Replace modules during system operation without disrupting production, minimizing downtime and enabling proactive maintenance strategies.

✓ Removable Terminal Block (RTB)
Accelerate module replacement and reduce wiring errors with pre-wired terminal blocks that transfer instantly between modules, cutting maintenance time by up to 70%.

✓ Electronic Keying Protection
Prevent costly installation mistakes with automatic module verification that ensures correct I/O placement during commissioning and replacement procedures.

Application Scenarios

→ Automotive Assembly Lines
Monitor robotic cell interlocks, part presence sensors, and safety light curtains across multi-station assembly processes. The module's fast response time ensures precise coordination of welding robots, material transfer systems, and quality inspection stations.

→ Food & Beverage Packaging
Interface with photoelectric sensors for bottle counting, label verification, and carton detection in high-speed packaging lines. Dual sink/source capability accommodates mixed sensor types from multiple equipment vendors without additional interface hardware.

→ Water Treatment Facilities
Acquire signals from level switches, flow sensors, and valve position indicators across distributed pump stations. The module's wide 10-31.2V DC operating range tolerates voltage fluctuations common in remote installations.

→ Material Handling Conveyors
Track package position, diverter status, and emergency stop circuits in warehouse distribution systems. Hot-swap capability enables module replacement during off-peak hours without complete system shutdown.

→ Machine Tool Control
Monitor limit switches, tool breakage sensors, and operator control stations in CNC machining centers. Optical isolation protects control logic from electrical noise generated by variable frequency drives and servo amplifiers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-IQ16F when your application requires flexible sink/source input capability for mixed sensor types. For AC input applications, consider the 1769-IA16 (120V AC) or 1769-IA8I (230V AC) modules. When output functionality is needed, pair with 1769-OB32T (DC output) or 1769-OA16 (AC output) modules within the same chassis.

Extended Functions

Diagnostic Capabilities: Individual channel status LEDs provide instant visual feedback for each input point, accelerating troubleshooting and reducing mean time to repair (MTTR). Module-level fault indicators alert operators to power supply issues or backplane communication errors.

Studio 5000 Integration: Full integration with Rockwell Automation's Studio 5000 Logix Designer enables advanced diagnostics, online module replacement, and electronic keying configuration. Built-in Add-On Instructions (AOIs) simplify programming for common sensor interface patterns.

Customization Options: Configure input filtering characteristics through software to optimize noise immunity for specific sensor types. Adjustable debounce settings accommodate mechanical switch contacts or solid-state sensor outputs.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock modules via express courier service. Expedited same-day shipping available for critical replacement requirements.

Custom Orders: Pre-configured modules with electronic keying and terminal block pre-wiring available with 7-10 business day lead time.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations. Remote diagnostic support available during commissioning.

Documentation Package: Each module ships with installation instructions, wiring diagrams, technical specifications, and Studio 5000 configuration examples. Complete user manual and certification documents available for download.

Frequently Asked Questions

Q: Can the 1769-IQ16F interface with both PNP and NPN sensors simultaneously?
A: Yes, the module's sink/source architecture supports simultaneous connection of PNP (sourcing) and NPN (sinking) sensors on different input channels, eliminating the need for separate input modules for mixed sensor types.

Q: What is the maximum recommended cable length for reliable input signal transmission?
A: For shielded cable installations, maximum recommended length is 100 meters (328 feet). In electrically noisy environments or when using unshielded cable, limit runs to 30 meters (98 feet) to maintain signal integrity.

Q: Does this module support remote I/O communication over EtherNet/IP?
A: The 1769-IQ16F operates as local I/O within a CompactLogix chassis. For distributed I/O applications, install the module in a 1769 chassis equipped with a 1769-AENTR EtherNet/IP adapter or similar communication interface.

Q: How does the module handle input signal noise in VFD-intensive environments?
A: The 1500V optical isolation provides robust protection against common-mode noise from variable frequency drives. For additional noise immunity, use shielded cable with 360-degree shield termination at the module end and configure software input filtering.

Q: Is external 24V DC power supply required for module operation?
A: Yes, while the module draws logic power from the 1769 backplane (5V DC), a separate 24V DC field power supply is required to energize the input circuits. Ensure adequate current capacity for all connected sensors plus 50 mA module overhead.

Q: Can I replace this module while the CompactLogix system is running?
A: Yes, the hot-swappable design allows module replacement during system operation when using the removable terminal block (RTB). Configure electronic keying in Studio 5000 to prevent incorrect module insertion during replacement procedures.
