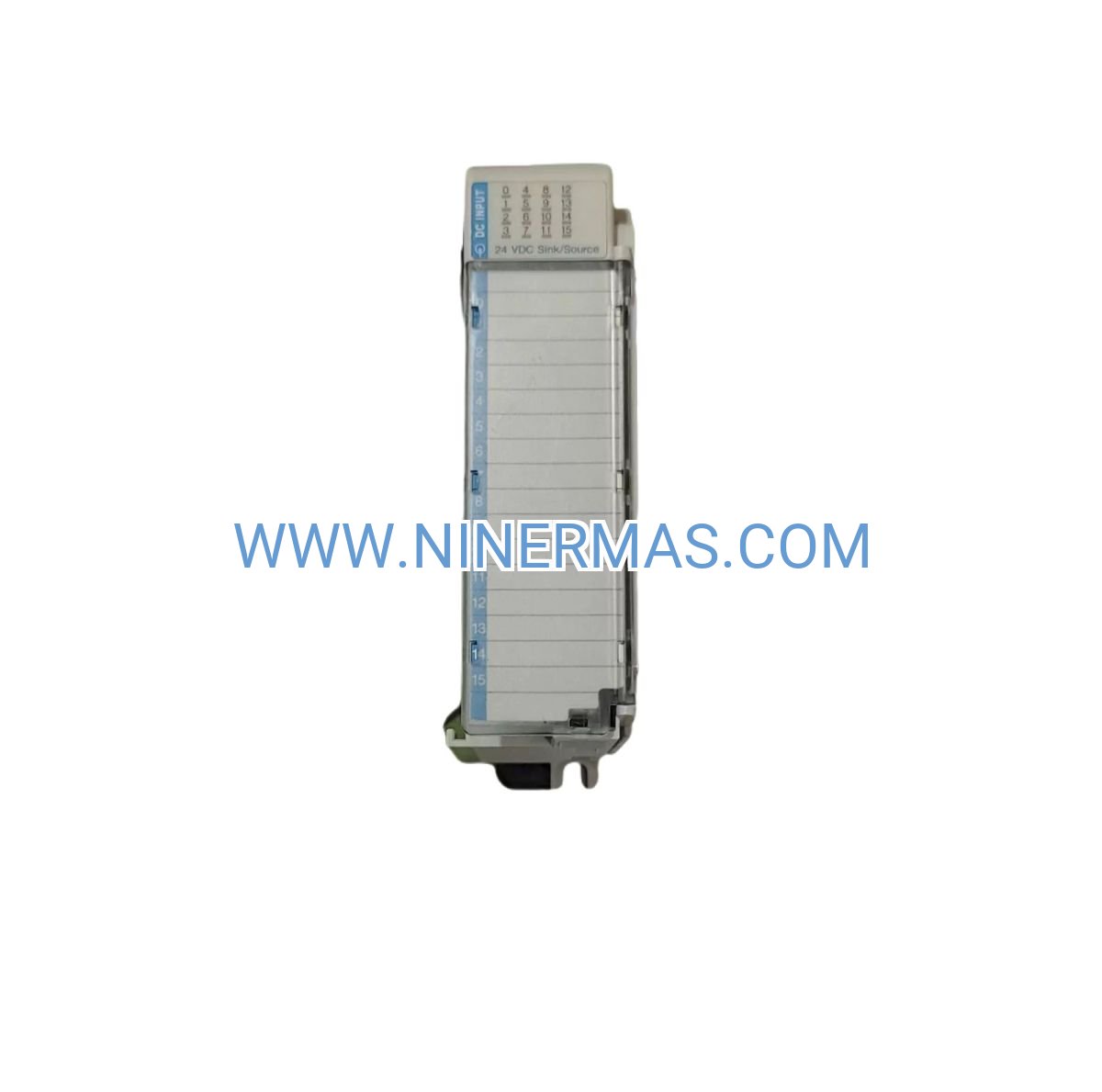

1769-IQ16 CompactLogix Digital Input Module (Industrial-Grade 16-Channel Solution)

The 1769-IQ16 represents a precision-engineered digital input solution for Allen-Bradley CompactLogix control architectures. Featuring 16 independent 24VDC input channels with dual sink/source capability, this module serves as the critical interface between field sensors and your automation logic. Designed for continuous operation in harsh industrial environments, it combines robust electrical isolation with rapid signal processing to ensure reliable data acquisition across manufacturing, process control, and infrastructure applications.

Built to address the challenges of modern discrete automation, the 1769-IQ16 eliminates signal integrity concerns through 1500V optical isolation and 3kΩ input impedance design. Whether you're monitoring safety circuits, tracking production line sensors, or integrating legacy equipment into new control systems, this module delivers consistent performance with minimal configuration overhead. Its hot-swappable architecture and removable terminal blocks enable maintenance without system shutdown, directly reducing operational costs and improving uptime metrics.

Engineered for seamless CompactLogix ecosystem integration, the 1769-IQ16 mounts directly to standard 1769 backplanes and auto-configures within RSLogix 5000/Studio 5000 programming environments. With API 670 compliance and comprehensive safety certifications, this module meets the stringent requirements of regulated industries while providing the flexibility needed for custom automation solutions.

Core Features & Technical Advantages

✓ Dual-Mode Input Architecture
Accepts both sinking and sourcing sensor types without external conditioning, reducing BOM costs and simplifying panel design. Eliminates the need for separate modules when mixing sensor technologies.

✓ High-Speed Signal Processing
8-millisecond response time captures rapid state changes from high-speed machinery and safety devices. Ensures critical events are logged without data loss, improving process visibility and compliance documentation.

✓ Robust Electrical Isolation
1500VAC field-to-logic isolation protects controller backplane from voltage spikes, ground loops, and EMI interference. Extends system lifespan and reduces troubleshooting time in electrically noisy environments.

✓ Hot-Swap Capability
Replace modules during live operation without halting production or disrupting adjacent I/O. Minimizes scheduled downtime and enables proactive maintenance strategies.

✓ Removable Terminal Block (RTB) Design
Field wiring remains intact during module replacement—simply disconnect RTB, swap module, and reconnect. Reduces commissioning time by up to 70% during upgrades or repairs.

✓ Integrated LED Diagnostics
Per-channel status indicators provide instant visual feedback for troubleshooting. Reduces mean-time-to-repair (MTTR) by enabling technicians to identify faulty circuits without software tools.

Application Scenarios & Industry Use Cases

→ Discrete Manufacturing & Assembly Lines
Monitor limit switches, photoelectric sensors, and proximity detectors across conveyor systems and robotic work cells. The 1769-IQ16's fast response time captures part presence signals at line speeds exceeding 120 parts/minute, ensuring accurate production counts and preventing downstream jams.

→ Process Control & Chemical Plants
Interface with level switches, flow indicators, and valve position feedback in hazardous area applications. Optical isolation prevents ground-loop-induced measurement errors that could compromise batch quality or trigger false alarms.

→ Safety System Integration
Connect emergency stop buttons, light curtains, and safety interlock switches to dedicated input channels. API 670 compliance ensures compatibility with SIL-rated safety controllers for machine guarding and personnel protection applications.

→ Building Automation & HVAC
Acquire signals from door contacts, occupancy sensors, and equipment status indicators in commercial facilities. Low power consumption (150mA backplane draw) supports large-scale deployments without oversizing power supplies.

→ Water/Wastewater Treatment
Monitor pump run status, valve positions, and alarm contacts across distributed lift stations and treatment facilities. Extended operating temperature range (0-60°C) accommodates outdoor enclosures and uncontrolled environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-IQ16 when your application requires 16 or fewer discrete inputs with 24VDC sensors. For higher channel counts, consider the 1769-IQ32 (32-point) or distributed I/O solutions. If your sensors operate at 120VAC, select the 1769-IA16 AC input module instead. For applications requiring faster response times (<1ms), evaluate the 1769-IQ6XOW4 high-speed counter module.

Extended Functions & Integration Capabilities

IoT & Remote Monitoring: Integrate with Allen-Bradley FactoryTalk View SCADA systems for real-time input status visualization. Supports EtherNet/IP implicit messaging when paired with 1769-L3x/L4x controllers, enabling cloud-based analytics and predictive maintenance workflows.

Advanced Diagnostics: Module-level fault detection automatically reports wiring errors, under-voltage conditions, and backplane communication failures to the controller. Diagnostic data can trigger email alerts or SMS notifications through FactoryTalk Alarms and Events.

Customization Options: Available with conformal coating for high-humidity environments or extended temperature variants (-25°C to 70°C) for outdoor installations. Contact our engineering team for application-specific configurations including custom terminal block labeling or pre-wired cable assemblies.

Delivery Timeline & Service Guarantee

Standard Lead Time: In-stock units ship within 1-2 business days via express courier (DHL/FedEx). Typical delivery to major industrial centers: 3-5 days (Asia-Pacific), 5-7 days (Europe/Americas).

Custom Configurations: Factory-configured modules with specialized firmware or extended testing require 10-15 business days. Expedited processing available for critical projects.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects and component failures. Warranty includes free replacement and return shipping for confirmed defects.

Technical Support: Unlimited email and phone support for configuration assistance, troubleshooting, and integration guidance. Average response time: <4 hours during business hours (GMT+8).

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and digital access to full user manual, CAD drawings (STEP/DWG), and sample RSLogix 5000 code.

Frequently Asked Questions

Q: What cable specifications are recommended for optimal signal integrity with the 1769-IQ16?
A: Use 18-22 AWG shielded twisted-pair cable with drain wire grounded at the module end only. Maximum recommended run: 300 meters (1000 feet). For runs exceeding 100 meters in high-EMI environments, consider 16 AWG cable or signal repeaters.

Q: Can the 1769-IQ16 interface with 12VDC sensors or does it strictly require 24VDC?
A: The module operates across a 10-30VDC range, so 12VDC sensors are compatible. However, input current at 12VDC drops to approximately 4mA, which may affect noise immunity. For best performance, use sensors rated 20-28VDC.

Q: How does the module handle input filtering to prevent false triggers from electrical noise?
A: Built-in RC filtering provides approximately 1ms of debounce protection against transient spikes. For applications with severe noise (welding equipment, VFDs), enable software-based input filtering in your RSLogix program (typically 10-50ms filter constant).

Q: Is firmware update required when adding the 1769-IQ16 to an existing CompactLogix system?
A: No firmware update needed—the module is backward-compatible with all 1769 controllers running v16 or later. Simply install the module, power-cycle the chassis, and configure in RSLogix 5000. The controller auto-detects the module type.

Q: What is the maximum number of 1769-IQ16 modules supported in a single chassis?
A: Limited only by chassis slot count and backplane power budget. A 1769-PB4 power supply (10W) supports up to 8× IQ16 modules. For larger systems, use 1769-PA4 (20W) or distributed power supplies.

Q: Does the module support remote I/O configurations over EtherNet/IP?
A: Yes, when installed in a chassis with a 1769-L3x/L4x controller or 1734 POINT I/O adapter. The module appears as standard I/O in the controller's tag database regardless of physical location.

Ready to Optimize Your Control System?

The 1769-IQ16 delivers proven reliability for discrete input applications across thousands of installations worldwide. Whether you're upgrading legacy systems or designing new automation solutions, our technical team is ready to assist with module selection, wiring guidance, and integration support.

Next Steps:
→ Add to cart for immediate purchase with volume pricing available
→ Request a technical datasheet and compatibility matrix
→ Schedule a consultation with our automation engineers
→ Inquire about custom configurations or OEM partnerships

Contact our team: sale@ninermas.com | +0086 187 5021 5667
