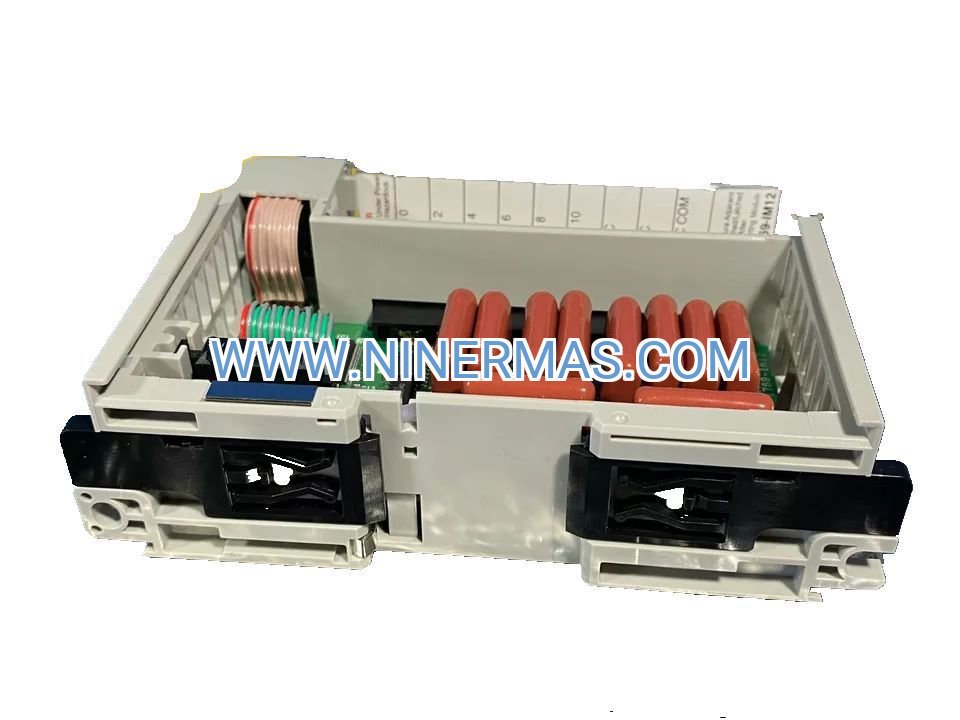

1769-IM12 AC Input Module (Industrial-Grade 12-Channel Signal Acquisition)

The 1769-IM12 represents a proven solution for acquiring discrete AC signals in mission-critical automation systems. Engineered for CompactLogix platforms, this 12-channel input module handles 200/240V AC field devices with galvanic isolation, ensuring reliable operation in electrically noisy industrial environments where signal integrity is paramount.

Designed for system integrators and plant engineers managing distributed control architectures, the 1769-IM12 simplifies wiring complexity while maintaining robust performance standards. Whether you're retrofitting legacy equipment or deploying new production lines, this module delivers field-proven reliability backed by comprehensive diagnostic capabilities and hot-swap serviceability.

Key advantages include removable terminal blocks for maintenance efficiency, integrated status LEDs for rapid troubleshooting, and seamless integration with Studio 5000 programming environments. The module's compact footprint optimizes panel space utilization while its industrial temperature rating ensures consistent performance across diverse operating conditions.

Core Features & Benefits

✓ 12 Isolated AC Input Channels
Monitor limit switches, proximity sensors, relay contacts, and pushbutton stations with individual channel isolation protecting against ground loops and electrical interference.

✓ 200/240V AC Voltage Range
Direct compatibility with standard industrial control voltages eliminates the need for external signal conditioning, reducing installation costs and potential failure points.

✓ CompactLogix Backplane Integration
Plug-and-play mounting on 1769 chassis with automatic bus communication—no external wiring required for power or data exchange between modules.

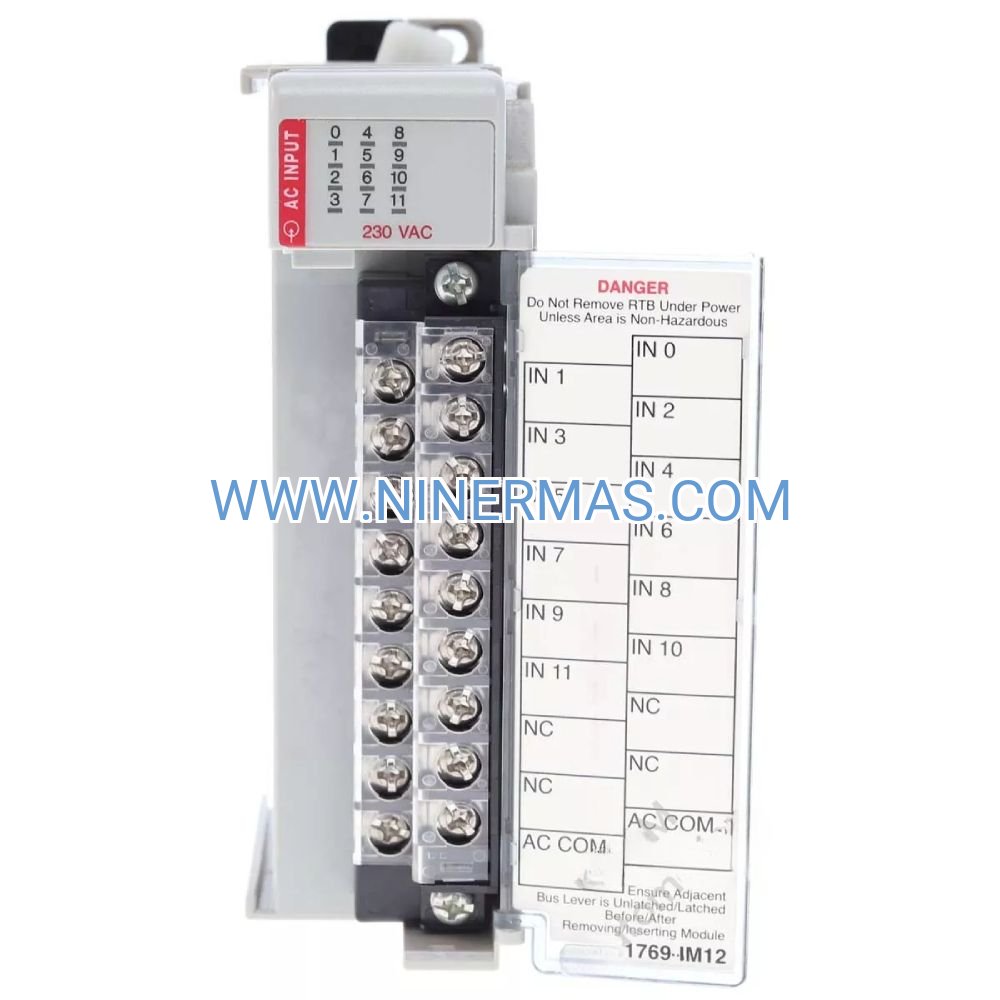

✓ Removable Terminal Blocks
Field wiring remains intact during module replacement, minimizing downtime during maintenance cycles and enabling pre-wired spare modules for rapid recovery.

✓ Diagnostic LED Indicators
Per-channel status visualization accelerates fault identification, reducing mean time to repair (MTTR) by up to 40% compared to non-diagnostic alternatives.

✓ Industrial Temperature Rating
0°C to 60°C operational range supports installation in non-climate-controlled enclosures, expanding deployment flexibility across facility zones.

Application Scenarios

→ Conveyor Control Systems
Monitor emergency stop circuits, safety interlocks, and position sensors across multi-zone material handling systems. The module's fast response time (10ms typical) ensures timely detection of safety-critical events while isolated inputs prevent cross-talk between adjacent zones.

→ Packaging Line Automation
Interface with photoelectric sensors, product presence detectors, and jam detection switches in high-speed packaging operations. Galvanic isolation protects PLC logic from voltage spikes generated by solenoid valves and motor starters.

→ HVAC & Building Management
Acquire status signals from damper actuators, fan contactors, and alarm panels in commercial HVAC installations. The module's wide voltage tolerance accommodates supply variations common in building electrical systems.

→ Water/Wastewater Treatment
Monitor pump run status, valve position feedback, and level switch inputs in municipal treatment facilities. Conformal coating options provide enhanced protection against humidity and corrosive atmospheres.

→ Machine Tool Integration
Capture tool change confirmations, door interlock status, and cycle complete signals from CNC equipment. Hot-swap capability enables module replacement without halting adjacent machine operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-IM12 when your application requires monitoring 200/240V AC field devices in CompactLogix architectures. For 120V AC applications, consider the 1769-IM16 variant. If DC input monitoring is needed, evaluate the 1769-IQ16 (24V DC) or 1769-IQ32 (high-density DC) modules. Ensure your 1769 chassis provides adequate backplane current capacity (150mA per module).

Extended Functions

Advanced Diagnostics: Studio 5000 integration provides real-time channel health monitoring, including open-circuit detection, under-voltage alarms, and module temperature tracking. Configure custom fault responses to trigger email notifications or automated shutdown sequences.

Electronic Keying: Prevent incorrect module installation through configurable keying modes (Exact Match, Compatible Module, Disable Keying), reducing commissioning errors and protecting against accidental configuration mismatches.

Input Filtering: Programmable input filters (0-65ms range) suppress contact bounce and electrical noise, optimizing signal quality for specific sensor types without external RC networks.

Distributed I/O Architectures: Deploy in remote I/O configurations using 1769-ADN DeviceNet adapters or 1769-AENTR EtherNet/IP adapters, enabling flexible machine layouts and reducing control cabinet footprint.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days. Custom configurations (conformal coating, extended temperature variants) require 2-3 weeks for factory preparation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service for critical applications.

Technical Support: Access to application engineers for integration assistance, troubleshooting guidance, and configuration optimization. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module includes installation instructions, wiring diagrams, technical data sheets, and sample ladder logic routines. Downloadable resources include 3D CAD models (STEP format) and Studio 5000 Add-On Profiles (AOP).

Frequently Asked Questions

Q: What is the maximum cable length for AC input wiring on the 1769-IM12?
A: Recommended maximum is 300 meters (1000 feet) using shielded twisted-pair cable. Longer runs may require signal repeaters or consideration of remote I/O architectures to maintain signal integrity.

Q: Can this module operate with 50Hz and 60Hz power systems?
A: Yes, the 1769-IM12 automatically adapts to input frequencies from 47-63 Hz, making it suitable for global deployments without configuration changes or hardware modifications.

Q: How does the module handle input signal noise in VFD environments?
A: Galvanic isolation (2500V AC) and programmable input filters effectively reject common-mode noise from variable frequency drives. For severe EMI conditions, use shielded cables with 360° shield termination at the module end.

Q: Is the 1769-IM12 compatible with safety-rated control systems?
A: This is a standard I/O module, not safety-rated. For SIL 2/3 or PLd/e applications, specify GuardLogix controllers with 1791DS-IB12 safety input modules that provide dual-channel monitoring and diagnostic coverage.

Q: What backplane current budget is required for multiple 1769-IM12 modules?
A: Each module draws 150mA from the 5V DC backplane supply. A 1769-PA4 power supply (3A capacity) supports up to 20 modules, though practical limits depend on total I/O configuration and communication loading.

Q: Does the module support hot-swap replacement during operation?
A: Yes, when electronic keying is enabled and the controller is configured for module insertion/removal events. Best practice recommends de-energizing field wiring before physical removal to prevent arc flash hazards.

Ready to Optimize Your Control System?

Contact our application specialists to discuss your specific I/O requirements, receive customized wiring diagrams, or request a formal quotation. We provide technical pre-sales support to ensure optimal module selection and system architecture design.
