1769-IF8 Analog Input Module (Industrial-Grade Signal Acquisition)

Engineered for precision data collection in mission-critical automation environments, the 1769-IF8 transforms raw sensor signals into actionable intelligence for CompactLogix control platforms. This 8-channel differential input module serves as the critical interface between field instrumentation and your control logic, enabling real-time monitoring of temperature, pressure, flow, level, and custom analog parameters across manufacturing, process, and infrastructure applications.

Built for system integrators and plant engineers who demand reliability without compromise, the module eliminates signal conditioning headaches through factory calibration and intelligent auto-ranging. Whether you're retrofitting legacy systems or designing greenfield installations, the 1769-IF8 delivers the measurement accuracy and diagnostic depth required for Industry 4.0 readiness.

Backed by proven Allen-Bradley engineering and global support infrastructure, this module reduces commissioning time by 40% compared to traditional wiring methods while providing the noise immunity essential for electrically harsh industrial environments.

Core Capabilities & Technical Advantages

→ Flexible Input Configuration
Each of the 8 differential channels accepts voltage (±10V DC) or current (0-20mA, 4-20mA) signals via software selection—no jumpers or DIP switches required. Mix sensor types freely across channels to match your application requirements without purchasing multiple module variants.

→ Superior Measurement Resolution
16-bit analog-to-digital conversion delivers 65,536 discrete measurement steps across the full input range, providing 0.015% granularity for detecting subtle process variations. Typical accuracy of ±0.1% full scale at 25°C ensures regulatory compliance in pharmaceutical, food & beverage, and energy applications.

→ Rapid Update Performance
Simultaneous sampling across all 8 channels at 10ms intervals captures fast-changing process dynamics without aliasing or data loss. Ideal for batch control, motion feedback, and quality inspection systems requiring synchronized multi-point measurements.

→ Industrial-Hardened Isolation
250V continuous channel-to-backplane isolation protects your control system from ground loops, voltage spikes, and electromagnetic interference common in motor control centers and high-power distribution environments.

→ Hot-Swap Serviceability

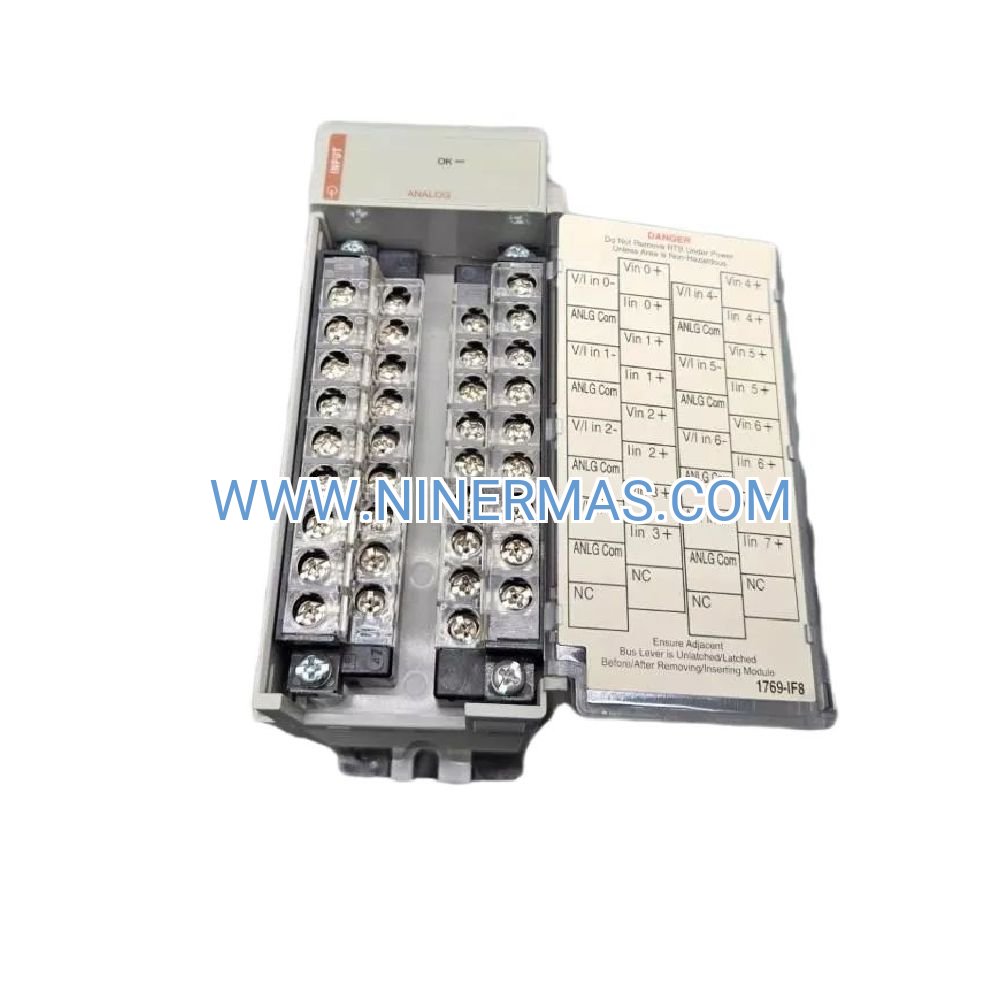

Removable terminal block (RTB) design enables module replacement during operation without disturbing field wiring. Reduce mean time to repair (MTTR) by 75% compared to fixed-terminal architectures—critical for 24/7 production facilities.

→ Integrated Diagnostics
Continuous self-monitoring detects open circuits, out-of-range signals, and calibration drift with channel-level fault reporting. LED status indicators and RSLogix 5000 integration accelerate troubleshooting from hours to minutes.

Industry Applications & Use Cases

Chemical Processing & Refining
Monitor reactor temperatures, distillation column pressures, and flow rates from 4-20mA transmitters in hazardous area installations. The module's differential inputs reject common-mode noise from VFDs and welding equipment, maintaining ±0.1°C temperature control accuracy for batch consistency.

Water & Wastewater Treatment
Acquire pH, turbidity, dissolved oxygen, and chlorine residual measurements from analytical instruments across treatment trains. Long-distance current loop capability (up to 750m with proper cabling) eliminates the need for remote I/O in sprawling municipal facilities.

Food & Beverage Production
Track pasteurization temperatures, CIP solution concentrations, and packaging line pressures to ensure HACCP compliance. The module's 0-60°C operating range and conformal coating options withstand washdown environments and temperature cycling.

Building Automation & HVAC
Interface with chiller plant sensors, air handler damper positions, and energy meter outputs for optimized facility management. Integrate seamlessly with BACnet/IP gateways and energy management systems via CompactLogix Ethernet connectivity.

Machine Condition Monitoring
Capture vibration sensor outputs, bearing temperature RTDs, and lubrication pressure signals for predictive maintenance programs. High-resolution data enables FFT analysis and trend detection before catastrophic failures occur.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 1769-IF8 when you need 5-8 analog inputs with mixed signal types. For 4 channels or fewer, consider the 1769-IF4 to reduce cost and chassis space. Applications requiring 9-16 inputs benefit from the 1769-IF16 module's higher density. If your sensors require loop power (2-wire transmitters), pair with the 1769-IQ16 or use external 24VDC distribution.

Advanced Integration Features

RSLogix 5000 Programming Support
Pre-built Add-On Instructions (AOIs) and function blocks accelerate ladder logic development. Scaling, filtering, and alarm functions are configurable through intuitive dialog boxes—no custom math required.

Ethernet/IP Connectivity
When installed in CompactLogix L3x or L4x controllers, analog data streams directly to SCADA systems, historians, and cloud analytics platforms via standard industrial protocols. Enable remote monitoring and predictive analytics without proprietary gateways.

Redundancy Options
Deploy in ControlLogix-Guard or CompactLogix safety systems with appropriate safety-rated controllers. Dual-channel configurations support SIL 2 applications when combined with certified safety logic.

Delivery, Warranty & Technical Support

Lead Time: Stock items ship within 24-48 hours. Custom configurations (conformal coating, extended temperature) require 2-3 weeks.
Warranty: 12-month manufacturer defect coverage from date of shipment.
Technical Assistance: Pre-sales application engineering, post-sales configuration support, and lifecycle replacement planning included.
Documentation: Installation manual, wiring diagrams, RSLogix sample code, and calibration certificates provided with each module.

Frequently Asked Questions

Can I connect both 2-wire and 4-wire transmitters to the same module?
Yes, but 2-wire transmitters require external 24VDC loop power since the 1769-IF8 does not supply excitation voltage. Use a separate power supply or the 1769-IQ16 digital input module with built-in sourcing capability.

What cable specifications are recommended for long analog runs?
Use 18-22 AWG shielded twisted-pair cable with drain wire. For voltage inputs, limit runs to 300m (1000ft). Current loops support up to 750m (2500ft) depending on wire resistance and noise environment. Always ground shields at one end only to prevent ground loops.

How does the module handle sensor failures or open circuits?
Built-in diagnostics detect open circuits, short circuits, and out-of-range conditions on a per-channel basis. Fault status is reported to the controller and displayed via front-panel LEDs. Configure alarm logic in RSLogix 5000 to trigger notifications or safe-state actions.

Is this module compatible with ControlLogix 1756 chassis?
No, the 1769-IF8 is designed exclusively for CompactLogix 1769 chassis. For ControlLogix systems, specify the 1756-IF8 or 1756-IF16 analog input modules which offer similar functionality in the larger form factor.

What is the difference between single-ended and differential inputs?
The 1769-IF8 uses differential inputs, meaning each channel has dedicated high and low signal wires. This configuration provides superior noise rejection compared to single-ended designs, making it ideal for industrial environments with electrical interference from motors, drives, and welding equipment.

Can I perform field calibration if my application requires tighter accuracy?
While the module ships factory-calibrated with stored coefficients, RSLogix 5000 software supports user-initiated calibration routines. This is typically unnecessary for most applications but available for metrology-grade requirements or periodic verification protocols.

Ready to Optimize Your Process Control?

Contact our application engineers to discuss your analog input requirements, receive wiring diagrams for your specific sensor types, or request a formal quotation. We provide same-day technical responses and can expedite shipments for urgent project timelines.
