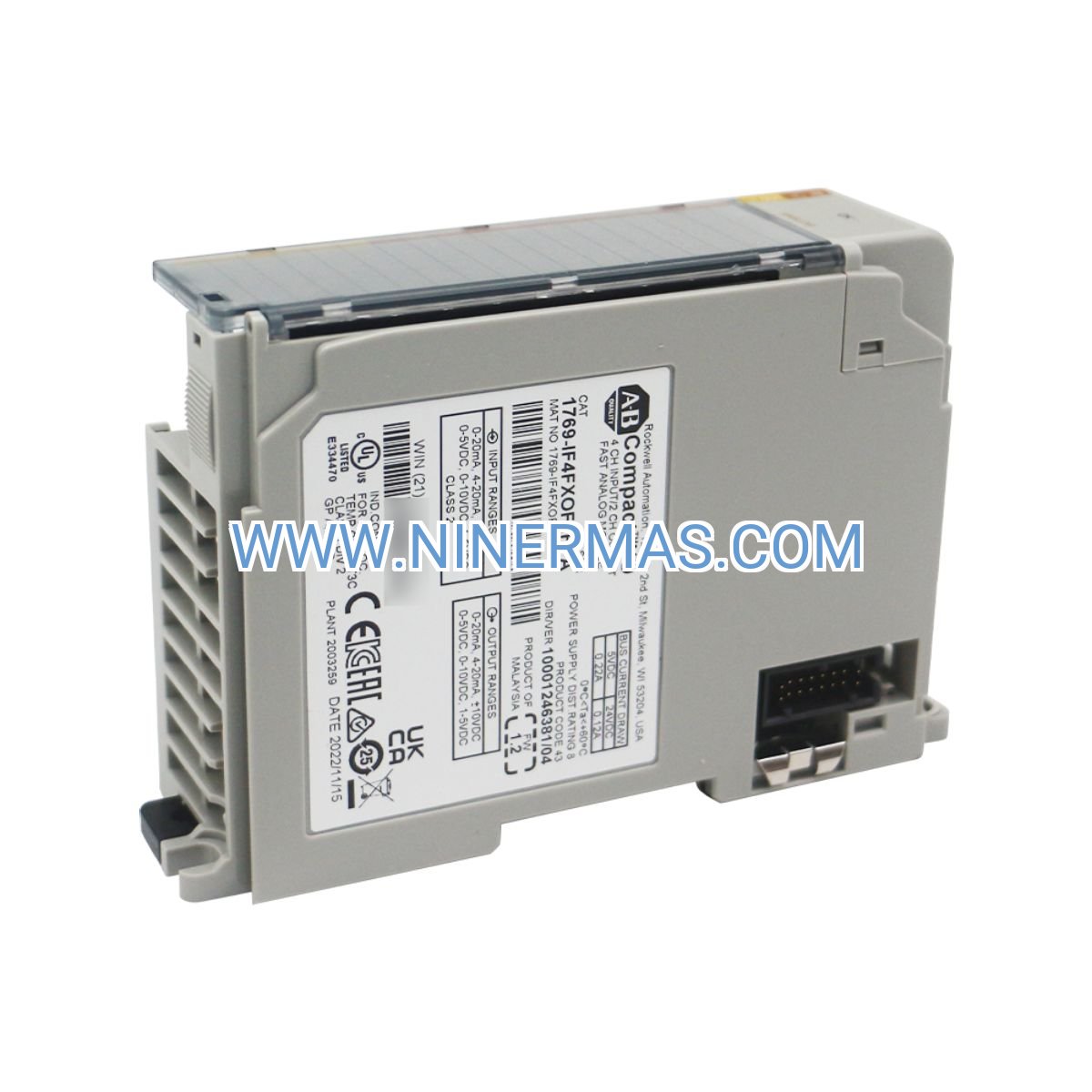

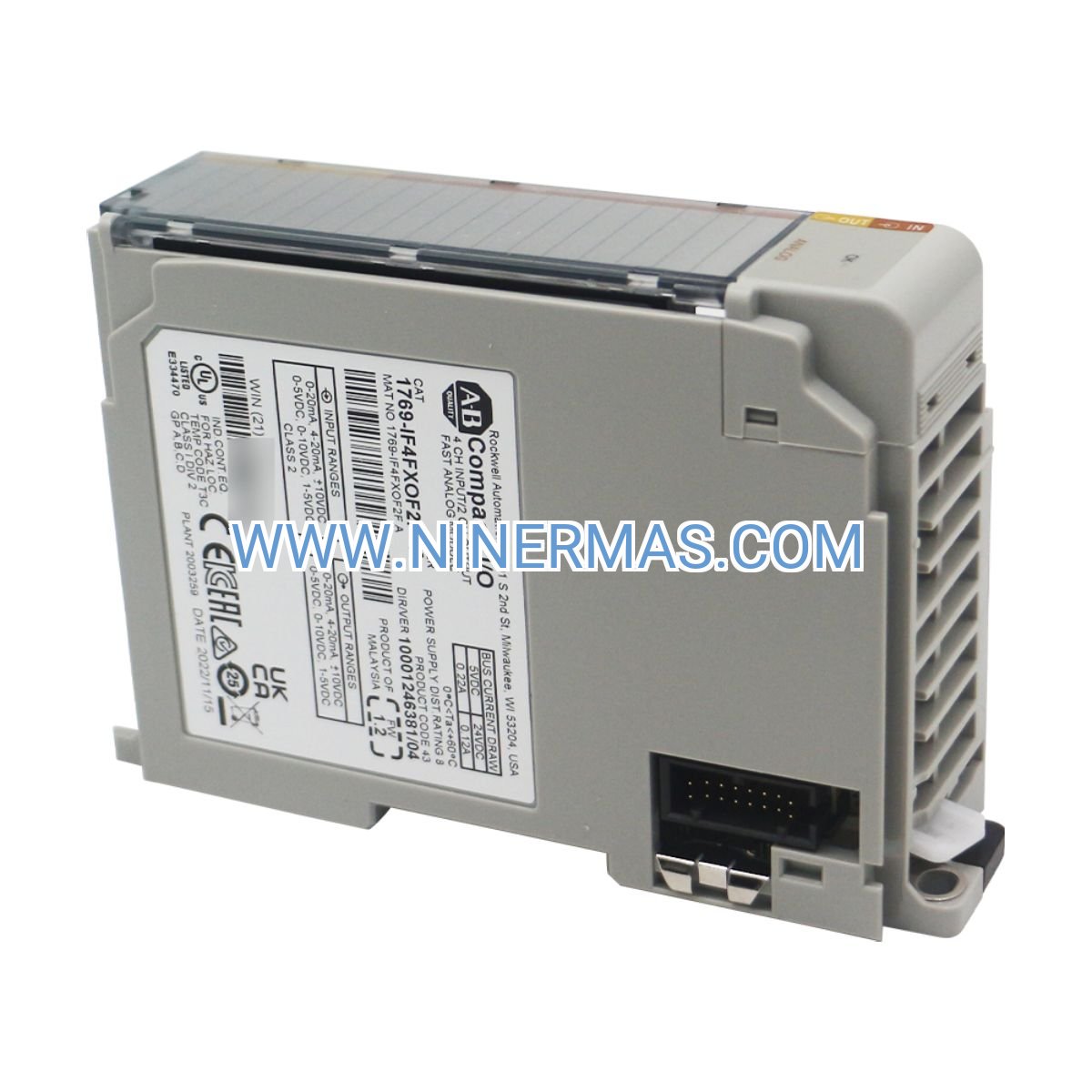

1769-IF4FXOF2F Analog I/O Module (Industrial-Grade CompactLogix Solution)

The 1769-IF4FXOF2F represents a breakthrough in compact analog signal processing for Allen-Bradley CompactLogix systems. Engineered for industrial environments where precision meets speed, this 6-channel module delivers 4 independently configurable analog inputs paired with 2 versatile analog outputs—all within a single, space-efficient footprint.

Designed for automation engineers and system integrators facing complex process control challenges, this module eliminates the traditional trade-off between channel density and performance. Whether you're retrofitting legacy systems or designing greenfield installations, the IF4FXOF2F provides the flexibility to handle voltage and current signals simultaneously without external signal conditioning.

With factory-calibrated 16-bit resolution and sub-10ms conversion cycles, this module transforms raw sensor data into actionable control signals with exceptional accuracy. From pharmaceutical batch processing to precision motion control, the 1769-IF4FXOF2F serves as the critical interface between your physical processes and digital control architecture.

Core Features & Benefits

→ Dual-Mode Input Flexibility
Each of the 4 input channels accepts both voltage (±10V, 0-10V) and current (0-20mA, 4-20mA) signals through software configuration—eliminating inventory complexity and reducing spare parts requirements by up to 60%.

→ High-Fidelity Signal Conversion
16-bit analog-to-digital conversion delivers 0.0015% resolution across the full scale, enabling detection of minute process variations that 12-bit systems miss. Critical for applications requiring ±0.1% control accuracy.

→ Rapid Update Performance
10ms per-channel conversion rate supports fast-loop control applications including servo positioning, pressure regulation, and temperature profiling where response time directly impacts product quality.

✓ Integrated Noise Immunity
Channel-to-backplane isolation combined with differential input architecture rejects common-mode noise up to 240VAC, maintaining signal integrity in VFD-heavy environments without external filters.

✓ Hot-Swap Capability
Electronic keying and under-power replacement support minimizes unplanned downtime—swap failed modules in under 90 seconds without shutting down adjacent I/O or disrupting active control loops.

✓ Diagnostic Intelligence
Built-in channel fault detection, over-range indication, and open-wire diagnostics accelerate troubleshooting by 70% compared to passive I/O modules, with real-time status accessible via Studio 5000.

Application Scenarios

Chemical Process Control
Monitor reactor temperatures, regulate flow rates, and control valve positions in batch and continuous processes. The module's isolated inputs prevent ground loop interference in multi-zone heating systems, while dual outputs enable split-range control of heating/cooling valves from a single PID loop.

Packaging & Material Handling
Interface with tension sensors, web guides, and dancer arm transducers in high-speed packaging lines. The 10ms update rate supports closed-loop tension control at line speeds exceeding 300 meters/minute, reducing material waste by maintaining ±2% tension tolerance.

Water & Wastewater Treatment
Acquire pH, turbidity, dissolved oxygen, and chlorine residual measurements while controlling chemical dosing pumps and variable-speed blowers. Current loop inputs provide immunity to electrical noise from motor starters and high-voltage switchgear in outdoor installations.

HVAC & Building Automation
Regulate chilled water temperatures, monitor differential pressures, and modulate damper actuators in commercial buildings. Software-selectable ranges allow a single module type to handle 0-10V damper control and 4-20mA pressure transmitters simultaneously.

Energy & Utilities
Capture power quality metrics, monitor transformer temperatures, and control generator excitation systems. The module's wide operating temperature range (0-60°C) suits substation and outdoor enclosure deployments without climate control.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-IF4FXOF2F when your application requires more than 2 analog inputs but fewer than 8, and you need at least one analog output for control. For input-only applications with 4+ channels, consider the 1769-IF4 or 1769-IF8. If you need 4+ outputs, the 1769-OF4 or 1769-OF8 may be more appropriate. The "FX" designation indicates flexible (software-configurable) input ranges—ideal for applications with mixed sensor types.

Extended Functions

Advanced Filtering Options
Configure first-order low-pass filters (10Hz to 500Hz cutoff) directly in Studio 5000 to attenuate high-frequency noise without external signal conditioners. Adjustable time constants enable optimization for specific sensor types and process dynamics.

Scaling & Engineering Units
Apply linear scaling, square root extraction, or custom polynomial curves within the module configuration to convert raw counts directly to engineering units (PSI, °C, GPM, etc.), reducing controller scan time and simplifying ladder logic.

Alarm & Notification Integration
Define high/low alarm thresholds at the module level with automatic status bit updates, enabling faster alarm response than software-based limit checking while offloading controller processing.

Redundancy Support
When deployed in ControlLogix redundant systems, the module supports automatic switchover with bumpless transfer, maintaining control output continuity during controller failover events.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-2 business days via DHL/FedEx Express. Custom-configured modules (special firmware or calibration) require 5-7 business days.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift beyond published specifications. Extended 36-month coverage available upon request.

Technical Support: Direct access to application engineers with CompactLogix expertise for configuration assistance, troubleshooting, and integration guidance. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module ships with installation instructions, wiring diagrams, Studio 5000 Add-On Profile (AOP), and sample ladder logic. Complete user manual and calibration certificates available for download.

Frequently Asked Questions

How do I configure input channels for current versus voltage operation?
Input type selection is performed in Studio 5000 through the module's configuration dialog. Navigate to the I/O Configuration tree, select the 1769-IF4FXOF2F module, and choose voltage or current mode for each channel independently. Changes take effect immediately without power cycling.

What cable specifications are recommended for analog signal integrity?
Use 18-22 AWG shielded twisted-pair cable with drain wire. For current signals, maximum cable length is 500 meters; for voltage signals, limit runs to 100 meters. Ground shields at one end only (typically at the module) to prevent ground loops. Belden 8761 or equivalent is recommended for industrial environments.

Can this module interface with 3-wire transmitters directly?
Yes, the module provides loop power for 2-wire 4-20mA transmitters and accepts signals from 3-wire and 4-wire devices. For 2-wire transmitters, connect the positive terminal to the module's +V terminal and the negative to the input channel. Consult the wiring diagram for specific terminal assignments.

Does the module require periodic recalibration?
Factory calibration is stable for the module's operational lifetime under normal conditions. Annual verification is recommended for critical measurement applications. Studio 5000 includes calibration utilities for field adjustment if drift is detected, though this is rarely necessary.

What is the maximum RPI (Requested Packet Interval) setting?
The module supports RPI settings from 1ms to 750ms. However, setting RPI below the module's conversion time (10ms) does not improve data freshness and increases network bandwidth consumption. For most applications, 20-50ms RPI provides optimal balance between responsiveness and network efficiency.

Is the module compatible with older ControlLogix processors?
The 1769-IF4FXOF2F requires Studio 5000 version 20 or later and is compatible with all CompactLogix 5370, 5380, and 5480 controllers. For legacy 1769-L3x controllers, verify firmware revision compatibility in the product compatibility matrix. The module is NOT compatible with MicroLogix or SLC 500 platforms.
