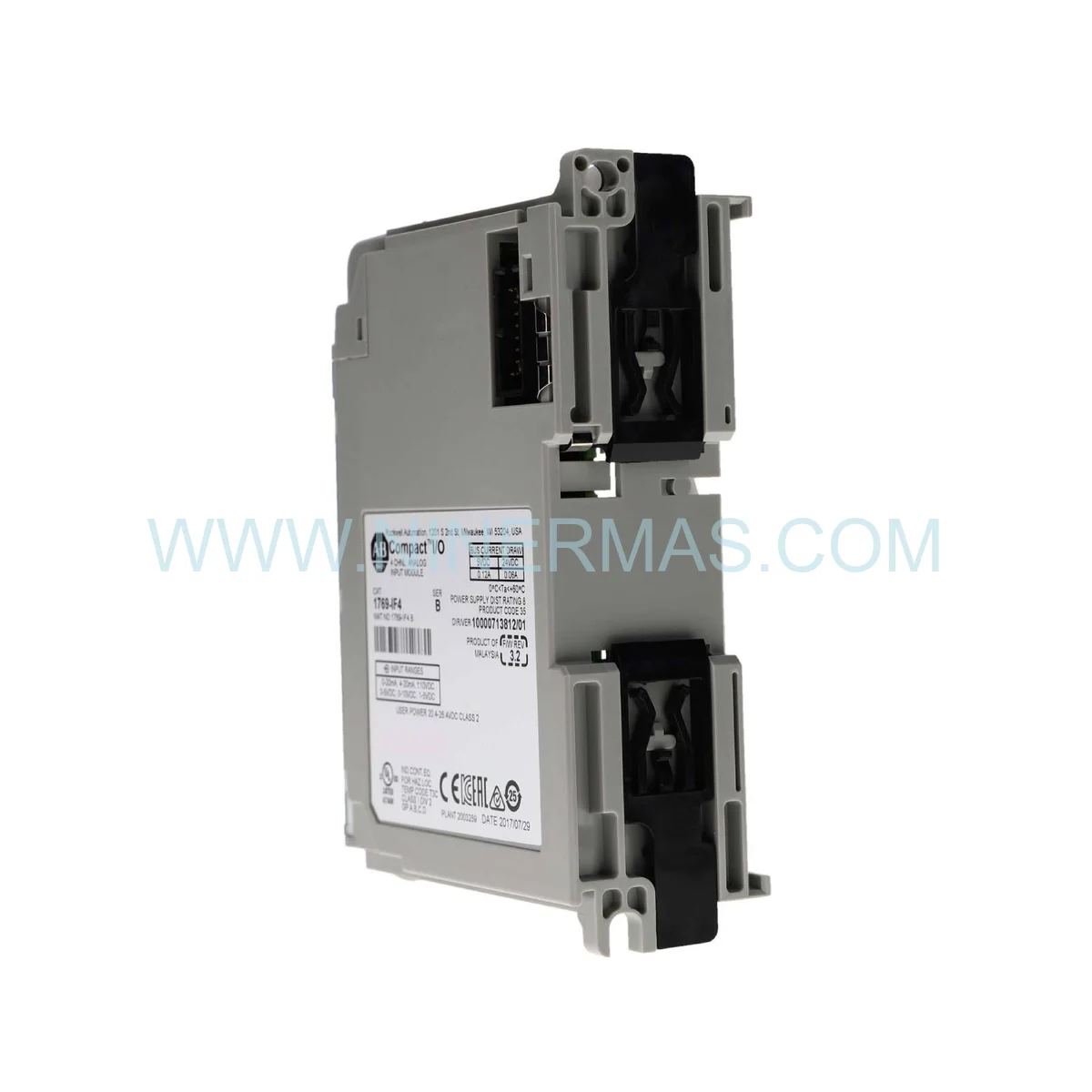

Allen-Bradley 1769-IF4/B — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

From the perspective of a System Migration Architect, the Allen-Bradley 1769-IF4/B stands as a cornerstone component in any industrial control system modernization initiative. As aging DCS and PLC platforms approach end-of-life, the Allen-Bradley 1769-IF4/B delivers a proven pathway to extend operational continuity while simultaneously elevating measurement precision to 16-bit resolution — a critical leap for facilities transitioning from legacy analog I/O architectures that once relied on 12-bit or lower-resolution modules.

One of the most compelling advantages of this module in a retrofit context is its backward compatibility with the broader CompactLogix 1769 backplane ecosystem. Whether your facility is migrating from SLC 500, MicroLogix, or early-generation CompactLogix platforms, the 1769-IF4/B slots directly into existing 1769 chassis configurations, dramatically reducing re-engineering scope and minimizing the risk of costly system re-architecture. Its support for ±10V, 0-20mA, and 4-20mA signal types means field wiring from legacy transmitters can often be reused without modification.

From a total cost of migration standpoint, deploying the 1769-IF4/B as part of a phased modernization strategy allows plant engineers to preserve capital investment in existing field instrumentation while progressively upgrading the control layer. This approach reduces migration risk, shortens commissioning windows, and delivers measurable ROI — making it the preferred choice for retrofit project leads managing tight budgets and aggressive timelines.

Upgrade Highlights & Compatibility

• ✅ 16-Bit Resolution Upgrade: Replaces legacy 12-bit analog modules with 65,536-count precision — a 16 improvement in measurement granularity for tighter process control loops.
• Multi-Signal Compatibility: Accepts ±10V DC, 0-20mA, and 4-20mA inputs per channel, enabling direct reuse of existing field wiring during system migration.
• ✅ Channel-to-Channel Isolation: Eliminates ground loop interference common in legacy wiring topologies, ensuring signal integrity across all four differential input channels.
• Hot-Swap Capability: Supports live module replacement without full system shutdown — a critical feature for continuous-process industries where downtime is not an option.
• ✅ Future-Proof Platform: Fully compatible with CompactLogix 5370, 5380, and 5480 controllers, ensuring long-term supportability as your control architecture evolves.
• Seamless Integration: Native EDS-based configuration in Studio 5000 Logix Designer eliminates custom driver development, accelerating retrofit commissioning timelines.

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing: A specialty chemicals manufacturer operating a legacy Honeywell TDC 3000 DCS faced escalating maintenance costs and obsolete spare parts. By deploying the 1769-IF4/B within a CompactLogix 5380 architecture, the retrofit team replaced 32 aging analog input cards across three process units. The 16-bit resolution enabled tighter pH and temperature control loops, reducing product quality deviations by an estimated 18% while cutting annual maintenance spend significantly.

Turbine Supervisory Instrumentation (TSI) Upgrade: A combined-cycle power plant required modernization of its turbine monitoring infrastructure after the OEM discontinued support for its original TSI platform. The 1769-IF4/B was selected as the analog front-end for vibration and bearing temperature signal acquisition, interfacing with existing 4-20mA transmitters. The module’s 10ms per-channel update rate met the plant’s real-time monitoring requirements, and its channel isolation prevented cross-talk between high-voltage turbine proximity probe circuits and low-level temperature signals.

Pharmaceutical Batch Process Retrofit: A GMP-regulated pharmaceutical facility upgraded its batch reactor control system from a legacy SLC 500 platform to CompactLogix. The 1769-IF4/B provided a direct I/O footprint match, allowing the retrofit to proceed without panel redesign. Studio 5000 configuration tools enabled rapid tag mapping from the legacy RSLogix 500 project, compressing the validation and commissioning phase from an estimated 12 weeks to under 7 weeks.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1769-IF4/B unit in our inventory is sourced as genuine Rockwell Automation product — factory sealed, fully traceable, and accompanied by original manufacturer documentation. No refurbished, reconditioned, or counterfeit components are stocked or supplied.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain ready stock and offer expedited international shipping to manufacturing facilities, power plants, and process industries worldwide. DHL Express, FedEx Priority, and freight consolidation options are available to meet your project schedule.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in bridging the gap between legacy control architectures and modern CompactLogix platforms. We provide pre-sales compatibility consultation, migration planning guidance, and post-delivery technical assistance — ensuring your retrofit project proceeds from procurement through commissioning without interruption.

Retrofit FAQ — Upgrade Guide

Q: Can the Allen-Bradley 1769-IF4/B physically replace older 1769-series analog input modules in an existing chassis without mechanical modification?
A: Yes. The 1769-IF4/B adheres to the standard 1769 CompactLogix I/O form factor and backplane connector specification. It can be installed in any existing 1769 chassis slot previously occupied by a compatible analog input module. No panel cutout modifications or mounting hardware changes are required, making it an ideal drop-in retrofit component for space-constrained control cabinets.

Q: How does the 1769-IF4/B handle communication protocol differences when migrating from SLC 500 or legacy DCS systems?
A: The 1769-IF4/B communicates natively over the CompactLogix backplane using the 1769 I/O bus protocol, managed by the CompactLogix controller. When migrating from SLC 500, the controller handles all protocol translation — field wiring to the 1769-IF4/B remains unchanged (4-20mA or voltage), while the controller’s EtherNet/IP interface provides upstream connectivity to SCADA, historian, and MES systems. No additional protocol converters or gateways are required at the I/O level.

Q: Are there validated spare part alternatives or cross-reference options if the 1769-IF4/B is unavailable during a critical retrofit?
A: The closest functional alternative within the 1769 family is the 1769-IF4/A (earlier revision), which shares the same channel count and signal type support but with slightly reduced diagnostic capability. For applications requiring more channels, the 1769-IF8/A (8-channel) provides an upward migration path. Our technical team can advise on revision-specific compatibility with your controller firmware version prior to procurement.

Q: What is the recommended approach for migrating tag databases and I/O mapping from RSLogix 500 to Studio 5000 when deploying the 1769-IF4/B?
A: Rockwell Automation provides a migration utility within Studio 5000 that imports RSLogix 500 project files and maps existing I/O tags to the new CompactLogix I/O tree. For the 1769-IF4/B, channel scaling parameters (engineering unit ranges, filter frequencies) are reconfigured via the module’s Properties dialog in Studio 5000. We recommend a parallel-run validation period where both legacy and new systems operate simultaneously before full cutover.

Q: How does the 1769-IF4/B’s channel isolation benefit facilities migrating from non-isolated legacy analog I/O cards?
A: Many legacy analog I/O platforms used non-isolated or single-point-isolated designs that were susceptible to ground loops — a common source of signal drift and measurement error in industrial environments with multiple grounding references. The 1769-IF4/B’s channel-to-channel and channel-to-backplane isolation architecture eliminates these ground loop paths, often resolving chronic measurement instability issues that plagued legacy systems without requiring changes to field wiring or grounding infrastructure.

Q: What warranty and lifecycle support can we expect for the 1769-IF4/B in a long-term retrofit deployment?
A: The Allen-Bradley 1769-IF4/B is currently in Active lifecycle status, meaning Rockwell Automation continues to manufacture, sell, and provide full technical support for this module. This Active status makes it a low-risk selection for retrofit projects with 10-15 year operational horizons. We provide a 12-month warranty on all supplied units, and our team can assist with long-term supply agreements to ensure spare parts availability throughout your system’s operational life.
