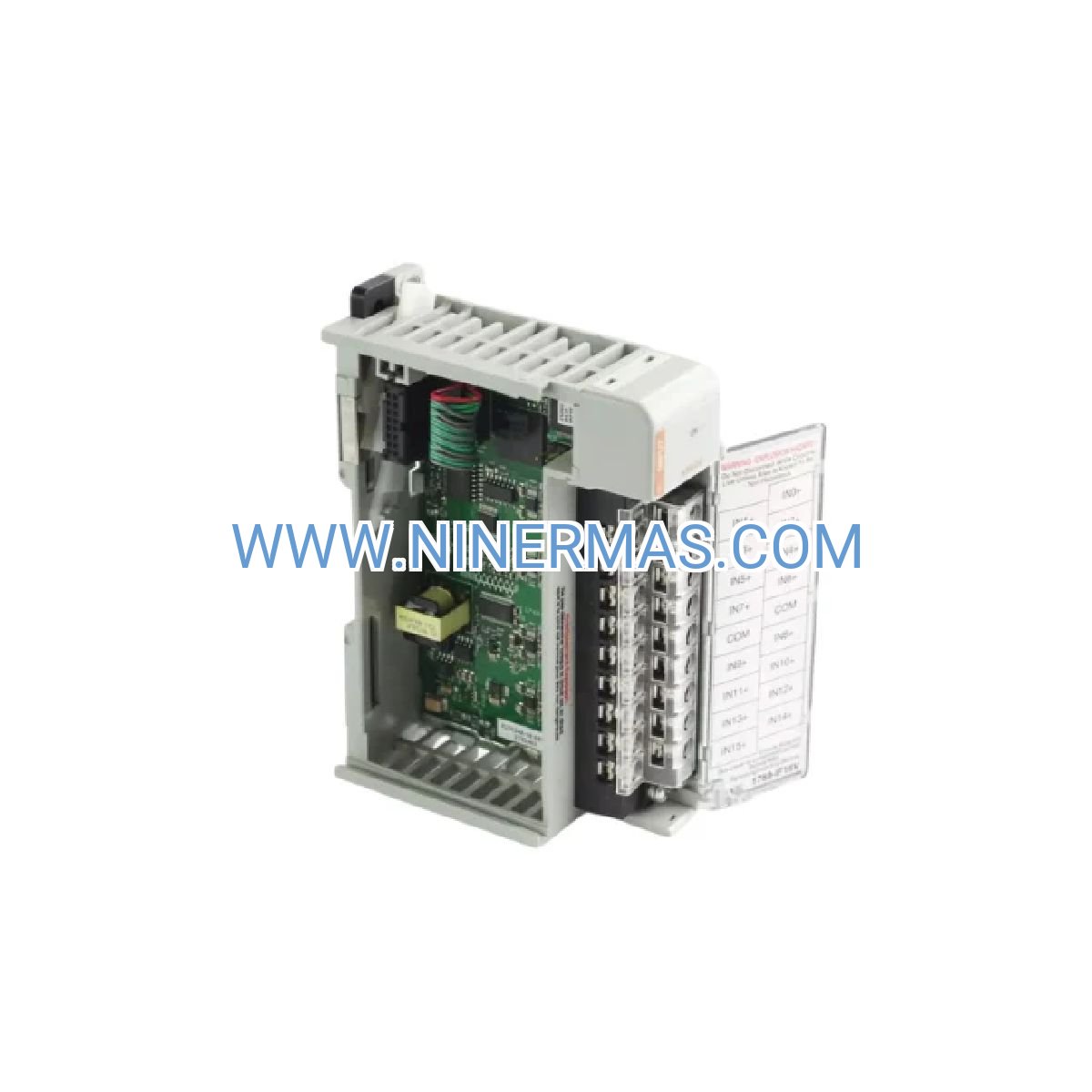

1769-IF16V Analog Voltage Acquisition Module (Industrial-Grade CompactLogix I/O)

The 1769-IF16V is a high-density analog voltage input module designed for precision data acquisition in industrial automation environments. Featuring 16 differential input channels with software-selectable voltage ranges, this CompactLogix I/O component delivers reliable signal conversion for process control, quality assurance, and energy management applications. Built to withstand harsh electrical conditions, the module combines 16-bit resolution with robust noise immunity, making it the preferred choice for engineers requiring accurate, multi-channel voltage monitoring in mission-critical systems.

Engineered for seamless integration with Allen-Bradley ControlLogix and CompactLogix platforms, the 1769-IF16V addresses the challenge of consolidating multiple analog signals into a single, space-efficient module. Target users include automation engineers, system integrators, and maintenance professionals working in chemical processing, pharmaceutical manufacturing, water treatment, and discrete manufacturing facilities. Whether you're upgrading legacy systems or designing new installations, this module provides the flexibility and performance demanded by modern industrial control architectures.

Key advantages include independent channel configuration, factory calibration with traceability certificates, hot-swap capability for minimal downtime, and compatibility with industry-standard programming tools like Studio 5000. The differential input design rejects common-mode noise up to 10V, ensuring signal integrity even in electrically noisy environments. With proven reliability and comprehensive technical support, the 1769-IF16V accelerates project deployment while reducing long-term maintenance costs.

Core Features & Benefits

✓ 16 Differential Voltage Inputs → Maximize I/O density while minimizing chassis space requirements; each channel operates independently for flexible system design

✓ Software-Selectable Ranges (±10V, 0-10V, 0-5V) → Adapt to diverse sensor types without hardware modifications; configure per-channel settings through Studio 5000 for rapid commissioning

✓ 16-Bit Resolution (65,536 counts) → Capture subtle signal variations critical for quality control and process optimization; achieve ±0.1% full-scale accuracy at 25°C

✓ 10 MΩ Minimum Input Impedance → Prevent signal loading errors when interfacing with high-impedance sources such as pH sensors and analytical instruments

✓ Channel-to-Backplane Isolation (50V Continuous) → Protect control system integrity from ground loops and transient voltage spikes common in industrial power distribution

✓ Hot-Swap (RIUP) Support → Replace modules under power without halting production; reduce mean time to repair (MTTR) during scheduled maintenance or emergency troubleshooting

Application Scenarios

→ Chemical & Pharmaceutical Process Control
Monitor temperature transmitters (4-20mA converted to 1-5V), pressure transducers, and pH analyzers across batch reactors and continuous processes. The module's high accuracy ensures compliance with FDA 21 CFR Part 11 and ISO 9001 quality standards, while differential inputs eliminate ground-loop interference in multi-building facilities.

→ Automated Quality Inspection Systems
Acquire simultaneous readings from linear variable differential transformers (LVDTs), laser displacement sensors, and strain gauge amplifiers in automotive assembly lines or electronics manufacturing. The 10 ms update rate per channel supports real-time statistical process control (SPC) and immediate reject decisions.

→ Energy & Utilities Monitoring
Track DC bus voltages in solar inverter arrays, battery management systems, and uninterruptible power supplies (UPS). Independent channel configuration allows mixing 0-10V wind turbine signals with ±10V grid synchronization inputs in the same module, simplifying SCADA integration.

→ Water & Wastewater Treatment
Interface with turbidity meters, dissolved oxygen probes, and flow totalizers across distributed lift stations and treatment plants. The module's 0-60°C operating range and removable terminal blocks facilitate installation in outdoor control panels and harsh environments.

→ Building Automation & HVAC
Consolidate chiller performance data, air handler damper positions, and variable frequency drive (VFD) speed references into centralized building management systems. Studio 5000 scaling functions convert raw voltage signals to engineering units (°F, PSI, CFM) for operator displays.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-IF16V when your application requires high-density voltage input acquisition with individual channel configuration flexibility. For current signal monitoring (4-20mA), consider the 1769-IF8 module. If HART protocol communication is needed, the 1769-IF8H provides integrated HART multiplexing. For applications demanding higher isolation (250V), evaluate the 1769-IQ16 isolated input module.

Extended Functions

IoT & Cloud Integration: Leverage FactoryTalk Edge Gateway to stream 1769-IF16V data to Azure IoT Hub, AWS IoT Core, or on-premise historians for predictive maintenance analytics and machine learning model training.

Advanced Diagnostics: Built-in module diagnostics report open-wire detection, over-range conditions, and calibration drift alerts through Studio 5000, enabling proactive maintenance scheduling before process disruptions occur.

Customization Options: Factory configuration services available for pre-programmed channel ranges, custom calibration certificates, and extended temperature testing (-25 to 70°C) for specialized applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days via DHL, FedEx, or UPS. Custom-configured modules require 2-3 weeks for factory programming and testing.

Warranty: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to certified automation engineers for configuration assistance, troubleshooting guidance, and application design consultation. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, Studio 5000 Add-On Profile (AOP), sample ladder logic code, and factory calibration certificate with NIST-traceable test data.

Frequently Asked Questions

Q: What cable specifications are recommended for optimal signal integrity with the 1769-IF16V?
A: Use 18-22 AWG shielded twisted-pair cable with drain wire. Maximum recommended length is 300 meters (1000 feet) for ±10V signals. For 0-5V ranges in high-noise environments, limit cable runs to 150 meters and ensure 360° shield termination at the module end only.

Q: Can I monitor both positive and negative voltage signals simultaneously on different channels?
A: Yes, configure channels requiring bipolar measurement to ±10V range, while unipolar signals use 0-10V or 0-5V ranges. Each channel's range is independently selectable through the module configuration in Studio 5000.

Q: How does the 1769-IF16V compare to the 1769-IF8 in terms of power consumption and heat dissipation?
A: The IF16V consumes 175 mA @ 5V DC versus 150 mA for the IF8, resulting in approximately 0.875W heat dissipation. Ensure adequate chassis ventilation when using multiple high-density I/O modules in compact installations.

Q: Is the module compatible with third-party voltage transmitters and signal conditioners?
A: Absolutely. The 1769-IF16V accepts standard voltage outputs from any manufacturer's transmitters, including Rosemount, Endress+Hauser, Siemens, and ABB devices. Verify transmitter output range matches one of the module's selectable ranges.

Q: What firmware version is required for hot-swap functionality?
A: Hot-swap (RIUP) is supported on all firmware revisions when used with 1769-L3x or newer CompactLogix controllers running firmware v20 or higher. Verify controller compatibility in the ControlFLASH utility before attempting live module replacement.

Q: Does the module support remote monitoring and configuration changes while the system is running?
A: Yes, when connected via EtherNet/IP, you can monitor real-time channel values and modify scaling parameters through Studio 5000 online edits. Voltage range changes require a module reset and brief interruption of data acquisition.
