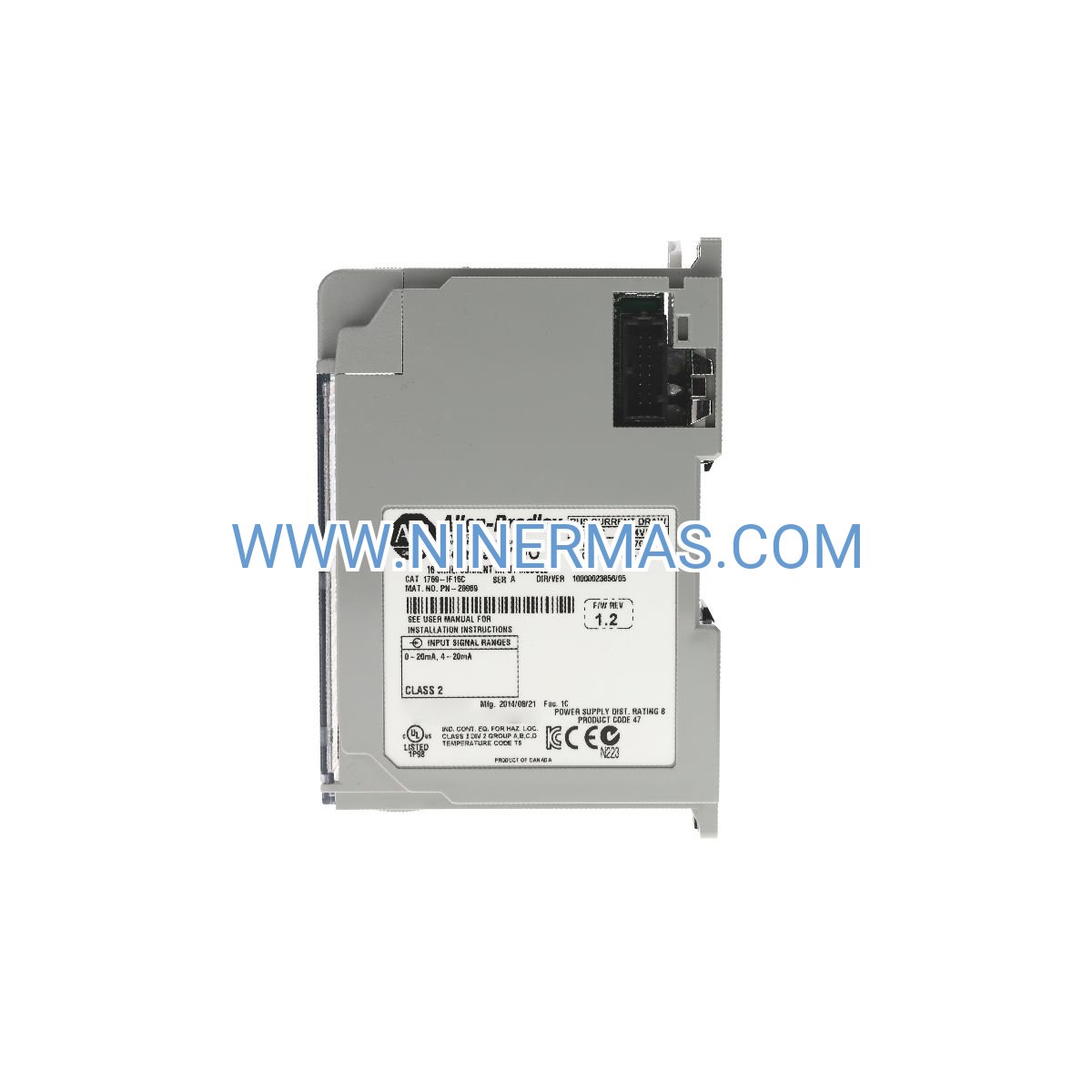

1769-IF16C Analog Current Input Module (Industrial-Grade CompactLogix I/O)

The 1769-IF16C is a high-density analog current input module engineered for precision signal acquisition in industrial control systems. Designed for seamless integration with Allen-Bradley CompactLogix platforms, this 16-channel module transforms current signals from field transmitters into actionable data for process monitoring, energy management, and automated control applications.

Built for manufacturers, system integrators, and facility engineers who demand reliable performance in harsh environments, the 1769-IF16C eliminates signal noise through robust electrical isolation while maintaining measurement accuracy across wide temperature ranges. Whether you're retrofitting legacy systems or designing new automation architectures, this module delivers the flexibility and precision required for mission-critical operations.

With factory calibration, hot-swap capability, and software-configurable input ranges, the 1769-IF16C reduces commissioning time and simplifies maintenance workflows. Its compact single-slot design maximizes cabinet space efficiency while supporting up to 16 independent current loops—ideal for applications requiring high channel density without compromising signal integrity.

Core Features & Benefits

✓ 16-Bit Resolution for Precision Measurement
Capture subtle process variations with 1-in-65,536 granularity, enabling tight control loops and early fault detection in critical applications such as pharmaceutical batch processing and semiconductor manufacturing.

✓ 500V Channel-to-Backplane Isolation
Protect your control system investment from ground loops, electrical transients, and common-mode voltage interference—essential for multi-building facilities and electrically noisy industrial environments.

✓ Software-Selectable Input Ranges (0-20mA / 4-20mA)
Adapt to diverse sensor types without hardware modifications. Configure each channel independently through Studio 5000, supporting mixed transmitter populations within a single module.

✓ Factory-Calibrated Accuracy (±0.1% FSR)
Deploy with confidence knowing each module ships pre-calibrated to OEM specifications, eliminating field calibration procedures and reducing installation labor costs by up to 40%.

✓ Hot-Swappable Design with Electronic Keying
Replace failed modules without system shutdown when properly configured, minimizing unplanned downtime and maintaining production continuity during maintenance windows.

✓ Configurable Update Rates (1ms to 100ms)
Balance scan time performance with system loading requirements. Fast update rates support high-speed packaging lines, while slower rates reduce processor overhead in large distributed systems.

Typical Application Scenarios

→ Chemical Process Monitoring
Acquire signals from flow transmitters, pressure sensors, and level indicators in batch reactors and continuous processing lines. The module's isolation protects against voltage spikes from variable frequency drives and motor starters, while 16-bit resolution enables precise dosing control for recipe management systems.

→ Energy & Utilities Management
Interface with current transformers, power meters, and energy monitors for real-time consumption tracking across manufacturing facilities. Supports demand response programs and ISO 50001 energy management compliance through accurate sub-metering and load profiling.

→ Water & Wastewater Treatment
Monitor turbidity sensors, pH transmitters, and dissolved oxygen probes in municipal treatment plants. Reliable signal acquisition ensures regulatory compliance while reducing chemical usage through optimized dosing algorithms based on real-time water quality data.

→ HVAC & Building Automation
Collect data from temperature transmitters, humidity sensors, and damper position indicators for precise environmental control in cleanrooms, data centers, and commercial buildings. Supports BACnet and Modbus integration for enterprise building management systems.

→ Predictive Maintenance Programs
Capture vibration, temperature, and pressure signals from rotating equipment, pumps, and compressors. Trend analysis identifies bearing wear, cavitation, and thermal degradation before catastrophic failures occur, reducing maintenance costs by 25-35%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-IF16C when your application requires high-density current input acquisition with electrical isolation. For voltage inputs, consider the 1769-IF16V. For applications requiring both current and voltage inputs, evaluate the 1769-IF8 (8-channel universal input) for maximum flexibility. Ensure your CompactLogix chassis has sufficient backplane current capacity (800mA @ 5V per module).

Extended Functions

IoT & Cloud Integration: Leverage FactoryTalk Edge Gateway to stream 1769-IF16C data to cloud analytics platforms including AWS IoT, Azure IoT Hub, and ThingWorx. Enable remote monitoring dashboards and machine learning models for anomaly detection without custom programming.

Advanced Diagnostics: Built-in channel diagnostics detect open circuits, short circuits, and out-of-range conditions. Diagnostic status bits integrate with alarm management systems for proactive maintenance notifications and reduced troubleshooting time.

Customization Options: Available with conformal coating for harsh chemical environments and extended temperature ratings (-25°C to 70°C) for outdoor installations. Contact our engineering team for application-specific configurations and volume pricing.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via DHL/FedEx Express. Custom configurations (conformal coating, extended temp) require 7-10 business days. Expedited same-day shipping available for critical downtime situations.

Warranty: Comprehensive 12-month warranty covering manufacturing defects and component failures. Extended warranty programs available for mission-critical applications requiring 3-5 year coverage.

Technical Support: Access to certified automation engineers for installation guidance, configuration assistance, and troubleshooting support. Remote diagnostic services available via TeamViewer/AnyDesk for rapid issue resolution.

Documentation Package: Each module ships with installation manual, wiring diagrams, Studio 5000 Add-On Profile (AOP), and sample ladder logic code. Additional resources include application notes, white papers, and video tutorials available through our technical library.

Frequently Asked Questions

Q: Can I use the 1769-IF16C with loop-powered transmitters?
A: The module accepts signals from loop-powered transmitters but does not provide loop power. You'll need an external 24V DC power supply to energize the current loops. Each channel can handle externally powered 4-20mA signals without additional components.

Q: What is the maximum cable distance for current input signals?
A: Current signals maintain integrity over distances up to 1000 meters (3280 feet) when using shielded twisted-pair cable (18-22 AWG). For installations exceeding 500 meters, verify cable resistance remains below 1500 ohms to prevent signal degradation.

Q: How do I configure different input ranges for each channel?
A: Use Studio 5000 (RSLogix 5000) to configure input ranges through the module's configuration tab. Each channel has independent range selection—simply choose 0-20mA or 4-20mA from the dropdown menu and download the configuration to the controller.

Q: Is the 1769-IF16C compatible with CompactLogix 5380 controllers?
A: Yes, the module is fully compatible with all CompactLogix controller families including 5380, 5370, 5069, and legacy 1769 controllers. Ensure you're using the latest Add-On Profile (AOP) from the Rockwell Automation Product Compatibility and Download Center.

Q: Does this module support HART communication protocol?
A: No, the 1769-IF16C is a standard analog current input module without HART capability. For HART-enabled applications, consider the 1769-IH16I HART analog input module which supports both analog measurement and digital HART communication.

Q: What diagnostic features are available for troubleshooting?
A: The module provides channel-level diagnostics including over-range detection, under-range detection, open-circuit detection, and module fault indicators. Diagnostic bits are accessible through controller tags and can trigger alarms or HMI notifications for proactive maintenance.

Ready to Optimize Your Process Control System?

Contact our automation specialists today for technical consultation, volume pricing, or custom configuration options. Our team can assist with system design, panel integration, and startup commissioning services to ensure successful deployment.

Request a Quote: Email your application requirements to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Bulk order discounts available for system integrators and OEM partners.
