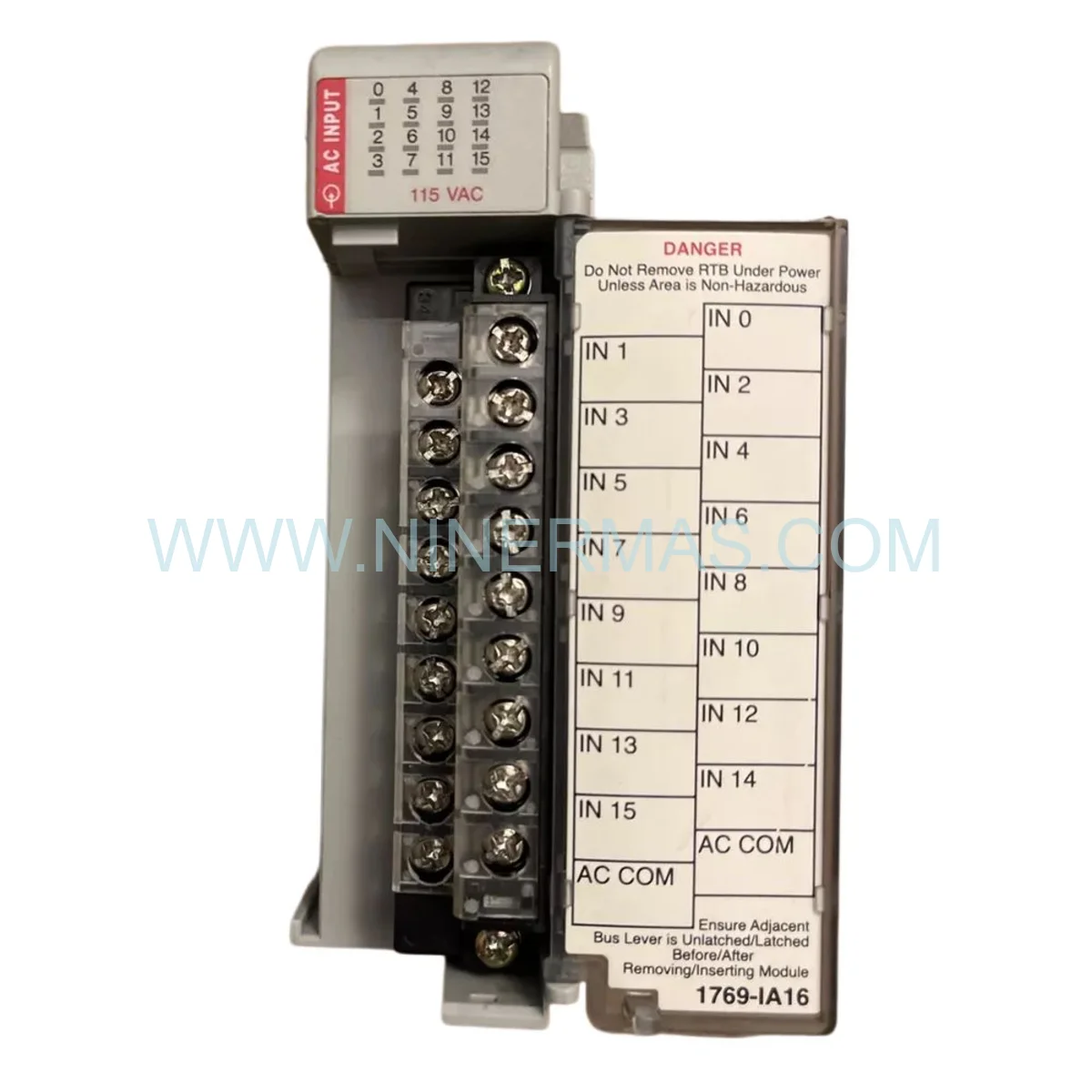

1769-IA16 AC Input Module (Industrial-Grade Signal Acquisition)

The 1769-IA16 represents a field-proven solution for acquiring discrete AC signals in CompactLogix-based control architectures. Engineered for continuous operation in manufacturing, process control, and building automation environments, this 16-channel input module delivers consistent performance across temperature extremes and electrical noise conditions.

Designed for system integrators and maintenance teams who demand reliable state monitoring without complex wiring, the 1769-IA16 eliminates signal conditioning headaches through factory-calibrated circuitry and optical isolation barriers. Whether you're retrofitting legacy equipment or commissioning greenfield installations, this module accelerates deployment while reducing long-term support costs.

With hot-swap capability and diagnostic LEDs on every channel, the 1769-IA16 minimizes unplanned downtime and simplifies troubleshooting—critical advantages in 24/7 production facilities where every minute of availability counts.

Core Features & Benefits

✓ Factory-Validated Performance
Each module undergoes burn-in testing and calibration to OEM specifications, ensuring accurate signal detection from the first power-up. Eliminates field calibration steps and reduces commissioning time by up to 40%.

✓ Hot-Swappable Architecture
Replace failed modules without shutting down adjacent I/O or the controller backplane. Maintains process continuity during maintenance windows and emergency repairs, protecting production schedules.

✓ Optical Isolation Protection
1500V AC isolation between field circuits and backplane prevents ground loops and protects sensitive controller electronics from voltage transients. Extends system lifespan in electrically noisy environments.

✓ Per-Channel Diagnostics
Dual-color LED indicators provide instant visual feedback on input state and module health. Reduces mean-time-to-repair (MTTR) by enabling technicians to identify faulty channels without software tools.

✓ Conformal-Coated Circuitry
Protective coating shields components from moisture, dust, and chemical vapors common in industrial settings. Meets IP20 ingress protection when installed in standard enclosures.

✓ Removable Terminal Blocks
Spring-clamp or screw-type terminals (depending on variant) accept 14-22 AWG wire and support pre-wiring strategies that accelerate panel assembly and reduce installation errors.

Application Scenarios

→ Conveyor & Material Handling Systems
Monitor limit switches, proximity sensors, and photoelectric devices across multi-zone conveyor networks. The module's 10ms on-delay response captures high-speed events while filtering mechanical contact bounce, preventing false triggers that disrupt product flow.

→ Process Control & Batch Operations
Interface with AC-powered level switches, pressure switches, and valve position indicators in chemical mixing, water treatment, and food processing applications. Optical isolation protects against ground potential differences between remote field devices and central control panels.

→ Machine Safety Circuits
Integrate with safety door interlocks, emergency stop buttons, and light curtain outputs to create monitored stop functions compliant with ISO 13849-1 Category 2 architectures. Per-channel diagnostics support periodic validation testing required by safety standards.

→ HVAC & Building Automation
Connect to occupancy sensors, smoke detectors, and damper end switches in commercial facility management systems. Low power consumption (150mA backplane draw) enables dense I/O configurations without oversizing power supplies.

→ Packaging & Assembly Lines
Capture part-present signals, jam detection switches, and quality inspection sensors on high-speed packaging equipment. The module's 20ms off-delay prevents nuisance alarms from momentary signal interruptions during product transitions.

Technical Parameters & Selection Guide

Selection Criteria:

• Voltage Compatibility: Verify field device output voltage matches 100-120V AC range. For 240V AC applications, specify 1769-IM12 instead.
• Channel Density: The 16-point configuration optimizes slot utilization on compact chassis. For lower I/O counts, consider 1769-IA8I (8-point isolated variant).
• Response Speed: The 10/20ms timing suits most discrete sensing applications. High-speed counting or motion control requires specialized modules.
• Environmental Conditions: Conformal coating provides standard industrial protection. Extreme chemical exposure may require IP67-rated remote I/O blocks.

Extended Functions

Studio 5000 Integration: The module auto-discovers during controller configuration, populating I/O tags with descriptive names based on slot position. Supports online module replacement without re-downloading logic programs.

Diagnostic Data Objects: Exposes fault status, channel state, and module health data through standard CompactLogix diagnostic tags. Enables predictive maintenance strategies by trending input signal quality over time.

Keying & Electronic Labeling: Physical keying slots prevent incorrect module insertion during maintenance. Electronic keying in Studio 5000 enforces catalog number matching to prevent configuration mismatches.

Scalable Architecture: Mix with DC input modules (1769-IQ series), output modules (1769-OB/OV series), and analog I/O (1769-IF/OF series) on the same chassis to build application-specific control solutions without external marshalling.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations or bulk orders (10+ units) typically require 5-7 business days for quality verification and packaging.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty includes free replacement and return shipping for confirmed failures.

Technical Support: Access to application engineers for pre-sales sizing assistance, wiring diagram review, and post-installation troubleshooting. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each shipment includes installation instructions, wiring diagrams, and quick-start guide. Full user manual, CAD drawings, and sample ladder logic available for download from product support portal.

Frequently Asked Questions

Q: What wire gauge should I use for field connections to the 1769-IA16 input module?
A: The removable terminal block accepts 14-22 AWG (2.5-0.5 mm²) solid or stranded copper wire. Use 18 AWG for runs under 100 feet and 16 AWG for longer distances to minimize voltage drop. Strip 7-8mm of insulation for optimal contact.

Q: Can the 1769-IA16 monitor both normally-open and normally-closed contact configurations?
A: Yes, the module detects voltage presence regardless of contact logic. Configure input interpretation (NO vs NC) in your Studio 5000 ladder logic using XIC (examine-if-closed) or XIO (examine-if-open) instructions based on your application requirements.

Q: How does the 1769-IA16 AC input module handle power supply fluctuations in industrial facilities?
A: The wide operating range (74-132V AC) accommodates ±20% voltage variations common in industrial power distribution. Built-in surge protection withstands transients up to 1000V peak, protecting against motor starter inrush and welding equipment interference.

Q: What is the maximum distance between field devices and the 1769-IA16 input card?
A: Practical wiring distance depends on wire gauge and ambient noise levels. Typical installations support 300-500 feet using shielded twisted-pair cable. For runs exceeding 500 feet, consider remote I/O blocks with fiber-optic communication to avoid signal degradation.

Q: Does the 1769-IA16 require external power supplies for field device excitation?
A: No, the module is a sinking input design that requires field devices to provide their own AC voltage source. Connect the common terminal to AC neutral and wire the hot side of each field device to individual input terminals.

Q: Is the 1769-IA16 compatible with legacy SLC 500 or PLC-5 systems for migration projects?
A: The 1769-IA16 is exclusive to CompactLogix platforms (1769-L2x/L3x/L4x controllers). For SLC 500 retrofits, use 1746-IA16 modules. Migration strategies typically involve parallel operation during cutover to minimize production disruption.
