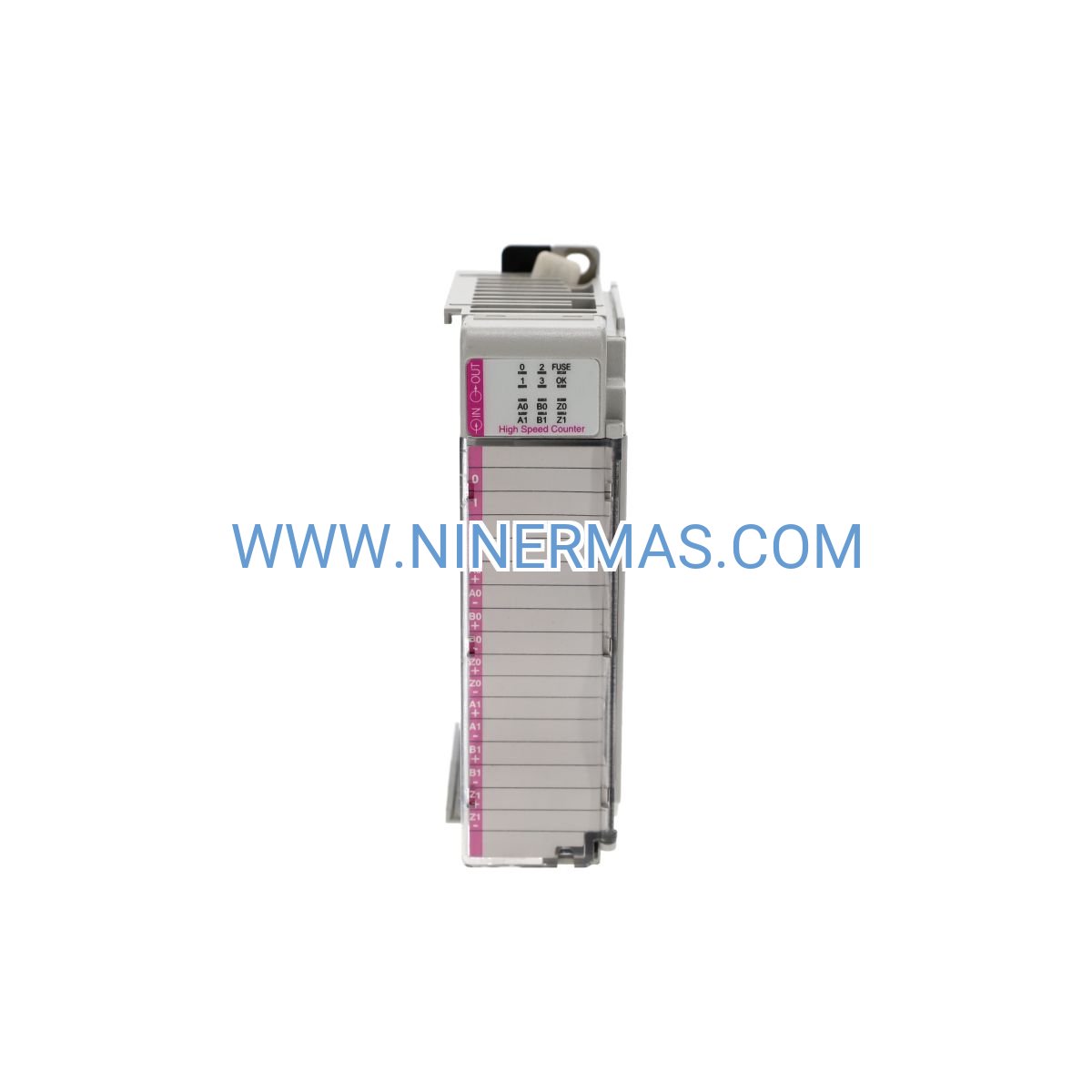

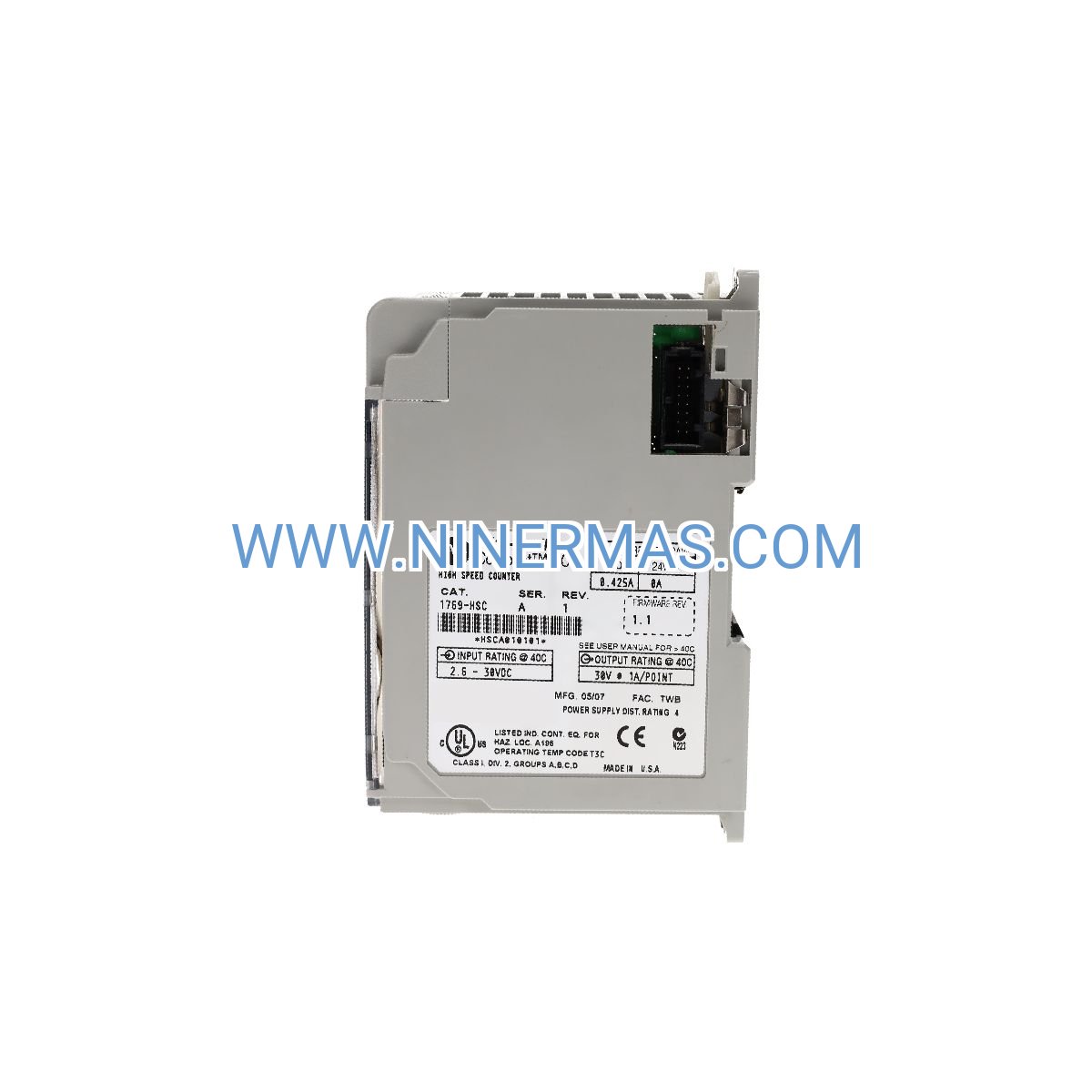

1769-HSC High-Speed Counter Module (Industrial-Grade Encoder Interface)

The 1769-HSC represents a specialized counting solution for CompactLogix automation platforms, purpose-built to capture and process high-frequency quadrature encoder signals in real-time industrial environments. This dual-channel module transforms rotary or linear encoder pulses into actionable position and velocity data, enabling precise motion synchronization across packaging, material handling, and process control systems.

Designed for manufacturers requiring sub-millisecond response times and deterministic counting accuracy, the 1769-HSC eliminates external signal conditioning hardware while maintaining noise immunity in electrically demanding installations. Target users include automation engineers deploying servo-driven conveyors, web tension control systems, and cut-to-length applications where encoder feedback directly influences product quality and throughput.

Key advantages include native CompactLogix integration for simplified wiring and programming, differential input architecture that rejects common-mode interference, and 16 configurable digital outputs that trigger downstream actions based on count thresholds—all within a compact DIN-rail form factor that conserves valuable panel space.

Core Features & Benefits

✓ Dual Quadrature Channels: Process two independent encoder inputs simultaneously at frequencies up to 1 MHz per channel, supporting X1/X2/X4 counting modes for flexible resolution scaling and bidirectional tracking in servo and stepper motor applications.

✓ Differential Signal Processing: RS-422 compatible line driver inputs provide superior noise rejection over distances up to 100 meters, maintaining signal integrity in environments with VFD-induced electrical noise and electromagnetic interference.

✓ 32-Bit Counter Architecture: Extended count range (±2,147,483,647) prevents rollover issues in long-running processes, while hardware-based Z-pulse indexing enables automatic position reset for cyclic operations without PLC intervention.

✓ Integrated Digital Outputs: 16 configurable 24V DC outputs (sourcing type) eliminate external relay modules by directly controlling pneumatic valves, indicator lights, or downstream equipment based on programmable count presets and comparison logic.

✓ Hot-Swappable Design: Replace modules during system operation without powering down the entire CompactLogix chassis, reducing unplanned downtime and enabling preventive maintenance during production windows.

✓ Studio 5000 Integration: Pre-built Add-On Instructions (AOIs) and function blocks accelerate commissioning, while real-time diagnostics expose encoder fault conditions, signal loss, and frequency overruns through standard controller tags.

Typical Application Scenarios

→ Packaging Line Synchronization: In high-speed form-fill-seal operations, the 1769-HSC tracks product position via conveyor-mounted encoders, triggering label applicators and reject mechanisms at precise intervals to maintain registration accuracy within ±0.5mm across line speeds exceeding 200 products per minute.

→ Web Tension Control Systems: For printing press and converting machinery, dual-channel encoder monitoring enables dancer roll position feedback and unwind/rewind speed matching, preventing material stretch or slack that causes print defects and web breaks in continuous processes.

→ Servo Axis Positioning: Machine tool and robotic applications leverage the module's velocity calculation and position comparison functions to implement electronic gearing, cam profiling, and registration control without requiring dedicated motion controllers for auxiliary axes.

→ Flow Totalizing & Batching: Turbine flowmeter pulse trains feed the 1769-HSC for volumetric measurement in chemical dosing and blending systems, where the 32-bit accumulator prevents count overflow during extended batch cycles and the digital outputs trigger valve sequencing at target volumes.

→ Cut-to-Length Operations: Lumber mills, steel service centers, and textile converters use encoder-based length measurement to control flying shear mechanisms, achieving cut accuracy within ±2mm while processing material at speeds up to 300 meters per minute.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-HSC when your application requires simultaneous monitoring of two encoder sources, direct output control based on count values, or when encoder frequencies exceed 250 kHz (the practical limit of standard digital input modules). For single-channel applications below 100 kHz, consider the 1769-IQ16 with pulse catch functionality as a cost-effective alternative. Applications requiring more than two encoder inputs should evaluate the 1746-HSCE2 multi-channel platform or distributed I/O architectures.

Extended Functions

IoT Integration: When paired with CompactLogix controllers featuring EtherNet/IP connectivity (L3x series or higher), encoder count data streams to SCADA systems, cloud analytics platforms, and MES databases via standard industrial protocols, enabling predictive maintenance algorithms that detect bearing wear through velocity variance analysis.

Advanced Counting Modes: Beyond basic up/down counting, the module supports rate measurement (frequency-to-analog conversion), time-based sampling for statistical process control, and quadrature error detection that flags encoder wiring faults or mechanical coupling failures before they cause production defects.

Customization Options: Factory configuration services can pre-program count presets, output logic, and scaling factors for turnkey installation in OEM machinery, while custom firmware loads enable specialized functions like dual-speed tracking or encoder signal pass-through for diagnostic equipment.

Delivery & Service Assurance

Lead Time: Stock items ship within 1-2 business days via expedited carriers. Custom-configured modules or bulk orders (10+ units) require 5-7 business days for quality verification and programming. International shipments include all necessary export documentation and HS code classification (8537.10.90).

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service to minimize downtime—simply report the issue and receive a tested replacement unit before returning the defective module.

Technical Support: Application engineers provide pre-sale sizing assistance, post-installation troubleshooting, and Studio 5000 programming guidance via phone, email, or remote desktop sessions. Support includes encoder wiring diagrams, sample ladder logic, and integration with third-party motion controllers.

Documentation Package: Each module ships with installation quick-start guide, wiring terminal diagrams, and links to downloadable resources including full user manual (publication 1769-UM004), EDS files for device configuration, and sample AOI code for common counting tasks.

Frequently Asked Questions

Q: What encoder output types are compatible with the 1769-HSC differential inputs?
A: The module accepts standard differential line driver signals (RS-422, AM26LS31 equivalent) commonly found in industrial rotary encoders. Single-ended TTL or open-collector encoder outputs require external signal conversion modules to meet the differential input specifications.

Q: Can I monitor encoder velocity and position simultaneously on both channels?
A: Yes, the controller can read instantaneous count values and calculate velocity (counts per time interval) for both channels independently. The module updates count registers every backplane scan cycle, typically 1-5 milliseconds depending on chassis configuration.

Q: How much energy savings does the module provide compared to standalone counter units?
A: By eliminating external 120V AC powered counters and associated panel wiring, the 1769-HSC reduces installation labor by approximately 40% and consumes only 19.2 watts from the CompactLogix power supply—roughly 75% less energy than equivalent relay-based counting solutions.

Q: What are the installation requirements for optimal noise immunity?
A: Use shielded twisted-pair cable (Belden 9842 or equivalent) for encoder connections, grounding shields at the module end only. Maintain 6-inch separation from AC power wiring and VFD motor leads. Install ferrite cores on encoder cables if operating near high-frequency switching power supplies.

Q: Does the module support remote monitoring and diagnostics over Ethernet networks?
A: When installed in a CompactLogix system with an Ethernet communication module, all counter values, output states, and diagnostic flags are accessible via CIP messaging, enabling remote HMI displays, data logging to SQL databases, and integration with plant-wide monitoring systems.

Q: Can the digital outputs switch inductive loads like solenoid valves directly?
A: Yes, each output is rated for 0.5A inductive load switching at 24V DC. For loads exceeding this rating or requiring AC voltage switching, use the outputs to drive external electromechanical or solid-state relays with appropriate snubber circuits to protect the module's output transistors.

Request Technical Consultation

Unsure if the 1769-HSC meets your encoder interface requirements? Our automation specialists will review your application parameters—encoder type, frequency range, environmental conditions, and control objectives—to recommend the optimal counting solution. Contact us for system architecture guidance, wiring schematics, or sample programming code tailored to your process.
