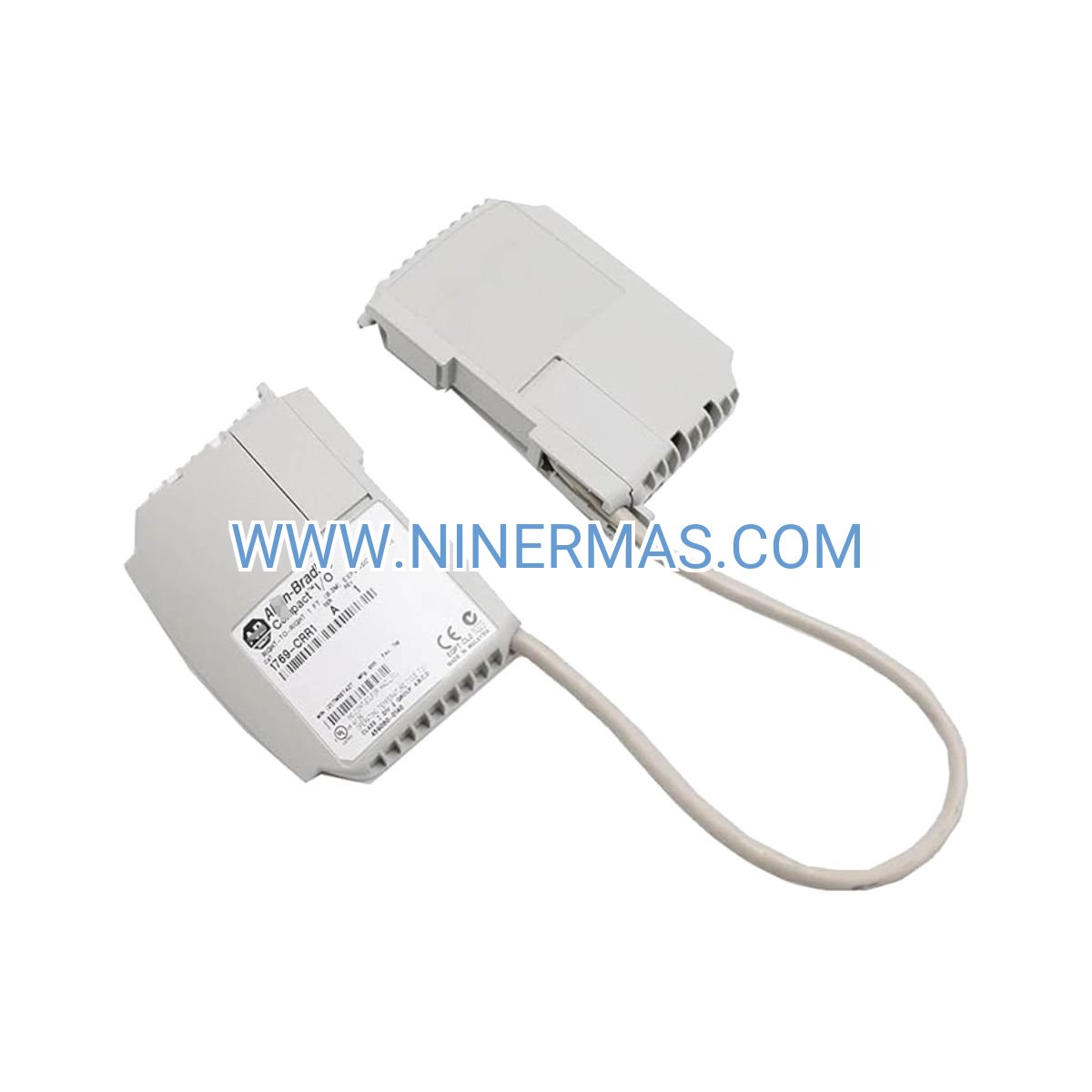

1769-CRR1 CompactLogix Bus Expansion Cable (Industrial-Grade Right-to-Right Connector)

The 1769-CRR1 delivers precision-engineered connectivity for Allen-Bradley CompactLogix control platforms requiring right-to-right module expansion. Engineered to OEM specifications, this 0.3-meter bus cable ensures deterministic data transfer and mechanical reliability in mission-critical automation environments where system uptime directly impacts production throughput.

Designed for industrial integrators and maintenance teams managing distributed I/O architectures, the 1769-CRR1 solves the challenge of space-optimized module placement while maintaining signal integrity across the backplane bus. Whether you're retrofitting legacy systems or deploying new control cabinets, this cable provides the foundation for scalable, future-proof automation infrastructure.

Key advantages include tool-free installation with positive-lock connectors, compliance with UL/CE industrial standards, and compatibility across the entire 1769 I/O family—enabling rapid system commissioning and reduced downtime during maintenance cycles.

Core Features & Technical Advantages

✓ Precision 0.3M Length for Optimal Spacing
Engineered to provide ideal thermal clearance between adjacent modules while minimizing cable management complexity in compact control enclosures.

✓ Right-to-Right Orientation Architecture
Enables side-by-side module mounting on standard DIN rail systems, maximizing cabinet space utilization and simplifying wiring access for field technicians.

✓ OEM-Specification Signal Integrity
Factory-tested for continuity, insulation resistance, and EMI immunity—ensuring reliable backplane communication at full bus speeds without data corruption.

✓ Tool-Free Positive-Lock Connectors
Proprietary retention clips provide audible/tactile confirmation of proper seating, eliminating installation errors and reducing commissioning time by up to 40%.

✓ Industrial Temperature Range (0-60°C)
Qualified for operation in harsh environments including foundries, chemical processing, and outdoor enclosures with temperature cycling.

✓ UL Listed & CE Marked Compliance
Meets North American and European safety standards for industrial control equipment, simplifying regulatory approval for global deployments.

Application Scenarios & Industry Solutions

→ Automotive Assembly Line Control
Connect distributed I/O modules controlling robotic welding cells, conveyor interlocks, and quality inspection stations. The 0.3M length accommodates tight spacing in control panels adjacent to production equipment.

→ Chemical Batch Processing Systems
Expand CompactLogix controllers managing reactor temperature loops, flow metering, and safety interlocks. Right-to-right configuration simplifies hazardous area wiring segregation.

→ Water Treatment SCADA Networks
Link analog input modules monitoring pH, turbidity, and chlorine levels with discrete output cards controlling pumps and valves across multi-stage filtration processes.

→ Food & Beverage Packaging Lines
Integrate vision inspection systems, servo drives, and pneumatic actuators through modular I/O expansion—meeting washdown environment requirements with sealed connectors.

→ Building Automation & HVAC
Scale BACnet/IP gateways and variable frequency drive interfaces for chiller plants, air handling units, and energy management systems in commercial facilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1769-CRR1 when modules must be positioned adjacently in the same orientation on DIN rail or panel mounts. For modules requiring opposite-facing orientations, specify right-to-left cables (1769-CRL series). For extended reach beyond 0.3M, consider 1769-CRR3 (1-meter) alternatives. Verify power budget compliance when expanding beyond 8 modules per controller.

Extended Capabilities & System Integration

Modular Architecture Flexibility: The 1769-CRR1 supports mixed I/O configurations including analog inputs (1769-IF series), high-speed counters (1769-HSC), specialty modules (thermocouple, RTD), and communication adapters (DeviceNet, EtherNet/IP)—enabling customized control solutions without proprietary wiring harnesses.

Hot-Swap Considerations: While the cable itself does not support online insertion/removal, it facilitates rapid module replacement during scheduled maintenance by eliminating hardwired backplane connections. System downtime is minimized through pre-configured spare modules.

IoT & Industry 4.0 Readiness: When paired with 1769-AENTR EtherNet/IP adapters, the cable enables cloud connectivity for predictive maintenance analytics, remote diagnostics, and OEE monitoring through Rockwell FactoryTalk platforms.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock items ship within 1-2 business days via express courier (DHL, FedEx, UPS). Typical delivery to North America/Europe: 3-5 days; Asia-Pacific: 4-7 days.

Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship. Warranty includes free replacement and return shipping for confirmed failures.

Technical Support: Lifetime access to application engineers for installation guidance, compatibility verification, and troubleshooting assistance via email/phone (English, Mandarin).

Documentation Package: Each order includes product datasheet, installation quick-start guide, and compatibility matrix for 1769 I/O modules. CAD drawings (STEP, DWG) available upon request.

Frequently Asked Questions

How do I determine if I need right-to-right versus right-to-left cable orientation?
The orientation depends on your physical module layout. Right-to-right cables connect modules mounted side-by-side facing the same direction. Right-to-left cables are used when modules face opposite directions (typically for back-to-back mounting). Consult your panel layout drawings or measure the connector positions on installed modules.

What is the maximum I/O expansion capacity for CompactLogix systems using these cables?
CompactLogix controllers support up to 16 local I/O modules (including the controller itself). The actual limit depends on your controller model's power budget and backplane current capacity. Use Rockwell's I/O Configuration Tool to verify your specific configuration.

Can this cable improve system performance compared to longer cable lengths?
While all 1769 bus cables support the same data transfer rates, shorter cables (0.3M) reduce electromagnetic interference susceptibility and simplify cable management in space-constrained panels. They also improve thermal performance by allowing better airflow between modules.

Is the 1769-CRR1 compatible with legacy 1769 modules from earlier production years?
Yes, the cable maintains backward compatibility with all 1769-series modules manufactured since the CompactLogix platform launch. The bus interface specification has remained consistent across product generations.

What installation tools are required for cable connection?
No tools are required. The cable features push-to-connect locking mechanisms. Simply align the connectors with module bus interfaces and press firmly until retention clips engage with an audible click. Disconnection requires pressing the release tabs while pulling the connector.

Does this cable support redundant controller configurations?
The 1769-CRR1 is designed for standard (non-redundant) CompactLogix systems. For redundant ControlLogix applications, use 1756-series cables with redundancy-rated modules.

Order Your 1769-CRR1 Cable Today

Ensure reliable CompactLogix system expansion with OEM-quality connectivity. Contact our sales team for volume pricing, custom cable lengths, or technical consultation on your specific automation project.

Request a Quote: Email sale@ninermas.com with your module configuration and quantity requirements.
Technical Inquiries: Call +0086 187 5021 5667 (English/Mandarin support available).
