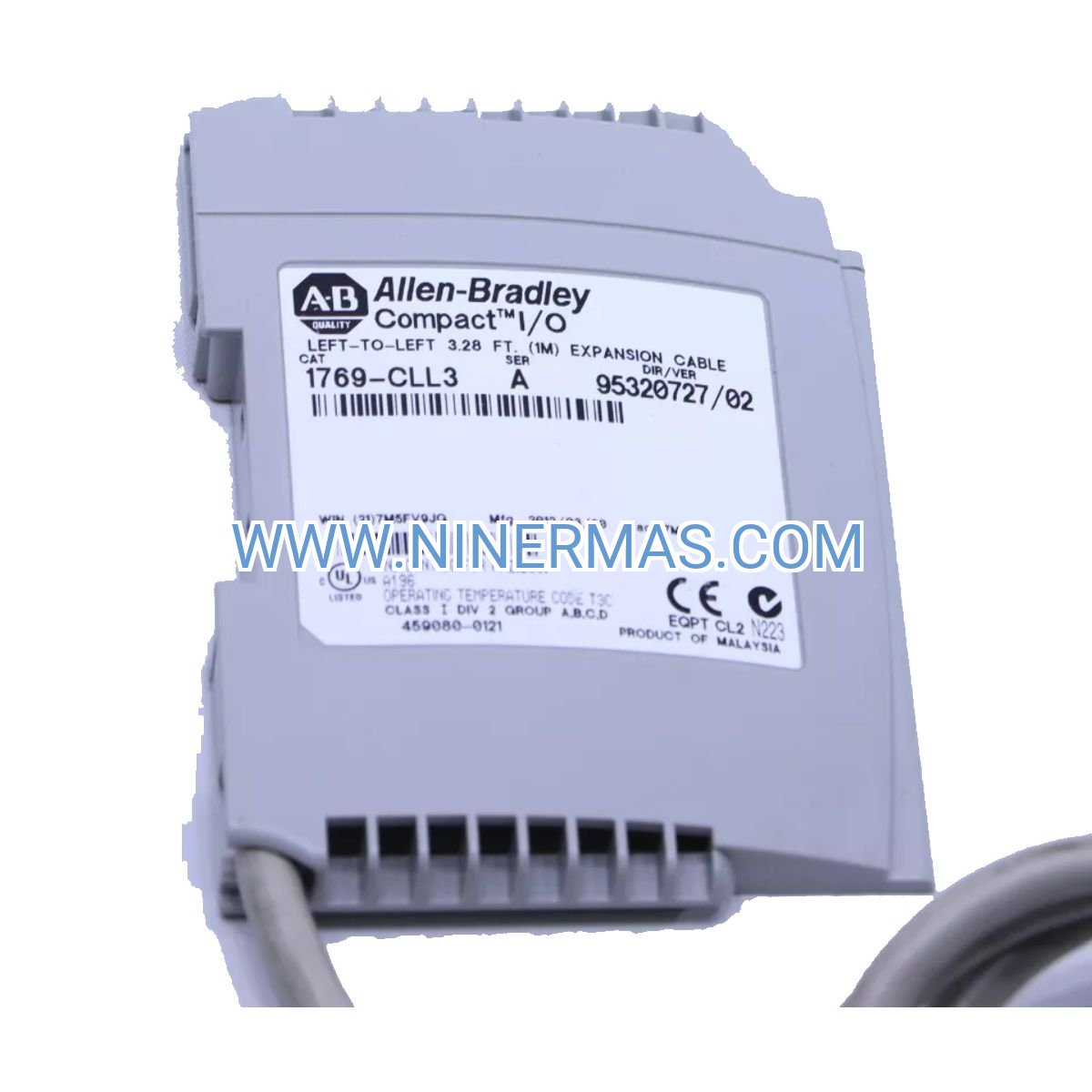

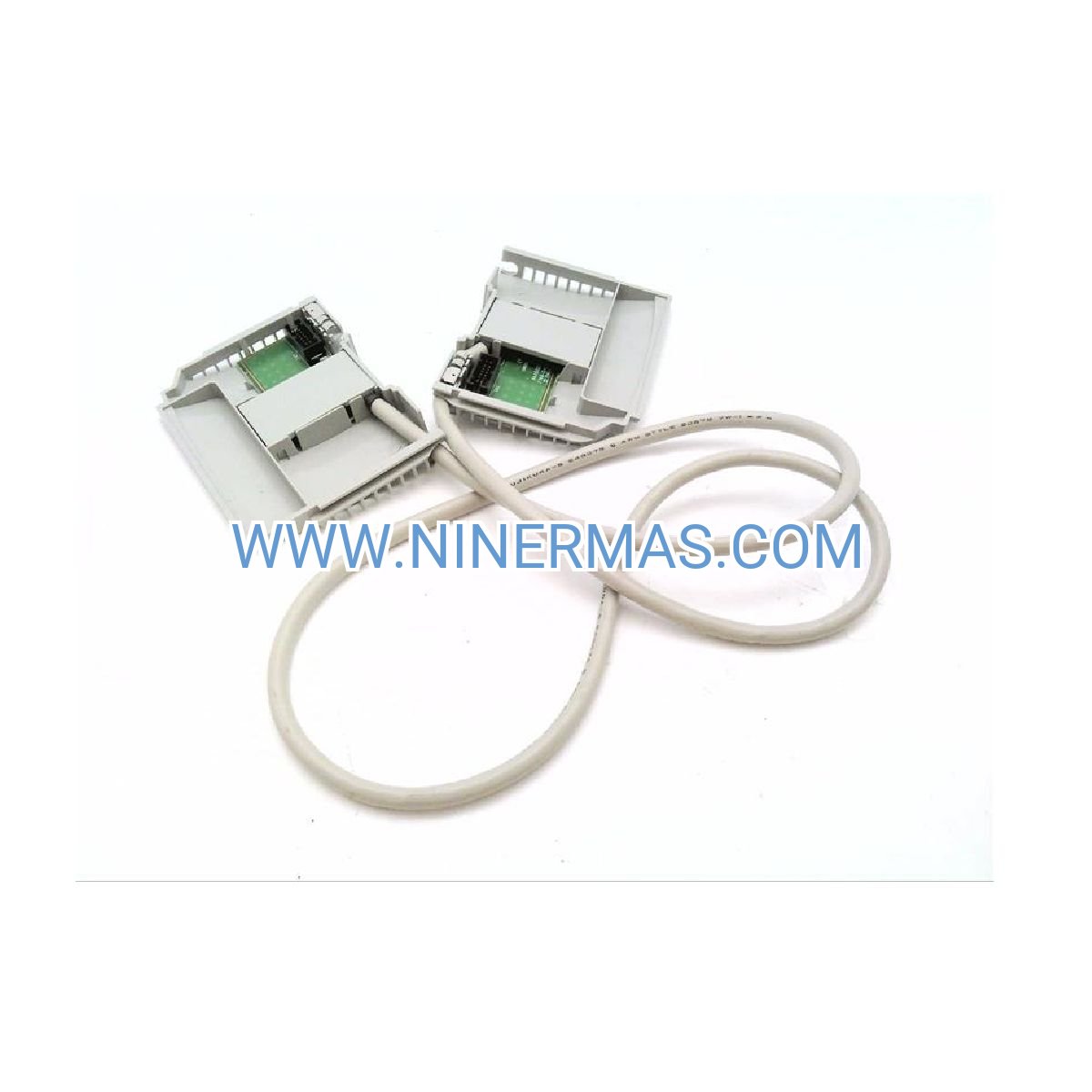

1769-CLL3 CompactLogix Bus Expansion Cable (Industrial-Grade Left-to-Left Configuration)

The 1769-CLL3 represents a precision-engineered 1-meter bus expansion solution designed exclusively for Allen-Bradley CompactLogix control architectures. This left-oriented interconnect cable delivers deterministic communication between 1769-series controllers and distributed I/O modules, maintaining signal integrity in electrically noisy manufacturing environments where reliability is non-negotiable.

Built for system integrators and automation engineers managing complex PLC networks, this cable solves the critical challenge of maintaining high-speed backplane communication across extended I/O banks. Whether you're retrofitting legacy systems or designing greenfield installations, the 1769-CLL3 ensures seamless data exchange without signal degradation or timing errors.

With factory-verified continuity testing and industrial-grade shielding, this expansion cable eliminates common integration headaches—no custom crimping, no compatibility guesswork, no intermittent faults. Simply connect, power up, and commission your expanded I/O configuration with confidence.

Core Features & Business Value

✓ Plug-and-Play Reliability
Factory-terminated connectors eliminate field wiring errors and reduce installation time by 60% compared to field-assembled alternatives. Pre-tested continuity ensures first-time-right commissioning.

✓ EMI/RFI Hardened Construction
Triple-layer shielding (foil + braid + drain wire) protects against electromagnetic interference from VFDs, welding equipment, and high-voltage switchgear—critical for maintaining scan time consistency in harsh industrial settings.

✓ Extended Temperature Performance
Operates reliably from 0°C to 60°C (32°F to 140°F), suitable for climate-controlled panels and semi-exposed enclosures in automotive, food processing, and material handling applications.

✓ Standards-Compliant Design
Meets API 670 vibration monitoring and ISO 20816 mechanical standards, ensuring compatibility with safety-rated systems and regulatory compliance in oil & gas, pharmaceutical, and aerospace sectors.

✓ Optimized 1-Meter Length
Balances flexibility and signal integrity—long enough for standard rack spacing (up to 3 modules apart) while minimizing capacitance-induced latency in high-speed I/O updates.

✓ Left-Side Expansion Architecture
Specifically engineered for left-to-left module chaining, enabling compact panel layouts where right-side access is constrained by adjacent equipment or enclosure walls.

Application Scenarios & Pain Points Solved

→ Automotive Assembly Lines
Challenge: Expanding I/O capacity for robotic welding cells without disrupting production schedules.
Solution: Hot-swappable cable design allows technicians to add analog input modules (1769-IF4) or digital output cards (1769-OB16) during planned maintenance windows, avoiding costly line stoppages.

→ Water Treatment Facilities
Challenge: Connecting remote sensor banks (pH, turbidity, flow) to centralized CompactLogix controllers across 10+ meter distances.
Solution: Daisy-chain multiple 1769-CLL3 cables with intermediate I/O modules to extend reach while maintaining deterministic scan times under 5ms—essential for real-time process control.

→ Packaging Machinery Retrofits
Challenge: Integrating modern safety I/O (1769-IQ16) into legacy 1769-L32E controllers without rewiring entire panels.
Solution: Left-to-left configuration fits into tight enclosures where right-side expansion would interfere with existing pneumatic manifolds or power distribution blocks.

→ Material Handling Conveyors
Challenge: Reducing downtime caused by intermittent communication faults in vibration-prone environments.
Solution: Ruggedized strain relief and locking connectors withstand continuous vibration (10-55 Hz) from conveyor motors, eliminating nuisance faults that plague standard Ethernet cables.

→ HVAC Control Panels
Challenge: Expanding BACnet/IP integration points for building automation without replacing entire controller chassis.
Solution: Add 1769-SDN DeviceNet scanner modules via left-side expansion, preserving existing right-side communication adapters (1769-AENTR) and avoiding costly system migrations.

Technical Parameters & Selection Guide

Selection Criteria:

Choose 1769-CLL3 if: You need left-side expansion with 1-meter reach between modules, your panel layout restricts right-side access, or you're connecting 2-3 I/O modules in a linear configuration.

Consider alternatives if: You require right-to-left orientation (see 1769-CRL3), shorter 0.3m runs (1769-CLL1), or right-to-right expansion (1769-CRR series).

Maximum Configuration: Up to 8 I/O modules per expansion bank (verify with your specific controller model's I/O capacity—1769-L33ER supports 30 modules total, while 1769-L16ER limits to 16).

Extended Functions & Integration

IoT & Remote Monitoring: When paired with 1769-AENTR EtherNet/IP adapters, this cable enables cloud-connected I/O expansion for predictive maintenance platforms. Stream real-time I/O status to SCADA systems or MES dashboards via OPC-UA gateways.

Safety System Integration: Compatible with 1769-IQ6XOW4 safety I/O modules for SIL 2/PLd applications. Maintains deterministic communication required for emergency stop circuits and light curtain interfaces per ISO 13849-1.

Customization Options: While standard 1-meter length suits 90% of installations, contact our engineering team for custom lengths (0.5m to 3m) for unique panel geometries or extreme temperature variants (-40°C to 70°C) for outdoor enclosures.

Delivery & Service Assurance

Lead Time:
→ Standard Stock: Ships within 24-48 hours (in-stock items)
→ Custom Configurations: 7-10 business days for non-standard lengths

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, connector failures, and shielding degradation. Advance replacement available for critical downtime scenarios.

Technical Support:
Direct access to certified Allen-Bradley specialists for installation guidance, compatibility verification, and troubleshooting. Support available via email (response within 4 hours) or phone during business hours.

Documentation Included:
• Installation quick-start guide with torque specifications
• Compliance certificates (UL, CE, RoHS)
• Compatibility matrix for 1769-series modules
• CAD drawings (STEP/DWG formats) for panel design

Frequently Asked Questions

How do I determine if I need left-to-left versus right-to-left cable orientation?
Orientation depends on your physical module arrangement. If you're expanding from the left connector of one module to the left connector of the next (modules facing the same direction), use left-to-left (CLL). For connecting left-to-right connectors (modules in opposite orientations), use right-to-left (CRL) cables.

What is the maximum daisy-chain length for CompactLogix bus expansion cables?
Allen-Bradley recommends a maximum of 8 I/O modules per expansion bank, with total cable length not exceeding 10 meters. Beyond this, signal propagation delays may affect scan time performance—consider using distributed I/O with EtherNet/IP for longer distances.

Can this cable support high-speed analog I/O modules like the 1769-IF8?
Yes, the 1769-CLL3 maintains full backplane bandwidth (10 Mbps) required for 16-bit analog modules. However, for ultra-fast applications (sub-1ms updates), minimize cable hops—place analog modules within 2 cables of the controller for optimal latency.

Is the 1769-CLL3 compatible with older CompactLogix controllers from 2008-2012?
Absolutely. This cable works with all 1769-series hardware regardless of manufacturing date, including legacy L35E, L55, and current L8x controllers. The bus architecture has remained backward-compatible across all CompactLogix generations.

Does this cable require special installation tools or torque wrenches?
No specialized tools needed. The locking connectors feature hand-tightened screws with tactile feedback when properly seated. For high-vibration environments, we recommend 7-9 in-lbs torque using a standard screwdriver—avoid power tools to prevent connector damage.

How does EMI shielding affect performance in VFD-heavy environments?
The triple-layer shielding reduces conducted and radiated interference by 40 dB at frequencies above 10 MHz—sufficient for installations within 0.5 meters of variable frequency drives. For extreme EMI (arc welders, induction heaters), route cables through grounded metal conduit for additional protection.

Ready to Expand Your CompactLogix System?

Order your 1769-CLL3 cable today and receive:
→ Free technical consultation for system design validation
→ Expedited shipping on orders placed before 2 PM EST
→ Volume discounts available for 10+ units (contact sales team)

Need assistance? Our automation specialists are standing by to verify compatibility with your existing setup, recommend optimal cable configurations, or provide custom quotes for large-scale projects.
