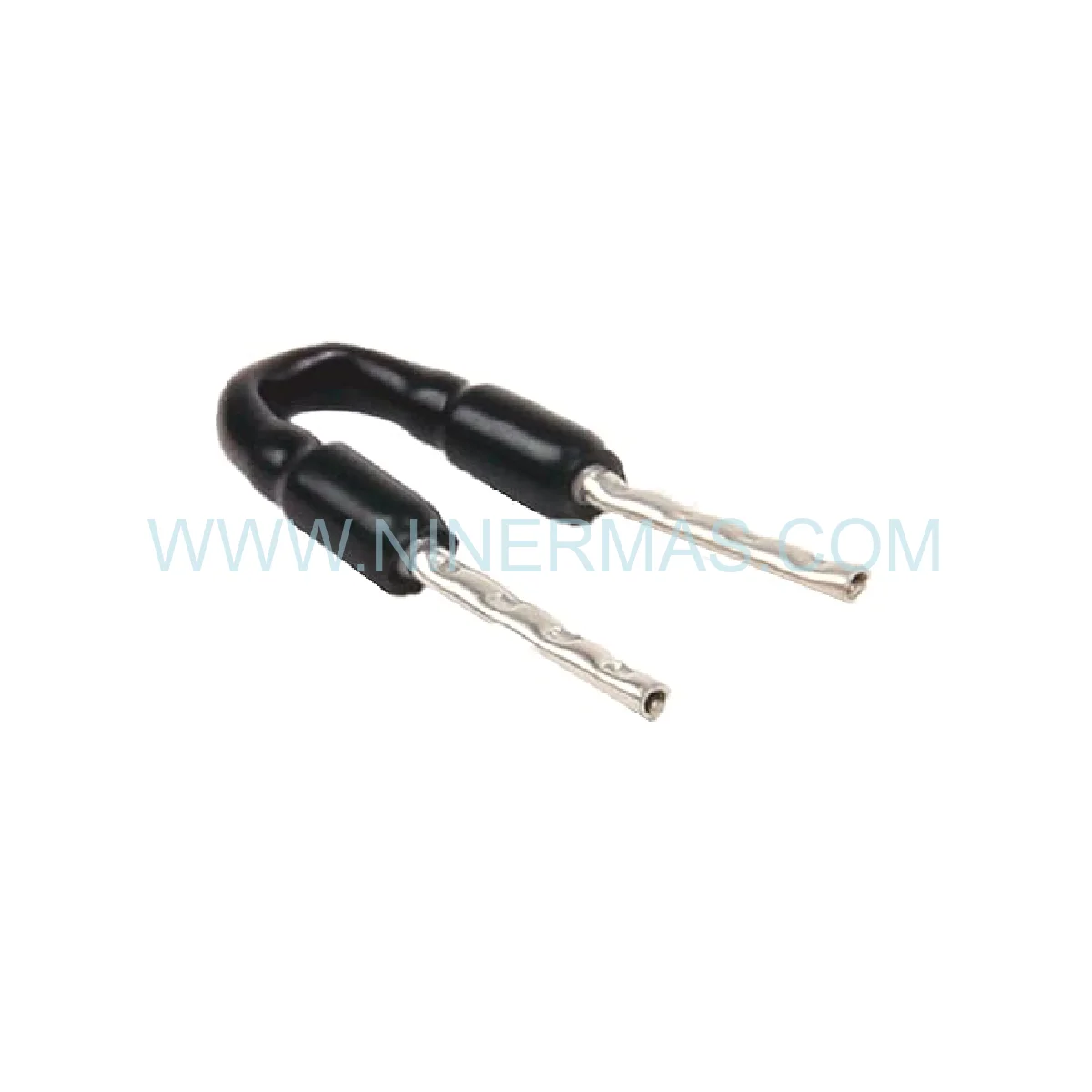

Allen-Bradley 1769-CJC Cold Junction Compensation Sensor – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, few components are as quietly critical to thermocouple-based measurement accuracy as a well-engineered Cold Junction Compensation module. The Allen-Bradley 1769-CJC occupies a foundational role within Rockwell Automation’s CompactLogix and ControlLogix ecosystems — it eliminates the ambient temperature error that would otherwise corrupt every thermocouple reading in your Process Control loop. Without it, even the most sophisticated DCS Hardware becomes unreliable. The Allen-Bradley 1769-CJC integrates directly into the 1769 backplane, drawing power from the chassis and requiring zero external wiring, which is precisely why it remains the preferred CJC solution for engineers managing Distributed Control System architectures across multiple industries.

In terms of technical compatibility, this module supports all standard thermocouple types — J, K, T, E, R, S, B, and N — when paired with analog input modules such as the 1769-IF4 or 1769-IF8. Its dual-thermistor design provides two independent compensation channels simultaneously, making it a natural fit for Legacy Components environments where chassis slot economy is paramount. For facilities managing aging Fieldbus infrastructure or transitioning from older DCS platforms, the 1769-CJC offers a plug-and-play upgrade path that requires no firmware changes and no re-engineering of existing ladder logic.

Original stock of this module is increasingly scarce. As Rockwell Automation continues to evolve its product portfolio, Factory Sealed units of the 1769-CJC represent a finite and diminishing supply. Procurement teams managing Maintenance Stock programs should treat this as a priority acquisition — particularly for plants where thermocouple-based temperature loops are safety-critical and cannot tolerate substitution with uncertified alternatives.

Key Technical Highlights

Dual-Thermistor Architecture: Two independent CJC channels per module, enabling simultaneous compensation for multiple thermocouple inputs with full electrical isolation between circuits.
High-Stability Measurement: Factory-calibrated thermistors deliver ±0.5°C compensation accuracy across the full 0°C to 60°C operating range — no field calibration required.
Backplane-Powered Design: Draws power directly from the CompactLogix chassis; eliminates external PSU dependency and reduces panel wiring complexity.
Redundancy-Ready: Compatible with redundant CompactLogix controller configurations, supporting high-availability Process Control architectures without additional hardware.
Universal Thermocouple Support: Works with all IEC-standard thermocouple types (J, K, T, E, R, S, B, N) — no module swap required when changing sensor types.
Factory Sealed Condition: Each unit ships in original OEM packaging with full traceability documentation, ensuring authenticity for regulated industries.
Studio 5000 / RSLogix 5000 Native: Zero-configuration integration with Rockwell’s programming environments; auto-detected at power-up with no manual channel mapping needed.

Vertical Industry Applications

The 1769-CJC is deployed across a wide spectrum of heavy industries where temperature measurement integrity directly impacts safety, yield, and regulatory compliance:

Petrochemical & Refining: Reactor temperature loops, distillation column control, and heat exchanger monitoring demand sub-degree compensation accuracy. A single uncorrected CJC error can cascade into process deviation alarms, unplanned shutdowns, and significant production loss. The 1769-CJC eliminates this risk at the hardware level.

Mining & Mineral Processing: Smelting furnaces, calcination kilns, and ore dryers operate at extreme temperatures where thermocouple accuracy is non-negotiable. The module’s wide storage temperature range ( 40°C to 85°C) makes it suitable for harsh mining environments where ambient conditions fluctuate dramatically.

Marine & Offshore: Offshore platforms and vessel engine rooms require components certified for high-humidity, vibration-prone environments. The 1769-CJC’s CE and UL certifications, combined with its DIN-rail mounting, make it a standard choice for marine automation panels.

Power Generation: Turbine exhaust monitoring, boiler drum temperature control, and generator winding surveillance all rely on accurate thermocouple data. Redundancy-capable configurations using the 1769-CJC ensure that a single module failure does not interrupt critical monitoring loops.

Pharmaceutical & Life Sciences: FDA-regulated batch processes require validated, traceable instrumentation. Factory Sealed 1769-CJC units with original documentation satisfy GMP traceability requirements, reducing validation burden for qualification engineers.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every 1769-CJC unit we supply undergoes a rigorous multi-stage verification process before dispatch. Our sourcing protocol is built on three non-negotiable pillars:

100% Original Components: We source exclusively from authorized distribution channels and verified OEM surplus inventories. Each unit is inspected for authentic Rockwell Automation labeling, date codes, and factory packaging integrity. Counterfeit or refurbished units are categorically excluded from our supply chain.

12-Month Comprehensive Warranty: All units carry a full 12-month warranty covering manufacturing defects, functional failures, and premature component degradation under normal operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical production environments.

Emergency Global Delivery: We understand that an unplanned shutdown cannot wait for standard lead times. Our logistics infrastructure supports emergency dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express — with same-day shipping available for in-stock units ordered before 14:00 CST. Customs documentation, commercial invoices, and HS code classification are prepared in-house to prevent border delays.

For Maintenance Stock programs, we offer reserved inventory agreements that guarantee unit availability for up to 24 months — a critical safeguard for facilities managing Legacy Components in aging DCS Hardware environments where the 1769-CJC is no longer in active production.

Buyer’s FAQ — Selection Guide

Q1: How do I verify that a 1769-CJC unit is 100% original and not a counterfeit?
A: Authentic Allen-Bradley 1769-CJC modules carry a Rockwell Automation holographic label on the housing, a legible date code on the PCB, and original OEM packaging with a factory seal. Request a photo of the label and packaging before purchase. Our units include full traceability documentation upon request, including supplier chain records.

Q2: Where can I obtain the official datasheet and wiring diagram for the 1769-CJC?
A: The official technical reference is Rockwell Automation Publication 1769-UM011 (CompactLogix Controllers User Manual), available through the Rockwell Automation Literature Library. We can also provide application notes and wiring diagrams as part of our pre-sales technical support — contact our engineering team directly.

Q3: Is the 1769-CJC compatible with both ControlLogix and CompactLogix systems?
A: The 1769-CJC is natively designed for the CompactLogix (1769) backplane. For ControlLogix (1756) systems, the equivalent module is the 1756-IT6I or 1756-IT6I2. If you are unsure which module applies to your chassis, share your system configuration with our team and we will confirm compatibility before order placement.

Q4: What happens if my system firmware version is older — will the 1769-CJC still function correctly?
A: Yes. The 1769-CJC is a passive thermistor-based module with no firmware dependency of its own. It is auto-detected by the CompactLogix controller regardless of firmware revision, provided the analog input module it supports is compatible with your controller version. We recommend Studio 5000 v21 or later for optimal configuration support.

Q5: Can I use the 1769-CJC in a redundant controller configuration?
A: Absolutely. The 1769-CJC is fully compatible with CompactLogix redundancy configurations. In a redundant setup, the CJC module is installed in the local I/O chassis and operates identically regardless of which controller (primary or secondary) is active. No additional configuration is required for redundancy support.

Q6: What is the lead time for emergency orders, and do you support air freight to remote locations?
A: For in-stock units, same-day dispatch is available for orders confirmed before 14:00 CST. We support air freight delivery to all major industrial regions including Southeast Asia, the Middle East, Europe, and the Americas via DHL, FedEx, and UPS. Estimated transit times range from 1-5 business days depending on destination. Contact us for a freight quote specific to your location.
