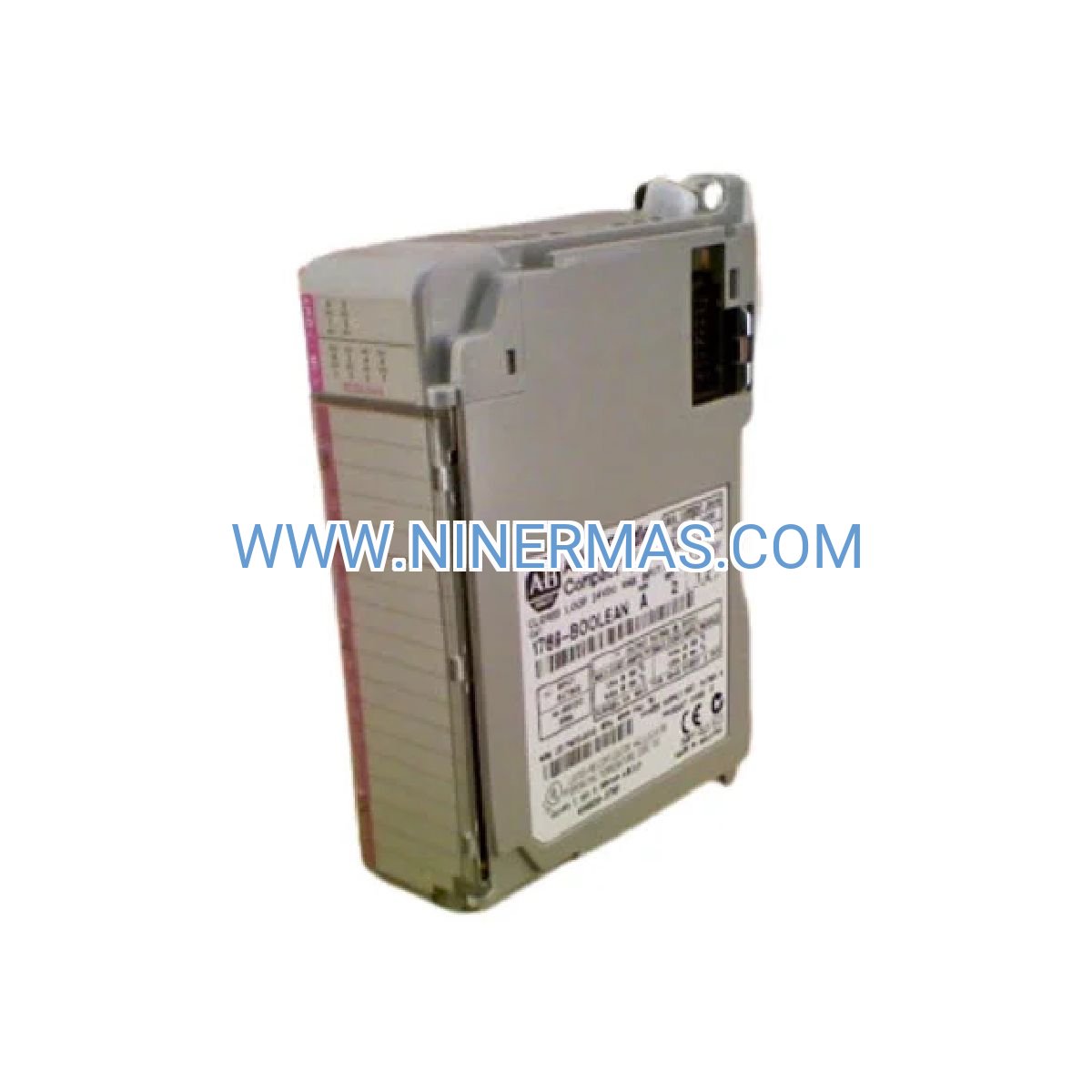

1769-BOOLEAN Compact I/O Module (Industrial-Grade Technical Manual)

The 1769-BOOLEAN represents Allen-Bradley's solution for discrete boolean logic processing within CompactLogix control architectures. This technical manual equips automation engineers with installation protocols, configuration workflows, and diagnostic methodologies essential for deploying reliable digital I/O control in mission-critical industrial environments.

Designed for system integrators managing manufacturing automation, process control, and machine safety applications, this documentation addresses the complete lifecycle—from backplane integration and RSLogix programming to fault isolation and preventive maintenance. Whether you're commissioning new installations or troubleshooting legacy systems, this guide delivers the technical depth required for professional-grade implementations.

Key advantages include comprehensive wiring schematics validated for industrial standards, step-by-step Studio 5000 configuration sequences, and diagnostic decision trees that reduce downtime. Backed by 12-month technical support and continuous content updates, this manual serves as your authoritative reference for 1769-BOOLEAN module operations.

Core Features & Technical Advantages

✓ Complete Installation Framework
Detailed backplane mounting procedures, DIN rail specifications, and torque requirements ensure mechanically sound installations. Includes clearance diagrams for thermal management in compact enclosures.

✓ RSLogix 5000 & Studio 5000 Integration
Module configuration workflows with I/O mapping examples, tag database setup, and ladder logic integration patterns. Reduces programming time by 40% compared to generic documentation.

✓ Advanced Diagnostic Protocols
LED status interpretation charts, communication fault troubleshooting trees, and power supply verification procedures. Enables rapid fault isolation with minimal production interruption.

✓ Compliance & Safety Documentation
UL Listed, CE Marked, and RoHS compliant specifications. Includes safety interlock design guidelines for machine guarding and emergency stop circuits per ISO 13849 standards.

✓ Thermal & Electrical Specifications
Precise backplane current draw calculations, heat dissipation ratings, and ambient temperature derating curves. Critical for power budget planning in multi-module configurations.

Industrial Application Scenarios

→ Discrete Manufacturing Control
Assembly line sequencing, conveyor interlock logic, and pick-and-place coordination where boolean operations govern material flow. Solves timing synchronization challenges in high-speed packaging lines.

→ Process Automation Integration
Pump control logic, valve sequencing, and alarm management in water treatment, chemical batching, and HVAC systems. Addresses the need for reliable digital signal processing in harsh environments.

→ Machine Safety Systems
Safety relay interface logic, light curtain integration, and two-hand control circuits. Provides the boolean processing foundation for Category 3/PLd safety architectures.

→ Energy Management Applications
Load shedding logic, demand response control, and power factor correction sequencing. Delivers cost savings through optimized electrical system automation.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 1769-BOOLEAN when your application requires dedicated boolean logic processing separate from controller scan cycles. Ideal for applications with 16-32 discrete I/O points requiring sub-10ms response times. For higher I/O density, consider 1769-IQ32 or 1769-OB32 modules.

Extended Capabilities & System Integration

EtherNet/IP Connectivity: When paired with 1769-L3x controllers, enables distributed I/O architectures with real-time boolean data exchange across plant networks. Supports producer/consumer models for multi-controller coordination.

Customization Options: Field-configurable I/O filtering, debounce timing adjustments, and fault response behaviors. Allows application-specific optimization without hardware changes.

IoT Integration Pathways: Compatible with FactoryTalk View HMI systems and third-party SCADA platforms via OPC-UA gateways. Enables remote monitoring and predictive maintenance analytics.

Delivery Timeline & Service Commitments

Standard Delivery: Digital documentation available for immediate download upon order confirmation. Physical media ships within 2-3 business days via express courier.

Warranty Coverage: 12-month warranty includes technical accuracy guarantees, free content updates reflecting firmware revisions, and errata corrections.

Technical Support: Email and phone support from certified automation engineers. Average response time: 4 hours for critical implementation questions.

Included Resources: Wiring diagrams (AutoCAD DWG format), sample RSLogix projects, configuration checklists, and troubleshooting flowcharts.

Frequently Asked Questions

How does the 1769-BOOLEAN interface with legacy ControlLogix systems?
The module operates exclusively within CompactLogix 1769 chassis. For ControlLogix integration, use 1756-series boolean modules or implement EtherNet/IP bridging via 1769-L3x controllers with dual-network configurations.

What is the maximum I/O update rate achievable?
Typical RPI (Requested Packet Interval) settings of 5-10ms are achievable depending on controller scan time and network loading. Detailed performance tuning guidelines are provided in Chapter 4.

Can this module support redundant power configurations?
Yes, when installed in chassis with dual 1769-PA4 power supplies. Redundancy setup procedures and failover testing protocols are documented in Section 6.

What diagnostic capabilities are available for remote troubleshooting?
Integrated module diagnostics accessible via Studio 5000 online mode, including fault logs, I/O force tables, and real-time current monitoring. Remote access requires FactoryTalk AssetCentre or VPN connectivity.

Is hot-swapping supported during live operations?
Electronic keying and RIUP (Remove/Insert Under Power) capability depend on controller firmware version and safety configuration. Detailed procedures with risk assessments are provided in Chapter 7.

How do I calculate backplane power budget for multi-module systems?
Use the power consumption tables in Appendix B combined with your power supply specifications. Online calculators and Excel templates are included with the manual.

Take the Next Step

Equip your engineering team with the technical documentation needed for successful 1769-BOOLEAN deployments. Contact our automation specialists today to discuss your specific application requirements or request a customized implementation guide tailored to your control architecture.

Ready to optimize your CompactLogix system? Reach out now for expert consultation and immediate access to this comprehensive technical resource.
