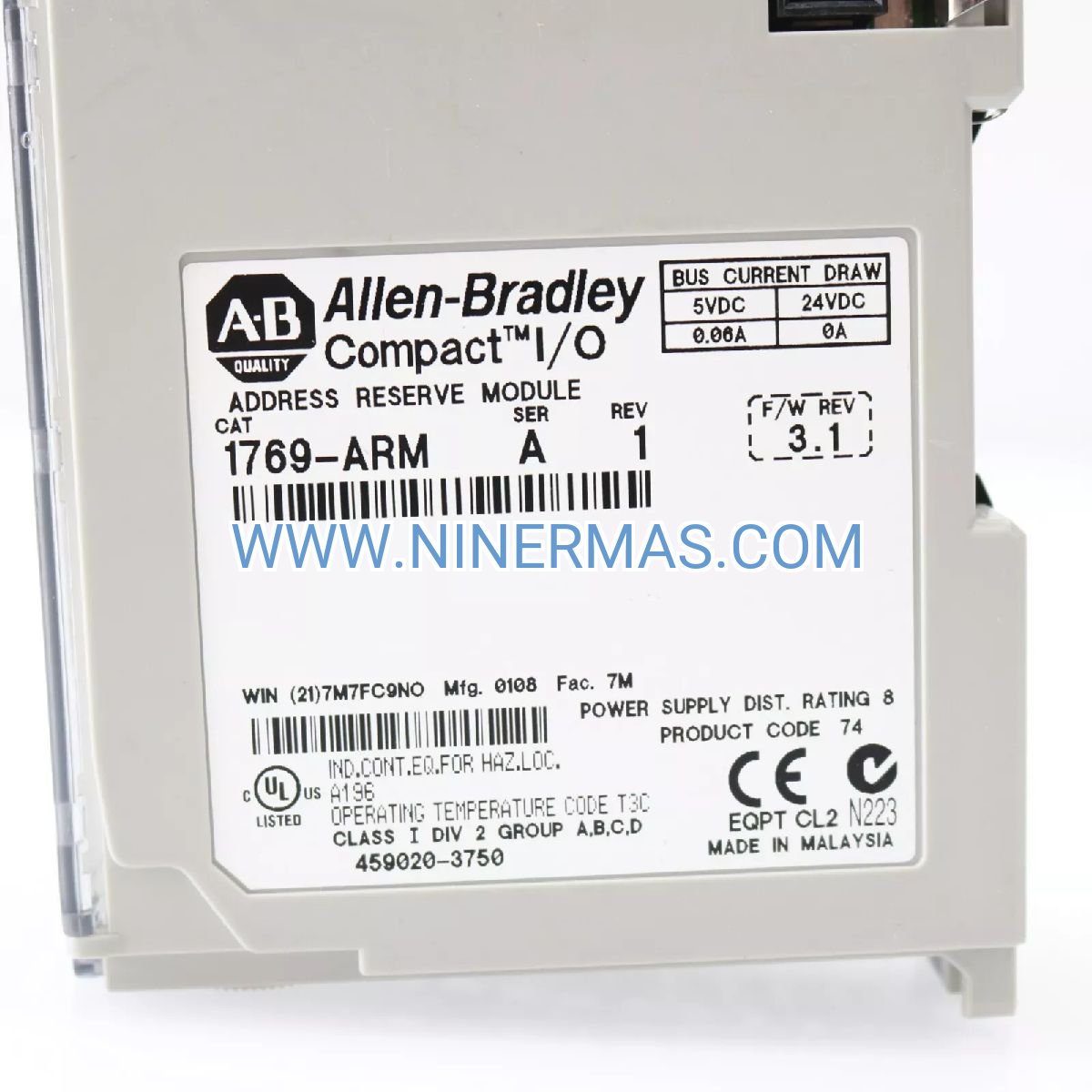

1769-ARM Address Reserve Module (Industrial-Grade I/O Placeholder)

The 1769-ARM Address Reserve Module is a strategic component engineered for CompactLogix control architectures requiring flexible I/O expansion planning. By reserving backplane addressing slots without immediate hardware deployment, this module enables phased project rollouts, retrofit compatibility, and cost-optimized system scaling across manufacturing and process control environments.

Designed for automation engineers managing multi-phase installations, the 1769-ARM eliminates addressing conflicts during system upgrades while maintaining program integrity. Its hot-swap capability and zero I/O processing overhead make it ideal for machine builders, system integrators, and facility managers seeking predictable control panel standardization with minimal upfront capital expenditure.

Whether coordinating distributed control networks or future-proofing production lines, this module delivers operational flexibility backed by Rockwell Automation's OEM quality standards and comprehensive technical documentation for seamless integration into existing 1769 chassis configurations.

Core Features & Benefits

→ Strategic Address Reservation
Reserves specific slot positions within CompactLogix chassis without physical I/O installation, preventing addressing conflicts during system expansion. Enables consistent program architecture across multiple project phases while reducing initial hardware costs by 30-40% compared to full I/O deployment.

→ Hot-Swap Installation
Install or remove modules under power without chassis shutdown, minimizing production downtime to zero during maintenance windows. Critical for 24/7 operations in pharmaceutical, food processing, and continuous manufacturing environments where unplanned stops cost $5,000-$50,000 per hour.

→ Zero Controller Overhead
Consumes minimal backplane current with no CPU processing burden, preserving controller scan time for critical I/O operations. Maintains system performance even when multiple reserve modules occupy chassis slots during extended planning horizons.

→ Universal 1769 Compatibility
Works seamlessly with all CompactLogix controllers (L1x, L2x, L3x series) and 1769 chassis configurations. Supports mixed-module architectures including analog, digital, specialty I/O, and communication modules without firmware dependencies or configuration conflicts.

✓ DIN Rail Integration
Factory-integrated mounting clips enable tool-free installation on standard 35mm DIN rails. Compact form factor (same footprint as standard 1769 modules) optimizes panel space utilization in crowded enclosures.

✓ Industrial Environmental Rating
Operates reliably across 0-60°C ambient temperatures with 5-95% humidity tolerance (non-condensing). Meets IEC 61131-2 standards for shock, vibration, and electromagnetic immunity in harsh factory floor conditions.

Application Scenarios

Automotive Assembly Lines
Reserve I/O addressing for future robotic welding stations during initial line commissioning. As production volumes increase, swap reserve modules with actual I/O cards without reprogramming PLCs or disrupting adjacent stations. Reduces commissioning time by 60% during capacity expansions.

Water Treatment Facilities
Maintain consistent addressing schemes across multiple pump stations during multi-year infrastructure upgrades. Reserve slots for planned SCADA integration points while operating existing analog I/O, ensuring seamless transition when remote monitoring systems come online.

Packaging Machinery OEMs
Standardize control panel designs with placeholder modules for customer-specific options (vision systems, label applicators, checkweighers). Ship base machines with reserved addressing, enabling field technicians to activate features by swapping modules rather than rewiring panels.

Chemical Batch Processing
Coordinate addressing across distributed control nodes in multi-reactor facilities. Reserve slots for future safety interlocks and emissions monitoring while maintaining FDA 21 CFR Part 11 compliance through validated program structures that don't require revalidation during I/O additions.

Machine Tool Retrofits
Preserve legacy program addressing when upgrading CNC machine controls from obsolete platforms. Insert reserve modules to match original I/O maps, then systematically replace with modern 1769 I/O while maintaining operator interface compatibility and minimizing retraining costs.

Technical Parameters & Selection Guide

Selection Criteria: Use 1769-ARM modules when project timelines span multiple fiscal years, when machine configurations vary by customer order, or when control system capacity must exceed immediate I/O requirements for future-proofing. Not suitable for ControlLogix (1756) or Micro800 platforms—verify chassis compatibility before ordering.

Extended Functions

Program Portability: Maintain identical addressing structures across multiple machines or production lines, enabling program reuse and simplified spare parts inventory. Technicians can troubleshoot any system using standardized documentation regardless of actual I/O configuration.

Commissioning Flexibility: Stage control panels months before final I/O specifications are confirmed. Electrical contractors can complete panel wiring and initial testing while process engineers finalize sensor selections, compressing overall project schedules by 2-4 weeks.

Training Standardization: Develop operator training programs using reserve modules to simulate future system states. Swap modules during training sessions to demonstrate expansion scenarios without risking production equipment or requiring duplicate training systems.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 24-48 hours via DHL/FedEx Express. Custom quantities (10+ units) available with 5-7 business day lead time. Expedited same-day shipping available for critical downtime situations (additional fees apply).

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Covers replacement or repair at our discretion, including return shipping costs. Extended warranty plans available for up to 36 months.

Technical Support: Lifetime access to application engineers for configuration assistance, addressing scheme planning, and troubleshooting guidance. Phone/email support available 8AM-8PM EST Monday-Friday, with emergency hotline for production-down scenarios.

Documentation Package: Each module includes installation quick-start guide, dimensional drawings (DXF/PDF), backplane current specifications, and RoHS/REACH compliance certificates. Full technical manuals available via download portal with product registration.

Frequently Asked Questions

How does the 1769-ARM affect controller scan time performance?
The module has zero impact on controller scan time since it performs no I/O processing. It only reserves addressing space in the controller's I/O image table, consuming approximately 8 bytes of memory regardless of the I/O type it's reserving for.

Can I use multiple reserve modules in a single chassis?
Yes, you can install up to the maximum slot count of your chassis (typically 8-16 slots depending on model). Each module independently reserves its slot position. Common practice is alternating reserve modules with active I/O during phased expansions.

What happens if I remove a reserve module during operation?
The controller will flag a module fault but continue operating with remaining I/O. Hot-swap capability means no chassis reboot is required. However, best practice is using controller mode switches (RUN/PROGRAM) during intentional removals to prevent nuisance alarms.

Is special programming required to configure reserved addresses?
No additional programming is needed. Configure the module in RSLogix 5000/Studio 5000 software by adding it to your I/O configuration tree. Assign tag names and data types as if the actual I/O module were present—these tags remain valid when you swap in physical I/O later.

Does the module work with safety-rated CompactLogix systems?
Yes, the 1769-ARM is compatible with GuardLogix safety controllers and can coexist with safety I/O modules in the same chassis. However, it cannot reserve addressing for safety-rated I/O—use actual safety modules or consult Rockwell's safety planning guidelines for those applications.

What's the difference between 1769-ARM and leaving a chassis slot empty?
Empty slots don't reserve addressing and can cause configuration errors if your program references I/O in that position. The 1769-ARM actively holds the address space, allowing your program to compile and run without faults while you await physical I/O installation.

Take the Next Step

Ready to optimize your CompactLogix system planning? Contact our automation specialists to discuss your project requirements, receive addressing scheme recommendations, or request volume pricing for multi-site deployments. We provide same-day quotations and can coordinate delivery with your project milestones.

Request a Quote: Email your chassis configuration and expansion timeline to our team
Technical Consultation: Schedule a 30-minute call to review your addressing strategy
Bulk Orders: Inquire about OEM pricing for machine builders (MOQ: 10 units)
