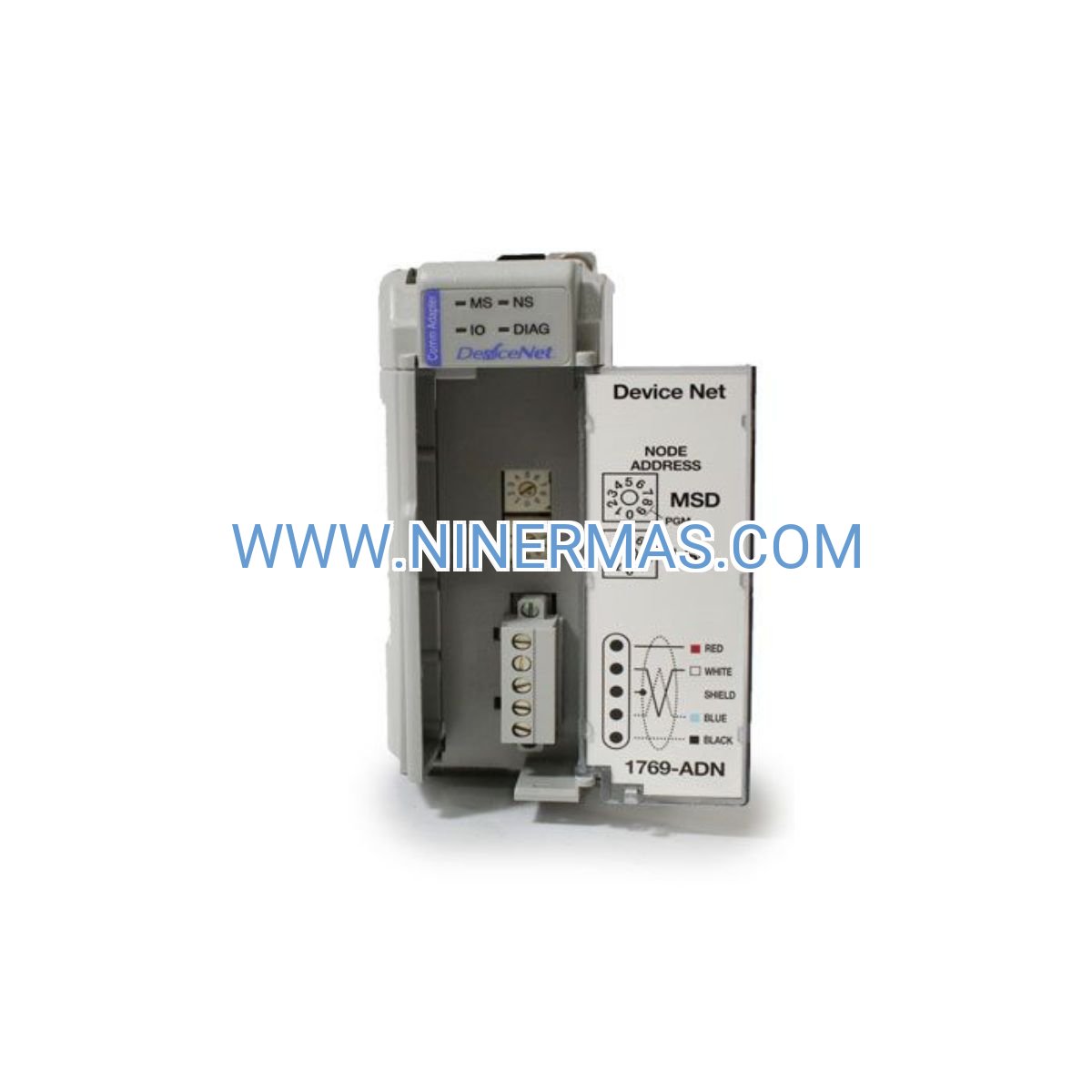

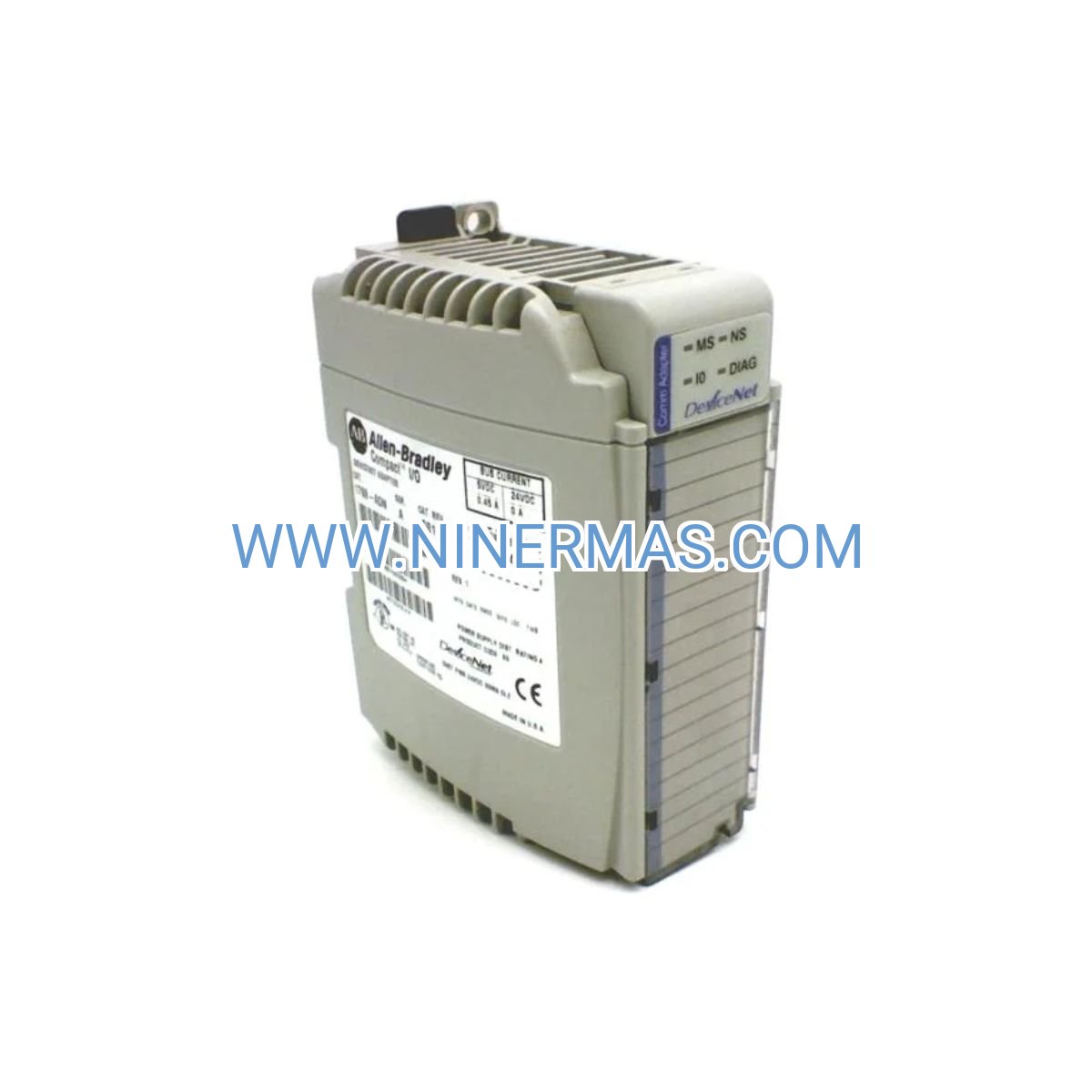

1769-ADN DeviceNet Communication Adapter (Industrial-Grade Network Interface)

The 1769-ADN represents a proven solution for connecting CompactLogix controllers to DeviceNet field networks. This communication adapter bridges your automation controller with distributed sensors, motor drives, pneumatic valves, and third-party instrumentation—delivering deterministic data exchange across multi-vendor industrial environments.

Designed for manufacturing facilities requiring reliable field-level communication, the adapter eliminates proprietary wiring complexity while maintaining microsecond-level response times. Whether you're coordinating packaging machinery, synchronizing conveyor systems, or integrating legacy DeviceNet equipment into modern control architectures, this module provides the interoperability foundation your operation demands.

With ODVA-certified DeviceNet protocol support and CompactLogix chassis compatibility, the 1769-ADN reduces commissioning time through auto-baud detection, built-in diagnostics, and hot-swappable terminal blocks—enabling faster deployment and simplified maintenance across your automation infrastructure.

Core Capabilities & Technical Advantages

→ Multi-Vendor Device Integration
ODVA-standardized DeviceNet protocol ensures seamless communication with sensors, drives, and actuators from multiple manufacturers. Eliminate vendor lock-in while maintaining full diagnostic visibility across all 64 network nodes.

→ Deterministic Real-Time Performance
CAN-based architecture delivers predictable scan times and guaranteed message delivery. Critical for applications requiring synchronized motion control, coordinated material handling, and time-sensitive process automation.

→ Flexible Baud Rate Configuration
Auto-detection supports 125 kbps, 250 kbps, and 500 kbps communication speeds. Adapt network performance to cable length requirements and device response characteristics without manual configuration.

✓ Plug-and-Play Commissioning
Electronic keying prevents incorrect module substitution. Removable terminal blocks enable pre-wiring before installation. Network status LEDs provide instant fault identification—reducing troubleshooting time by up to 40%.

✓ Compact Chassis Integration
DIN rail mounting and CompactLogix backplane compatibility. Draws power directly from chassis (800 mA @ 5V DC) plus DeviceNet trunk (150 mA @ 24V DC). No external power supply required.

✓ Industrial Environmental Ratings
Operates reliably in 0°C to 60°C ambient conditions. UL, cUL, CE, and C-Tick certifications ensure compliance with global industrial safety standards.

Application Scenarios & Industry Use Cases

Automotive Assembly Lines
Coordinate robotic welding stations, pneumatic clamps, and torque-controlled fastening tools across distributed work cells. The 1769-ADN enables centralized PLC control while maintaining individual device diagnostics for predictive maintenance scheduling.

Food & Beverage Packaging
Integrate variable frequency drives, servo motors, and vision inspection systems on high-speed packaging lines. Deterministic communication ensures synchronized product flow, reducing waste from timing errors and improving OEE metrics.

Material Handling & Logistics
Connect conveyor systems, barcode scanners, diverter gates, and sortation equipment across warehouse automation networks. Centralized I/O mapping simplifies zone control programming and fault isolation.

Process Manufacturing Retrofits
Upgrade legacy DeviceNet instrumentation to modern CompactLogix platforms without replacing field devices. Preserve existing wiring infrastructure while gaining advanced diagnostic capabilities and remote monitoring integration.

Machine Builder OEM Integration
Standardize on DeviceNet communication for modular machine designs. Reduce custom wiring harnesses, simplify spare parts inventory, and accelerate customer site commissioning through pre-configured network templates.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 1769-ADN when your application requires DeviceNet field device integration with CompactLogix controllers. For EtherNet/IP networks, consider the 1769-AENTR adapter. For ControlNet applications, specify the 1769-SDN scanner module. Maximum trunk cable length varies by baud rate: 500m @ 125 kbps, 250m @ 250 kbps, 100m @ 500 kbps.

Advanced Integration Features

Studio 5000 Configuration Tools
Configure network parameters, assign I/O mapping, and establish device profiles directly within RSLogix 5000 or Studio 5000 Logix Designer. Electronic Data Sheets (EDS) files enable automatic device recognition and parameter templates for faster commissioning.

Firmware Updateability
Maintain long-term compatibility through ControlFLASH firmware updates. Address protocol enhancements, security patches, and device profile expansions without hardware replacement—protecting your automation investment over multi-decade lifecycles.

Diagnostic Capabilities
Real-time network health monitoring through controller tags. Track bus-off errors, duplicate MAC ID conflicts, and power supply faults. LED indicators provide instant visual confirmation of module status, network activity, and communication errors.

Redundancy Considerations
While the 1769-ADN supports single-trunk configurations, dual-adapter architectures enable network segmentation for critical applications. Separate high-priority safety I/O from standard process control traffic to maintain deterministic performance under peak load conditions.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (subject to inventory availability)
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific EDS files
Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
Technical Support: Email and phone support for configuration assistance, troubleshooting, and firmware updates
Documentation Included: Installation manual, wiring diagrams, EDS files, and Studio 5000 configuration examples

All modules undergo factory calibration and quality assurance testing to Allen-Bradley specifications. Replacement units ship within 48 hours of warranty claim approval during the coverage period.

Frequently Asked Questions

How do I connect multiple DeviceNet segments to a single CompactLogix controller?
Each 1769-ADN module supports one DeviceNet trunk. For multi-segment architectures, install additional adapter modules in separate chassis slots. Configure unique network addresses and I/O mapping for each segment within Studio 5000.

What is the maximum cumulative drop cable length on DeviceNet networks?
ODVA specifications limit total drop cable length to 6 meters across all devices on a single trunk. Exceeding this distance may cause signal reflections and communication errors. Use trunk taps positioned close to devices to minimize drop lengths.

Can the 1769-ADN adapter operate in hazardous location environments?
The standard module is rated for general industrial use (UL Listed). For Class I Division 2 hazardous locations, specify explosion-proof enclosures or intrinsically safe barriers. Consult NEC Article 500 and local electrical codes for compliance requirements.

Does this module support DeviceNet Safety protocol for safety-rated I/O?
No, the 1769-ADN implements standard DeviceNet communication only. For safety-rated networks, use dedicated safety controllers and CIP Safety-certified adapters compliant with IEC 61508 SIL 2/3 requirements.

What software tools are required for initial configuration and diagnostics?
Studio 5000 Logix Designer (formerly RSLogix 5000) version 20 or later. ControlFLASH utility for firmware updates. RSNetWorx for DeviceNet software for advanced network diagnostics and device commissioning (optional but recommended).

How does auto-baud detection work during network startup?
The adapter monitors DeviceNet traffic during power-up and automatically synchronizes to the detected baud rate (125/250/500 kbps). Manual baud rate configuration is available through Studio 5000 if auto-detection fails due to network inactivity.

Get Started with Your DeviceNet Integration

Ready to connect your CompactLogix controller to DeviceNet field devices? Contact our technical sales team for application-specific configuration guidance, volume pricing, and integration support. We provide pre-commissioning assistance, wiring diagram reviews, and post-installation troubleshooting to ensure successful deployment.

Request a quote: Include your controller model, number of DeviceNet nodes, and application requirements for customized recommendations.
