Allen-Bradley 1769-2WS Dual Weigh Scale Module | CompactLogix Load Cell Interface for Industrial Weighing

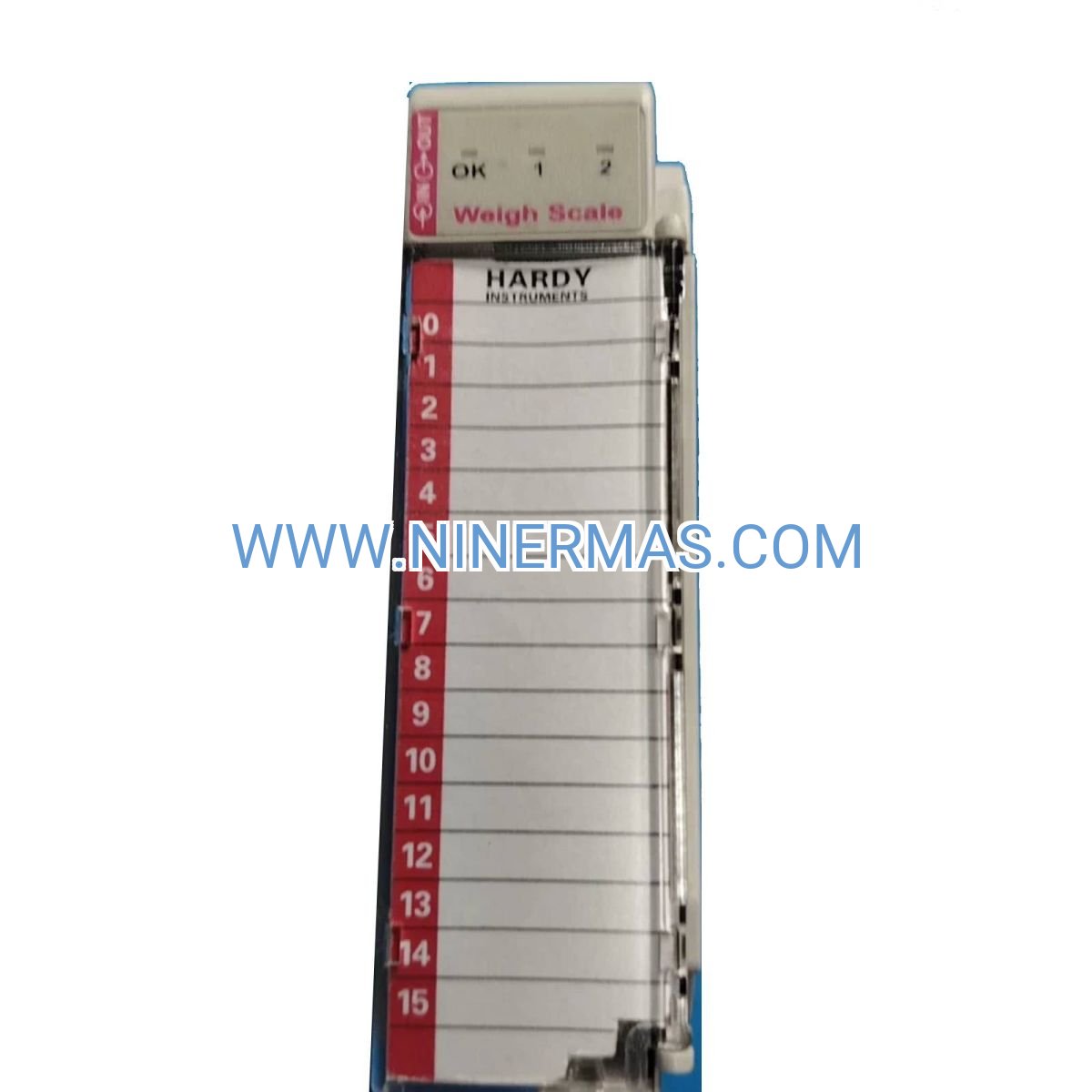

Allen-Bradley 1769-2WS Dual Weigh Scale Module (Industrial-Grade Load Cell Interface)

The Allen-Bradley 1769-2WS is a precision dual-channel weigh scale module designed for CompactLogix control systems, delivering accurate weight measurement through advanced load cell interfacing technology. By integrating 24-bit A/D conversion and programmable excitation voltage (5V/10V), this module enables real-time weight monitoring, dynamic batching control, and material flow management with exceptional accuracy and stability.

Ideal for batching systems, filling operations, material handling conveyors, hopper weighing, and process control applications across food & beverage, pharmaceutical, chemical processing, and manufacturing industries. This module addresses critical challenges including weight measurement drift, signal noise interference, multi-scale synchronization complexity, and the need for hot-swappable I/O in continuous production environments.

Through standardized CompactLogix architecture and flexible configuration options, the 1769-2WS offers high-precision measurement, seamless integration with RSLogix 5000/Studio 5000 programming, built-in diagnostics, and field-replaceable design. Suitable for system integrators, OEM equipment manufacturers, plant engineers, and automation solution providers requiring reliable weighing data for process optimization. Contact our application engineers for load cell compatibility verification and system configuration assistance.

Core Features & Technical Advantages

• Dual-Channel Precision Measurement
  Two independent weigh scale inputs with 24-bit resolution A/D converters ensure accurate weight data acquisition from multiple load cells or scales simultaneously, supporting differential weighing and redundant measurement strategies.
• Programmable Excitation Voltage
  Selectable 5VDC or 10VDC excitation output per channel accommodates various load cell types and bridge configurations, eliminating the need for external power supplies and simplifying wiring infrastructure.
• Advanced Signal Processing
  Built-in digital filtering algorithms reduce electrical noise and mechanical vibration effects, delivering stable weight readings even in harsh industrial environments with motor drives and electromagnetic interference.
• Hot-Swap Capability
  Module replacement without system shutdown minimizes production downtime, allowing maintenance during operation while preserving process continuity and data integrity through automatic configuration restoration.
• Comprehensive Diagnostics
  Real-time status indicators and fault detection for excitation voltage, input signal integrity, and module health enable proactive maintenance and rapid troubleshooting, reducing mean time to repair (MTTR).
• Seamless CompactLogix Integration
  Native compatibility with 1769 I/O chassis and RSLogix 5000/Studio 5000 programming environment provides unified configuration, simplified tag-based programming, and consistent data exchange across the control architecture.

Typical Application Scenarios

This module excels in applications demanding high accuracy, process repeatability, and regulatory compliance:

• Batching & Formulation Systems
  Precise ingredient dosing for food processing, chemical blending, and pharmaceutical manufacturing where recipe accuracy directly impacts product quality and material cost control.
• Filling & Packaging Lines
  Net weight verification for bottling, bagging, and container filling operations, ensuring compliance with trade measurement regulations and minimizing product giveaway while maintaining throughput.
• Material Handling & Conveyor Systems
  Dynamic weighing on belt scales and conveyor checkweighers for inventory tracking, production monitoring, and automated sorting based on weight classification criteria.
• Hopper & Tank Weighing
  Continuous level monitoring and inventory management for silos, hoppers, and process vessels in bulk material handling, supporting just-in-time production and automated reordering workflows.
• Process Control & Quality Assurance
  Closed-loop weight-based control for extrusion, coating, and mixing processes where material flow rate regulation ensures consistent product characteristics and reduces waste.

Technical Specifications & Selection Guide

To facilitate engineering design and system integration, key specifications include:

Selection Considerations: When specifying this module, evaluate load cell sensitivity (mV/V), maximum capacity, environmental conditions (temperature, vibration, EMI), required update rate for dynamic applications, and integration with existing CompactLogix controller models (L1x, L2x, L3x series). For custom applications involving multiple scales, hazardous area installations, or specialized calibration requirements, consult with application engineers to optimize system architecture and ensure compliance with industry standards (OIML, NTEP, Measurement Canada).

Extended Functionality & System Integration

• Multi-Scale Coordination: Synchronize multiple 1769-2WS modules across distributed I/O networks for complex batching sequences and material balance calculations
• Data Logging & Traceability: Integration with FactoryTalk historian and MES systems for batch records, quality documentation, and regulatory compliance reporting
• Remote Monitoring: EtherNet/IP connectivity enables SCADA visualization, mobile HMI access, and cloud-based analytics for predictive maintenance
• Safety Integration: Compatible with GuardLogix safety controllers for weight-based safety interlocks and overload protection in material handling systems

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days; custom-configured modules or quantity orders typically require 7-14 days lead time. All products include minimum 12-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote configuration assistance, troubleshooting guidance, and access to application notes. Complete documentation package provided: installation instructions, wiring diagrams, RSLogix 5000 Add-On Instruction (AOI) libraries, and calibration procedures for simplified commissioning and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the 1769-2WS dual weigh scale module interface with existing load cells?
A: The module accepts standard 4-wire or 6-wire load cell connections with bridge resistance from 87Ω to 3000Ω. Configure excitation voltage (5V or 10V) to match load cell specifications, set input range based on load cell sensitivity (typically 2-3 mV/V), and perform zero/span calibration through RSLogix 5000 configuration dialogs or runtime instructions.

Q: What is the maximum number of load cells supported per module?
A: Each of the two channels supports one complete load cell bridge circuit. For multi-cell applications (e.g., tank with 3-4 load cells), use a junction box to sum cell outputs into a single signal, or deploy multiple 1769-2WS modules for independent cell monitoring and corner-load compensation algorithms.

Q: What level of accuracy and energy savings can be achieved in batching applications?
A: Typical batching accuracy reaches ±0.05% to ±0.1% of target weight when properly calibrated with quality load cells and stable mechanical installation. Compared to volumetric dosing, weight-based control reduces material waste by 2-5% and improves batch-to-batch consistency, translating to significant cost savings in high-volume production.

Q: What are the environmental requirements and protection ratings?
A: The module operates in 0-60°C ambient temperature with 5-95% non-condensing humidity. Standard IP20 rating suitable for control cabinet mounting; for washdown or outdoor installations, house within NEMA 4X/IP65 enclosures. Conformal coating available for corrosive atmosphere protection.

Q: Does the module support remote monitoring and data acquisition protocols?
A: Yes, weight data is accessible via EtherNet/IP through the CompactLogix controller, supporting Modbus TCP gateway integration, OPC UA servers, and MQTT publishers for Industry 4.0 connectivity. Real-time data streaming enables cloud analytics, mobile dashboards, and integration with ERP/MES systems.

Q: Can the module be used in hazardous area classifications?
A: The 1769-2WS carries ATEX Zone 2 and IECEx certification for installation in non-hazardous areas of facilities with occasional explosive atmosphere risk. For Zone 1/Division 1 applications, install within purged/pressurized enclosures or use intrinsically safe barrier interfaces with appropriate entity parameters.

Request Technical Support & Custom Configuration

For detailed application engineering, system sizing, or quotation requests, please provide: project overview, application type (batching/filling/conveyor), load cell specifications (capacity, sensitivity, manufacturer), number of scales/channels required, environmental conditions, controller model (L1x/L2x/L3x), and any special requirements (hazardous area, hygienic design, custom calibration). Our engineers will deliver tailored recommendations with wiring diagrams, parts lists, and budget pricing within 24-48 hours.
