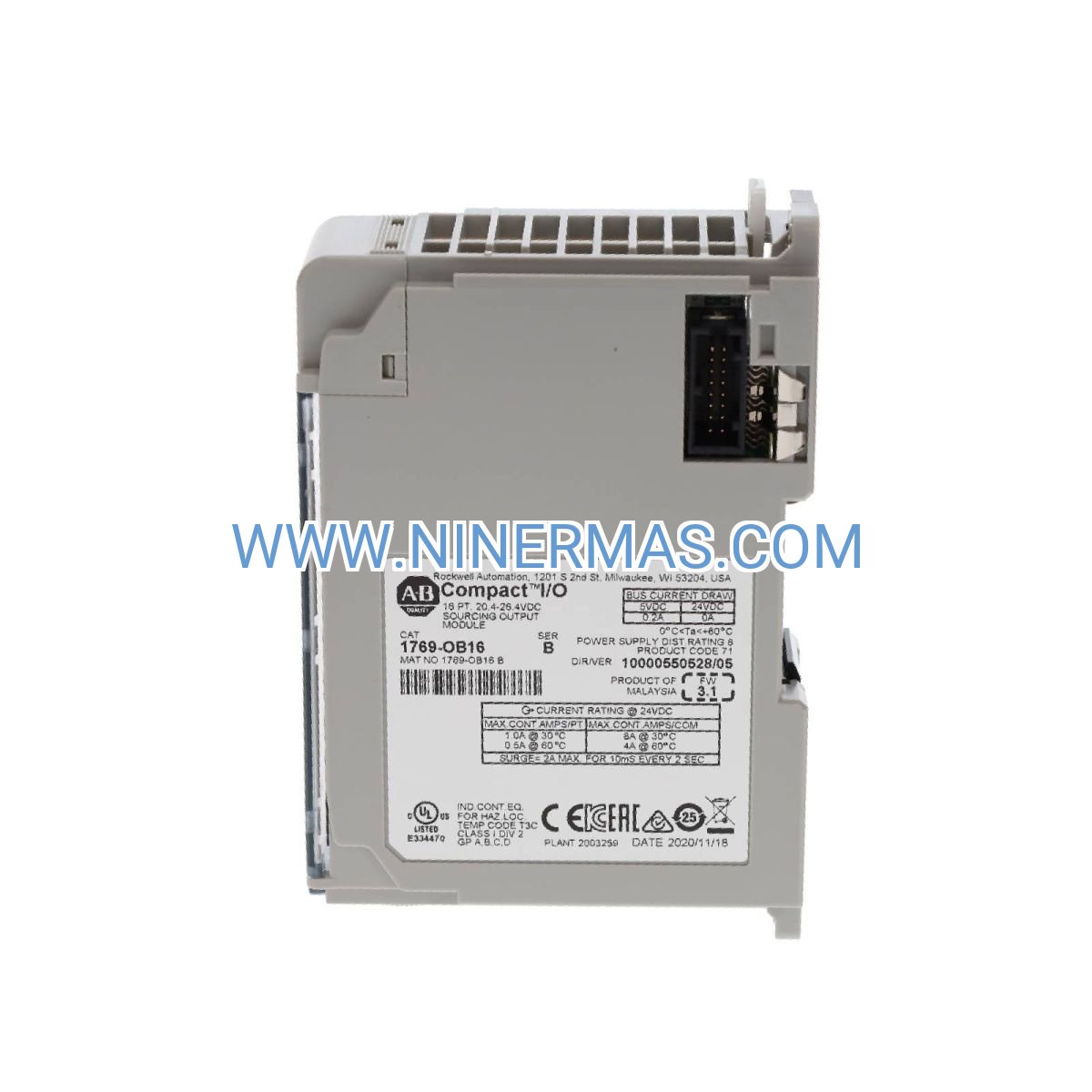

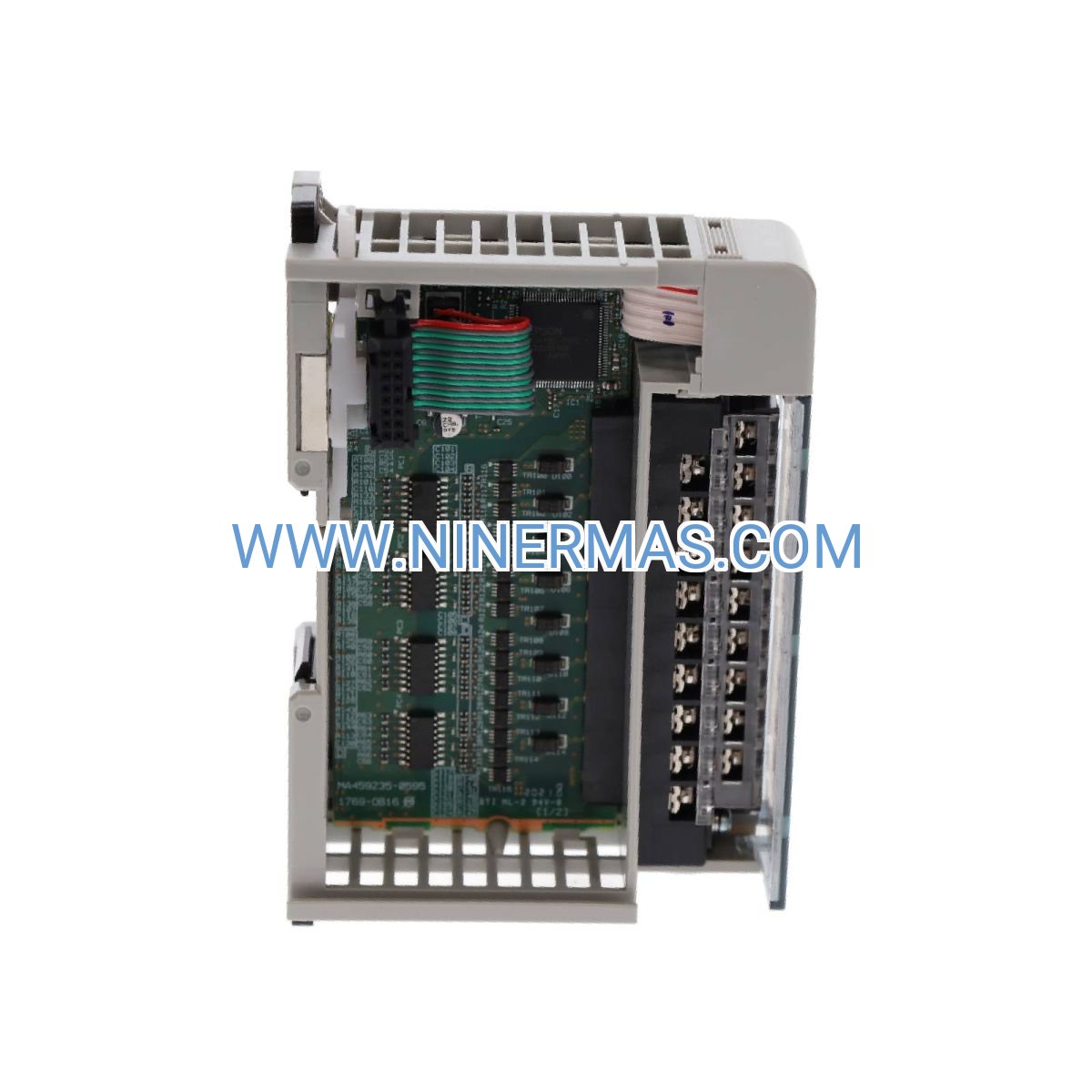

Allen-Bradley 1769-0B16 CompactLogix DC Output Module (Industrial-Grade Control Solution)

The Allen-Bradley 1769-0B16 is a high-performance 16-point DC output module designed for CompactLogix control systems. Through solid-state switching technology and 24V DC operation, it delivers precise digital output control for industrial automation applications. Each output point provides 0.5A current capacity with built-in short-circuit protection and diagnostic capabilities.

Ideal for packaging machinery, material handling systems, process control equipment, and automated assembly lines where reliable discrete output control is essential. This module addresses common challenges including output point failures, difficult troubleshooting, system downtime during maintenance, and inadequate protection against electrical faults.

With hot-swappable design and standardized CompactLogix compatibility, the 1769-0B16 offers fast installation, reduced downtime, comprehensive diagnostics, and proven reliability. Suitable for control system integrators, OEM machine builders, plant maintenance teams, and automation engineers. Contact our technical team for application-specific configuration guidance and compatibility verification.

Core Features & Technical Advantages

• Solid-State Output Technology
  Utilizes MOSFET-based solid-state switches for fast response times (typical 1ms), extended operational life compared to relay outputs, and silent operation without mechanical wear components.
• Comprehensive Protection Functions
  Each output incorporates electronic short-circuit protection, thermal overload shutdown, and reverse polarity safeguards, minimizing damage risk and reducing unplanned maintenance interventions.
• Hot-Swap Capability
  Supports module replacement without powering down the entire control system, significantly reducing mean time to repair (MTTR) and maintaining production continuity during maintenance activities.
• Integrated Diagnostic LEDs
  Individual status indicators for each output point plus module-level fault LEDs enable rapid visual troubleshooting, reducing diagnostic time by up to 60% compared to non-indicating modules.
• Removable Terminal Blocks
  Spring-clamp or screw-type removable connectors (depending on variant) facilitate quick wiring changes, simplified panel assembly, and efficient module replacement without rewiring.
• CompactLogix Platform Integration
  Seamless compatibility with 1769 I/O chassis and ControlLogix/CompactLogix processors, utilizing standard backplane communication for simplified programming and unified system architecture.

Typical Application Scenarios

This module excels in applications requiring stable DC output control, fast switching response, and high system availability, particularly in:

• Packaging & Labeling Machinery
  Controls solenoid valves, pneumatic actuators, and conveyor motors in high-speed packaging lines. Handles rapid cycle operations while maintaining precise timing for product positioning and material handling.
• Material Handling & Conveyor Systems
  Drives DC contactors, brake controls, and diverter mechanisms in warehouse automation and distribution centers. Supports zone control logic and accumulation conveyor applications.
• Process Control & Batch Systems
  Operates control valves, pump starters, and agitator drives in chemical processing, food & beverage, and pharmaceutical manufacturing. Meets requirements for repeatable process sequencing and recipe-based control.
• Automated Assembly & Robotics
  Interfaces with robot I/O, fixture clamps, part presence sensors, and safety interlocks in automotive, electronics, and consumer goods assembly operations.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide key electrical and mechanical specifications. Custom configurations available for specialized applications.

Selection Considerations: When specifying this module, evaluate total load current (sum of all active outputs should not exceed module rating), external power supply capacity (ensure adequate 24V DC source for connected loads), wiring distance and voltage drop (use appropriate wire gauge for load current and distance), and environmental conditions (confirm operating temperature range and enclosure protection level). For application-specific guidance, provide your system architecture, load specifications, and environmental parameters to our engineering team.

Extended Functionality & System Integration

• RSLogix/Studio 5000 Programming Support
  Pre-configured Add-On Instructions (AOIs) and function blocks available for common output control patterns including pulse generation, time-delayed activation, and fault handling routines.
• Distributed I/O Architecture
  Compatible with EtherNet/IP and ControlNet distributed I/O configurations via 1769-ADN, 1769-AENTR, or similar communication adapters, enabling flexible machine layout and reduced wiring costs.
• Redundancy Options
  Can be deployed in redundant controller configurations (ControlLogix redundancy) with automatic output state transfer during controller switchover, ensuring continuous operation in critical applications.
• Diagnostic Data Integration
  Module diagnostics accessible via controller tags and HMI interfaces, supporting predictive maintenance strategies through output fault counters, thermal status monitoring, and power supply voltage tracking.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from stock. Custom-configured modules or large quantity orders may require 10-15 business days. Expedited shipping available upon request.

Warranty: All modules carry a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications.

Technical Support: Comprehensive support including remote configuration assistance, on-site commissioning services (region-dependent), and 24/7 emergency technical hotline for production-critical issues.

Documentation Package: Each module ships with complete technical documentation including installation instructions, wiring diagrams, electrical schematics, dimensional drawings, and RSLogix/Studio 5000 configuration examples. Digital documentation available via download portal.

Quality Certifications: Manufactured under ISO 9001 quality management systems. Products meet UL508, CE EMC Directive, and RoHS compliance standards. Certificate of Conformity provided upon request.

Frequently Asked Questions (FAQ)

Q: How do I integrate the 1769-0B16 output module with my existing CompactLogix system?
A: The module installs directly onto any 1769 I/O chassis with available slots. Simply mount the module to the DIN rail or chassis, connect the backplane connector, apply external 24V DC power to the output commons, wire your loads to the terminal blocks, and configure the module in RSLogix/Studio 5000 software. The controller automatically recognizes the module type and allocates appropriate output tags.

Q: What is the maximum number of outputs I can activate simultaneously?
A: While all 16 outputs can be energized concurrently, the total continuous current must not exceed 8A per common group (typically 8 points per common). Each individual output is rated for 0.5A continuous. For applications requiring higher simultaneous current, consider load distribution across multiple modules or use external power relays.

Q: What energy savings can I expect compared to relay-based output modules?
A: Solid-state outputs consume approximately 70-80% less control power than equivalent electromagnetic relay modules due to elimination of coil power requirements. Additionally, the absence of contact arcing and mechanical wear extends service life by 10-20 times, reducing replacement costs and maintenance downtime.

Q: What are the environmental requirements for installation?
A: The module operates reliably in 0-60°C ambient temperature with 5-95% relative humidity (non-condensing). It requires installation in a NEMA 12/IP54 or better enclosure to protect against dust and moisture. Ensure adequate ventilation for heat dissipation—maintain 50mm clearance above and below the module. Avoid installation near high-frequency noise sources or in areas with excessive vibration (>2G).

Q: Can I monitor output status and faults remotely? What communication protocols are supported?
A: Yes, all output states and diagnostic information are accessible via the CompactLogix controller's communication interfaces. The module supports EtherNet/IP, ControlNet, and DeviceNet protocols (depending on chassis communication adapter). You can integrate with SCADA systems, HMI panels, or cloud-based monitoring platforms using standard industrial protocols including Modbus TCP, OPC UA, and MQTT (via gateway devices).

Q: Is the module hot-swappable, and what precautions should I take during replacement?
A: Yes, the 1769-0B16 supports hot-swap replacement when used with appropriate CompactLogix controllers (verify controller firmware supports RIUP - Removal and Insertion Under Power). Before removing, place the module in "Inhibit" mode via software to prevent output state changes. Disconnect field wiring from terminal blocks (or remove entire terminal block if using removable type), then extract the module. Install replacement module, reconnect wiring, and clear inhibit mode. Always follow LOTO (Lockout/Tagout) procedures for safety-critical applications.

Request Technical Consultation & Quotation

For detailed application engineering support, custom configuration recommendations, or project quotations, please provide the following information to our technical sales team:

• Project name and application description
• Number of output points required and load specifications (voltage, current, type)
• Existing control system architecture (processor model, I/O chassis type)
• Environmental conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Quantity requirements and delivery timeline
• Special requirements (certifications, extended warranty, commissioning support)

Our application engineers will provide one-on-one consultation including module selection verification, wiring recommendations, and programming examples tailored to your specific requirements.
