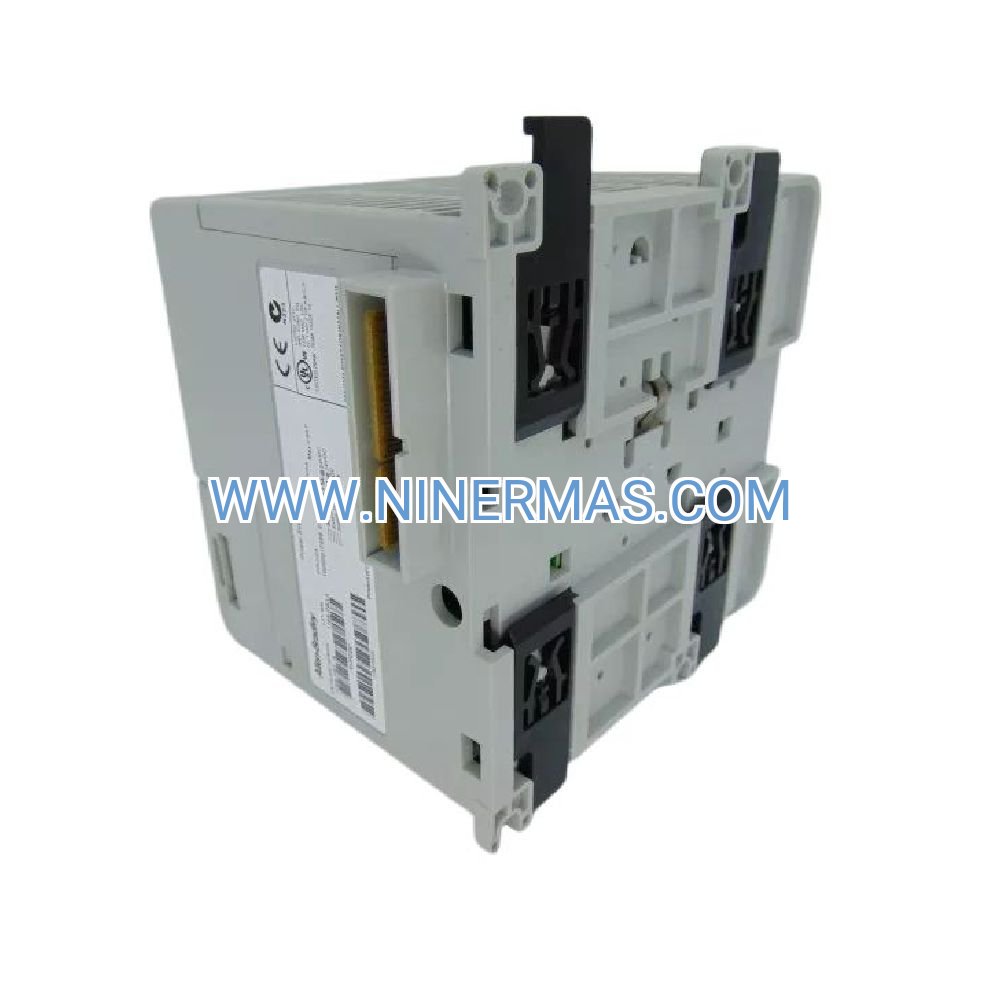

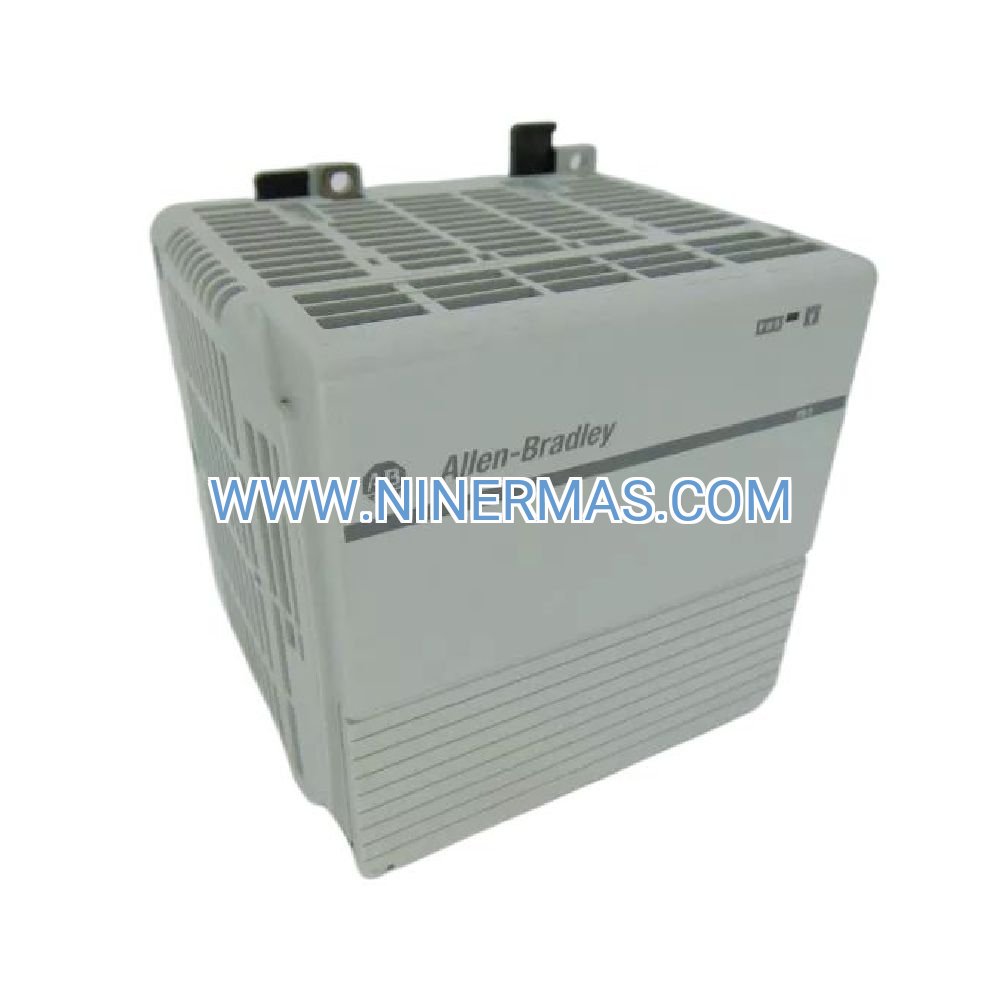

1768-PB3 Power Supply Module (Industrial-Grade CompactLogix Solution)

The 1768-PB3 represents a critical infrastructure component for CompactLogix automation architectures, delivering precision-regulated 24V DC power with exceptional voltage stability and noise immunity. Engineered for continuous-duty industrial environments, this power module combines universal AC/DC input flexibility with robust overload protection, making it the preferred choice for mission-critical control applications across manufacturing, process automation, and material handling sectors.

Designed for system integrators and plant engineers who demand uncompromising reliability, the 1768-PB3 addresses the fundamental challenge of maintaining clean, stable power in electrically noisy industrial settings. Whether you're upgrading legacy systems or designing new installations, this module provides the power foundation your CompactLogix platform requires for 24/7 operation.

With global voltage compatibility, DIN rail convenience, and Allen-Bradley's proven quality standards, the 1768-PB3 eliminates power-related downtime while simplifying international deployments and spare parts management.

Core Features & Technical Advantages

✓ Universal Input Voltage Range (85-265V AC / 88-375V DC)
Deploy the same module worldwide without voltage conversion equipment, reducing inventory complexity and enabling rapid replacement across multi-site operations. Automatic input detection eliminates configuration errors during installation.

✓ Precision-Regulated 24V DC Output @ 3A Continuous
Delivers 72W of clean power with ±2% voltage regulation, protecting sensitive controller logic and I/O circuitry from brownouts and voltage sags that cause unpredictable system behavior or data corruption.

✓ Integrated Fault Protection & Thermal Management
Built-in short-circuit protection, overload shutdown, and thermal monitoring prevent cascading failures during fault conditions, while LED diagnostics provide instant visual status confirmation without requiring test equipment.

✓ CompactLogix Backplane Integration
Seamless power distribution through the 1768 chassis backplane eliminates external wiring, reduces installation time by 40%, and ensures proper grounding for EMI immunity in high-noise environments.

✓ Industrial Temperature Rating (0°C to 60°C)
Maintains full output capacity across the entire operating range, supporting installations in non-climate-controlled enclosures, outdoor cabinets, and high-ambient-temperature process areas.

✓ Global Safety Certifications (UL/CE/CSA)
Meets international electrical safety standards for industrial equipment, simplifying compliance documentation for machinery exports and multi-national facility installations.

Application Scenarios & Industry Solutions

→ Automated Manufacturing Lines
Powers CompactLogix controllers managing robotic assembly cells, conveyor systems, and quality inspection stations. The wide input range accommodates voltage fluctuations from heavy motor loads, while the 3A capacity supports controller plus distributed I/O modules without external power supplies.

→ Process Control & SCADA Systems
Provides stable power for continuous process monitoring in chemical plants, water treatment facilities, and food processing operations. Thermal shutdown protection prevents power supply failures during high-temperature process upsets.

→ Packaging & Material Handling Equipment
Supports high-speed packaging machinery and automated warehouse systems where power interruptions cause product damage and costly downtime. Redundant power configurations using dual 1768-PB3 modules ensure uninterrupted operation.

→ OEM Machine Builders
Simplifies global machine sales by eliminating voltage-specific power supply variants. Single SKU supports installations from 100V Japan to 240V Europe, reducing engineering complexity and spare parts inventory for international customers.

→ Retrofit & Modernization Projects
Drop-in replacement for aging power supplies in existing 1768 systems, restoring reliability without requiring controller reprogramming or I/O reconfiguration. DIN rail mounting enables installation in legacy panels with minimal modifications.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total current requirements by summing the controller base current (typically 0.5-1.0A for 1768-L4x models) plus all I/O module currents from their specifications. Ensure total continuous draw remains below 2.7A (90% of rated capacity) to allow thermal margin. For systems requiring >2.7A, consider dual power supplies or upgrade to higher-capacity models.

Extended Functions & System Integration

Redundant Power Architecture: Deploy two 1768-PB3 modules in parallel configuration for N+1 redundancy, ensuring continuous operation during power supply maintenance or failure. Each module automatically load-shares, and the system continues operating on a single supply if one fails.

Remote Monitoring Capability: While the 1768-PB3 itself doesn't include network connectivity, integrate with CompactLogix controllers featuring Ethernet modules (1768-ENBT) to monitor power supply status via SCADA systems. Use discrete I/O to capture the DC OK signal for alarm integration.

Custom Voltage Solutions: For applications requiring non-standard voltages, the 1768-PB3 can be paired with external DC-DC converters to generate 12V, 5V, or other voltages for ancillary equipment while maintaining a single primary power source.

Global Deployment Standardization: Establish the 1768-PB3 as your corporate standard for all CompactLogix installations worldwide, simplifying engineering specifications, reducing procurement complexity, and enabling cross-site spare parts sharing.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 1-2 business days via express courier. Typical transit times: 3-5 days Asia-Pacific, 5-7 days North America/Europe, 7-10 days other regions. Expedited shipping available upon request.

Custom Configuration: Pre-tested power supply assemblies with mounting hardware and wiring harnesses available with 5-7 business day lead time. Contact our engineering team for custom integration requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance issues. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Unlimited access to our applications engineering team for sizing calculations, troubleshooting assistance, and integration guidance. Support available via email, phone, and video consultation in English and Mandarin.

Documentation Package: Each unit includes installation quick-start guide, wiring diagrams, dimensional drawings, and factory test certificate. Complete technical manuals and CAD files available for download from our support portal.

Frequently Asked Questions

Q: How many I/O modules can the 1768-PB3 power supply support in a typical CompactLogix system?
A: Current capacity depends on your specific I/O mix. As a general guideline, the 3A output can power one 1768-L4x controller (≈0.8A) plus 4-6 standard I/O modules (≈0.3-0.4A each). High-power modules like analog outputs or communication adapters consume more current—always verify individual module specifications and sum total current draw to ensure it remains below 2.7A continuous.

Q: What's the difference between the 1768-PB3 and the 1769-PA4 power supply for CompactLogix systems?
A: The 1768-PB3 is designed for the 1768 CompactLogix chassis platform, while the 1769-PA4 serves the 1769 Compact I/O system. They are not interchangeable due to different backplane connectors and mounting configurations. The 1769-PA4 offers 4A capacity versus 3A for the 1768-PB3. Verify your chassis series before ordering.

Q: Can I use the 1768-PB3 with DC input voltage from solar panels or battery systems?
A: Yes, the 88-375V DC input range supports battery banks, solar inverters, and DC distribution systems commonly found in remote installations or mobile equipment. Ensure your DC source provides stable voltage within the specified range and adequate current capacity (minimum 1.5A at 120V DC input for full 72W output).

Q: Does the power supply require any configuration or programming before use?
A: No configuration required. The 1768-PB3 is a plug-and-play device—simply mount on DIN rail, connect AC/DC input power, and insert into the CompactLogix chassis. The module automatically detects input voltage and begins supplying regulated 24V DC output. LED indicators confirm proper operation immediately upon power-up.

Q: What happens if I exceed the 3A current rating during operation?
A: The integrated overload protection circuit will shut down the output to prevent damage. The module will attempt automatic restart after the overload condition clears. For persistent overloads, the thermal protection will keep the supply offline until it cools. Size your system to operate at ≤90% of rated capacity to avoid nuisance shutdowns.

Q: Is the 1768-PB3 suitable for outdoor installations or harsh industrial environments?
A: When installed inside a properly rated NEMA/IP-rated enclosure, the 1768-PB3 performs reliably in outdoor and harsh environments. The conformal-coated circuitry resists moisture and contaminants, and the wide operating temperature range (0-60°C) accommodates most industrial conditions. Ensure adequate ventilation in the enclosure to prevent exceeding the 60°C maximum ambient temperature.

Ready to Power Your CompactLogix System?

Ensure reliable operation of your industrial automation infrastructure with the proven 1768-PB3 power supply module. Our technical team is ready to assist with system sizing, compatibility verification, and integration support.

Contact our automation specialists today:
→ Request a technical datasheet and compatibility guide
→ Discuss volume pricing for multi-unit projects
→ Schedule a consultation for custom power solutions
→ Verify stock availability and delivery timelines

All 1768-PB3 modules are factory-tested, certified genuine components backed by our quality guarantee and expert support.
