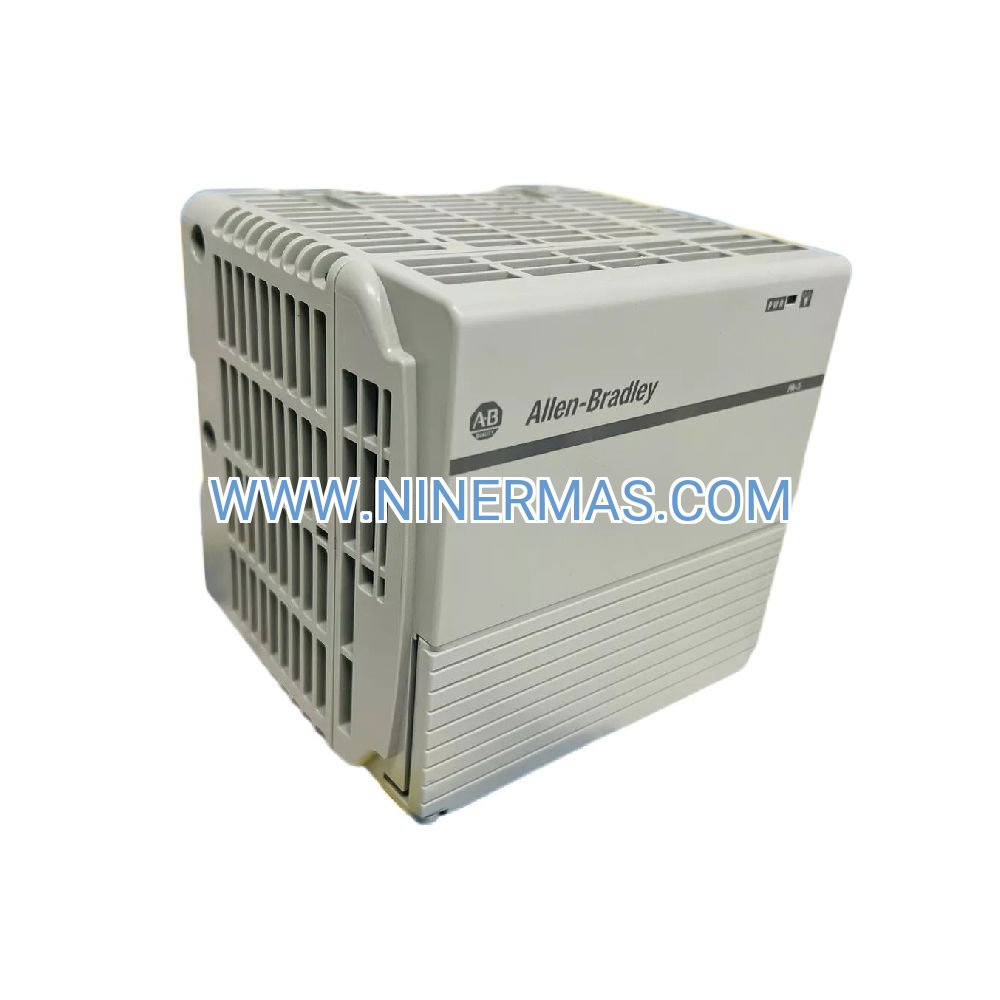

1768-PA3 Universal Power Module (Industrial-Grade CompactLogix Supply)

The 1768-PA3 represents a versatile power solution engineered for Allen-Bradley CompactLogix L4x automation platforms. This universal-input module accepts both alternating and direct current sources across a broad voltage spectrum, eliminating the complexity of maintaining separate power infrastructure for diverse industrial installations. Built to withstand electrical disturbances and environmental extremes, it ensures your control systems maintain operational continuity in mission-critical applications.

Manufacturing facilities, process industries, and infrastructure operators rely on the 1768-PA3 to power their automation backbone. Whether you're managing a single production cell or coordinating multi-zone control architectures, this module delivers the stable, regulated energy your CompactLogix controllers demand. Its compact footprint and tool-free mounting accelerate deployment while reducing panel real estate consumption.

Key advantages include universal voltage compatibility that simplifies global deployments, hot-swap capability that enables maintenance without system shutdown, and comprehensive protection circuitry that safeguards both the supply and downstream components. The module's proven design has established a track record across thousands of installations worldwide, from automotive assembly lines to water treatment facilities.

Core Features & Benefits

→ Universal Input Architecture
Accepts 85-265V AC or 88-350V DC without configuration changes, enabling single-SKU inventory management and simplified international deployments. Reduces procurement complexity and eliminates voltage-specific stocking requirements.

→ Hot-Swap Service Capability
Field-replaceable design allows module exchange during system operation, minimizing unplanned downtime. Maintenance teams can perform preventive replacements during scheduled production windows without halting manufacturing processes.

✓ Integrated Protection Systems
Built-in overcurrent, overvoltage, and short-circuit safeguards protect critical automation assets. Isolation barriers prevent ground loops and electrical noise propagation, ensuring signal integrity across your control network.

✓ Compact DIN-Rail Form Factor
Space-efficient design maximizes panel density, allowing more I/O capacity within existing enclosures. Standard 35mm DIN-rail mounting enables rapid installation and reconfiguration as system requirements evolve.

• Wide Operating Temperature Range
0°C to 60°C operational envelope accommodates non-climate-controlled environments including factory floors, utility substations, and outdoor enclosures. Reduces HVAC requirements and associated energy costs.

• Compliance-Ready Certification
UL Listed, CE marked, and RoHS compliant for streamlined regulatory approval in North American, European, and global markets. Accelerates project commissioning and reduces certification overhead.

Application Scenarios

Automotive Manufacturing Lines
Powers CompactLogix controllers managing robotic welding cells, conveyor systems, and quality inspection stations. Addresses voltage fluctuations common in high-power industrial environments while maintaining microsecond-level control precision. Delivers 99.9%+ uptime through redundant power architectures.

Food & Beverage Processing
Supports sanitary automation systems in filling, packaging, and material handling applications. Wide input tolerance accommodates aging facility electrical infrastructure without requiring costly power conditioning equipment. Enables compliance with FDA 21 CFR Part 11 through stable controller operation.

Water/Wastewater Treatment
Energizes SCADA controllers in pump stations, filtration systems, and chemical dosing equipment. Withstands humidity, temperature swings, and electrical transients typical of utility installations. Reduces maintenance visits through extended MTBF ratings.

Material Handling & Logistics
Drives sortation systems, automated storage/retrieval equipment, and conveyor networks in distribution centers. Hot-swap capability enables 24/7 operation with scheduled component rotation. Supports peak-season scalability through modular power expansion.

Packaging Machinery
Provides reliable power for high-speed form-fill-seal equipment, labeling systems, and case packers. Compact footprint fits within tight machine-mounted control panels. Reduces electrical noise that can disrupt servo drives and vision systems.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total power consumption of your CompactLogix chassis including controller, I/O modules, and communication adapters. The 1768-PA3 suits configurations drawing up to 10W continuous. For higher-capacity requirements (15W+), consider the 1768-PB3 enhanced power module. Verify ambient temperature conditions—installations exceeding 60°C require forced-air cooling or alternative power solutions. Confirm input voltage availability at installation site; while the module accepts wide voltage ranges, optimal efficiency occurs at 120V AC or 230V AC nominal.

Extended Functions

Redundant Power Configurations: Deploy dual 1768-PA3 modules in parallel for N+1 redundancy in critical applications. Each module operates independently; failure of one unit allows seamless continuation on the backup supply.

Remote Monitoring Integration: Pair with CompactLogix controllers featuring embedded web servers to monitor power supply status via Ethernet/IP networks. Integrate with SCADA systems for predictive maintenance alerts based on operating hours and environmental conditions.

Custom Voltage Adaptation: While the module ships with universal input capability, consult factory engineering for specialized voltage requirements outside standard ranges or for DC bus integration in renewable energy installations.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom configurations or bulk orders (50+ units) require 4-6 weeks manufacturing lead time. Expedited processing available for emergency replacements.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for up to 36 months with annual inspection services.

Technical Support: Access to certified automation engineers for installation guidance, troubleshooting assistance, and system integration consulting. Support available via email, phone, and remote diagnostic sessions during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, dimensional drawings, and compliance certificates. Digital resources include CAD models (STEP/IGES), configuration software, and firmware update utilities.

Frequently Asked Questions

What CompactLogix controller models are compatible with the 1768-PA3 power module?
The 1768-PA3 is engineered specifically for CompactLogix L4x series controllers including L43, L45, and L46 models. It mounts directly to 1768 chassis and provides regulated power to the backplane. Verify your controller's power requirements against the 10W continuous output rating.

Can I use this power supply in hazardous location installations?
The standard 1768-PA3 carries general industrial certifications (UL508, CE) but is not intrinsically safe or explosion-proof rated. For Class I Division 2 or ATEX Zone 2 applications, install within appropriately rated enclosures with proper purging systems. Consult factory for XP-rated alternatives.

How does the module perform during input voltage transients or brownout conditions?
Integrated hold-up circuitry maintains output regulation during voltage sags up to 20ms at nominal load. For extended brownouts or frequent power quality issues, implement uninterruptible power supplies (UPS) upstream. The module's wide input range tolerates ±20% steady-state voltage variation without derating.

What is the recommended maintenance schedule for optimal reliability?
Inspect terminal connections quarterly for tightness and corrosion. Clean ventilation openings semi-annually to prevent dust accumulation. Monitor ambient temperature—sustained operation above 50°C accelerates capacitor aging. Replace modules proactively after 8-10 years in 24/7 duty cycles or when operating hours exceed 70,000.

Does the power module support remote diagnostics or status indication?

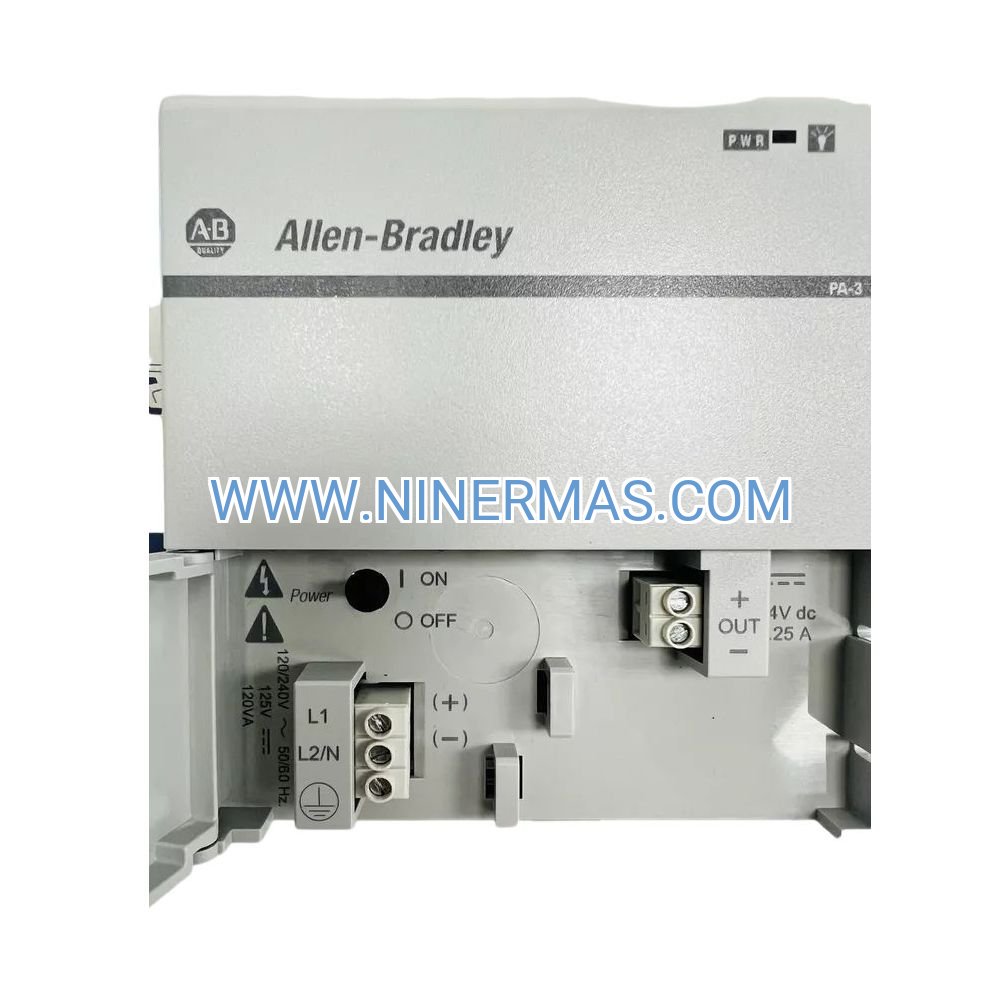

The 1768-PA3 features a front-panel LED indicating operational status (green=normal, off=fault). It does not include embedded diagnostics accessible via network protocols. For advanced monitoring, integrate with CompactLogix controllers that report backplane power status through their communication interfaces.

Can I mix AC and DC input sources in the same control panel?
Yes, the universal input design allows different 1768-PA3 modules within the same installation to operate from AC or DC sources independently. This flexibility simplifies multi-voltage panel designs and enables gradual migration from AC to DC power distribution strategies.

Take the Next Step

Ensure uninterrupted operation of your CompactLogix automation systems with the proven reliability of the 1768-PA3 universal power module. Our technical team is ready to assist with compatibility verification, system sizing, and integration planning.

Contact our automation specialists today:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a detailed quotation, technical datasheet, or application engineering support. Volume pricing available for OEMs, system integrators, and multi-site deployments.
