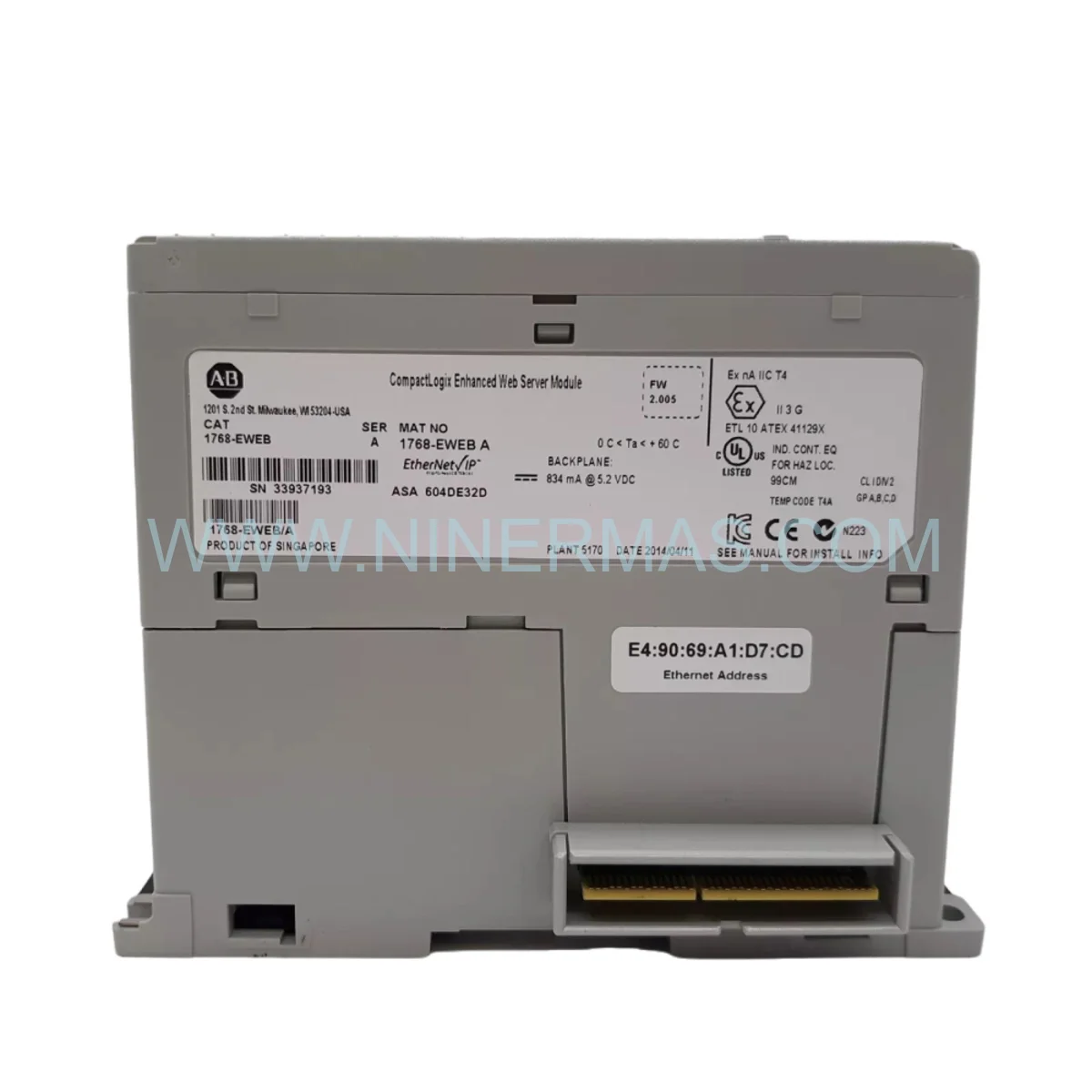

Allen-Bradley 1768-EWEB | EtherNet/IP Retrofit & System Upgrade Module

Allen-Bradley 1768-EWEB — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure across global manufacturing and power generation facilities, the Allen-Bradley 1768-EWEB stands out as a pivotal enabler in transitioning aging CompactLogix environments toward modern, web-accessible architectures. Rather than replacing entire control platforms, the Allen-Bradley 1768-EWEB slots directly into existing 1768 backplane configurations, delivering browser-based visualization and remote diagnostics that dramatically extend the operational lifespan of legacy systems — without the capital expenditure of a full DCS overhaul.

From a legacy compatibility standpoint, the 1768-EWEB is engineered to coexist with established CompactLogix L4x and L3x controller families, preserving existing I/O wiring, tag structures, and ladder logic investments. Its backward-compatible EtherNet/IP architecture means retrofit teams can introduce modern web-based HMI capabilities alongside legacy ENBT or CNB communication modules, creating a hybrid upgrade path that minimizes production downtime and commissioning risk.

In terms of migration economics, deploying the 1768-EWEB as a retrofit component reduces total project cost by eliminating dedicated HMI hardware, proprietary visualization software licenses, and complex network re-engineering. The result is a lower-risk, phased modernization strategy that delivers measurable performance gains while protecting existing automation investments.

Upgrade Highlights & Compatibility

• ✅ Drop-in Retrofit Fit: Installs directly into 1768 CompactLogix backplane — zero controller replacement required
• Dual 10/100 Mbps Ethernet Ports: Supports linear, star, and DLR topologies for flexible network modernization
• ✅ 128 Simultaneous CIP Connections: Scales to enterprise-level monitoring without additional hardware
• Legacy System Compatibility: Fully interoperable with CompactLogix L3x/L4x, RSLogix 5000, and Studio 5000 environments
• ✅ Future-Proof Web Standards: HTML5, HTTPS, SNMP, and FTP support ensures long-term integration with evolving IT/OT convergence strategies
• Hot-Swap Capability: Replace or install without system shutdown — critical for continuous-process industries
• ✅ Seamless Integration: Works alongside existing ENBT, CNB, and other 1768-series modules without disrupting live production

Modernization Use Cases & Success Stories

DCS Modernization — Chemical Plant Control Upgrade: A regional chemical processing facility operating a legacy CompactLogix L43-based DCS faced escalating maintenance costs due to aging dedicated HMI terminals. By integrating the 1768-EWEB as a retrofit web server module, the engineering team replaced five proprietary HMI stations with browser-based dashboards accessible from standard tablets and workstations. The result: a 60% reduction in HMI hardware maintenance costs and real-time process visibility across three production lines — all without modifying a single rung of existing ladder logic.

TSI System Retrofit — Power Generation Turbine Monitoring: A turbine supervisory instrumentation (TSI) upgrade project at a 500MW gas-fired power station required enhanced remote diagnostics without interrupting continuous turbine operation. The 1768-EWEB was deployed alongside the existing CompactLogix communication infrastructure, enabling plant engineers to access vibration, temperature, and speed data via secure HTTPS sessions from the control room and remote engineering offices. The hot-swap design allowed installation during a scheduled maintenance window with zero unplanned downtime.

Multi-Site Manufacturing Coordination: A global automotive components manufacturer standardized on the 1768-EWEB across 12 production facilities to create a unified web-based monitoring layer over disparate legacy CompactLogix installations. The module’s SNMP and FTP capabilities enabled centralized IT management of all OT network nodes, accelerating the company’s IT/OT convergence roadmap by an estimated 18 months compared to a full platform replacement approach.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Allen-Bradley 1768-EWEB unit supplied is sourced from authorized distribution channels and ships factory-sealed with full OEM documentation, firmware media, and certification records — ensuring authenticity for regulated industries including power generation, oil & gas, and pharmaceutical manufacturing.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under tight timelines, we maintain ready stock of the 1768-EWEB with expedited air freight options to North America, Europe, Southeast Asia, and the Middle East. Most orders ship within 24-48 hours of confirmation.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in legacy CompactLogix environments. Whether you need assistance with backplane slot planning, IP addressing for brownfield networks, or custom web page development for the 1768-EWEB, our retrofit specialists provide hands-on guidance from pre-sales through commissioning.

Retrofit FAQ — Upgrade Guide

Q: Will the 1768-EWEB physically fit in my existing CompactLogix chassis without modifications?
A: Yes. The 1768-EWEB is a standard 1768-series module that occupies one slot in any 1768 CompactLogix local chassis. No mechanical modifications, adapter plates, or chassis extensions are required. Verify available slot count in your existing chassis before ordering to confirm installation space.

Q: How does the 1768-EWEB communicate with older RSLogix 5000 (pre-Studio 5000) programming environments?
A: The module is fully compatible with RSLogix 5000 v16 and later. Tag mapping and web page variable binding are configured through the same software environment used for your existing controller programming, ensuring a familiar workflow for retrofit engineers without requiring new toolchain investments.

Q: Can the 1768-EWEB serve as a direct replacement for a failed or EOL HMI terminal in a legacy system?
A: Absolutely. The 1768-EWEB is purpose-designed as a hardware upgrade path for facilities retiring aging dedicated HMI hardware. By hosting custom HTML5 dashboards on standard browsers, it eliminates dependency on proprietary HMI platforms that may have reached end-of-life (EOL) or end-of-support (EOS) status.

Q: How do I integrate the 1768-EWEB into a network that uses both legacy ControlNet and modern EtherNet/IP segments?
A: The 1768-EWEB operates exclusively on the EtherNet/IP segment. In hybrid ControlNet/EtherNet/IP architectures, it coexists with 1768-CNB modules in the same chassis, each handling their respective network segments independently. Data from ControlNet-connected I/O can be surfaced on the web interface via controller tag pass-through.

Q: What is the recommended spare parts strategy for the 1768-EWEB in a long-term retrofit deployment?
A: For critical continuous-process applications, we recommend maintaining one cold-spare unit per facility. Given the module’s hot-swap capability, a spare can be installed within minutes of a fault event. Our supply chain team can establish blanket purchase agreements to ensure priority access to replacement units throughout your system’s operational lifecycle.

Q: Does deploying the 1768-EWEB require changes to existing controller programs or I/O configurations?
A: No controller program modifications are required for basic web monitoring deployment. The module reads existing controller tags directly via EtherNet/IP without consuming controller scan time or requiring new Add-On Instructions (AOIs). Advanced features such as write-back controls or alarm acknowledgment via the web interface may require minor tag additions, which can be implemented during scheduled maintenance windows.
