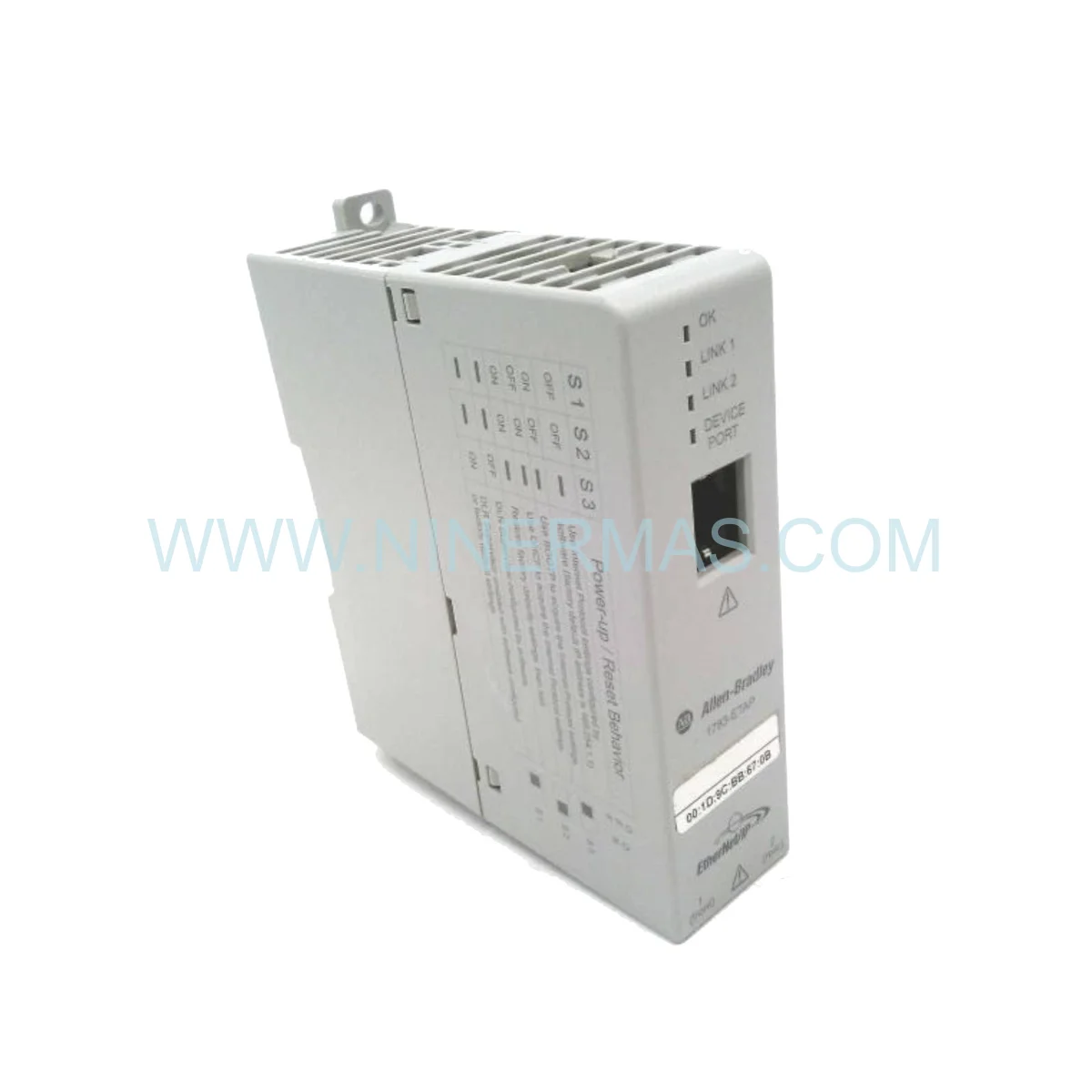

Allen-Bradley 1783-ETAP EtherNet/IP Tap | Industrial Network Monitor

Allen-Bradley 1783-ETAP EtherNet/IP Tap Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing uptime-sensitive production assets, the Allen-Bradley 1783-ETAP represents a foundational element in sustaining system availability across complex industrial automation networks. The 1783-ETAP functions as a passive, non-intrusive EtherNet/IP tap that mirrors bidirectional traffic to a dedicated monitoring port nabling real-time protocol analysis without inserting latency or risk into the live data path. In environments where unplanned downtime translates directly to production loss, deploying this module as a permanent diagnostic node is a proactive reliability strategy, not an optional upgrade.

Engineered for demanding industrial conditions, the 1783-ETAP operates reliably across a temperature range of 0°C to 60°C and features a conformal-coated PCB that resists moisture, vibration, and electromagnetic interference actors routinely encountered in heavy manufacturing, oil & gas processing, and power generation facilities. DIN-rail mounting (EN 50022 compliant) allows integration directly within existing control panel layouts, minimizing installation footprint. Technicians should ensure adequate clearance around all three RJ45 ports and verify 24V DC supply stability (19.2V 31.2V range) prior to commissioning to prevent intermittent link faults.

As production systems age and OEM support windows close, maintaining a verified stock of mission-critical automation components becomes operationally essential. The 1783-ETAP, classified as a key diagnostic and network integrity asset, should be held as a qualified spare in any facility running ControlLogix or CompactLogix architectures with EtherNet/IP backbones. Its compact form factor and passive design make it an ideal candidate for long-term spares inventory without special storage requirements.

Key Operational Features

Zero-Disruption Traffic Mirroring: Passive tap architecture preserves full-duplex communication integrity o packet injection, no latency overhead.
High Availability Design: No active switching components in the primary data path; eliminates tap-induced single points of failure.
Seamless System Integration: Auto-negotiating 10/100 Mbps ports ensure plug-and-play compatibility with Stratix switches, ControlLogix controllers, and third-party EtherNet/IP devices.
Redundancy-Ready Architecture: Supports deployment in ring or linear topologies; compatible with Device Level Ring (DLR) diagnostic workflows.
Broad Protocol Support: Handles EtherNet/IP, CIP, TCP/IP, and UDP/IP traffic simultaneously for comprehensive process optimization visibility.
Industrial Certifications: UL, cUL, CE, C-Tick, ATEX Zone 2, IECEx ualified for use in hazardous and classified locations.

Maintenance & Performance Benchmarks

The 1783-ETAP adapts to industrial network architectures of varying scale rom small standalone machine cells to enterprise-wide SCADA and MES-integrated environments. In small-scale deployments (2-10 nodes), a single tap positioned between the managed switch and primary PLC provides sufficient diagnostic coverage for routine I/O module health checks and CIP connection validation.

In mid-tier architectures (10-100 nodes), cascading multiple 1783-ETAP units at strategic network segments enables distributed fault isolation ritical for identifying intermittent communication errors that evade standard switch port mirroring. Each tap operates independently, allowing simultaneous multi-point capture without cross-interference.

For large-scale system integration projects (100+ nodes, multi-subnet), the 1783-ETAP serves as a permanent embedded diagnostic layer. Paired with Rockwell’s FactoryTalk Network Manager or third-party tools such as Wireshark and EtherScan, it delivers continuous operational excellence metrics: packet loss rates, CIP connection latency, and broadcast storm detection ll without impacting production throughput.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Allen-Bradley 1783-ETAP unit dispatched from our inventory is supplied in Original Factory Packaging, complete with manufacturer documentation, compliance certificates, and tamper-evident seals nsuring authenticity verification upon receipt. For time-critical plant shutdowns or emergency maintenance windows, same-day dispatch is available on confirmed in-stock units (order cutoff times apply; contact our team to verify current availability).

As a specialist in Global Supply for EOL and Legacy Modules, we maintain buffer stock of the 1783-ETAP to support facilities operating extended lifecycle automation systems where standard distribution channels have exhausted inventory. Our worldwide express logistics network covers North America, Europe, Southeast Asia, and the Middle East ith typical transit times of 3-7 business days depending on destination.

All units undergo pre-shipment functional verification and are accompanied by a traceable inspection record, supporting your incoming quality control process and reducing commissioning risk on the plant floor.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 1783-ETAP in a live EtherNet/IP network?
Power down the tap module before connecting cables. Mount on DIN rail, connect Port 1 to the upstream device (switch or controller), Port 2 to the downstream device (I/O adapter or drive), and Port 3 to your diagnostic tool. Apply 24V DC power last. The module auto-negotiates link speed o manual configuration required. Verify LED status indicators: solid green on Ports 1 and 2 confirms active links.

Q2: Is the 1783-ETAP compatible with all firmware versions of ControlLogix and CompactLogix controllers?
The 1783-ETAP is a passive hardware device with no firmware dependency on the connected controllers. It is compatible with all ControlLogix (L6x, L7x, L8x series) and CompactLogix (L1x 3x series) firmware versions that support EtherNet/IP communication. No firmware updates are required on the tap itself.

Q3: Can the 1783-ETAP be used in ATEX Zone 2 classified hazardous areas?
Yes. The 1783-ETAP carries ATEX Zone 2 and IECEx certifications, permitting installation in areas with occasional explosive atmospheres (Group IIC, Temperature Class T4). Verify local installation requirements and ensure the enclosure housing the module meets the applicable protection concept (e.g., Ex e or Ex p).

Q4: How does the warranty process work for units purchased through NINERMAS?
All 1783-ETAP units sold by NINERMAS COMPANY LIMITED carry a 1-year warranty covering manufacturing defects and functional failures under normal operating conditions. To initiate a warranty claim, contact sale@ninermas.com with your order reference, unit serial number, and a description of the observed fault. Replacement or repair is processed within 5-10 business days upon fault confirmation.

Q5: What diagnostic software is recommended for use with the 1783-ETAP monitor port?
For Rockwell-native environments, FactoryTalk Network Manager provides the most integrated experience, offering CIP topology mapping and real-time health dashboards. For protocol-level analysis, Wireshark with the EtherNet/IP dissector plugin is the industry standard for packet-level troubleshooting. Third-party tools such as EtherScan and Moxa’s Industrial Network Manager are also validated for use with the 1783-ETAP monitor port output.

Q6: Is it possible to cascade multiple 1783-ETAP modules on the same network segment?
Yes. Multiple 1783-ETAP units can be deployed in series along a single network segment without degrading primary link performance, as each tap operates passively on the main data path. Each monitor port (Port 3) outputs an independent copy of the mirrored traffic, allowing simultaneous multi-point capture. Ensure your diagnostic workstation or analyzer has sufficient port capacity or use a managed switch to aggregate monitor feeds.
