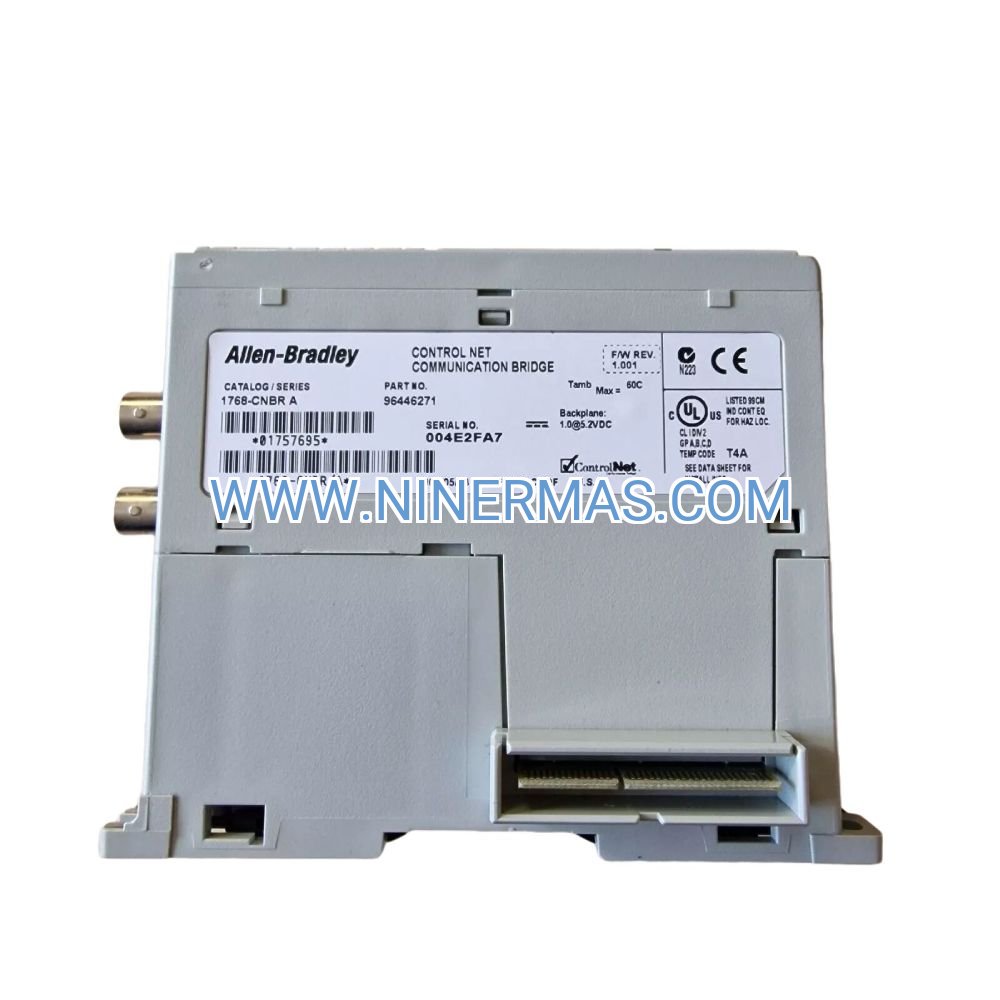

1768-CNBR ControlNet Redundant Communication Bridge (Industrial-Grade Network Interface)

The 1768-CNBR represents a mission-critical communication solution engineered for industrial environments where network downtime translates directly to production losses. This redundant ControlNet interface module delivers deterministic, fault-tolerant connectivity for CompactLogix control architectures, ensuring continuous data flow even during media failures or network disruptions.

Designed for process industries, critical infrastructure, and high-availability manufacturing lines, the 1768-CNBR eliminates single points of failure through dual-channel media redundancy. When primary communication paths experience faults, automatic failover mechanisms maintain seamless controller-to-controller messaging and I/O synchronization without triggering system alarms or halting production sequences.

This module serves automation engineers who demand predictable scan times, guaranteed message delivery, and zero-tolerance network architectures. Whether coordinating multi-axis motion systems, synchronizing batch processes across distributed controllers, or maintaining SCADA visibility during infrastructure maintenance, the 1768-CNBR provides the reliability foundation that mission-critical operations require.

Core Features & Technical Advantages

→ Dual-Media Redundancy Architecture

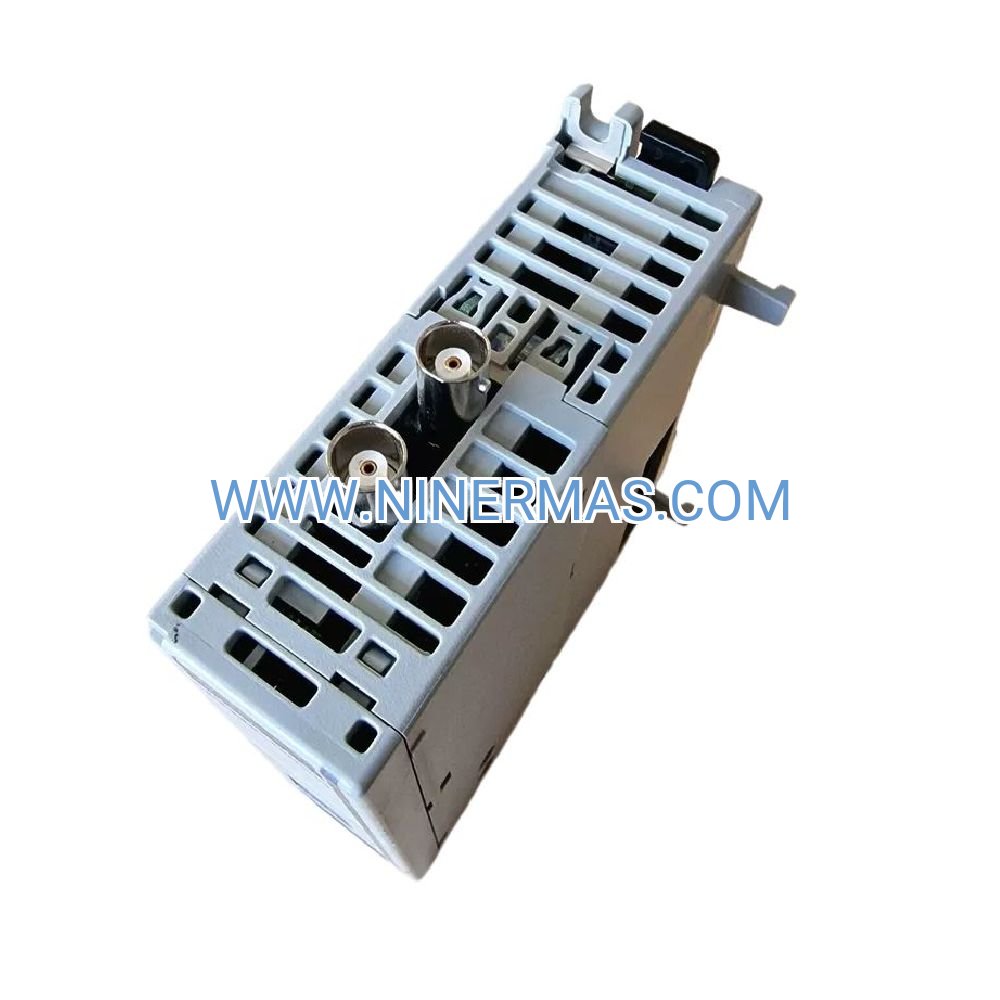

Two independent BNC coaxial channels provide automatic failover protection. When one media path degrades or fails, the module switches to the backup channel within milliseconds—maintaining controller communications without packet loss or sequence interruption. This design eliminates costly downtime in refineries, power plants, and pharmaceutical facilities where network failures cascade into safety shutdowns.

→ Deterministic Messaging Performance
ControlNet's scheduled/unscheduled bandwidth allocation guarantees predictable data delivery for time-critical applications. Configure up to 48 simultaneous connections with guaranteed scan intervals as low as 2ms, enabling precise synchronization of servo drives, coordinated recipe transfers, and real-time process variable exchange across 99 network nodes.

→ Producer/Consumer Multicast Efficiency
Unlike point-to-point protocols, ControlNet's producer/consumer model allows one controller to broadcast data to multiple subscribers simultaneously. Reduce network traffic by 60-80% compared to polled architectures while maintaining microsecond-level timestamp accuracy for event sequencing and alarm correlation.

✓ Hot-Standby Controller Support
Seamlessly integrates with redundant GuardLogix and ControlLogix pairs. During primary controller failures, the standby unit assumes control without re-establishing network connections or re-downloading configurations—critical for continuous process industries operating 24/7/365 schedules.

✓ Studio 5000 Native Integration
Configure, monitor, and troubleshoot directly within RSLogix 5000/Studio 5000 environments. Built-in diagnostics display real-time media health, node status, bandwidth utilization, and error counters—accelerating commissioning timelines and simplifying maintenance procedures.

✓ Compact Footprint with Robust Construction
Single-slot design (positions 1-4 in 1768 chassis) conserves valuable panel space while meeting IEC 60068-2-6 vibration standards (5g operational). Conformal-coated circuitry withstands 0-60°C temperature swings and 95% humidity environments typical of outdoor enclosures and harsh industrial settings.

Application Scenarios & Industry Solutions

Upstream Oil & Gas Production
Challenge: Remote wellhead controllers require continuous SCADA connectivity despite harsh weather and electromagnetic interference from VFDs.
Solution: Redundant ControlNet links maintain real-time flow measurement, pressure monitoring, and emergency shutdown system (ESD) communications even when lightning strikes or equipment faults disrupt primary media paths. Operators retain full visibility and control during critical events.

Pharmaceutical Batch Manufacturing
Challenge: FDA 21 CFR Part 11 compliance demands complete audit trails and zero data loss during recipe execution and material transfers.
Solution: Deterministic messaging ensures every batch parameter change, valve position update, and temperature setpoint adjustment is timestamped and logged without gaps. Redundant architecture prevents batch aborts caused by network failures—protecting multi-million-dollar product runs.

Power Generation Turbine Control
Challenge: Grid synchronization requires microsecond-accurate coordination between combustion controls, generator protection relays, and substation automation systems.
Solution: ControlNet's scheduled messaging delivers governor commands, exciter feedback, and breaker status updates with <5ms jitter. Redundant media paths maintain protective relay communications during switchyard maintenance or cable damage events.

Automotive Assembly Line Coordination
Challenge: 200+ robots and conveyors must maintain precise timing across 1km production lines without accumulating position errors.
Solution: Producer/consumer architecture allows master controllers to broadcast synchronization pulses to all motion axes simultaneously. Redundant network ensures line continuity even when forklifts sever trunk cables or connectors corrode in high-humidity paint booths.

Water Treatment Multi-Site SCADA
Challenge: Municipal systems span 50+ remote pump stations requiring centralized monitoring and coordinated flow balancing.
Solution: ControlNet's 99-node capacity and 1000m segment length support distributed architectures without expensive fiber converters. Redundant media protects against excavation damage and rodent intrusion—common failure modes in buried infrastructure.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose 1768-CNBR when application uptime requirements exceed 99.9% or when network failures trigger safety shutdowns
• Use 1768-CNB for cost-sensitive applications where manual failover procedures are acceptable
• Consider 1768-ENBT for Ethernet/IP networks requiring higher bandwidth (100 Mbps) but accepting non-deterministic performance
• Verify chassis slot availability—communication modules must occupy slots 1-4 (controller in slot 0)
• Calculate total backplane current draw when combining multiple I/O modules and communication interfaces

Extended Capabilities & System Integration

RSNetWorx Configuration Tools
RSNetWorx for ControlNet software provides graphical network design, bandwidth allocation calculators, and live diagnostics. Schedule maintenance windows by monitoring cable health metrics, connector resistance trends, and node error rates before failures occur.

FactoryTalk Integration
Seamlessly connects to FactoryTalk View SE/ME HMI systems and FactoryTalk Historian for centralized data logging. Tag-based addressing simplifies controller-to-HMI mapping compared to legacy DH+ or RIO protocols.

Third-Party Device Support
ControlNet's open CIP protocol supports non-Rockwell devices including Schneider Electric drives, Siemens process instruments, and Honeywell DCS gateways—enabling hybrid architectures without proprietary converters.

Cybersecurity Considerations
While ControlNet lacks native encryption, deploy CIP Security-enabled switches and firewalls at network boundaries. Segment ControlNet from enterprise IT networks using unidirectional gateways to prevent lateral movement during cyber incidents.

Delivery, Warranty & Technical Support

Lead Times:
✓ Stock items ship within 1-2 business days via DHL/FedEx Express
✓ Custom configurations (firmware updates, pre-programmed settings) require 3-5 business days
✓ Expedited same-day shipping available for emergency replacements (additional fees apply)

Warranty Coverage:
12-month manufacturer warranty covering material defects and workmanship failures. Warranty includes free firmware updates and technical consultation during the coverage period. Extended 36-month plans available for critical infrastructure applications.

Technical Support:
Our application engineers provide pre-sales sizing assistance, post-installation troubleshooting, and network optimization guidance. Support channels include email (response within 4 hours), phone hotline (business hours), and remote desktop sessions for complex diagnostics.

Documentation Package:
Every module ships with installation quick-start guide, wiring diagrams, RSNetWorx configuration templates, and calibration certificates. Full user manuals, firmware release notes, and sample ladder logic available via download portal.

Frequently Asked Questions

How does redundant media failover work in practice?
The module continuously monitors signal quality on both BNC channels. When the active channel's bit error rate exceeds thresholds or physical layer faults occur, the module switches to the standby channel within 10-50 milliseconds. Controllers experience no connection drops or message timeouts during transitions. Configure failover sensitivity in RSNetWorx based on your noise environment.

Can I mix 1768-CNBR and 1768-CNB modules on the same network?
Yes—redundant and non-redundant modules coexist on the same ControlNet trunk. However, non-redundant modules create single points of failure. Best practice: use 1768-CNBR for critical controllers and 1768-CNB for non-essential HMI connections or data logging nodes.

What cable specifications are mandatory for reliable operation?
Use quad-shield RG-6 coaxial cable (Belden 9463, Times LMR-400, or equivalent) with 75-ohm impedance. Maximum segment length is 1000 meters (3280 feet) between taps. Terminate both ends of the trunk with 75-ohm BNC terminators. Avoid running ControlNet cables parallel to VFD power cables—maintain 300mm separation or use shielded conduit.

Does this module support safety-rated (SIL 2/3) communications?
No—the 1768-CNBR is a standard communication module and does not carry CIP Safety black-channel data. For safety I/O integration, use 1768-ENBT with CIP Safety-enabled devices or dedicated safety networks like DeviceNet Safety. The module can coexist with GuardLogix safety controllers for non-safety data exchange.

How do I calculate available bandwidth for new devices?
ControlNet allocates bandwidth in Network Update Times (NUT), typically 2-100ms. Use RSNetWorx bandwidth calculator: (Scheduled bandwidth + Unscheduled bandwidth) must not exceed 90% of NUT. Each I/O connection consumes 10-50 bytes per NUT depending on data size. Reserve 20% headroom for diagnostics and explicit messaging.

What diagnostic indicators help troubleshoot network issues?
Front-panel LEDs show module status (green=OK, red=fault), network activity (flashing green), and media health (A/B channels). In Studio 5000, monitor Module Properties for real-time metrics: duplicate MAC addresses, late/lost packets, bandwidth utilization, and per-node error counters. High error rates (>1% packet loss) indicate cable damage or termination issues.

Ready to Eliminate Network Downtime?

The 1768-CNBR delivers the fault-tolerant connectivity that mission-critical operations demand. Whether you're upgrading aging DH+ networks, designing new high-availability systems, or replacing failed modules, our team provides the technical expertise and fast delivery you need.
