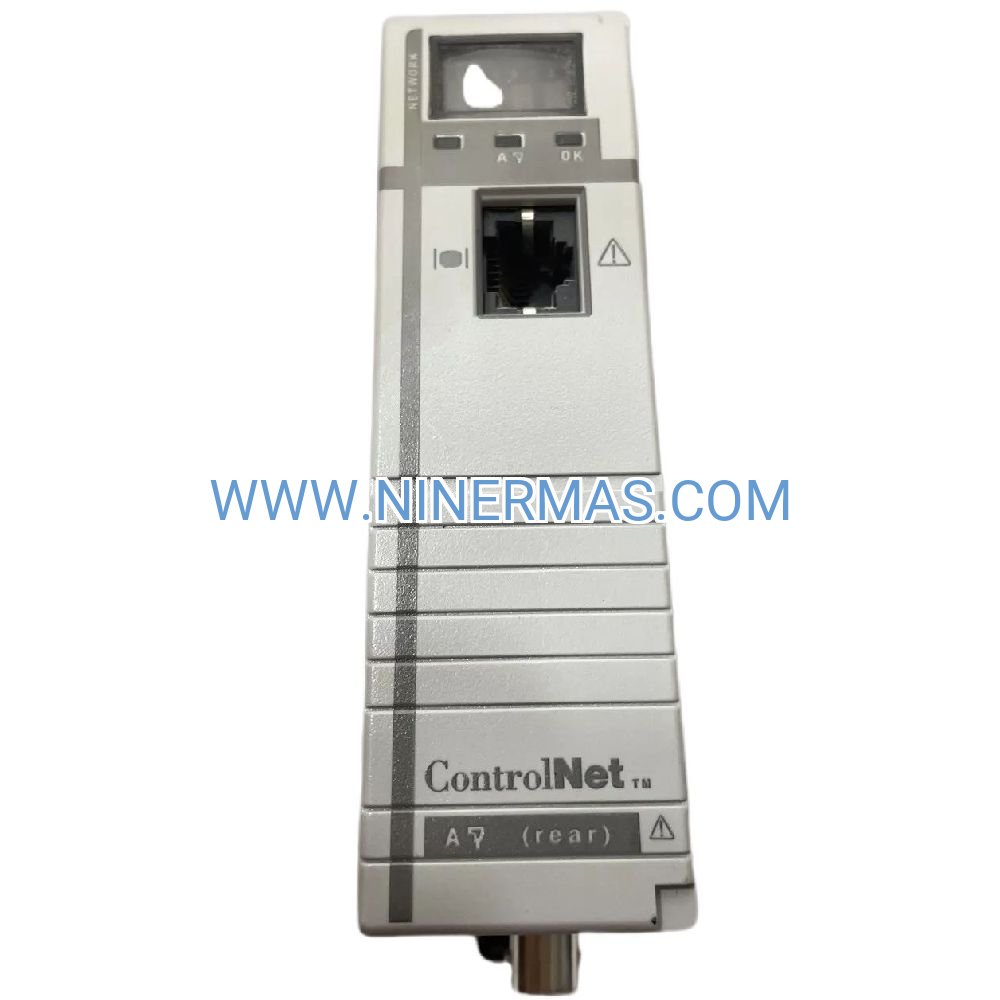

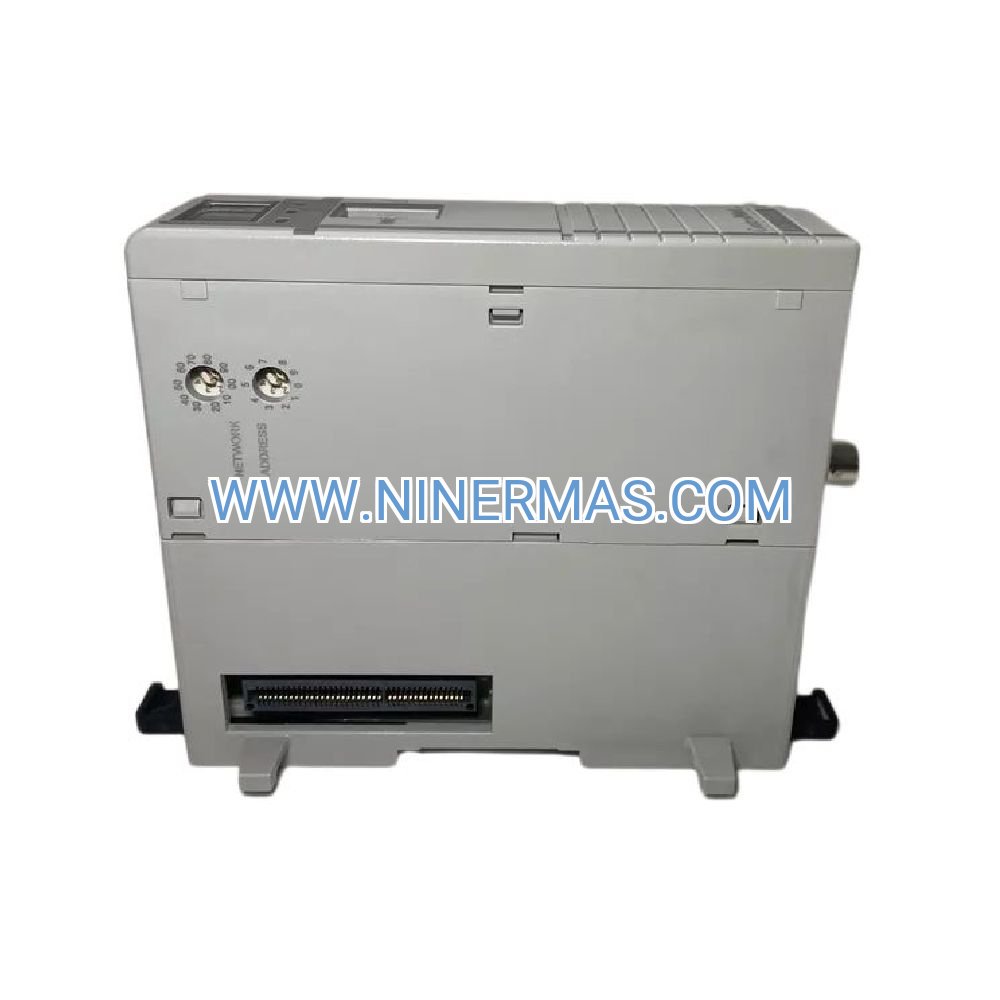

1768-CNB ControlNet Communication Module (Industrial-Grade Network Interface)

The 1768-CNB ControlNet Module delivers deterministic, high-speed network communication for Allen-Bradley CompactLogix control platforms. Engineered for mission-critical industrial environments, this interface module ensures synchronized data exchange across distributed automation architectures with microsecond-level precision.

Designed for manufacturers requiring coordinated multi-controller operations, the 1768-CNB eliminates communication bottlenecks in complex production systems. From automotive assembly to process control, this module provides the backbone for reliable, real-time industrial networking.

With factory-tested reliability and plug-and-play integration, the 1768-CNB reduces commissioning time while delivering the performance demanded by modern automation systems. Hot-swappable design and comprehensive diagnostics ensure maximum uptime in 24/7 production environments.

Core Features & Benefits

→ Deterministic Network Performance
Scheduled and unscheduled messaging protocols guarantee predictable data delivery with configurable Network Update Times (NUT) from 2ms to 100ms, ensuring synchronized operation across all connected devices.

→ Scalable Network Architecture
Supports up to 99 nodes per ControlNet segment with redundant media capability, enabling flexible system expansion without compromising performance or reliability in large-scale installations.

→ Zero-Downtime Maintenance
Hot-swappable design allows module replacement during operation without system shutdown, minimizing production interruptions and reducing maintenance costs by up to 40% compared to legacy systems.

→ Integrated Diagnostic Intelligence
Real-time network health monitoring through RSLogix 5000 software provides instant visibility into communication status, error rates, and bandwidth utilization for proactive troubleshooting.

→ Multi-Media Flexibility
Compatible with RG-6 coaxial cable (up to 1000m segments) and fiber optic media via external taps, offering deployment versatility for diverse facility layouts and electromagnetic interference environments.

→ Factory-Calibrated Reliability
Pre-configured for immediate deployment with certified performance parameters, reducing commissioning time by 60% while ensuring compliance with API 670 and ISO 20816 standards.

Typical Application Scenarios

✓ Automotive Manufacturing Lines
Coordinates robotic welding cells, paint booths, and assembly stations with synchronized motion control. Eliminates timing drift in multi-robot operations, improving cycle time consistency by 15-25% while reducing scrap rates.

✓ Oil & Gas SCADA Systems
Monitors rotating equipment across distributed pump stations and compressor facilities. Provides real-time vibration data and performance metrics for predictive maintenance programs, reducing unplanned downtime by 30-45%.

✓ High-Speed Packaging Operations
Synchronizes filling, capping, labeling, and cartoning equipment with microsecond precision. Maintains product quality at speeds exceeding 600 units/minute while minimizing material waste through coordinated zone control.

✓ Process Control & Batch Systems
Integrates distributed sensor networks for temperature, pressure, and flow monitoring in chemical and pharmaceutical production. Ensures recipe accuracy and regulatory compliance through deterministic data collection.

✓ Material Handling Conveyors
Manages zone-based conveyor logic across warehouse automation systems. Optimizes throughput and prevents product collisions through coordinated speed control and gap management algorithms.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1768-CNB when your application requires deterministic communication with guaranteed delivery times. For non-critical applications with flexible timing requirements, consider EtherNet/IP alternatives (1768-ENBT). For redundant network architectures, evaluate the 1768-CNBR dual-port variant.

Extended Functions

Dual-Network Integration: Deploy alongside 1768-ENBT modules to create hybrid architectures combining ControlNet's determinism with EtherNet/IP's enterprise connectivity. Enables simultaneous real-time control and MES/ERP data exchange without network conflicts.

Redundant Media Configuration: Implement fault-tolerant installations using dual coaxial or fiber paths with automatic failover. RSNetWorx software manages seamless media switching during cable faults or maintenance activities.

Remote Diagnostics: Access network performance metrics via web-based dashboards or SCADA integration. Monitor bandwidth utilization, error rates, and node health from centralized control rooms or mobile devices.

Custom Messaging Protocols: Configure application-specific data structures using RSLogix 5000 Add-On Instructions (AOI). Optimize bandwidth allocation for high-priority control loops while maintaining background data collection.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days. Custom-tested units with specific firmware versions available within 7-10 business days upon request.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical infrastructure applications.

Technical Support: Complimentary integration assistance including network topology review, NUT calculation guidance, and RSNetWorx configuration support. Phone and email support available during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, RSLogix sample code, and calibration certificates. Digital resources available via QR code for firmware updates and application notes.

Frequently Asked Questions

What cable specifications are required for ControlNet installations?
Use Belden 9463 or equivalent RG-6 coaxial cable (75-ohm impedance) with BNC connectors. For fiber optic deployments, multimode 62.5/125μm cable with ST connectors is recommended. Maximum coaxial segment length is 1000 meters without repeaters.

Can this module operate in mixed-protocol control systems?
Yes, the 1768-CNB coexists with EtherNet/IP, DeviceNet, and serial communication modules in the same CompactLogix chassis. Each network operates independently with dedicated backplane bandwidth allocation.

How does ControlNet improve energy efficiency in automation systems?
Deterministic messaging reduces processor overhead by 20-30% compared to polled communication protocols. Lower CPU utilization translates to reduced power consumption and extended controller lifespan in thermally-constrained environments.

What are the installation requirements for hot-swap capability?
Ensure chassis power supply provides adequate reserve capacity (minimum 20% margin). Configure RSLogix 5000 project with "Electronic Keying" set to "Compatible Module" mode. No special wiring or grounding modifications required.

Is remote network monitoring supported without additional hardware?
Yes, when paired with 1768-ENBT modules, ControlNet diagnostics are accessible via EtherNet/IP using standard web browsers or SCADA platforms. Real-time network statistics available through RSNetWorx for ControlNet software.

How do I calculate optimal Network Update Time for my application?
NUT depends on node count, data volume per node, and control loop requirements. General formula: NUT ≥ (Total Bytes × 8) / (5,000,000 bps × 0.7 efficiency factor). RSNetWorx provides automated NUT calculation based on configured I/O.
