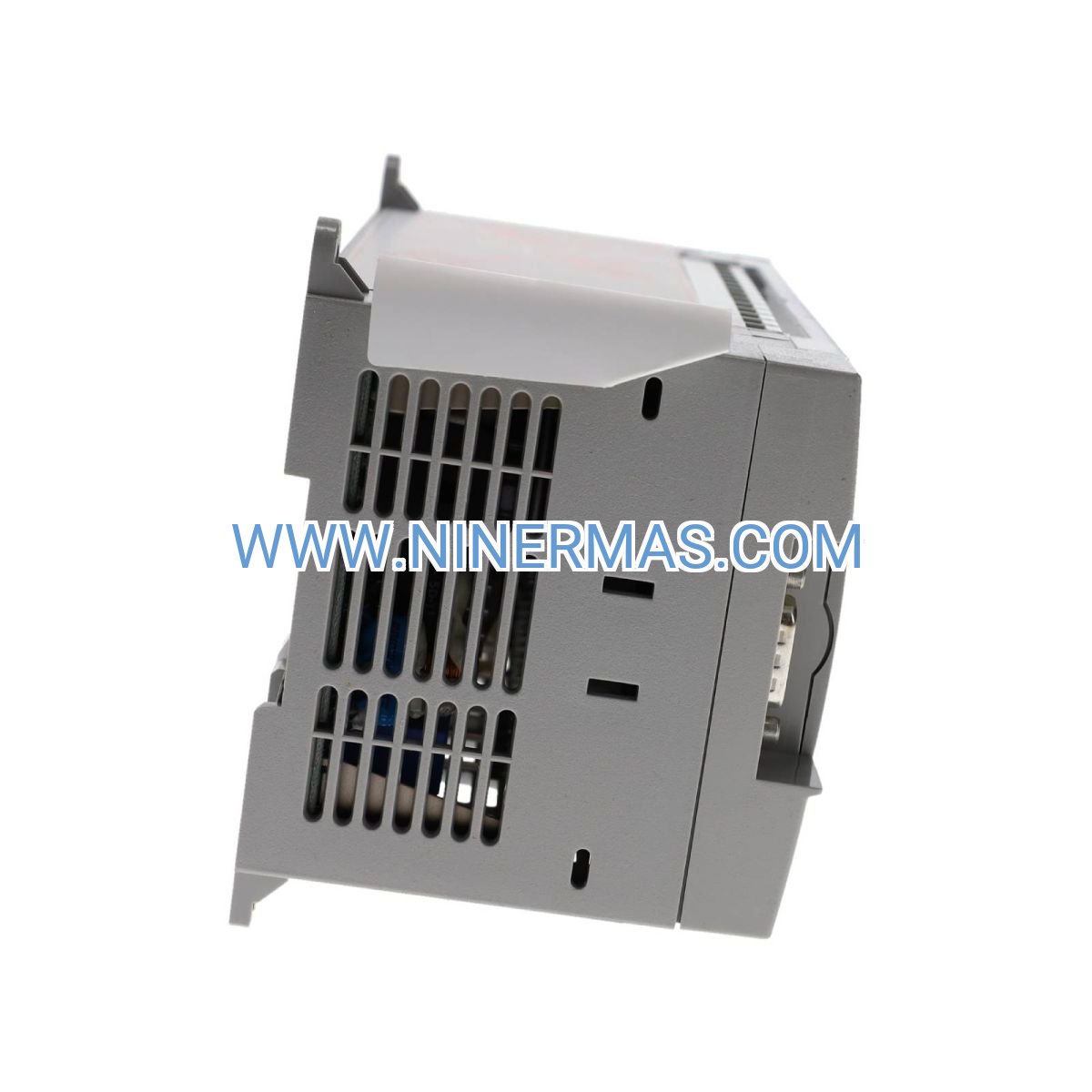

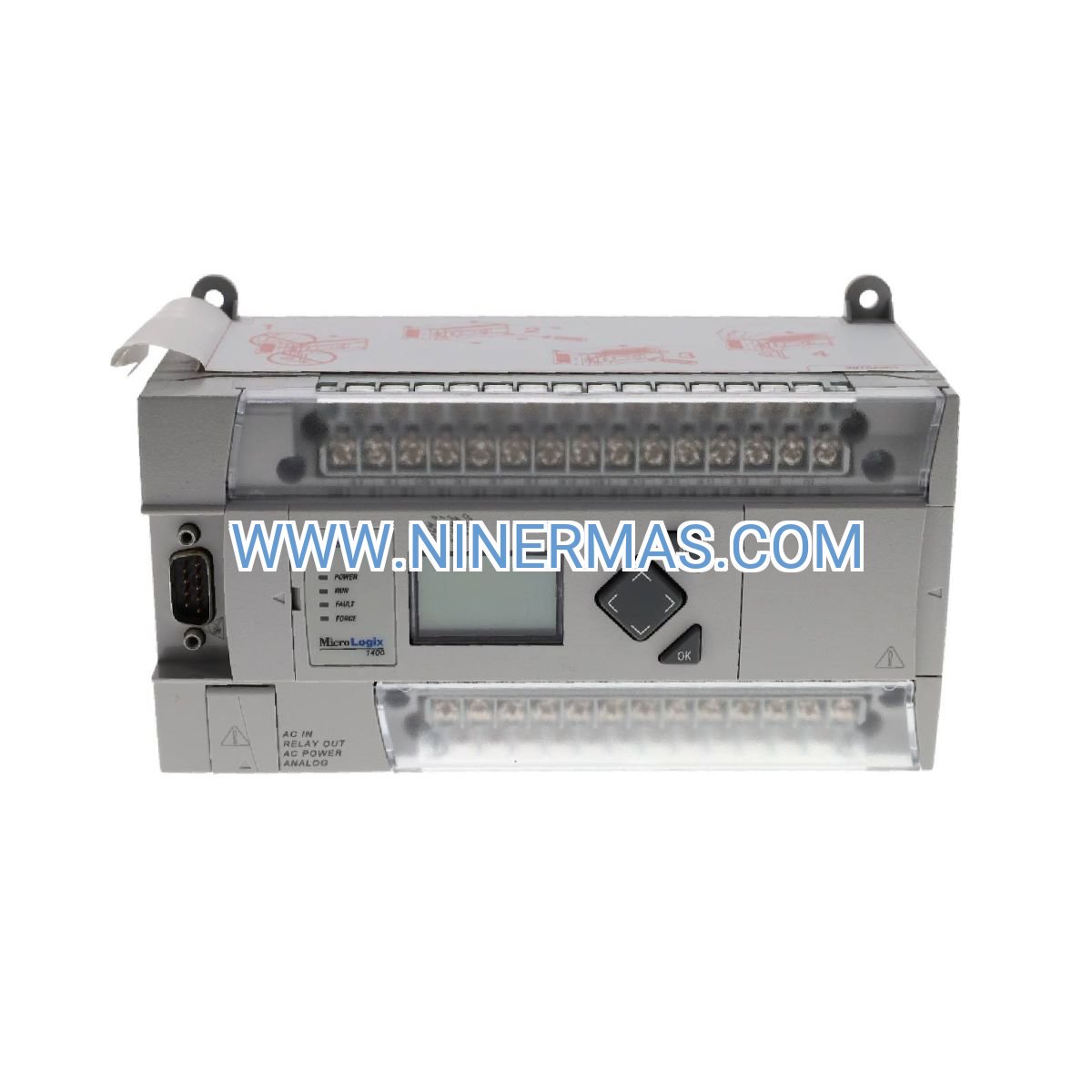

Allen-Bradley 1766-L32AWAA MicroLogix 1400 PLC (Industrial-Grade 32-Point Controller)

The Allen-Bradley 1766-L32AWAA MicroLogix 1400 is a compact programmable logic controller engineered for mid-scale industrial automation applications. Through integrated digital/analog I/O processing, embedded communication ports, and ladder logic programming, this controller delivers precise process control, real-time monitoring, and seamless integration with existing automation architectures.

Designed for manufacturing plants, packaging lines, material handling systems, HVAC control, and water treatment facilities, the MicroLogix 1400 addresses challenges such as limited cabinet space, complex wiring requirements, inconsistent process timing, and costly downtime caused by controller failures or communication errors.

With field-proven reliability, modular expansion capability, and compatibility with RSLogix software, this PLC is trusted by automation engineers, system integrators, OEMs, and maintenance teams worldwide. Contact our technical specialists for application-specific configuration guidance and competitive quotations.

Core Features & Technical Advantages

Compact 32-Point I/O Architecture
Combines 20 digital inputs, 12 digital outputs, and optional analog expansion in a single chassis, reducing panel footprint by up to 40% compared to modular rack systems while maintaining industrial-grade performance.

Dual Embedded Communication Ports
Features RS-232 and RS-485/422 serial ports plus Ethernet/IP option, enabling simultaneous HMI connectivity, SCADA integration, and peer-to-peer messaging without external communication modules.

High-Speed Instruction Execution
Executes Boolean instructions in 0.37 microseconds and supports up to 10 kHz high-speed counter inputs, ensuring precise motion control, event capture, and time-critical process synchronization.

Robust Environmental Protection
Operates reliably in -20°C to 60°C ambient temperatures with conformal coating protection against moisture, dust, and chemical vapors—ideal for harsh factory floors and outdoor enclosures.

Integrated Data Logging & Diagnostics
Built-in data file storage (up to 10KB) and real-time fault diagnostics with LED indicators accelerate troubleshooting, reduce mean time to repair (MTTR), and support predictive maintenance strategies.

Seamless RSLogix 500 Programming
Fully compatible with Rockwell Automation's RSLogix 500 development environment, offering drag-and-drop function blocks, online editing, and extensive instruction libraries for rapid application development.

Typical Application Scenarios

This controller is engineered for environments demanding reliable automation with moderate I/O density and communication flexibility:

Packaging & Conveyor Systems
Controls product sorting, labeling, and palletizing operations with synchronized motor drives and sensor arrays, reducing packaging errors and increasing throughput by 15-25% in food, pharmaceutical, and consumer goods facilities.

Water & Wastewater Treatment
Manages pump sequencing, level control, chemical dosing, and alarm annunciation in municipal and industrial water systems, ensuring regulatory compliance and minimizing operator intervention.

HVAC & Building Automation
Regulates air handling units, chiller plants, and boiler systems with PID loop control and scheduling functions, achieving energy savings of 20-30% while maintaining occupant comfort in commercial buildings.

Machine Tool & CNC Integration
Coordinates auxiliary equipment such as coolant pumps, chip conveyors, and tool changers in machining centers, enhancing production uptime and reducing manual setup time.

Material Handling & Storage
Automates warehouse cranes, AGVs, and AS/RS systems with position tracking and safety interlocks, improving inventory accuracy and worker safety in distribution centers.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide standardized configuration parameters with custom adaptation available for project-specific requirements:

Controller Specifications:

• Catalog Number: 1766-L32AWAA
• Digital Inputs: 20 points (24V DC sink/source)
• Digital Outputs: 12 points (relay, 2A per point)
• Analog I/O: Expandable via 1769 I/O modules
• Memory: 10KB user program, 10KB data files
• Scan Time: Typical 1-5ms (program dependent)
• Communication: RS-232, RS-485/422, optional Ethernet/IP
• Power Supply: 24V DC (18-30V range), 8W typical
• Operating Temperature: -20°C to 60°C
• Enclosure Rating: Open-type (panel mount), IP20
• Certifications: UL, CE, RCM, KC

Selection Considerations:
When specifying this controller, evaluate total I/O count (including future expansion), required communication protocols, environmental conditions (temperature, humidity, vibration), panel space constraints, and integration with existing Rockwell Automation or third-party devices. For applications exceeding 32 I/O points, consider the 1766-L32BWA or ControlLogix platform. Our application engineers can review your P&ID, I/O list, and control narrative to recommend optimal configurations.

Expansion & Integration Capabilities

Modular I/O Expansion: Supports up to 7 additional 1769 Compact I/O modules (analog, specialty, communication) via integrated expansion bus, accommodating growing automation needs without controller replacement.

HMI & SCADA Connectivity: Native support for PanelView, FactoryTalk View, Ignition, and Wonderware via DF1, Modbus RTU, or Ethernet/IP protocols, enabling centralized monitoring and data historian integration.

Third-Party Device Integration: Communicates with VFDs, servo drives, barcode scanners, and instrumentation from Siemens, Schneider Electric, ABB, and other vendors using standard industrial protocols.

Safety System Interfacing: Hardwired safety I/O and network integration with GuardLogix safety controllers for applications requiring SIL-rated emergency stop and light curtain functions.

Delivery, Support & Quality Assurance

Lead Time: Stock items ship within 1-3 business days; custom-configured assemblies typically 7-14 days depending on complexity and component availability.

Warranty: Minimum 12-month manufacturer warranty covering defects in materials and workmanship; extended service agreements available for critical applications.

Technical Support: Remote commissioning assistance, programming troubleshooting, and firmware upgrade guidance provided by certified Rockwell Automation specialists (subject to regional availability).

Documentation Package: Each unit includes installation manual, wiring diagrams, I/O specifications, RSLogix sample programs, and Ethernet/IP EDS files for seamless integration and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the 1766-L32AWAA MicroLogix 1400 PLC integrate with existing Allen-Bradley systems?
A: This controller uses standard DF1, Modbus RTU, and optional Ethernet/IP protocols, ensuring compatibility with PanelView HMIs, ControlLogix processors, and legacy SLC 500 systems. Confirm communication port requirements and protocol versions during system design.

Q: What is the maximum I/O capacity for a single MicroLogix 1400 controller?
A: The base 1766-L32AWAA provides 32 integrated I/O points and supports up to 7 expansion modules (1769 series), enabling total I/O counts exceeding 100 points depending on module selection and power budget.

Q: Can this PLC achieve energy savings in motor control applications?
A: Yes, when paired with variable frequency drives (VFDs) and programmed with optimized PID control algorithms, typical energy reductions of 20-35% are achievable in pump, fan, and compressor applications compared to fixed-speed operation.

Q: What environmental protection does the controller offer for harsh industrial settings?
A: The 1766-L32AWAA features conformal coating on circuit boards, operates in -20°C to 60°C temperatures, and withstands vibration per IEC 60068-2-6. For IP65/NEMA 4X requirements, install in rated enclosures with proper sealing and thermal management.

Q: Does the MicroLogix 1400 support remote monitoring and data acquisition?
A: Yes, via Ethernet/IP option card or serial-to-Ethernet gateways, the controller can transmit real-time data to cloud platforms, SCADA systems, and mobile dashboards using OPC UA, MQTT, or proprietary Rockwell protocols.

Q: What programming software is required for the 1766-L32AWAA?
A: RSLogix 500 (or Studio 5000 Logix Designer with emulation) is the standard development environment. Programming cables (1761-CBL-PM02 or USB-to-serial adapters) and activation licenses are sold separately.

Request Technical Consultation & Quotation

For detailed application engineering, custom panel integration, or volume pricing, please provide the following information: project name, application type, total I/O requirements, communication protocols, environmental conditions, and delivery timeline. Our specialists will respond with tailored recommendations and competitive quotations within 24 hours.
