Allen-Bradley 1764-LSP MicroLogix 1500 PLC Processor | Industrial Control Module

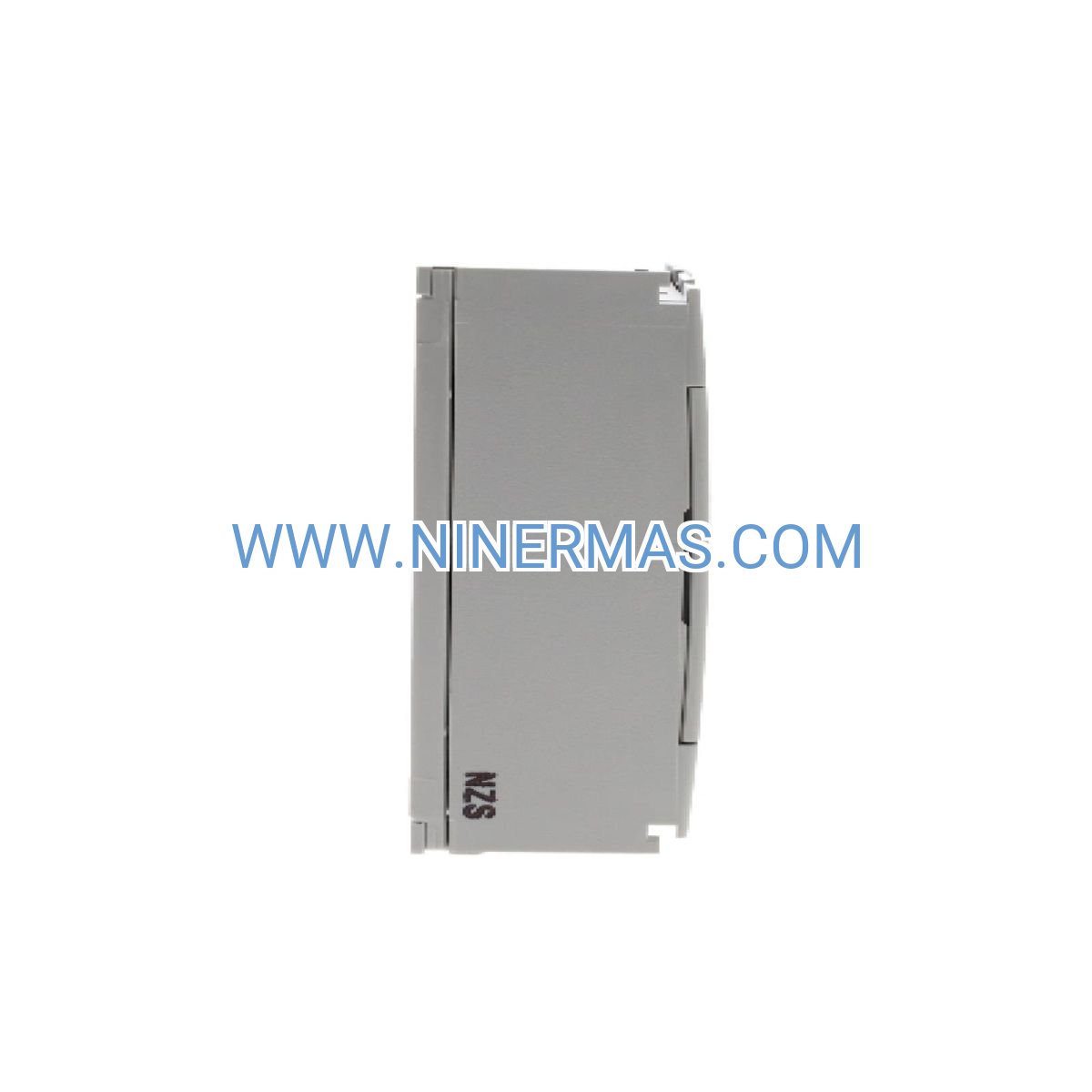

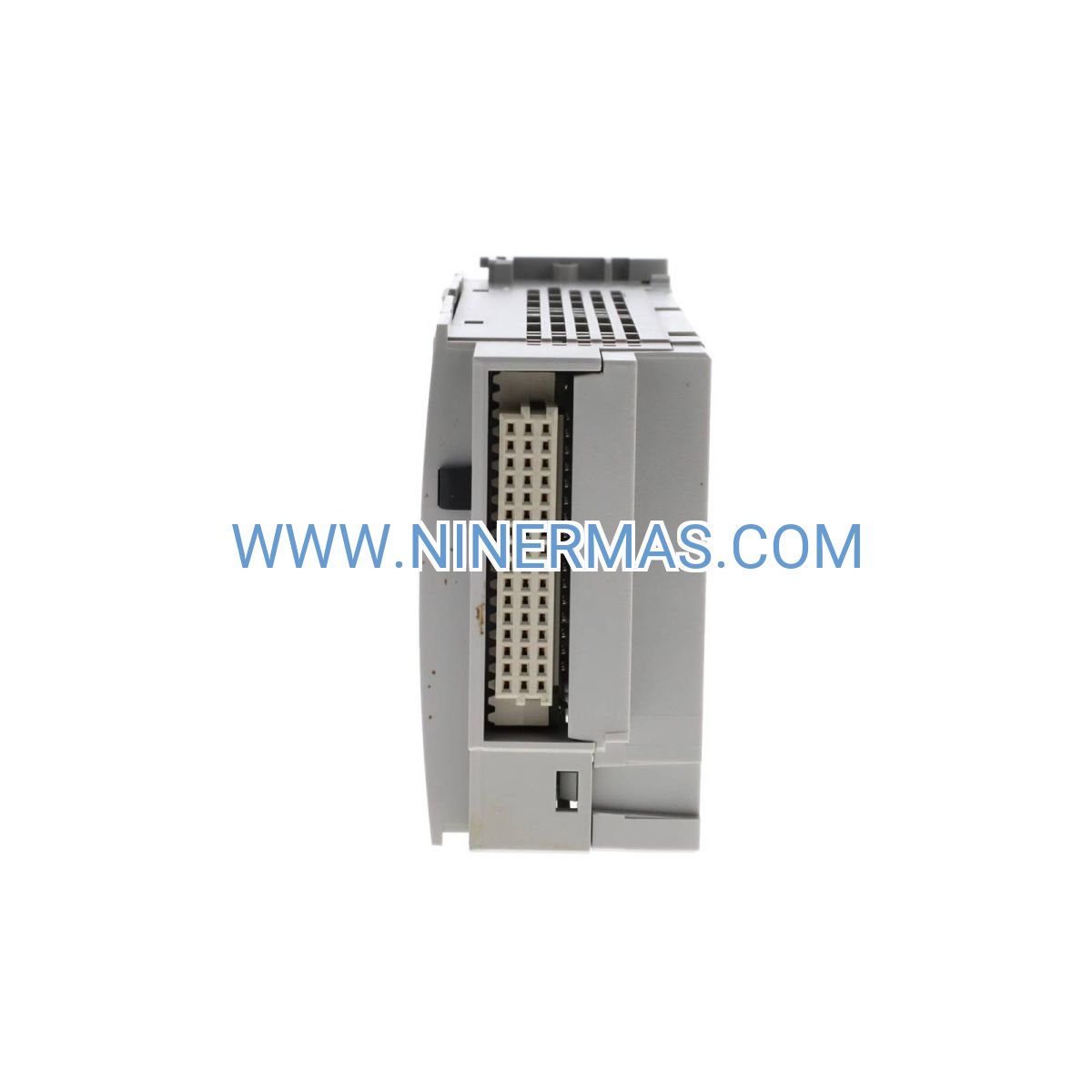

Allen-Bradley 1764-LSP MicroLogix 1500 Processor (Industrial-Grade PLC Control Module)

The Allen-Bradley 1764-LSP MicroLogix 1500 Processor is a high-performance programmable logic controller designed for mid-range industrial automation applications. Through advanced ladder logic programming, real-time I/O processing, and integrated communication protocols, it delivers precise control for manufacturing equipment, process systems, and OEM machinery.

Ideal for system integrators, machine builders, and plant maintenance teams working with packaging lines, material handling systems, batch processing equipment, and discrete manufacturing cells. This processor addresses challenges such as limited I/O expansion capacity, slow scan times, incompatible legacy protocols, and inadequate diagnostic capabilities in aging control systems.

Featuring standardized Rockwell Automation architecture with flexible configuration options, the 1764-LSP offers reliable performance, seamless RSLogix 500 programming compatibility, extensive communication support, and straightforward integration with existing ControlLogix ecosystems. Suitable for design engineers, automation contractors, OEM panel builders, and end-user facilities requiring proven control technology. Contact our application engineers for system configuration assistance and technical specifications.

Core Features & Technical Advantages

• High-Speed Program Execution
  Optimized scan engine with typical scan times under 1ms per K of logic, ensuring rapid response to process changes and minimizing control latency in time-critical applications.
• Expandable I/O Architecture
  Supports up to 256 discrete I/O points and 40 analog channels through modular expansion, accommodating growing automation requirements without processor replacement.
• Multi-Protocol Communication
  Built-in RS-232/RS-485 serial ports plus optional Ethernet/IP module support, enabling connectivity with HMIs, SCADA systems, variable frequency drives, and third-party devices using Modbus RTU, DF1, and DH-485 protocols.
• Comprehensive Diagnostic Protection
  Integrated fault detection for I/O module failures, power supply anomalies, communication errors, and program execution faults, with detailed status indicators and event logging to reduce troubleshooting time.
• Industry-Standard Programming Environment
  Fully compatible with RSLogix 500 software, providing familiar ladder logic, function block, and structured text programming with extensive instruction libraries and simulation capabilities.
• Rugged Industrial Construction
  Conformal-coated circuitry and wide operating temperature range (-20°C to 60°C) ensure reliable operation in harsh manufacturing environments with vibration, electrical noise, and temperature fluctuations.

Typical Application Scenarios

This processor excels in applications requiring stable control performance, flexible I/O configuration, and reliable communication capabilities, particularly in:

• Packaging & Material Handling Systems
  Controls conveyor sequencing, product sorting, case packing, and palletizing operations where coordinated motion and sensor integration are essential for throughput optimization.
• Process Control & Batch Manufacturing
  Manages temperature regulation, pressure control, flow metering, and recipe-based batch sequences in food processing, chemical blending, and pharmaceutical production environments.
• OEM Machine Control
  Serves as the primary controller for injection molding machines, CNC tool changers, printing presses, and assembly stations requiring compact footprint and standardized programming interfaces.
• Building Automation & HVAC Systems
  Coordinates chiller plants, air handling units, boiler sequencing, and energy management functions in commercial facilities demanding 24/7 reliability and remote monitoring.
• Water & Wastewater Treatment
  Automates pump control, chemical dosing, filtration cycles, and level management in municipal and industrial water treatment facilities with stringent regulatory compliance requirements.

Technical Specifications & Selection Guide

To facilitate system design and component selection, we provide key electrical, performance, and environmental parameters. Custom configurations available based on project-specific requirements.

Selection Considerations: When specifying this processor, evaluate total I/O point count requirements, communication protocol compatibility with existing equipment, programming software licensing, power supply capacity, and environmental conditions at installation site. For applications requiring Ethernet connectivity, consider pairing with 1761-NET-ENI communication module. Our engineering team can review your control architecture and recommend optimal configuration based on machine specifications and performance objectives.

Extended Capabilities & Integration Options

• Data Logging & Recipe Management: Store up to 500 data files for production tracking, quality records, and multi-product recipe storage with battery-backed retention.
• Motion Control Integration: Coordinate with servo drives and stepper systems via pulse train outputs or networked motion modules for synchronized positioning applications.
• Remote Access & Monitoring: Enable cloud connectivity through industrial IoT gateways for predictive maintenance analytics, remote diagnostics, and production dashboard integration.
• Safety System Interfacing: Interface with GuardLogix safety controllers and safety-rated I/O for machine guarding, emergency stop circuits, and SIL-rated safety functions.

Delivery, Technical Support & Documentation

Standard catalog items ship from stock within 1-3 business days; custom-configured systems require 5-10 business days for assembly and testing. All processors include minimum 12-month manufacturer warranty with optional extended service agreements available. Technical support includes remote programming assistance, startup commissioning guidance (region-dependent), and on-site service coordination.

Complete documentation package provided with each unit: electrical schematics, I/O wiring diagrams, RSLogix 500 sample programs, communication setup guides, and maintenance procedures. Installation manuals include DIN rail mounting instructions, grounding requirements, and EMC compliance guidelines per IEC 61000-6-2 standards.

Frequently Asked Questions (FAQ)

Q: How does the 1764-LSP MicroLogix 1500 processor integrate with existing Allen-Bradley control systems?
A: The processor uses standard ControlLogix backplane architecture and communicates via DH-485, Ethernet/IP (with adapter), or DeviceNet protocols. It seamlessly exchanges data with PanelView HMIs, PowerFlex drives, and CompactLogix controllers using produced/consumed tags or explicit messaging. Verify network topology and protocol compatibility during system design.

Q: What is the maximum I/O expansion capacity for a single 1764-LSP processor?
A: The base processor supports up to 256 discrete I/O points and 40 analog channels through combination of local expansion modules (1769 I/O) and remote I/O via communication adapters. Actual capacity depends on module selection, power budget, and communication bandwidth allocation.

Q: What programming software is required and what are typical energy savings compared to relay-based control?
A: RSLogix 500 programming software (version 8.0 or later recommended) is required for application development. Compared to electromechanical relay panels, PLC-based control typically reduces panel space by 40-60%, eliminates relay contact maintenance, and enables energy monitoring features that can identify 15-25% energy reduction opportunities through optimized sequencing and load management.

Q: What environmental protection rating does the processor housing provide?
A: The standard module is rated IP20 for finger-safe terminal protection, designed for installation inside NEMA 12/IP54 or higher-rated control enclosures. For harsh environments with dust, moisture, or chemical exposure, install in appropriately rated panel with proper sealing, ventilation, and temperature management.

Q: Can the 1764-LSP support remote monitoring and data collection for Industry 4.0 applications?
A: Yes, when paired with Ethernet/IP communication modules and industrial IoT edge gateways, the processor can publish real-time data to cloud platforms via MQTT, OPC-UA, or REST APIs. Supported protocols include Modbus TCP, EtherNet/IP CIP, and proprietary Rockwell FactoryTalk integration for MES/ERP connectivity and predictive analytics.

Q: What is the typical lifespan and what factors affect long-term reliability?
A: Under normal industrial conditions (controlled temperature, clean power, proper ventilation), the processor has a design life exceeding 15 years. Key reliability factors include ambient temperature management (each 10°C reduction doubles component life), power supply quality (use UPS or line conditioning for critical applications), and firmware updates to address known issues. Battery backup for memory retention requires replacement every 3-5 years.

Request Technical Consultation & Custom Configuration

For detailed application engineering support, system integration planning, or custom panel builds, please provide the following information: project name and industry sector, control application description, total I/O point count (discrete/analog), required communication protocols and network architecture, power supply specifications, environmental conditions (temperature/humidity/vibration), and any specific certifications or compliance requirements (UL 508A, ATEX, marine classification). Our automation specialists will deliver tailored recommendations with bill of materials, wiring diagrams, and budget pricing within 24-48 hours.
