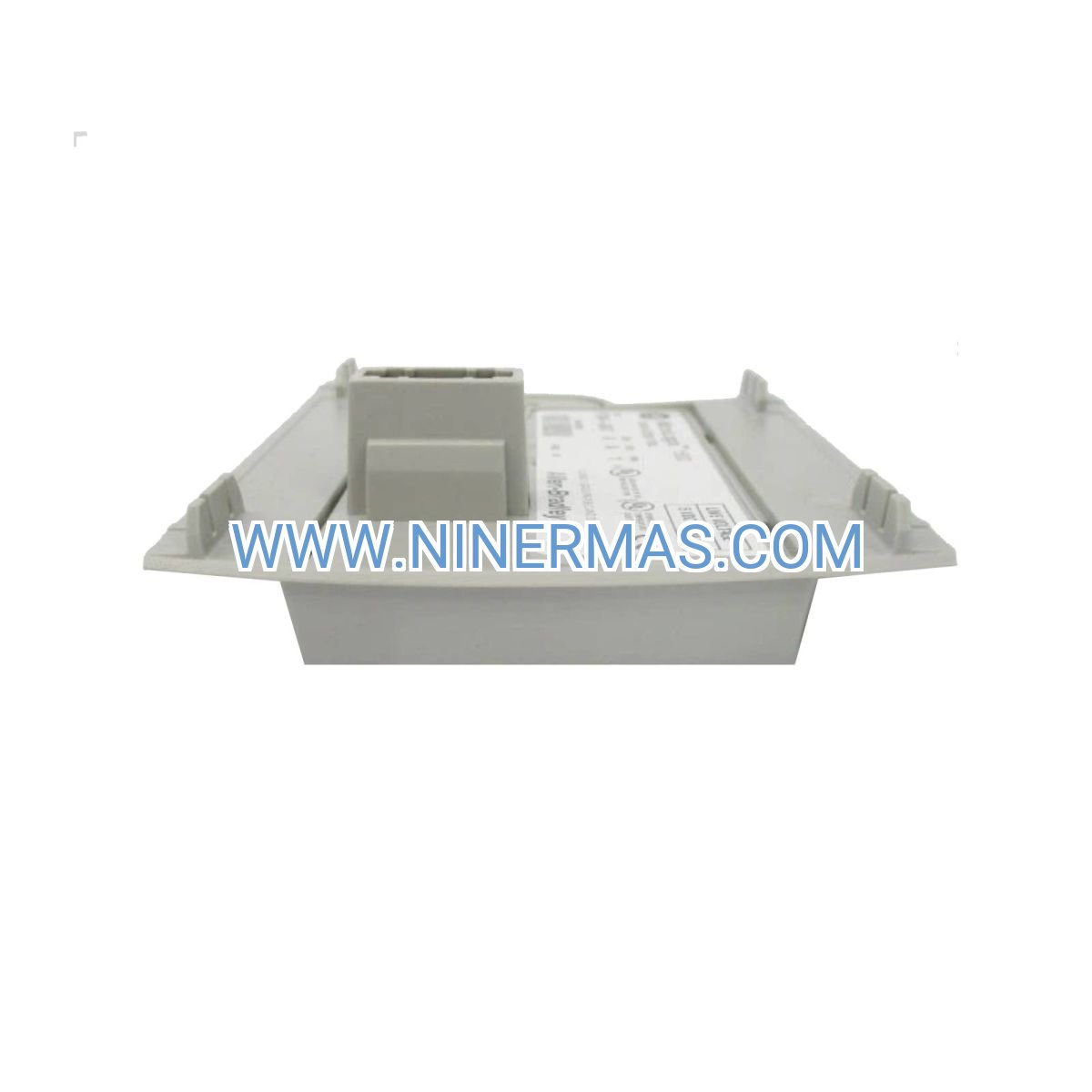

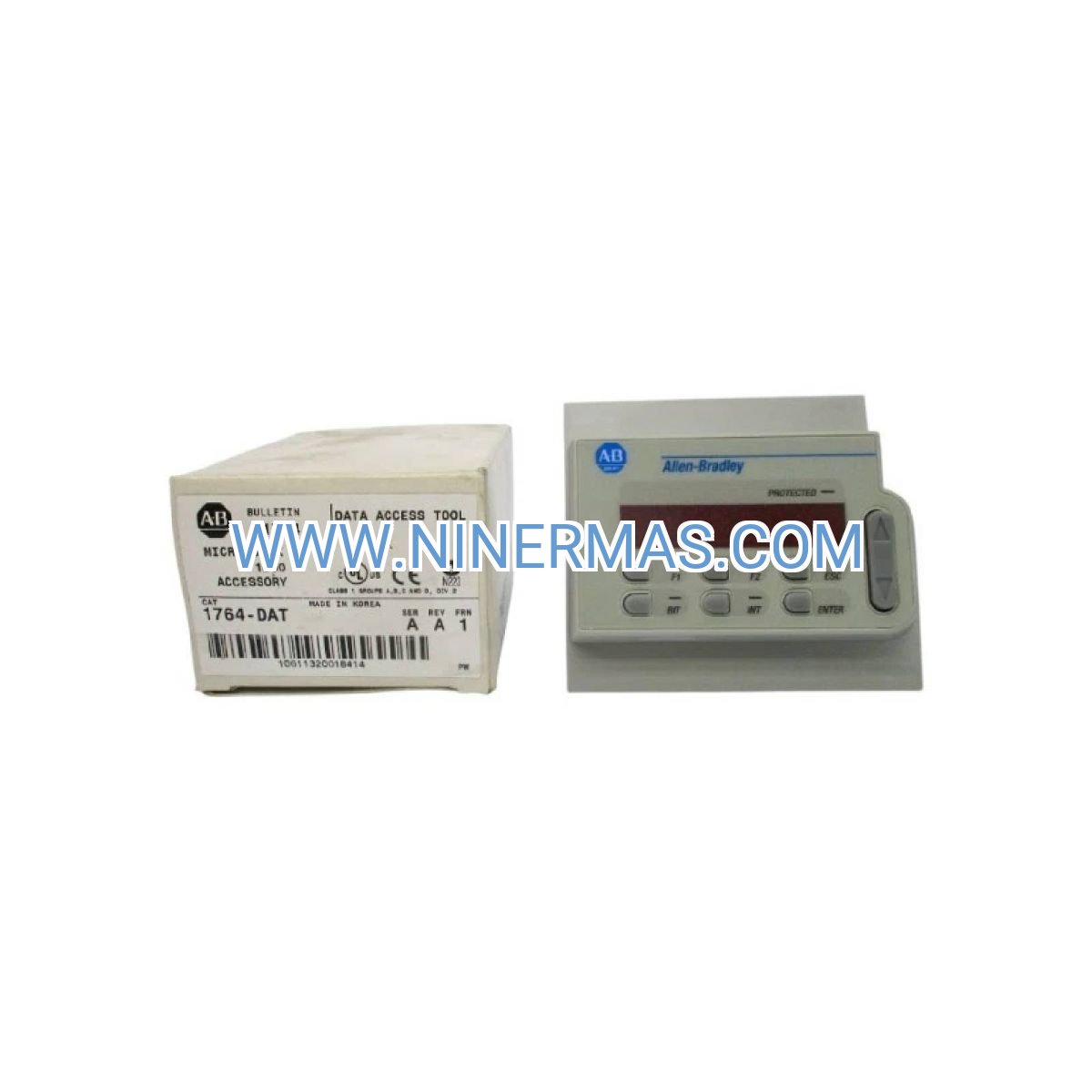

1764-DAT Data Access Tool for MicroLogix 1500 (Industrial-Grade Programming Interface)

The Allen-Bradley 1764-DAT Data Access Tool is a specialized programming interface module designed for MicroLogix 1500 series programmable logic controllers. Through its integrated RS-232 serial communication port, this module enables seamless program upload/download, real-time diagnostics, and live data monitoring capabilities. It serves as the critical bridge between your engineering workstation and the MicroLogix 1500 controller, facilitating efficient commissioning, troubleshooting, and system optimization.

Ideal for industrial automation environments including manufacturing plants, process control systems, machine builders, and system integrators, the 1764-DAT addresses common challenges such as limited controller accessibility, time-consuming manual diagnostics, inefficient program version management, and the need for reliable field-level programming access. Whether you're commissioning new equipment, performing preventive maintenance, or responding to production line issues, this tool ensures rapid, reliable controller communication.

Engineered with industrial-grade components and standardized communication protocols, the 1764-DAT offers plug-and-play compatibility with RSLogix 500 programming software, robust EMI/RFI immunity for harsh environments, compact DIN-rail mountable design, and comprehensive diagnostic feedback. Perfect for control engineers, maintenance technicians, OEM machine builders, and automation integrators who demand dependable programming access and system visibility. Contact our technical team for application-specific guidance and compatibility verification.

Core Features & Technical Advantages

RS-232 Serial Communication Interface
Provides industry-standard serial connectivity with configurable baud rates (300-19200 bps), enabling reliable data exchange between programming terminals and MicroLogix 1500 controllers while maintaining electrical isolation for enhanced noise immunity.

Full RSLogix 500 Software Integration
Seamlessly interfaces with Rockwell Automation's RSLogix 500 programming environment, supporting complete ladder logic program upload/download, online editing, force functions, and data table monitoring without additional driver configuration.

Real-Time Diagnostic Capabilities
Enables live monitoring of controller status, I/O point states, internal registers, and fault conditions through direct memory access, significantly reducing troubleshooting time and minimizing unplanned downtime in production environments.

Compact Industrial-Grade Construction
Built to withstand demanding factory floor conditions with operating temperature range of 0-60°C, conformal coating for moisture resistance, and rugged housing that meets NEMA/IP20 standards for typical control panel installations.

Plug-and-Play Installation
Features standardized connector pinouts and automatic protocol negotiation, allowing technicians to establish communication within minutes without complex configuration procedures or specialized training requirements.

Multi-Controller Compatibility
While optimized for MicroLogix 1500 series, this module maintains backward compatibility with select MicroLogix 1000/1200 variants (consult compatibility matrix), providing flexibility for mixed-generation controller installations.

Typical Application Scenarios

The 1764-DAT Data Access Tool is engineered for industrial environments where reliable PLC programming access and diagnostic capabilities are mission-critical:

Manufacturing Production Lines
Enables rapid program modifications and real-time troubleshooting on assembly lines, packaging equipment, and material handling systems where controller accessibility is limited by machine enclosures or safety guarding. Reduces mean time to repair (MTTR) by providing immediate diagnostic visibility without production shutdown.

Process Control & SCADA Systems
Facilitates commissioning and maintenance of batch processing equipment, water/wastewater treatment facilities, and chemical processing plants where MicroLogix 1500 controllers manage critical process parameters. Supports remote diagnostic access when combined with serial-to-Ethernet converters for distributed installations.

OEM Machine Builders & System Integrators
Provides standardized programming interface for machine commissioning at customer sites, enabling efficient startup procedures and customer training sessions. Compact form factor allows permanent installation in control panels for ongoing service support and software version management.

Retrofit & Modernization Projects
Essential tool for upgrading legacy relay-based control systems to PLC-based automation, allowing engineers to iteratively develop and test ladder logic programs while maintaining production continuity during phased migration projects.

Technical Specifications & Selection Guide

To ensure optimal compatibility and performance, please review the following technical parameters:

Communication Specifications

• Interface Type: RS-232 serial (DB-9 connector)
• Baud Rate Range: 300, 600, 1200, 2400, 4800, 9600, 19200 bps (auto-detect)
• Protocol: DF1 Full-Duplex / Half-Duplex
• Cable Length: Up to 15 meters (50 feet) standard RS-232 cable
• Isolation: 500V optical isolation (controller to serial port)

Electrical & Environmental

• Power Supply: Derived from MicroLogix 1500 backplane (no external power required)
• Power Consumption: <3W typical
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant

Physical Dimensions

• Module Width: 35mm (single slot width)
• Mounting: Direct insertion into MicroLogix 1500 expansion slot
• Weight: Approximately 0.15 kg (0.33 lbs)
• Enclosure Rating: Open-type (requires installation in rated enclosure)

Compatibility Matrix

• Primary: MicroLogix 1500 LRP, LSP, LCP series controllers
• Software: RSLogix 500 v8.0 or later / Connected Components Workbench
• Operating Systems: Windows 7/8/10/11 (32-bit & 64-bit)

Selection Considerations
When specifying the 1764-DAT module, please confirm: (1) MicroLogix 1500 controller model and firmware revision, (2) programming workstation serial port availability (USB-to-serial adapters supported with proper drivers), (3) required cable length and routing path, (4) environmental conditions at installation location. For applications requiring Ethernet connectivity, consider pairing with 1761-NET-ENI serial-to-Ethernet gateway. Our application engineers can provide detailed compatibility verification and system integration support.

Extended Functionality & Integration Options

Remote Access Configuration
When combined with industrial serial-to-Ethernet converters (such as 1761-NET-ENI or third-party Moxa/Lantronix devices), the 1764-DAT enables remote programming and diagnostics over TCP/IP networks, supporting centralized maintenance operations across multi-site facilities.

Data Logging & Historian Integration
The module's real-time data access capabilities can be leveraged for continuous process data collection, feeding SCADA systems, SQL databases, or cloud-based analytics platforms for production optimization and predictive maintenance initiatives.

Multi-Drop Communication Networks
In DF1 half-duplex mode, multiple MicroLogix controllers can share a single RS-232 communication channel using node addressing, reducing wiring costs in distributed control architectures (requires proper termination and addressing configuration).

Delivery, Documentation & Technical Support

Product Availability & Lead Time
Standard catalog items typically ship within 3-5 business days from our regional distribution centers. For volume orders or specific firmware revisions, please allow 7-14 days. All modules undergo factory testing and include Certificate of Conformance documentation.

Quality Assurance & Warranty
Each 1764-DAT module is backed by a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services are available for critical applications. All products are 100% genuine Allen-Bradley components sourced through authorized distribution channels.

Technical Documentation Package
Every shipment includes complete technical documentation: installation quick-start guide, detailed user manual (publication 1764-UM001), wiring diagrams with pinout specifications, RSLogix 500 configuration instructions, and troubleshooting flowcharts. Digital versions available in PDF format for archival and distribution to maintenance teams.

Installation & Commissioning Support
Our technical support team provides remote guidance for module installation, communication parameter configuration, and initial connectivity verification. On-site commissioning services available in select regions for complex system integrations or multi-controller installations (quoted separately based on project scope).

Frequently Asked Questions (FAQ)

Q: How do I connect the 1764-DAT Data Access Tool to my MicroLogix 1500 controller?
A: The module installs directly into any available expansion slot on the MicroLogix 1500 chassis. Power down the controller, insert the module firmly into the slot until it clicks, then connect your programming computer's serial port to the module's DB-9 connector using a standard straight-through RS-232 cable. Power up the controller and launch RSLogix 500 to establish communication.

Q: What is the maximum number of 1764-DAT modules I can install in a single system?
A: Typically, one Data Access Tool per controller is sufficient for programming and diagnostics. The MicroLogix 1500 supports multiple communication modules, but practical applications rarely require more than one 1764-DAT. For simultaneous HMI and programming access, consider combining with Ethernet or DH-485 communication modules.

Q: Can I use a USB-to-serial adapter instead of a native RS-232 port?
A: Yes, quality USB-to-RS232 adapters with FTDI or Prolific chipsets are widely compatible. Ensure you install the manufacturer's latest drivers and configure the virtual COM port settings in RSLogix 500. We recommend industrial-grade adapters for reliable performance in electrically noisy environments.

Q: What communication speed should I select for optimal performance?
A: For cable runs under 15 meters (50 feet), 19200 bps provides the fastest program upload/download times. For longer cables or electrically noisy environments, reduce to 9600 bps for improved reliability. RSLogix 500's auto-detect feature can automatically determine the optimal baud rate.

Q: Does the 1764-DAT support online programming and editing?
A: Yes, when connected via the 1764-DAT, RSLogix 500 supports full online editing capabilities including rung insertion/deletion, force enable/disable, and real-time data table monitoring while the controller remains in RUN mode (subject to controller configuration and safety considerations).

Q: Is the module compatible with older MicroLogix 1000 or 1200 controllers?
A: The 1764-DAT is specifically designed for MicroLogix 1500 series. For MicroLogix 1000, use the 1761-CBL-PM02 programming cable. For MicroLogix 1200, the built-in RS-232 port provides direct programming access. Consult product compatibility matrices or contact technical support for legacy system integration.

Q: Can I monitor and program the controller remotely over Ethernet?
A: The 1764-DAT itself provides only RS-232 connectivity. For Ethernet-based remote access, pair it with a serial-to-Ethernet gateway (such as 1761-NET-ENI) or consider adding a native Ethernet communication module to your MicroLogix 1500 system. Our engineers can recommend the optimal architecture for your remote access requirements.

Request Technical Consultation & Quotation

To receive detailed application engineering support, product quotations, or compatibility verification for your specific MicroLogix 1500 installation, please provide the following information to our technical sales team:

• Project name and application overview
• MicroLogix 1500 controller model number and current firmware revision
• Quantity required and desired delivery timeline
• Programming workstation specifications (OS version, available ports)
• Communication cable length and routing requirements
• Environmental conditions (temperature, humidity, electrical noise levels)
• Any special documentation or certification requirements

Our application engineers will respond within 24 hours with tailored recommendations, competitive pricing, and technical documentation to support your project planning and procurement processes.
