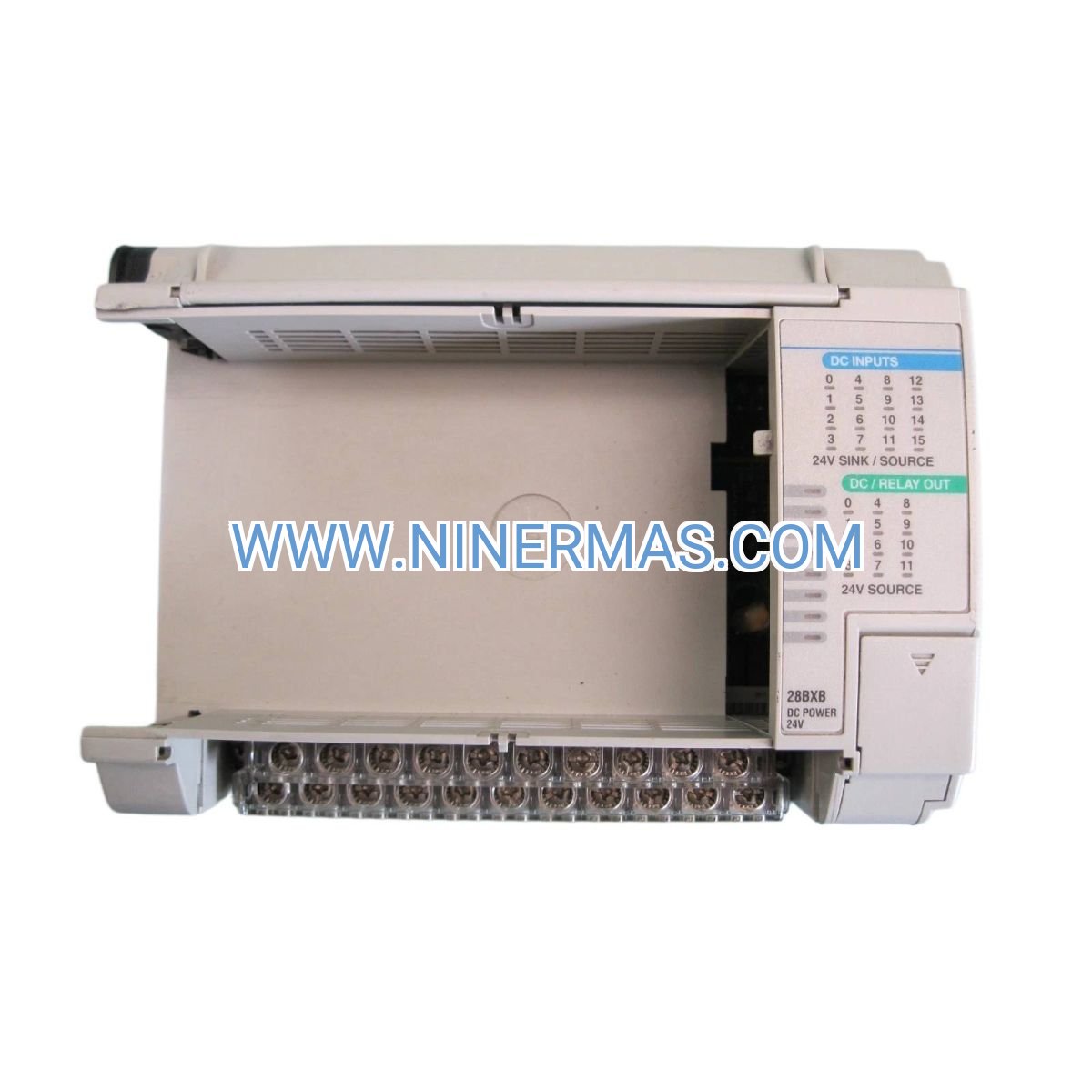

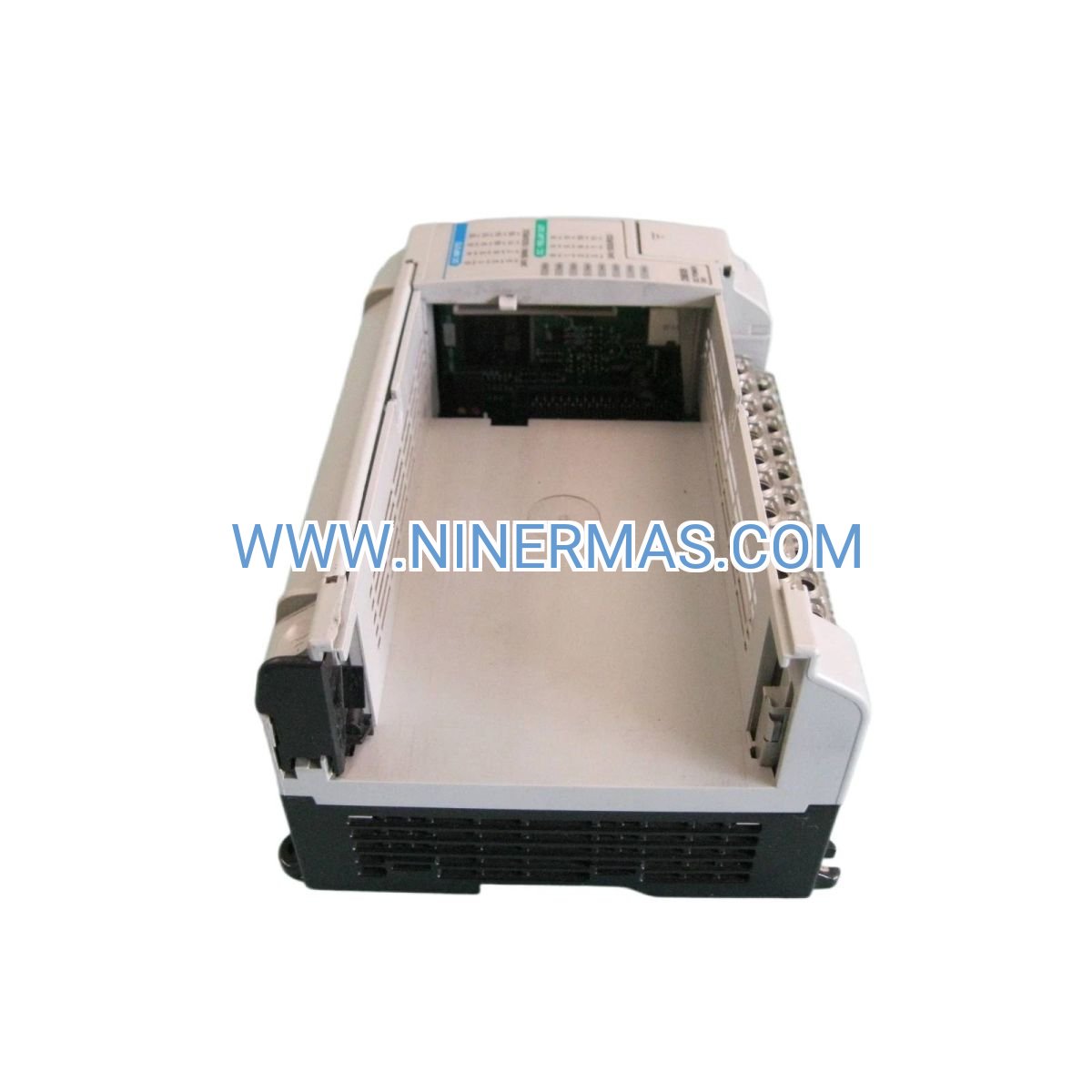

1764-24BXB MicroLogix 1500 Base Controller (Industrial-Grade Automation Platform)

The 1764-24BXB represents a proven foundation for mid-range industrial control systems, combining 24-point discrete I/O architecture with MicroLogix 1500 platform reliability. Designed for manufacturers requiring dependable automation without enterprise-scale complexity, this base controller delivers consistent performance across diverse industrial environments—from production lines to infrastructure management.

Built on Rockwell Automation's MicroLogix heritage, the 1764-24BXB addresses the critical gap between basic relay logic and full-scale PAC systems. Operations teams gain programmable flexibility while maintaining straightforward troubleshooting and service procedures. The controller's modular design supports phased expansion as production demands evolve, protecting initial capital investment while enabling future scalability.

Whether retrofitting legacy equipment or deploying new automation cells, the 1764-24BXB integrates seamlessly with existing Allen-Bradley ecosystems through native DH-485 networking and RSLogix 500 programming compatibility. This controller serves as the intelligent core for applications demanding reliable discrete control with room for measured growth.

Core Capabilities & Performance Benefits

→ Integrated 24-Point I/O Architecture
Factory-configured with 16 sinking/sourcing DC inputs and 8 Form C relay outputs, eliminating external I/O modules for typical applications. Reduces panel space by 40% compared to modular rack systems while simplifying wiring and commissioning.

→ Dual-Protocol Communication Infrastructure
Built-in RS-232 and DH-485 ports enable simultaneous HMI connectivity and peer-to-peer networking. Link up to 32 nodes on a single DH-485 segment for distributed control without additional gateway hardware, reducing network costs by $800-1,200 per installation.

✓ Rapid Program Execution Engine
12KB user memory with 1ms/K scan performance ensures deterministic control for time-critical sequences. Handles complex ladder logic, timers, and counters with predictable response times essential for synchronized multi-axis operations.

✓ Field-Proven Environmental Resilience
Operates reliably across 0-60°C ambient range with optional conformal coating for chemical/moisture exposure. Vibration-resistant terminal blocks and industrial-grade components deliver 99.7% uptime in demanding factory floor conditions.

✓ Diagnostic Intelligence Built-In
Multi-color LED arrays provide instant visibility into power status, run/fault conditions, and I/O channel health. Reduces mean time to repair (MTTR) by 60% through immediate fault localization without laptop connection.

✓ Expansion-Ready Platform Design
Local expansion bus accommodates up to 7 additional I/O modules (1762 series) for total system capacity of 144 I/O points. Scale from 24 to 144 points without controller replacement, supporting 5-10 year facility growth roadmaps.

Typical Application Scenarios

Packaging & Material Handling Systems
Controls conveyor indexing, diverter gates, and reject mechanisms in high-speed packaging lines. The 1764-24BXB's relay outputs directly drive pneumatic valves and motor starters while monitoring photoeyes and proximity sensors. Manufacturers achieve 15-20% faster changeover times through standardized RSLogix programming across multiple lines.

Industrial HVAC & Energy Management
Manages rooftop unit sequencing, damper control, and temperature setpoint regulation in manufacturing facilities. Interfaces with building management systems via RS-232 Modbus RTU, enabling centralized monitoring while maintaining standalone operation during network outages. Typical energy savings of 12-18% through optimized equipment staging.

Water & Wastewater Treatment
Orchestrates pump rotation schedules, valve actuator positioning, and alarm annunciation in lift stations and treatment plants. The controller's relay outputs handle 2HP pump contactors directly, while DH-485 networking links multiple remote sites to SCADA infrastructure. Reduces operator response time by 40% through real-time status visibility.

Machine Tool & Metalworking Equipment
Provides auxiliary control for CNC machines, coordinating coolant pumps, chip conveyors, and safety interlocks. Integrates with existing machine controllers through discrete I/O handshaking, adding programmable logic without modifying OEM systems. Extends equipment capabilities while preserving warranty compliance.

Food & Beverage Processing
Manages batch sequencing, ingredient dosing, and CIP (clean-in-place) cycles in sanitary production environments. Conformal-coated versions withstand washdown procedures and chemical exposure common in FDA-regulated facilities. Supports 21 CFR Part 11 compliance through audit trail integration with plant historians.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 1764-24BXB when your application requires 16-40 total I/O points with at least 8 relay outputs for direct load switching. If you need faster scan times (<5ms) or Ethernet connectivity, consider upgrading to CompactLogix 5370 series. For applications under 14 I/O points, the MicroLogix 1100 offers lower cost per point.

Extended Functions

Advanced Instruction Set: Beyond basic ladder logic, the 1764-24BXB supports PID loop control, math functions (add/subtract/multiply/divide), data comparison, and shift register operations. Implement closed-loop temperature or pressure control without external loop controllers.

Recipe Management: Store up to 16 production recipes in controller memory, enabling rapid product changeovers through HMI selection. Ideal for batch processes requiring frequent formula adjustments.

Remote I/O Expansion: Add distributed I/O via DH-485 linked 1762 expansion modules located up to 10,000 feet from base controller. Reduces field wiring costs in large facilities by 30-50%.

Third-Party Integration: Communicate with variable frequency drives, barcode scanners, and weight scales through ASCII protocol support on RS-232 port. Eliminates proprietary gateway hardware for common industrial devices.

Delivery Timeline & Service Assurance

Standard Delivery: In-stock units ship within 24-48 hours via expedited carrier. Typical transit time 3-5 business days to major industrial centers across North America, Europe, and Asia-Pacific regions.

Custom Configuration: Factory-programmed controllers with pre-loaded application code available with 7-10 business day lead time. Reduces on-site commissioning from 2 days to 4 hours.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Advance replacement program ensures 48-hour delivery of swap units to minimize production downtime.

Technical Support: Lifetime access to application engineering team for programming assistance, troubleshooting guidance, and system optimization recommendations. Phone/email support available 8AM-8PM EST Monday-Friday.

Documentation Package: Each controller includes installation manual, wiring diagrams, I/O specifications, and sample RSLogix 500 programs. Downloadable firmware updates and technical bulletins available through customer portal.

Frequently Asked Questions

Q: What programming software is required for the 1764-24BXB controller?
A: RSLogix 500 Standard or Professional Edition (version 8.0 or later) is the native programming environment. The controller also supports RSLogix Micro Starter Lite (free version) for basic applications under 500 instructions. Programming cable 1761-CBL-PM02 or USB-to-serial adapter required for laptop connection.

Q: Can this base unit handle high-speed counting or pulse train output?
A: The 1764-24BXB supports high-speed counter inputs up to 7kHz on dedicated input channels 0-1. For encoder feedback or pulse-width modulation output, add a 1762-IF2OF2 analog combo module which provides 100kHz counter capability and PWM generation.

Q: How much energy does the controller consume during continuous operation?
A: Base unit draws 150mA @ 24VDC (3.6W) with all I/O inactive. Maximum consumption reaches 4.8W with all relay outputs energized. Annual operating cost approximately $4-6 USD at typical industrial electricity rates, making it suitable for always-on applications.

Q: What installation clearances are needed for proper ventilation and service access?

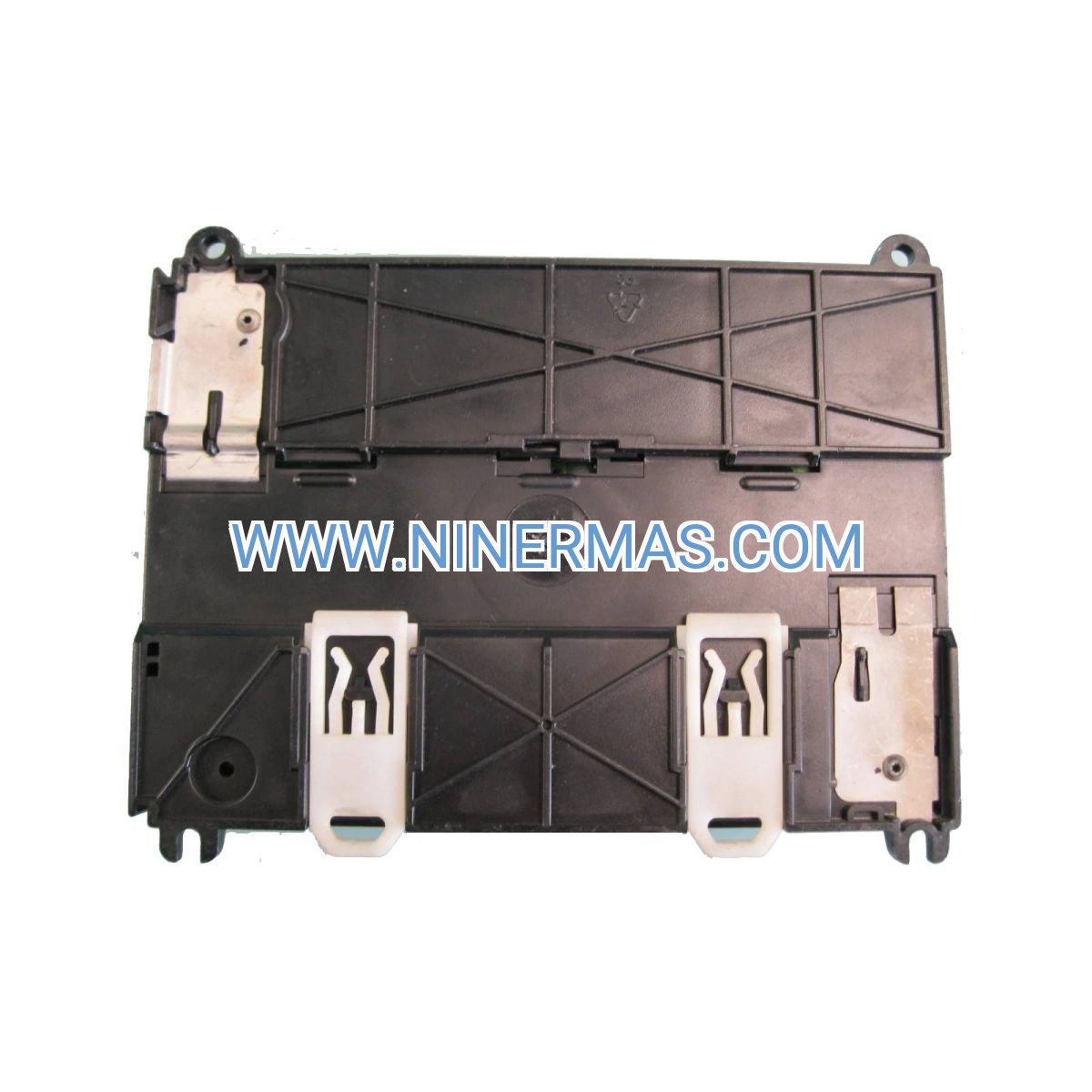

A: Maintain 50mm (2 inches) top/bottom clearance for convection cooling and 25mm (1 inch) side clearance for terminal block access. Controllers can be mounted horizontally or vertically on DIN rail. Ambient temperature must not exceed 60°C; add forced ventilation if enclosure internal temperature approaches this limit.

Q: Is remote monitoring and diagnostics possible without dedicated SCADA software?
A: Yes—connect a PanelView 800 HMI via RS-232 port for local visualization, or use DH-485 network with RSLinx gateway software to enable web-based monitoring through FactoryTalk View Site Edition. Mobile access available through VPN-connected tablets running VNC client software.

Q: How does this controller compare to newer CompactLogix platforms for retrofit projects?
A: The 1764-24BXB offers 60% lower hardware cost and simpler programming for discrete control applications. CompactLogix provides Ethernet connectivity, faster scan times, and motion control capabilities but requires higher engineering skill level. For relay replacement and basic sequencing, MicroLogix 1500 delivers better ROI with 2-3 year payback versus 4-5 years for CompactLogix.

Secure Your Automation Foundation Today

Upgrade aging relay panels or deploy new control systems with confidence using the 1764-24BXB MicroLogix 1500 base controller. Our application engineers are ready to review your I/O requirements, recommend optimal expansion modules, and provide RSLogix programming templates to accelerate your project timeline.

Request a technical consultation: Share your application details for customized system architecture recommendations and budget pricing on controller + I/O bundles. Volume discounts available for 5+ unit orders.

Download resources: Access wiring diagrams, sample programs, and integration guides through our technical library. Register for free to receive firmware update notifications and application notes.
