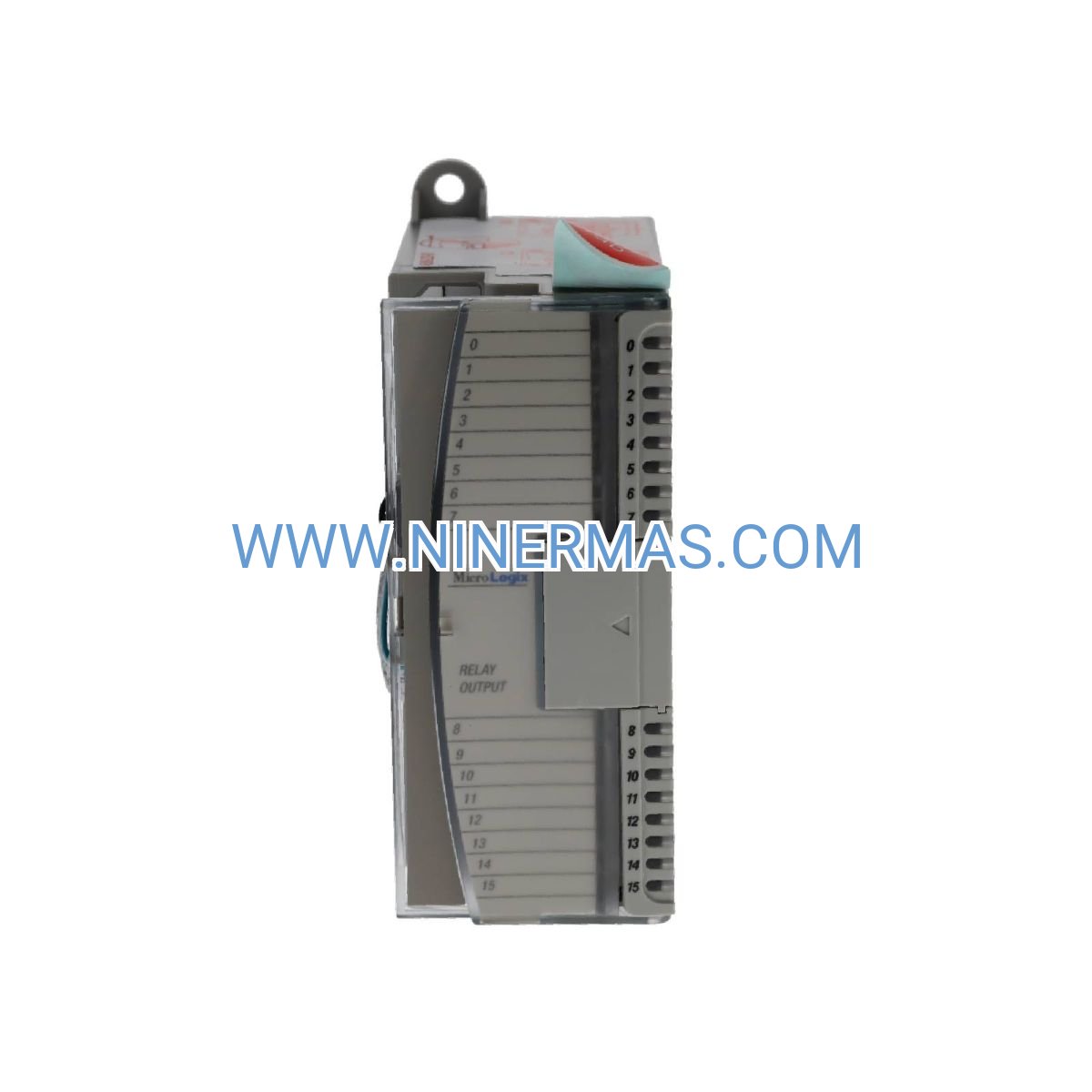

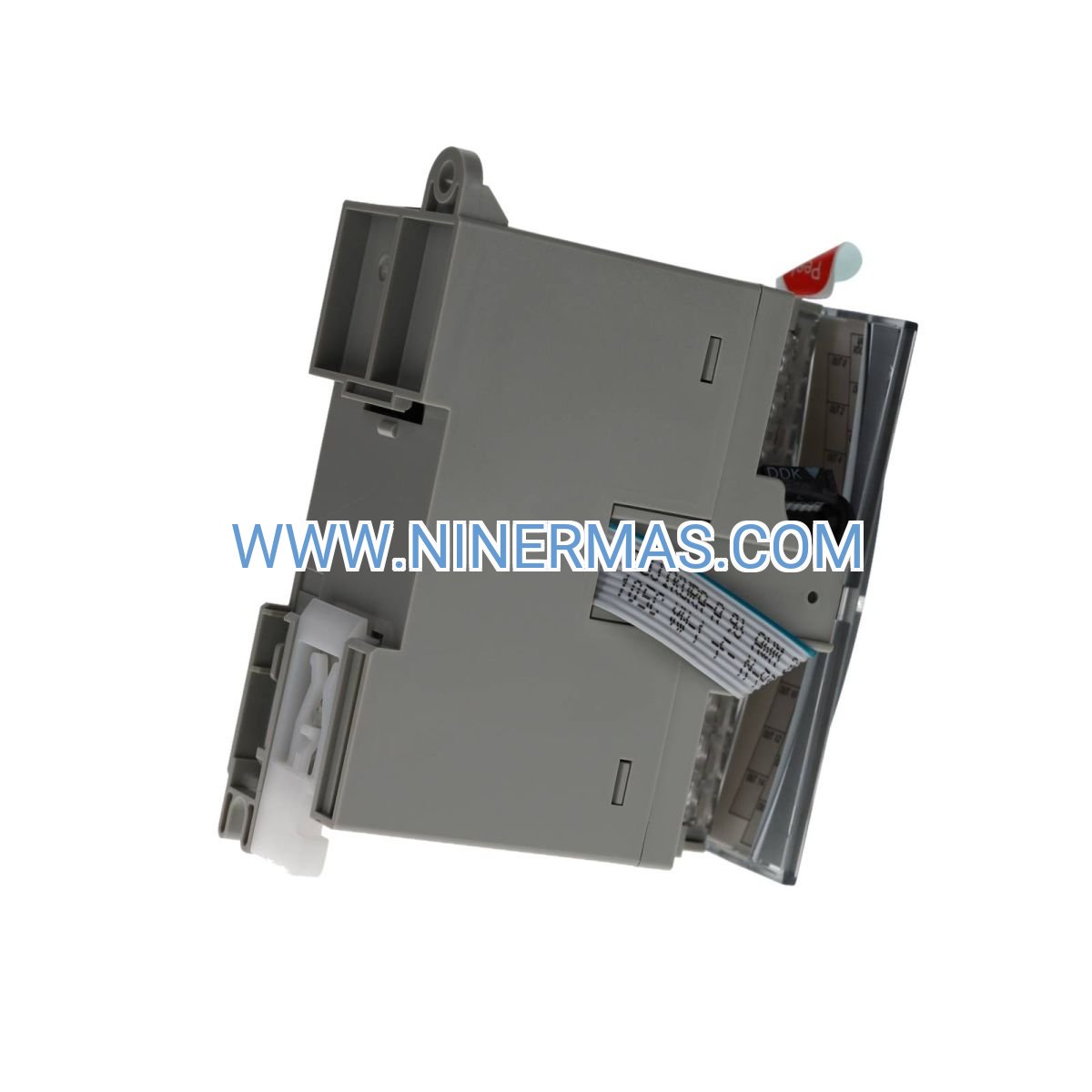

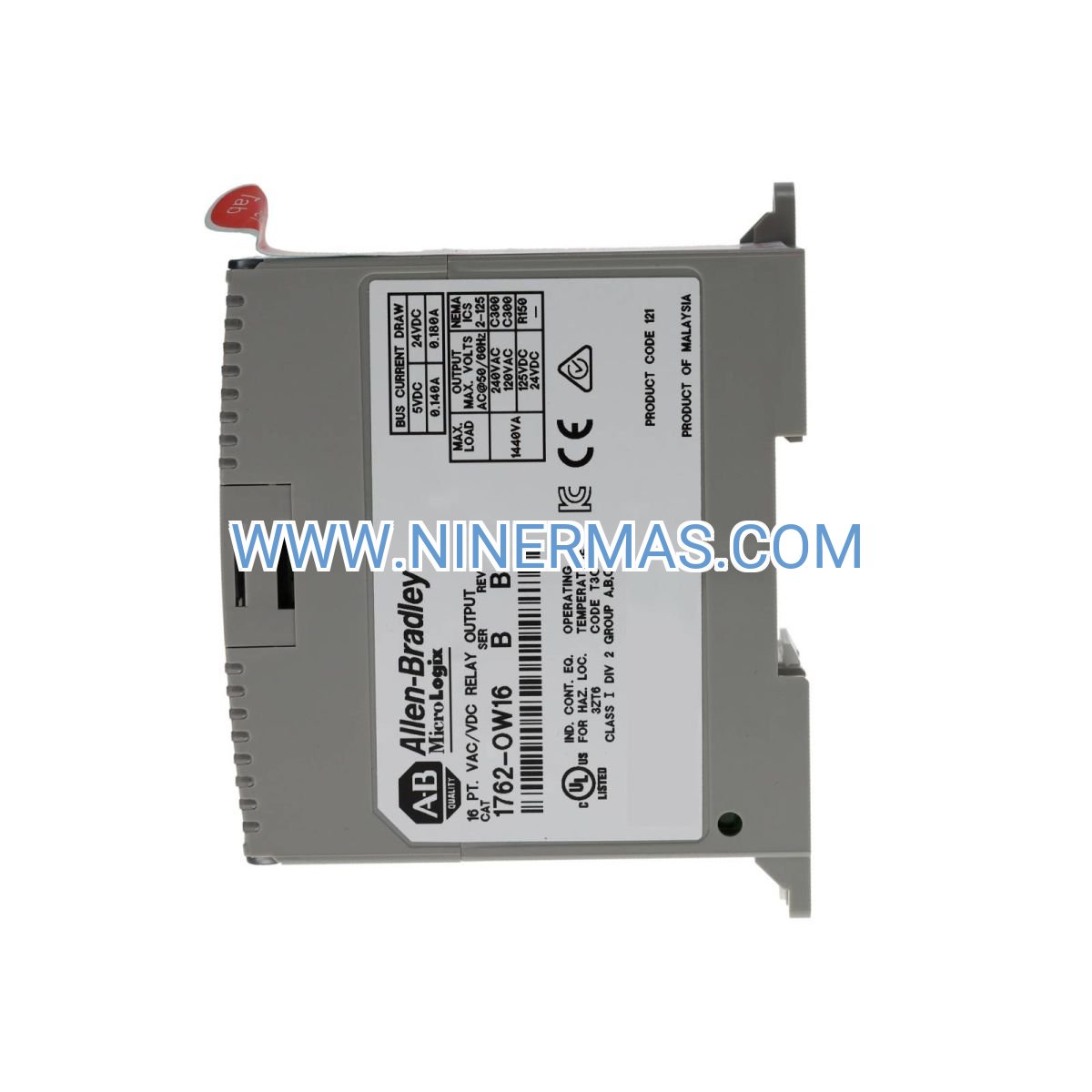

Allen-Bradley 1762-OW16 Relay Output Module (Industrial-Grade I/O Expansion for MicroLogix 1200)

The Allen-Bradley 1762-OW16 is a professional 16-point relay output module designed for MicroLogix 1200 PLC systems. Through isolated SPST (Single Pole Single Throw) relay contacts and robust electrical ratings (2A @ 250VAC per point), it enables reliable switching control for industrial loads including solenoid valves, contactors, indicator lamps, and motor starters.

Ideal for discrete control applications in manufacturing automation, process control, and building management systems, this module addresses common challenges such as electrical noise interference, contact isolation requirements, and the need for high-voltage switching capability. It is particularly suited for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams requiring proven I/O expansion solutions.

With standardized DIN-rail mounting, LED status indication per channel, and hot-swappable design, the 1762-OW16 delivers fast commissioning, simplified troubleshooting, and long-term reliability in harsh industrial environments. Contact our application engineers for configuration assistance, wiring diagrams, and technical specifications tailored to your project requirements.

Core Features & Advantages

• 16 Isolated Relay Outputs
  Each channel features a mechanically isolated SPST relay contact, providing 4000V isolation between logic and load circuits, eliminating ground loop issues and protecting sensitive PLC circuitry from high-voltage transients.
• High Switching Capacity
  Rated at 2A @ 250VAC or 2A @ 30VDC per contact, suitable for directly driving inductive loads such as solenoids, pilot relays, and small motors without requiring external interposing relays.
• Individual Channel Diagnostics
  Integrated green LED indicators for each output provide real-time visual feedback of relay coil status, accelerating fault diagnosis and reducing downtime during commissioning and maintenance.
• Removable Terminal Blocks
  Spring-clamp or screw-type terminal blocks (depending on variant) allow pre-wiring and quick module replacement without disturbing field wiring, minimizing installation time and service interruption.
• Robust Protection Mechanisms
  Built-in surge suppression, short-circuit tolerance, and thermal overload protection extend relay contact life and enhance system safety in electrically noisy industrial environments.
• Seamless MicroLogix Integration
  Hot-pluggable connection to MicroLogix 1200 base units via high-density backplane connector, with automatic I/O addressing and configuration through RSLogix 500 programming software—no manual DIP switch settings required.

Typical Application Scenarios

This module is engineered for applications demanding galvanic isolation, moderate current switching, and compatibility with legacy control systems:

• Manufacturing Assembly Lines
  Control pneumatic actuators, part ejectors, and conveyor interlocks in automotive, electronics, and packaging machinery where relay isolation prevents EMI-induced false triggering.
• HVAC & Building Automation
  Switch damper actuators, fan contactors, and pump starters in commercial buildings and data centers, meeting UL508A panel standards and providing manual override capability via relay contacts.
• Water & Wastewater Treatment
  Operate chemical dosing pumps, valve actuators, and alarm annunciators in municipal treatment plants where relay outputs interface with 120/240VAC field devices and legacy control panels.
• Material Handling Systems
  Drive sorting gates, diverter arms, and indicator towers in distribution centers and warehouses, offering reliable switching for 24VDC and 120VAC loads in dusty or humid environments.
• Machine Tool Control Retrofit
  Modernize older CNC machines and metalworking equipment by replacing obsolete relay logic with programmable MicroLogix control while retaining existing 120VAC pilot devices and contactors.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following key parameters when specifying the 1762-OW16 for your application:

Selection Considerations

When configuring your system, evaluate the following factors to ensure proper module selection and long-term reliability:

• Load Current & Type: Verify that connected loads do not exceed 2A resistive or 1A inductive per channel. For higher currents, use external interposing relays or contactors.
• Voltage Compatibility: Confirm load voltage (AC or DC) falls within 5-265VAC or 5-125VDC range. For 24VDC logic-level loads, consider solid-state output modules for faster switching.
• Switching Frequency: Relay outputs are optimized for <1Hz switching. For high-speed applications (>10Hz), specify transistor or triac output modules.
• Environmental Conditions: Ensure ambient temperature remains within 0-60°C and panel enclosure provides IP54 or higher protection in dusty/wet locations.
• Backplane Capacity: MicroLogix 1200 controllers support up to 2 expansion modules. Plan I/O architecture accordingly and consider MicroLogix 1400 for larger systems.

For application-specific guidance, provide our engineering team with: load type and quantity, voltage/current requirements, switching frequency, environmental conditions, and existing PLC configuration. We will recommend the optimal I/O solution and provide certified wiring diagrams.

Extended Functionality & Integration

• RSLogix 500 Programming Support: Full compatibility with Rockwell's RSLogix 500 development environment, including pre-built function blocks for relay sequencing, time-delay control, and fault diagnostics.
• Modular System Expansion: Combine with 1762 series analog I/O, high-speed counter, and communication modules to build scalable control solutions without changing controller hardware.
• Spare Parts & Lifecycle: Allen-Bradley maintains long-term product availability and backward compatibility, ensuring replacement modules integrate seamlessly with legacy installations dating back to early 2000s.
• Third-Party Device Compatibility: Relay outputs interface universally with devices from any manufacturer—no proprietary protocols or special drivers required, simplifying multi-vendor system integration.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules or bulk orders typically require 10-15 business days.

Warranty: Backed by a 24-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Complimentary pre-sales application engineering assistance, including load calculation verification, wiring diagram review, and RSLogix 500 code examples. Post-sales support includes remote diagnostics and on-site commissioning services (subject to location and service agreement).

Documentation Package: Each module ships with printed quick-start guide, detailed installation manual (PDF), AutoCAD panel cutout drawings, and sample ladder logic routines. Full technical specifications and 3D STEP models available for download from product support portal.

Compliance & Certifications: UL508 Listed (File E10492), CE marked per Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU, RoHS compliant. Suitable for use in UL508A industrial control panels and CE-marked machinery.

Frequently Asked Questions (FAQ)

Q: How do I connect the 1762-OW16 relay output module to my existing MicroLogix 1200 PLC system?
A: The module connects via the high-density backplane connector on the right side of the MicroLogix 1200 controller or previously installed expansion module. Simply align the connector, press firmly until the locking tabs engage, and secure with the provided retaining screw. The controller automatically recognizes the module upon power-up; configure I/O addressing in RSLogix 500 under Controller Properties > I/O Configuration.

Q: What is the maximum number of relay output modules I can install on a single MicroLogix 1200 controller?
A: The MicroLogix 1200 supports up to 2 expansion modules total (any combination of digital, analog, or specialty I/O). For systems requiring more than 32 relay outputs, consider upgrading to MicroLogix 1400 (supports 7 expansion modules) or CompactLogix platform.

Q: What energy savings or efficiency improvements can I expect compared to hard-wired relay panels?
A: While relay modules themselves do not reduce energy consumption, replacing hard-wired relay logic with programmable control enables optimized sequencing, reduced idle time, and elimination of continuously energized holding relays—typically reducing panel power consumption by 15-25%. Additionally, programmable control allows implementation of energy-saving strategies such as load shedding and demand-based operation.

Q: What are the environmental requirements for installing this module? What is its IP rating?
A: The 1762-OW16 is rated IP20 and designed for installation inside NEMA Type 12 (IP54) or higher enclosures. Operating temperature range is 0-60°C with 5-95% non-condensing humidity. For outdoor or washdown applications, ensure the control panel provides adequate environmental protection and thermal management (ventilation or air conditioning).

Q: Can I monitor and control this module remotely? What communication protocols are supported?
A: Remote access is achieved through the MicroLogix 1200 controller's communication ports (RS-232, RS-485, or Ethernet via 1761-NET-ENI adapter). Supported protocols include Modbus RTU, DF1, DH-485, and EtherNet/IP (with communication module). Use RSLinx Classic or FactoryTalk View for HMI/SCADA integration, or third-party gateways for OPC UA, MQTT, or cloud connectivity.

Q: What is the expected relay contact life, and how do I maximize it?
A: Mechanical life is 10 million operations (no load); electrical life is 100,000 operations at rated load. To extend contact life: (1) minimize inductive loads or add RC snubbers, (2) avoid switching currents above 80% of rating, (3) keep switching frequency below 0.5Hz, (4) use contact protection for lamp or capacitive loads. For high-cycle applications, consider solid-state output modules with 100+ million operation life.

Request Technical Support & Quotation

To receive a detailed selection guide, pricing quotation, or application engineering support, please provide the following information to our technical sales team:

• Project name and application description
• Number of relay outputs required and load specifications (voltage, current, type)
• Existing PLC model and available expansion slots
• Switching frequency and duty cycle requirements
• Environmental conditions (temperature, humidity, enclosure type)
• Delivery timeline and quantity requirements

Our application engineers will respond within 24 hours with a customized solution proposal, including module recommendations, wiring diagrams, and budget pricing.
