Allen-Bradley 1762-L24BXB MicroLogix 1200 PLC | 24-Point Programmable Controller for Industrial Automation

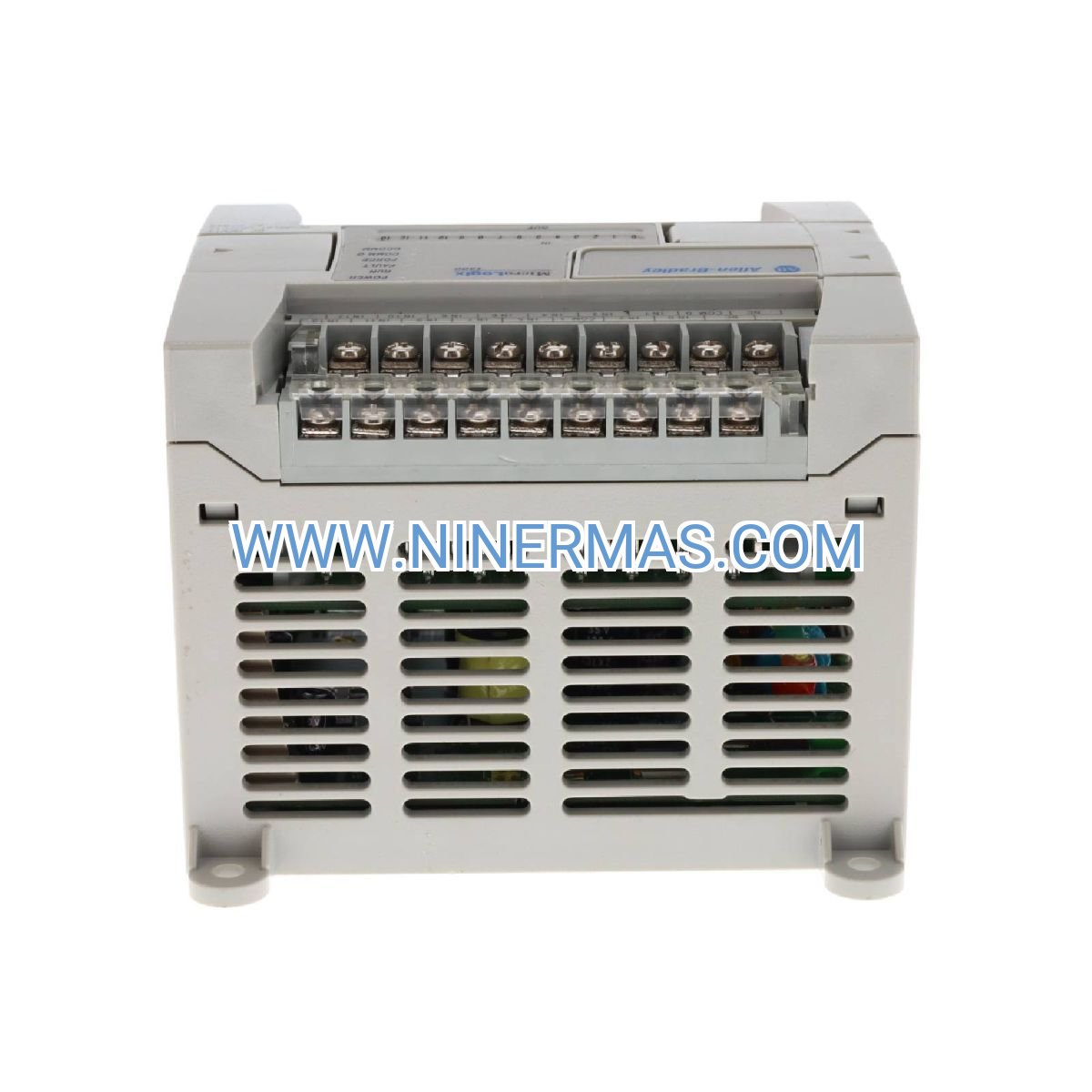

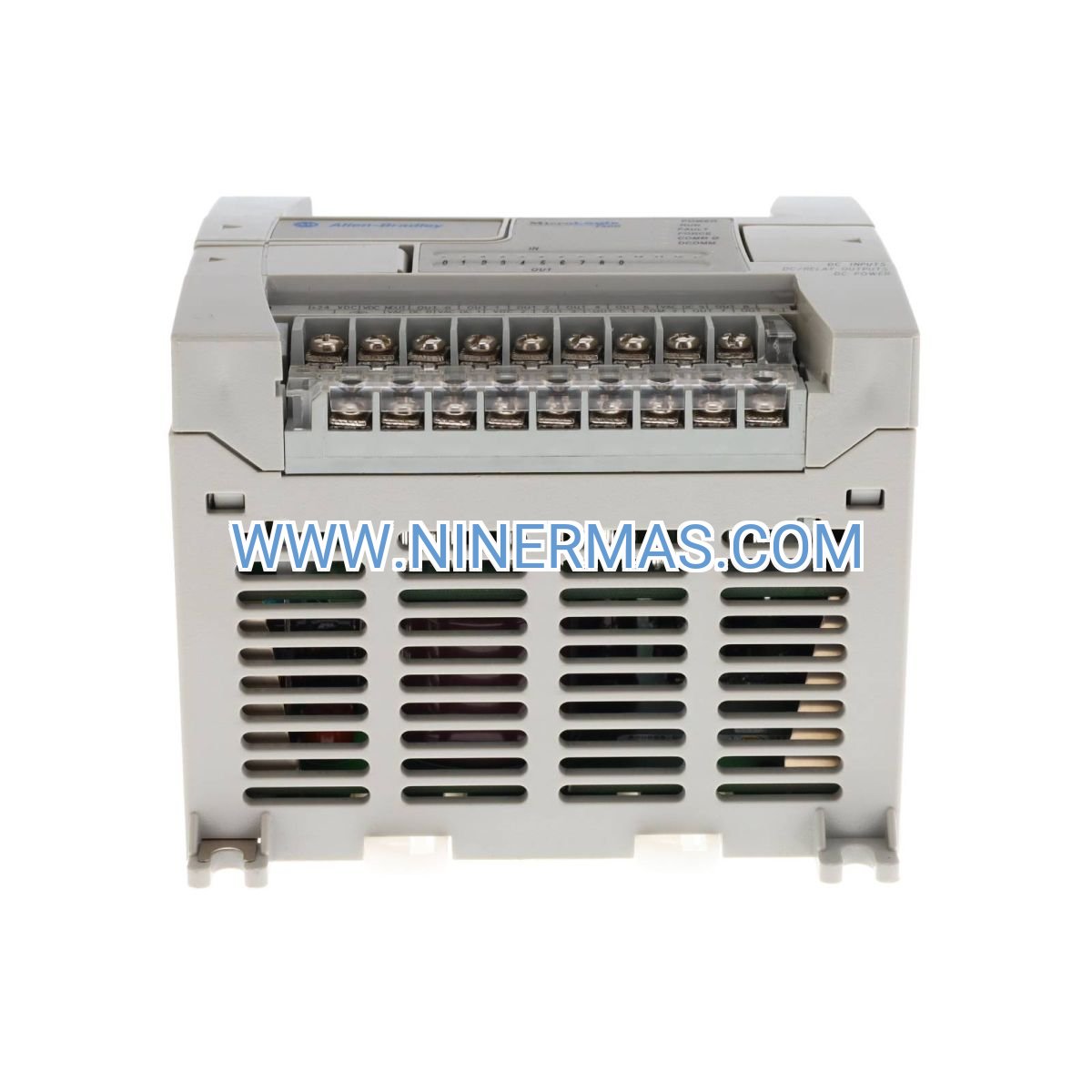

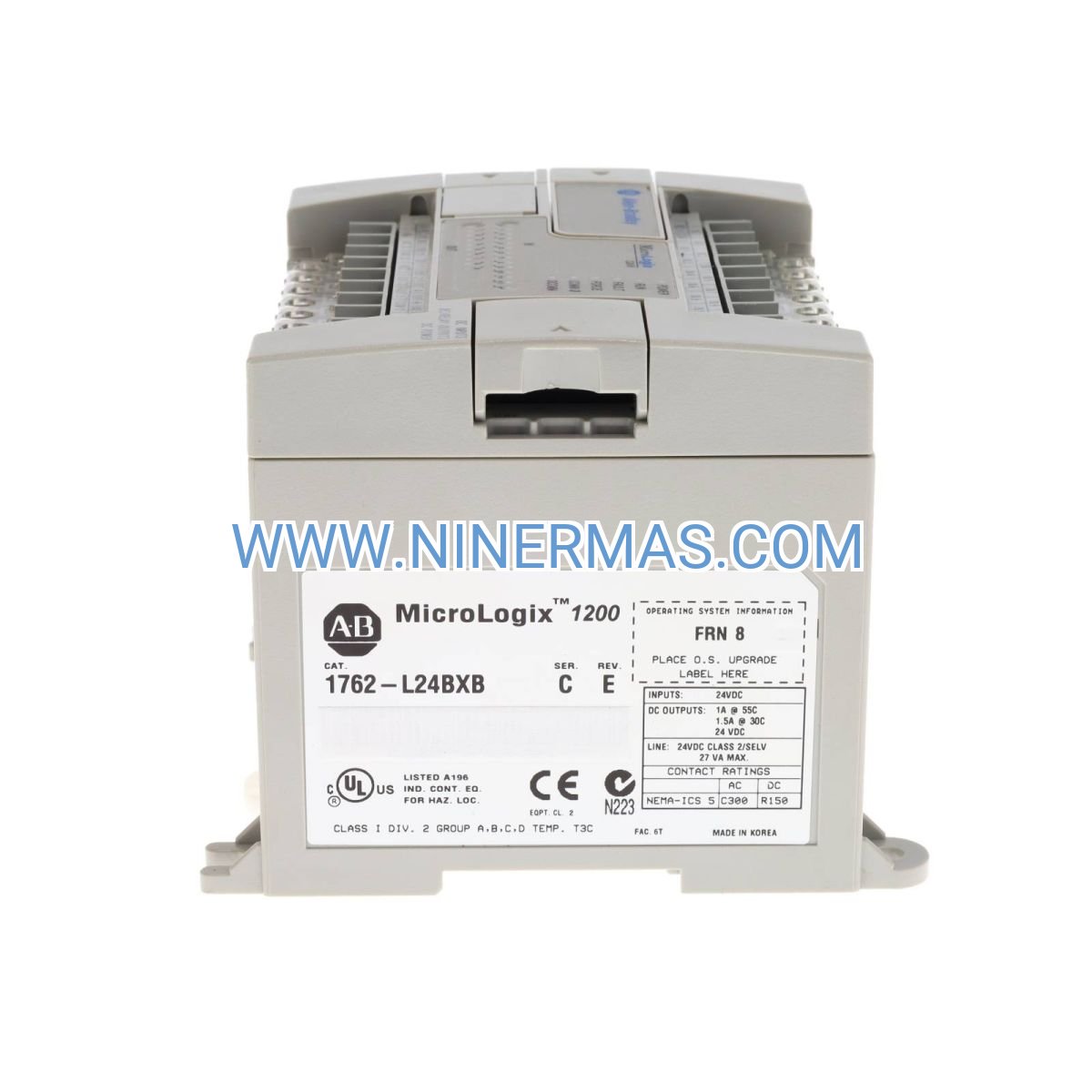

Allen-Bradley 1762-L24BXB MicroLogix 1200 PLC (Compact Programmable Controller for Industrial Automation)

The Allen-Bradley 1762-L24BXB MicroLogix 1200 PLC is a professional-grade programmable logic controller designed for small to mid-scale industrial automation applications. Through advanced ladder logic programming and modular I/O architecture, it delivers precise control, reliable operation, and seamless integration with existing automation systems. This controller combines robust performance with compact design, making it ideal for space-constrained installations.

Widely deployed across manufacturing plants, packaging lines, material handling systems, HVAC control, and OEM machinery, the 1762-L24BXB addresses critical challenges including inconsistent process control, limited I/O expandability, complex wiring requirements, and inadequate diagnostic capabilities. Its proven architecture ensures stable operation in demanding industrial environments.

Featuring standardized programming interfaces and flexible configuration options, this PLC offers fast commissioning, excellent reliability, straightforward maintenance, and broad compatibility with Rockwell Automation ecosystems. It serves design engineers, system integrators, automation contractors, and plant maintenance teams seeking dependable control solutions. Contact our application engineers for customized configuration guidance and technical quotations.

Core Features & Technical Advantages

• Flexible I/O Configuration
  Equipped with 14 discrete digital inputs and 10 relay outputs, supporting mixed voltage levels and direct sensor/actuator interfacing. Expandable via 1762 I/O modules for growing automation needs.
• Proven Programming Environment
  Fully compatible with RSLogix 500 software, enabling ladder logic, function block, and structured text programming. Supports online editing and real-time diagnostics for faster troubleshooting.
• Compact DIN-Rail Mounting
  Space-efficient design (120mm width) fits standard 35mm DIN rails, reducing panel footprint by up to 40% compared to traditional PLCs while maintaining industrial-grade durability.
• Comprehensive Protection Features
  Built-in safeguards against overcurrent, short-circuit, voltage transients, and electromagnetic interference. Conformal coating option available for harsh environments with temperature extremes or chemical exposure.
• Integrated Communication Ports
  Standard RS-232 serial port supports direct connection to HMI panels, SCADA systems, or programming devices. Optional communication modules enable Ethernet/IP, DeviceNet, or Modbus RTU connectivity.
• User-Friendly Diagnostics
  Front-panel LED indicators display power status, I/O health, and fault conditions at a glance. Embedded web server (with communication module) provides remote monitoring and parameter adjustment capabilities.

Typical Application Scenarios

This controller excels in applications requiring reliable discrete control, moderate processing speed, and cost-effective scalability:

• Manufacturing & Assembly Lines
  Controls conveyor sequencing, robotic pick-and-place operations, and quality inspection stations. Handles multi-stage processes with precise timing and interlock logic to prevent equipment damage.
• Packaging & Material Handling
  Manages filling machines, labeling systems, palletizers, and sorting equipment. Coordinates multiple motors and sensors to maintain production throughput while minimizing downtime.
• HVAC & Building Automation
  Regulates air handling units, chiller plants, and boiler systems based on temperature, pressure, and occupancy inputs. Optimizes energy consumption through scheduled operation and demand-based control.
• Water & Wastewater Treatment
  Automates pump control, valve sequencing, and chemical dosing in municipal and industrial treatment facilities. Ensures compliance with process parameters and environmental regulations.
• OEM Machinery & Custom Equipment
  Embedded in specialized machines such as injection molding presses, CNC tool changers, and test benches. Provides repeatable control logic that OEMs can standardize across product lines.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide detailed specifications for the 1762-L24BXB controller. Custom configurations are available to match specific project requirements.

Selection Recommendations: When specifying this controller, consider total I/O point count (including future expansion), required communication protocols, environmental conditions (temperature/humidity/vibration), power supply availability, and integration with existing Rockwell Automation components. For applications requiring high-speed counting, motion control, or safety functions, consult our engineers for alternative MicroLogix or CompactLogix models. Provide your application parameters for tailored recommendations.

Extended Capabilities & Integration Options

• Expansion Modules: Add up to 7 additional I/O modules (1762 series) for analog inputs, high-speed counters, thermocouple inputs, or additional discrete I/O
• HMI Integration: Direct connection to PanelView Component, PanelView Plus, or third-party HMI via RS-232 or network modules
• SCADA Connectivity: Compatible with FactoryTalk View, Ignition, Wonderware, and other SCADA platforms through standard industrial protocols
• Data Logging: Built-in data file capabilities for recipe management, production tracking, and historical trending
• Remote Access: Enable secure remote programming and diagnostics via Ethernet module and VPN connectivity

Delivery, Service & Quality Assurance

Standard units ship within 3-5 business days; custom-configured systems with specific I/O modules or communication options typically require 7-14 days. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. We provide remote technical consultation and on-site commissioning support (availability varies by region).

Each controller ships with complete documentation including electrical schematics, I/O wiring diagrams, programming quick-start guide, and RSLogix 500 sample code. Detailed installation manuals and CAD drawings (DXF/STEP formats) are available upon request to streamline panel design and installation workflows.

Frequently Asked Questions (FAQ)

Q: How does the Allen-Bradley 1762-L24BXB integrate with existing automation systems?
A: The controller uses standard RS-232 serial communication for direct connection to HMI panels and programming devices. For network integration, add a 1762-IF4 Ethernet module to enable Ethernet/IP connectivity with SCADA systems, remote I/O, and other PLCs. All wiring follows industry-standard terminal block layouts for straightforward retrofits.

Q: What is the maximum I/O capacity when using expansion modules?
A: The base 1762-L24BXB supports up to 7 expansion modules on the local bus, allowing a maximum configuration of approximately 144 I/O points (combination of digital and analog). High-density modules like the 1762-IQ32T (32-point input) maximize point count within the expansion limit.

Q: Can this PLC handle high-speed counting or motion control applications?
A: The 1762-L24BXB includes two high-speed counter inputs (up to 7 kHz) suitable for encoder feedback or pulse counting. For advanced motion control (servo/stepper positioning), consider the MicroLogix 1400 series or CompactLogix platform, which offer dedicated motion instructions and higher processing speeds.

Q: What environmental protection does this controller provide?
A: Standard units are rated IP20 for indoor panel mounting in controlled environments (0-60°C). For harsh conditions involving dust, moisture, or corrosive atmospheres, specify conformal-coated versions or house the controller in NEMA 4/4X enclosures. Ensure adequate ventilation to prevent overheating.

Q: Is remote monitoring and programming supported?
A: Yes, when equipped with a 1762-IF4 Ethernet module, the controller supports remote access via RSLogix 500 over Ethernet/IP. Implement VPN or firewall rules to secure remote connections. The embedded web server (available with Ethernet module) provides real-time I/O status and diagnostic information through standard web browsers.

Q: What programming software is required, and is training available?
A: RSLogix 500 Starter Edition (free download from Rockwell Automation) supports basic programming; Professional Edition unlocks advanced features like online edits and data trending. We offer application-specific programming templates and can recommend certified training partners for RSLogix 500 fundamentals and advanced troubleshooting courses.

Request Technical Support & Custom Quotation

To receive detailed application engineering support, product configuration recommendations, or project-specific pricing, please provide the following information: project name, application type (e.g., packaging line, HVAC system), required I/O count and types, communication protocol preferences, environmental conditions, and estimated quantity. Our automation specialists will respond within one business day with tailored solutions and technical documentation.
