Allen-Bradley 1762-IQ8OW6 MicroLogix I/O Module | 8-Input 6-Relay Combo Controller

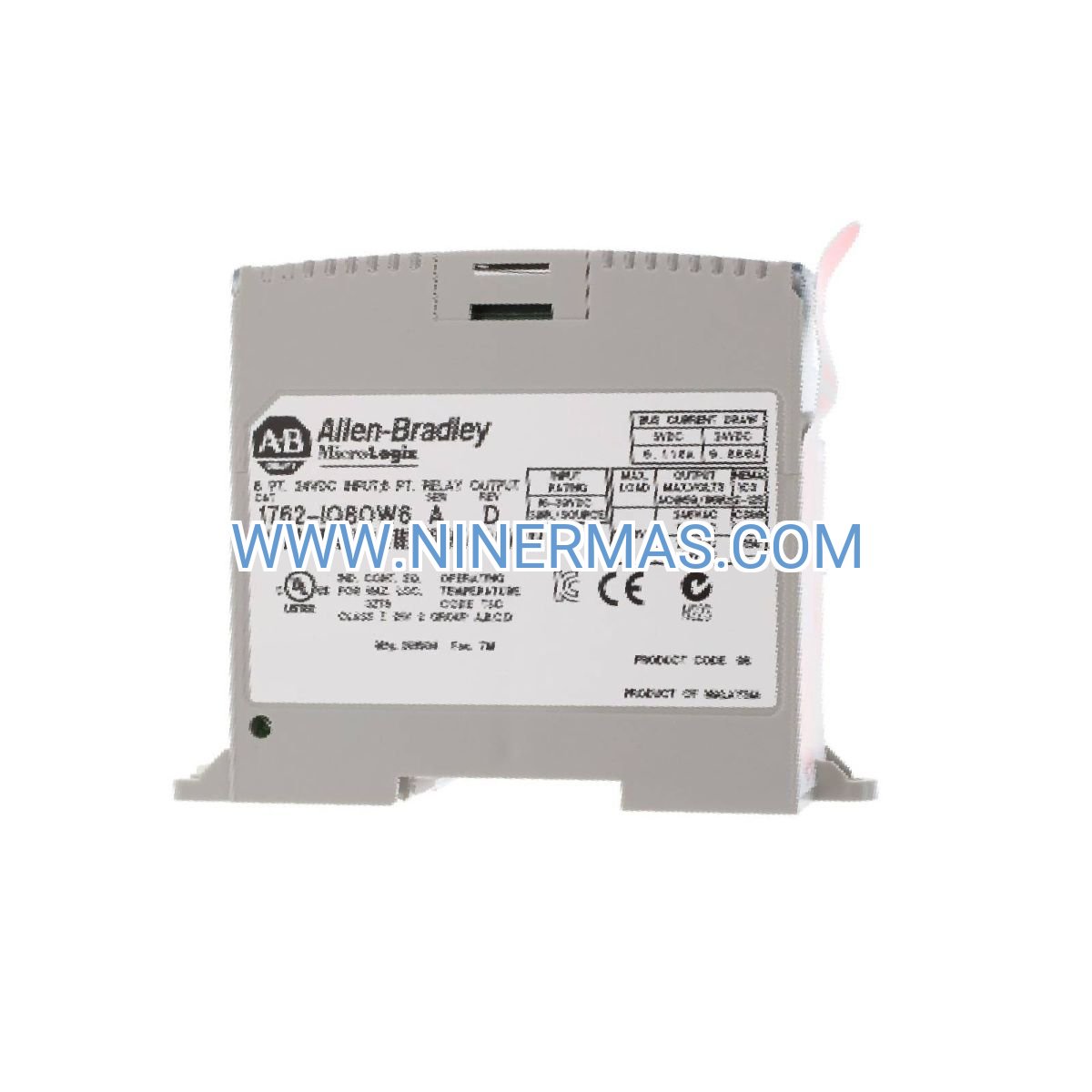

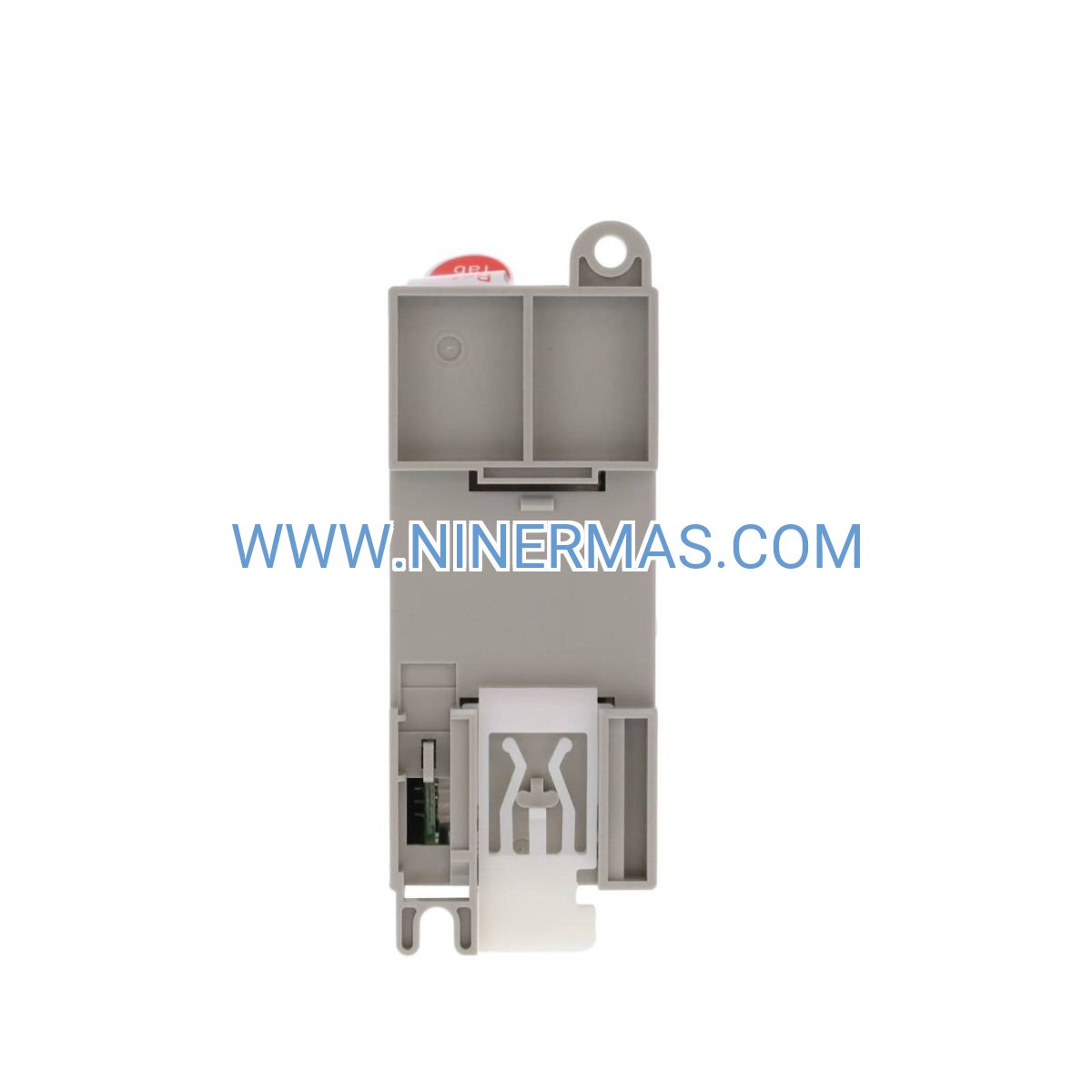

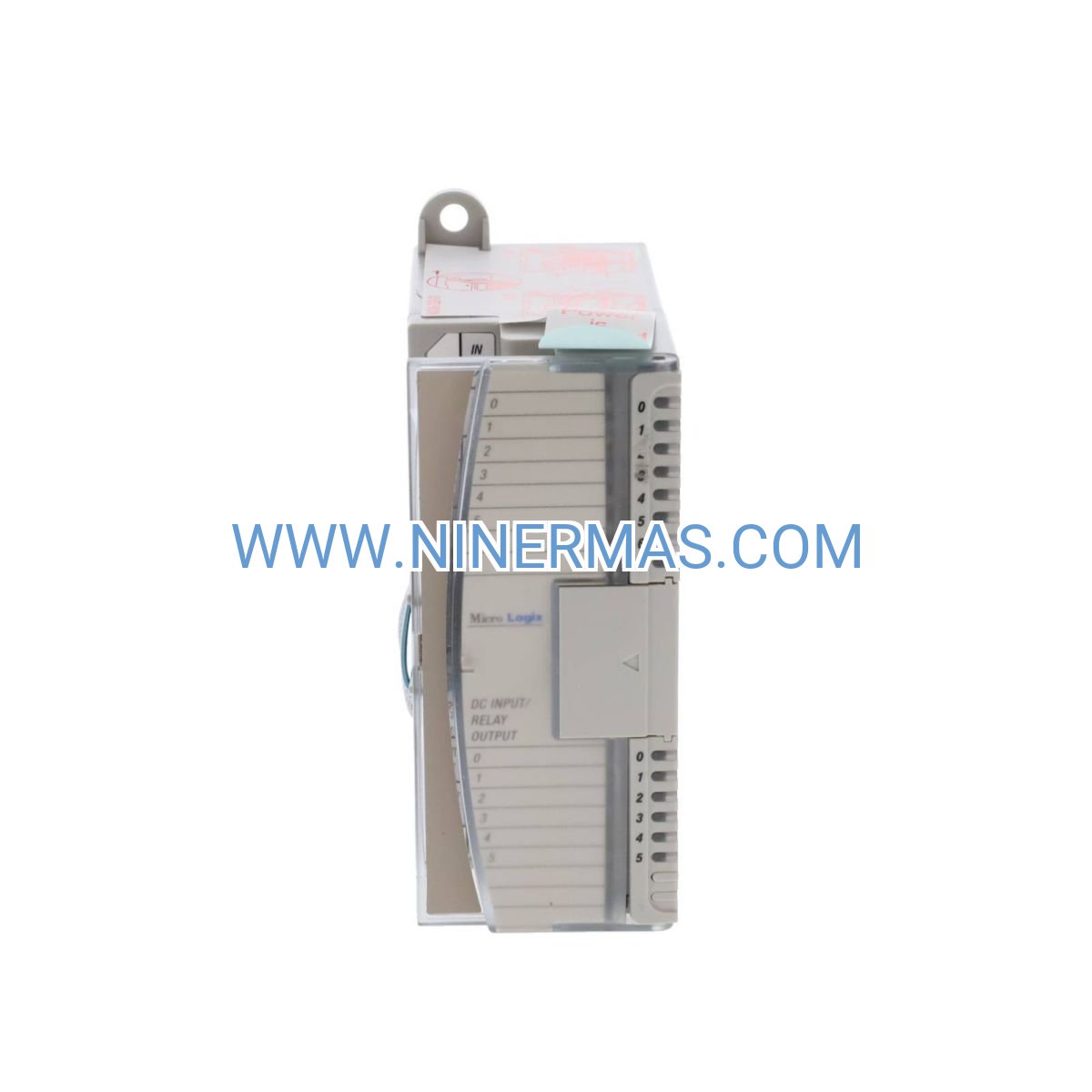

Allen-Bradley 1762-IQ8OW6 MicroLogix Combination I/O Module (Industrial-Grade Control Solution)

The Allen-Bradley 1762-IQ8OW6 is a high-performance combination I/O module designed for MicroLogix 1200 programmable logic controller systems. Through its integrated 8-point input and 6-point relay output architecture, this module delivers flexible signal acquisition and reliable switching control for diverse industrial automation applications. Engineered with robust relay contacts and wide-range input compatibility, it ensures stable operation in demanding manufacturing environments.

This module is specifically designed for process control systems, machine monitoring applications, discrete manufacturing lines, packaging equipment automation, and material handling systems—addressing common challenges such as limited I/O expansion capacity, incompatible signal types, unreliable switching under inductive loads, complex wiring requirements, and insufficient isolation between control circuits.

Featuring standardized DIN-rail mounting with customizable I/O configuration options, the 1762-IQ8OW6 offers compact footprint design, universal input voltage compatibility, high-current relay switching capability, hot-swappable installation, and comprehensive diagnostic LEDs—making it ideal for system integrators, OEM machine builders, plant maintenance teams, and automation engineers. Contact our technical specialists to receive application-specific wiring diagrams and configuration guidance.

Core Features & Technical Advantages

Versatile Input Configuration
Equipped with 8 universal input points supporting both DC and AC voltage ranges (12-24V DC / 85-132V AC), the module automatically adapts to mixed signal environments through optically isolated input circuits, eliminating the need for external signal conditioning and reducing installation complexity.

High-Capacity Relay Outputs
Features 6 independent SPDT relay outputs rated for 2A at 250V AC or 30V DC, capable of directly switching solenoid valves, indicator lamps, motor starters, and other inductive loads—delivering up to 40% longer contact life compared to standard relay modules through arc suppression design.

Intelligent Multi-Point Control
Supports flexible I/O mapping and ladder logic programming via RSLogix software, enabling complex interlocking sequences, time-delay functions, and conditional switching logic—ideal for applications requiring coordinated control of multiple actuators based on sensor feedback.

Comprehensive Protection Mechanisms
Incorporates built-in surge suppression, reverse polarity protection, short-circuit immunity, thermal overload shutdown, and input/output isolation up to 1500V AC—minimizing downtime risks and reducing maintenance costs in electrically noisy industrial environments.

Intuitive Diagnostic Interface
Provides individual LED status indicators for each I/O point plus module power and fault conditions, allowing technicians to perform rapid troubleshooting without programming tools—reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Typical Application Scenarios

The 1762-IQ8OW6 module excels in applications demanding reliable signal interfacing and robust switching control, particularly in:

Discrete Manufacturing & Assembly Lines
Controls pneumatic actuators, conveyor motors, and part presence sensors in automotive assembly, electronics manufacturing, and consumer goods production—ensuring precise timing coordination and fault detection across multi-station work cells.

Process Control & Batch Systems
Manages valve sequencing, pump interlocks, and level switch monitoring in chemical processing, water treatment, food & beverage production, and pharmaceutical manufacturing—maintaining process consistency while meeting regulatory compliance requirements.

Packaging & Material Handling Equipment
Interfaces with photoelectric sensors, limit switches, and solenoid-operated diverters in case packers, palletizers, sortation systems, and automated storage/retrieval systems—optimizing throughput while preventing product damage and equipment jams.

Building Automation & HVAC Control
Coordinates damper actuators, fan contactors, and occupancy sensors in commercial HVAC systems, lighting control panels, and energy management installations—reducing energy consumption while maintaining occupant comfort and safety.

Technical Specifications & Selection Guide

To facilitate system design and component selection, we provide comprehensive electrical and mechanical specifications for the 1762-IQ8OW6 module:

Input Specifications:
• Input Points: 8 (universal DC/AC)
• DC Input Range: 12-24V DC (10-30V tolerance)
• AC Input Range: 85-132V AC, 47-63 Hz
• Input Impedance: 4.7kΩ typical
• Input Current: 5mA @ 24V DC / 2mA @ 120V AC
• Isolation Voltage: 1500V AC (input-to-logic)

Output Specifications:
• Output Points: 6 (SPDT relay contacts)
• Contact Rating: 2A @ 250V AC / 2A @ 30V DC resistive
• Inductive Load: 80VA @ 120V AC, 40W @ 24V DC
• Switching Frequency: 10 operations/second maximum
• Contact Life: 100,000 cycles @ rated load
• Isolation Voltage: 4000V AC (coil-to-contact)

General Specifications:
• Backplane Current: 115mA @ 5V DC
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing
• Enclosure Rating: Open-type (requires NEMA-rated enclosure)
• Mounting: DIN-rail or panel (via 1762-MMBK kit)
• Dimensions: 87mm H × 35mm W × 80mm D
• Weight: Approximately 0.18 kg

Selection Recommendations:
When specifying the 1762-IQ8OW6 module, consider the following system parameters: total I/O point count requirements, input signal voltage types (DC vs. AC), output load characteristics (resistive, inductive, lamp), available backplane slot positions, ambient operating temperature, and required agency certifications (UL, CE, CSA). For applications requiring higher output current capacity, faster switching speeds, or additional I/O density, consult our engineering team with your specific load schedules and control sequence diagrams for optimized module recommendations.

Extended Functionality & System Integration

Seamless MicroLogix Platform Compatibility
Directly integrates with MicroLogix 1200 controllers (1762-L24, L40 series) via high-speed backplane communication, supporting distributed I/O architectures up to 7 expansion modules—enabling scalable control solutions from standalone machines to coordinated production cells.

Advanced Programming Capabilities
Fully supported by RSLogix 500 programming software with pre-configured instruction sets for relay ladder logic (RLL), structured text (ST), and function block diagram (FBD) programming—accelerating development time and simplifying code maintenance through reusable subroutine libraries.

Industrial Network Connectivity
Compatible with DeviceNet, Ethernet/IP, and Modbus communication protocols when paired with appropriate MicroLogix communication modules—facilitating SCADA integration, remote monitoring, and data logging for Industry 4.0 initiatives.

Compliance & Certification
Manufactured to ISO 9001 quality standards with UL 508 (Industrial Control Equipment), CE (EMC Directive 2014/30/EU), and RoHS compliance—ensuring global market acceptance and regulatory conformance for export machinery and international projects.

Delivery, Service & Quality Assurance

Inventory & Lead Time: Standard catalog items typically ship within 3-5 business days from regional distribution centers; custom-configured modules or bulk orders may require 10-15 business days depending on current production schedules and component availability.

Warranty Coverage: All 1762-IQ8OW6 modules include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship under normal operating conditions, with optional extended service agreements available for critical applications.

Technical Support: Our application engineering team provides complimentary pre-sale consultation, wiring diagram review, and programming assistance via phone, email, or remote desktop sessions—ensuring successful system commissioning and optimal performance.

Documentation Package: Each module ships with complete technical documentation including installation instructions, electrical schematics, terminal wiring diagrams, I/O addressing tables, and troubleshooting flowcharts—available in PDF format for easy reference and archival.

Installation & Commissioning: On-site startup assistance and training services are available for complex installations or multi-module systems (subject to geographic location and service agreement terms)—contact our service department for customized support packages.

Frequently Asked Questions (FAQ)

Q: How does the 1762-IQ8OW6 MicroLogix I/O module interface with existing PLC systems?
A: The module connects directly to the MicroLogix 1200 controller backplane via a keyed connector, automatically recognized during power-up. I/O addressing is configured through RSLogix 500 software using the hardware configuration tree—no DIP switches or manual addressing required. For integration with non-MicroLogix platforms, consider using protocol gateways or communication adapters.

Q: What is the maximum number of I/O modules that can be connected to a single MicroLogix 1200 controller?
A: The MicroLogix 1200 series supports up to 7 expansion modules on the local backplane, providing a maximum of 144 I/O points when fully populated with high-density modules. The 1762-IQ8OW6 occupies one expansion slot and contributes 14 total I/O points (8 inputs + 6 outputs) to the system capacity.

Q: What energy savings can be achieved using relay outputs versus solid-state outputs?
A: Relay outputs consume zero power in the off state and minimal holding current when energized (approximately 30mA per coil), making them ideal for applications with low switching frequency. However, solid-state outputs offer faster switching speeds and longer operational life—energy savings depend on duty cycle, with relay modules typically reducing standby power consumption by 60-80% compared to continuously-powered solid-state alternatives.

Q: What are the environmental requirements for installing the 1762-IQ8OW6 module?
A: The module is rated for operation in ambient temperatures from 0°C to 60°C with 5-95% relative humidity (non-condensing). It requires installation in a NEMA 12 or IP54-rated enclosure minimum to protect against dust and moisture ingress. Ensure adequate ventilation with at least 50mm clearance above and below the module for convection cooling—forced air cooling may be necessary in high-density installations or elevated ambient conditions.

Q: Does the module support remote monitoring and data acquisition via industrial networks?
A: Yes, when the MicroLogix 1200 controller is equipped with an Ethernet/IP (1762-IF4) or DeviceNet communication module, all I/O data including the 1762-IQ8OW6 points can be accessed remotely via SCADA systems, HMI panels, or cloud-based analytics platforms. The module supports standard Rockwell Automation communication protocols including EtherNet/IP implicit messaging and explicit messaging for diagnostic data retrieval.

Q: Can the relay outputs handle LED lighting loads or electronic ballasts?
A: Yes, the relay contacts are suitable for switching LED drivers and electronic ballasts, though inrush current characteristics should be verified against the 2A contact rating. For high-inrush loads (>10× steady-state current), consider using external contactors or solid-state relays triggered by the 1762-IQ8OW6 outputs to extend contact life and prevent premature wear.

Request Technical Support & Custom Solutions

To receive detailed application engineering support, customized wiring schematics, or project-specific quotations, please provide the following information to our technical sales team: project name and industry sector, control application description, required I/O point count and signal types, load specifications (voltage, current, inductive/resistive), MicroLogix controller model number, environmental conditions (temperature, enclosure rating), and preferred delivery timeline. Our certified automation specialists will respond within one business day with tailored recommendations and budget pricing.
