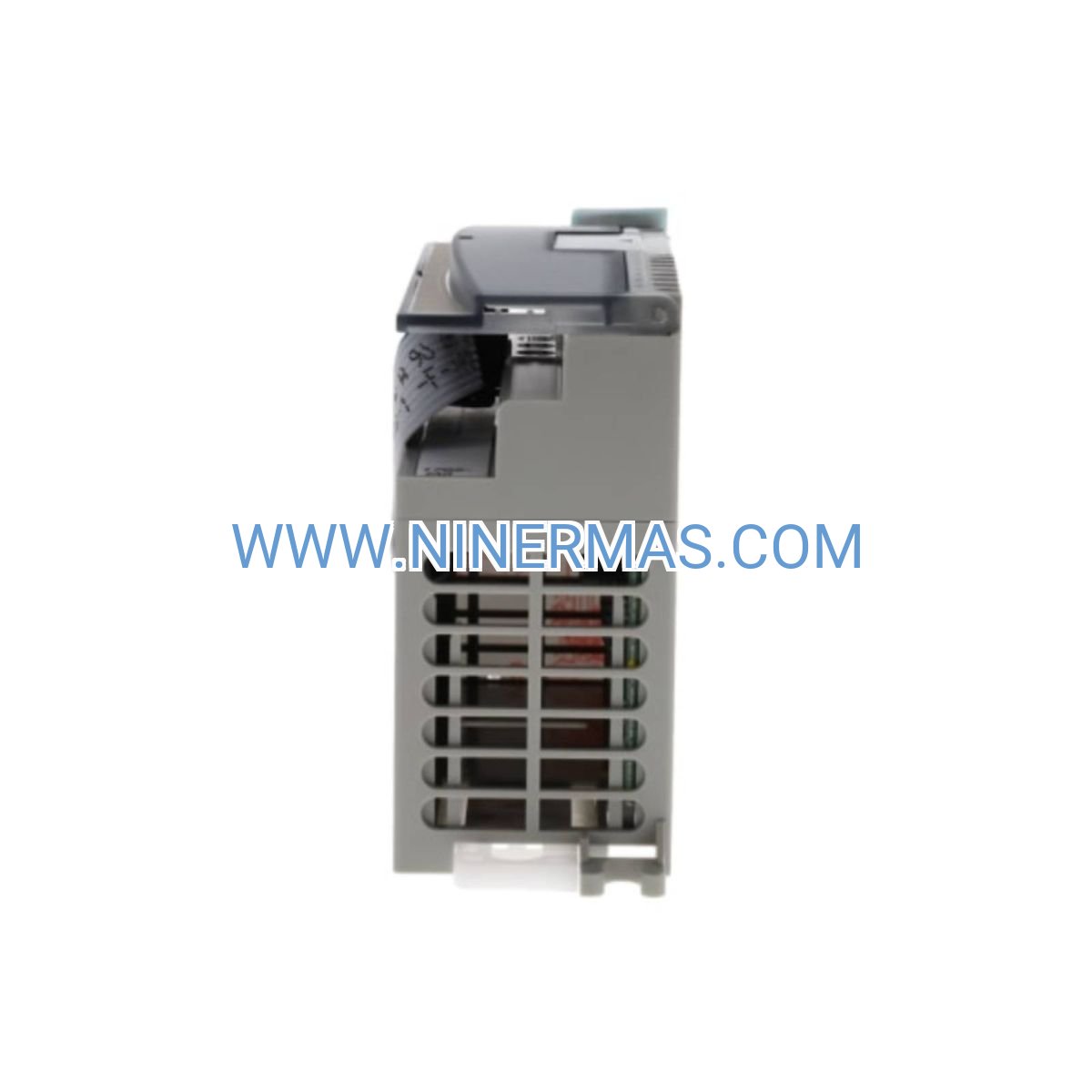

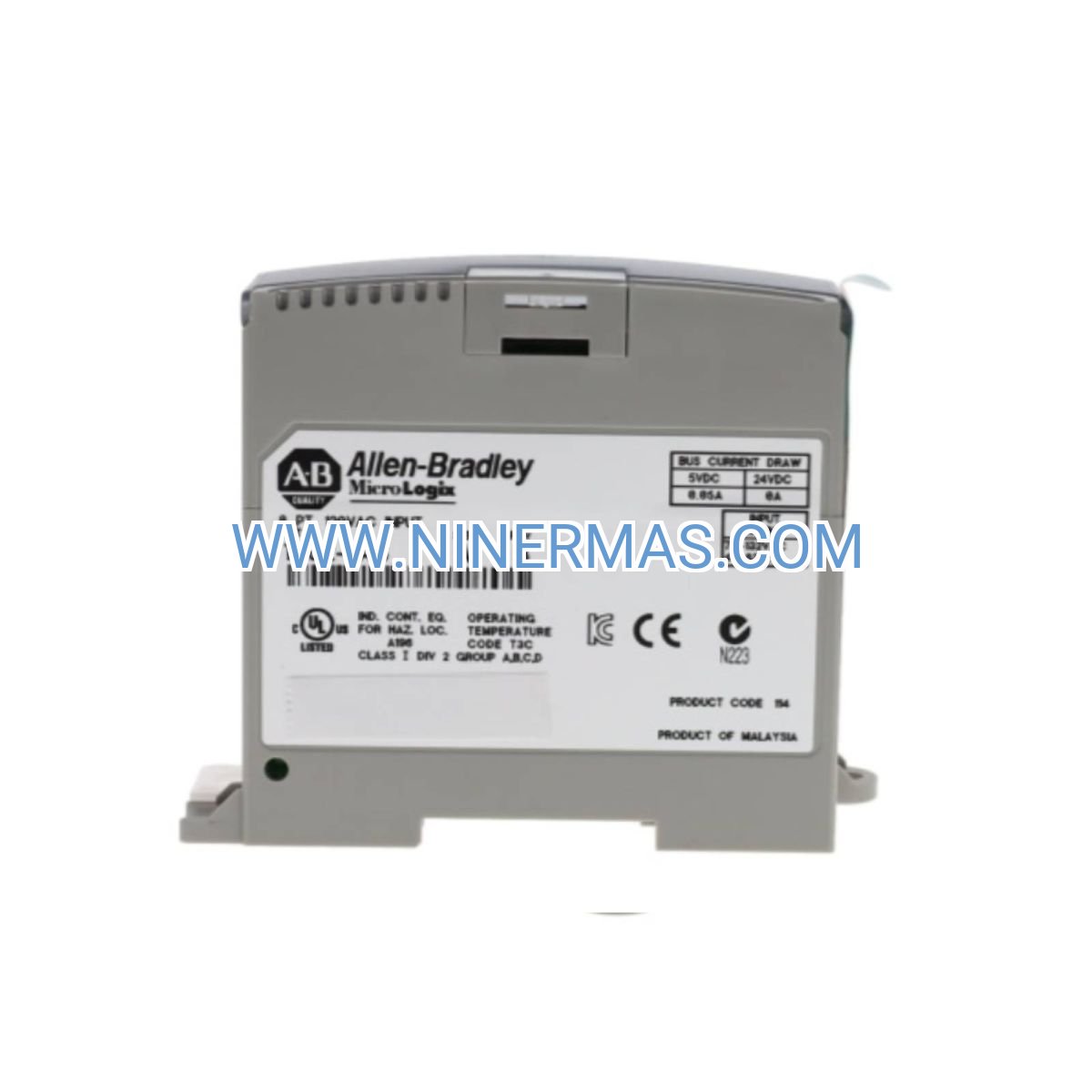

Allen-Bradley 1762-IA8 Digital Input Module (Industrial-Grade I/O Expansion for MicroLogix 1200)

The Allen-Bradley 1762-IA8 is an 8-channel digital input module engineered for MicroLogix 1200 programmable logic controllers, delivering reliable signal acquisition through advanced optical isolation technology. This module enables real-time monitoring of discrete 120V AC field devices—including limit switches, proximity sensors, pushbuttons, and relay contacts—ensuring precise process control and system diagnostics in demanding industrial environments.

Designed for manufacturing automation, machine control, and process monitoring applications, the 1762-IA8 addresses critical challenges such as electrical noise interference, signal integrity degradation, and system downtime caused by I/O failures. It is widely deployed in packaging lines, material handling systems, HVAC control panels, and industrial machinery across automotive, food & beverage, pharmaceutical, and discrete manufacturing sectors.

Built with hot-swappable architecture and comprehensive diagnostic capabilities, this module offers seamless integration with existing MicroLogix 1200 systems, minimizing installation complexity and maintenance overhead. Suitable for OEM machine builders, system integrators, plant engineers, and maintenance teams seeking dependable, standards-compliant I/O solutions with long-term availability and technical support.

Core Features & Technical Advantages

Optical Isolation for Superior Noise Immunity
Each input channel incorporates 1500V AC optical isolation, protecting the PLC backplane from voltage spikes, ground loops, and electromagnetic interference commonly found in industrial power distribution systems. This isolation ensures stable operation in electrically noisy environments and extends controller lifespan.

Hot-Swap Capability for Reduced Downtime
The module supports online insertion and removal without powering down the entire control system, enabling rapid replacement during scheduled maintenance or emergency repairs. This feature significantly reduces mean time to repair (MTTR) and maintains production continuity.

Comprehensive Diagnostic Indicators
Individual LED indicators per channel provide instant visual feedback on input status, power supply health, and fault conditions. This real-time diagnostic capability accelerates troubleshooting and reduces commissioning time by up to 40% compared to non-diagnostic modules.

Wide Input Voltage Tolerance
Accepts 85-132V AC input signals with automatic threshold detection, accommodating voltage fluctuations in aging infrastructure or unstable power grids without false triggering or signal loss.

Compact DIN-Rail Mounting Design
Space-efficient form factor (35mm DIN-rail compatible) optimizes panel real estate utilization, particularly valuable in retrofit projects or space-constrained control cabinets where every centimeter counts.

Proven Reliability in Harsh Conditions
Operating temperature range of 0-60°C (32-140°F) with conformal coating protection against moisture, dust, and chemical vapors, meeting IEC 61131-2 industrial environment standards for extended service life.

Typical Application Scenarios

This module excels in applications requiring dependable discrete signal monitoring with electrical isolation and diagnostic transparency:

Automated Production Lines & Packaging Machinery
Monitors conveyor position sensors, safety interlocks, product presence detectors, and emergency stop circuits in high-speed packaging, bottling, and assembly operations. Ensures coordinated motion control and operator safety compliance.

Building Automation & HVAC Control Systems
Interfaces with damper end switches, airflow sensors, filter status indicators, and occupancy detectors in commercial HVAC installations. Enables energy-efficient climate control and predictive maintenance scheduling.

Water Treatment & Pump Control Stations
Acquires signals from float switches, pressure transducers, flow meters, and valve position feedback in municipal water distribution, wastewater treatment, and industrial cooling systems. Supports variable frequency drive (VFD) coordination and alarm management.

Material Handling & Warehouse Automation
Processes inputs from photoelectric sensors, inductive proximity switches, barcode scanners, and sortation diverters in automated storage and retrieval systems (AS/RS), ensuring accurate inventory tracking and order fulfillment.

Machine Tool & CNC Equipment Integration
Captures tool change confirmations, spindle orientation signals, door interlock status, and coolant level alarms in precision machining centers, enhancing operational safety and cycle time optimization.

Technical Specifications & Selection Guide

Electrical Characteristics

• Input Channels: 8 discrete AC inputs
• Rated Input Voltage: 120V AC (85-132V AC operating range)
• Input Frequency: 47-63 Hz
• Input Current per Channel: 7 mA typical @ 120V AC
• Isolation Voltage: 1500V AC continuous (channel-to-backplane)
• Input Impedance: 17 kΩ typical
• Response Time: 10 ms ON delay, 20 ms OFF delay (typical)

Mechanical & Environmental

• Mounting: 35mm DIN rail (IEC 60715 standard)
• Dimensions: 87 mm (H) × 35 mm (W) × 80 mm (D)
• Weight: Approximately 0.15 kg
• Operating Temperature: 0-60°C (32-140°F)
• Storage Temperature: -40-85°C (-40-185°F)
• Relative Humidity: 5-95% non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant

Compatibility & Integration

• Compatible Controllers: MicroLogix 1200 series (1762-L24AWA, 1762-L24BWA, 1762-L24BXB, 1762-L40AWA, 1762-L40BWA, 1762-L40BXB)
• Backplane Current Draw: 50 mA @ 5V DC, 30 mA @ 24V DC
• Programming Software: RSLogix 500, Connected Components Workbench
• Communication Protocols: Supports standard MicroLogix addressing (I:x.y format)

Selection Considerations

When specifying the 1762-IA8 module, evaluate the following project parameters:

• Signal Count: Total number of discrete 120V AC field devices requiring monitoring
• Voltage Compatibility: Verify field device output voltage matches 85-132V AC range
• Response Time Requirements: Confirm 10-20 ms input filtering meets application speed demands
• Environmental Conditions: Assess ambient temperature, humidity, and vibration levels against module ratings
• Backplane Capacity: Ensure MicroLogix 1200 chassis has available expansion slots and sufficient power budget
• Wiring Infrastructure: Plan for removable terminal blocks (RTB) and proper grounding practices

For applications requiring DC inputs, sinking/sourcing configurations, or higher channel density, consult our engineering team for alternative module recommendations tailored to your specific control architecture.

Advanced Integration Capabilities

Seamless RSLogix 500 Programming
The module auto-discovers upon installation, appearing in the I/O configuration tree with pre-defined addressing (I:x.y format). Ladder logic programming supports standard input instructions (XIC, XIO, OSR) with real-time forcing and online editing for rapid commissioning.

Alarm & Event Management
Integrate with SCADA systems (FactoryTalk View, Ignition, WinCC) via Ethernet/IP or DH-485 protocols for centralized alarm logging, historical trending, and mobile notification of critical input state changes.

Predictive Maintenance Readiness
Diagnostic data accessible through controller tags enables condition monitoring strategies—track input transition counts, detect intermittent wiring faults, and schedule preventive replacements before catastrophic failures occur.

Delivery, Service & Quality Assurance

Inventory & Lead Time
Standard catalog items typically ship within 1-3 business days from regional distribution centers. Custom-configured modules or bulk orders may require 7-14 days; expedited shipping available upon request for urgent project timelines.

Warranty & Support
All modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options and advance replacement programs available for mission-critical applications. Technical support includes remote diagnostics, configuration assistance, and on-site commissioning services (subject to geographic availability).

Documentation Package
Each module ships with comprehensive technical documentation: installation quick-start guide, wiring diagrams, I/O addressing tables, RSLogix 500 sample code, and troubleshooting flowcharts. CAD drawings (DXF/STEP formats) and 3D models available for panel design integration.

Compliance & Certifications
UL Listed (File E10588), CE marked, RCM compliant, and meets IEC 61131-2 industrial controller standards. RoHS-compliant manufacturing ensures environmental responsibility and global market access.

Frequently Asked Questions (FAQ)

Q: How does the 1762-IA8 digital input module integrate with existing MicroLogix 1200 systems?
A: The module installs directly onto the MicroLogix 1200 expansion bus via the right-side connector. Upon power-up, the controller automatically detects the module and assigns I/O addresses sequentially (e.g., I:1.0 through I:1.7 for the first expansion module). Configuration requires no manual setup—simply insert the module, verify LED indicators, and begin programming. Removable terminal blocks (RTBs) allow pre-wiring before installation to minimize downtime.

Q: What is the maximum number of input modules supported on a single MicroLogix 1200 controller?
A: MicroLogix 1200 controllers support up to 7 expansion modules total (combination of input, output, analog, and specialty modules). The 1762-IA8 consumes one expansion slot. Total I/O capacity depends on controller model: 1762-L24 series supports 144 I/O points maximum, while 1762-L40 series supports 256 I/O points. Backplane power budget (5V DC and 24V DC rails) must also be considered when planning large I/O configurations.

Q: What energy savings can be achieved using this module in automation systems?
A: While the module itself is not an energy-saving device, its diagnostic capabilities enable optimized process control that can reduce overall system energy consumption by 15-30%. For example, precise input monitoring allows tighter control of motor starts/stops, reducing unnecessary runtime. Predictive maintenance enabled by input diagnostics prevents energy-wasting equipment failures. In HVAC applications, accurate sensor feedback improves setpoint control, cutting heating/cooling waste.

Q: What are the environmental requirements for installing the 1762-IA8 module?
A: The module operates reliably in 0-60°C (32-140°F) ambient temperature with 5-95% relative humidity (non-condensing). Install in NEMA-rated enclosures (minimum Type 12/IP54) to protect against dust and moisture in industrial environments. Ensure adequate ventilation—maintain 50mm clearance above/below modules for convective cooling. Avoid direct sunlight, corrosive gases, and excessive vibration beyond IEC 60068-2-6 limits. Conformal coating provides additional protection in harsh chemical or high-humidity environments.

Q: Does the module support remote monitoring and data acquisition protocols?
A: Yes, when paired with MicroLogix 1200 controllers equipped with Ethernet communication modules (1762-IF4, 1763-L16AWA, etc.), input data is accessible via Ethernet/IP, Modbus TCP, or DH-485 protocols. This enables integration with SCADA systems, cloud-based IoT platforms (AWS IoT, Azure IoT Hub), and mobile HMI applications for real-time monitoring, historical data logging, and remote diagnostics. Standard Modbus register mapping and OPC UA server support facilitate third-party system integration.

Q: Can the module be used in safety-critical applications requiring SIL certification?
A: The 1762-IA8 is a standard industrial I/O module and is NOT certified for safety-instrumented systems (SIS) per IEC 61508 or IEC 61511. For safety-critical applications (emergency stops, safety interlocks, machine guarding), use Allen-Bradley GuardLogix or Compact GuardLogix safety controllers with certified safety I/O modules. The 1762-IA8 is appropriate for non-safety process monitoring and general automation tasks.

Request Technical Support & Custom Solutions

For detailed application engineering, custom I/O configurations, or project-specific quotations, please provide the following information to our technical team:

• Project name and application description (machine type, process overview)
• Total discrete input requirements (120V AC signal count, voltage range)
• MicroLogix 1200 controller model and current I/O configuration
• Environmental conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Communication requirements (SCADA integration, remote access, protocol preferences)
• Delivery timeline and installation support needs

Our application engineers will provide one-on-one consultation, recommend optimal module selection, and deliver comprehensive wiring diagrams and programming templates to accelerate your project deployment.
