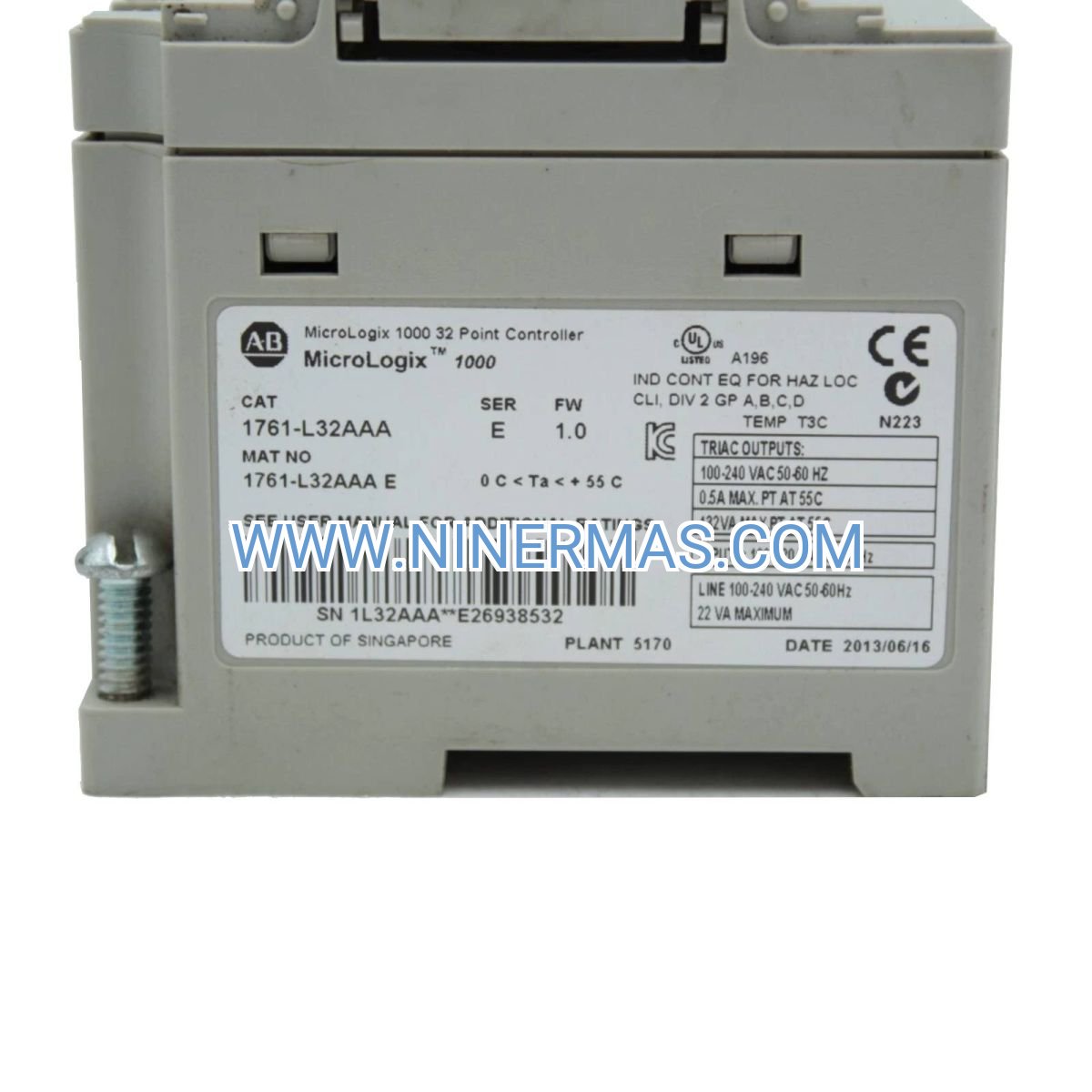

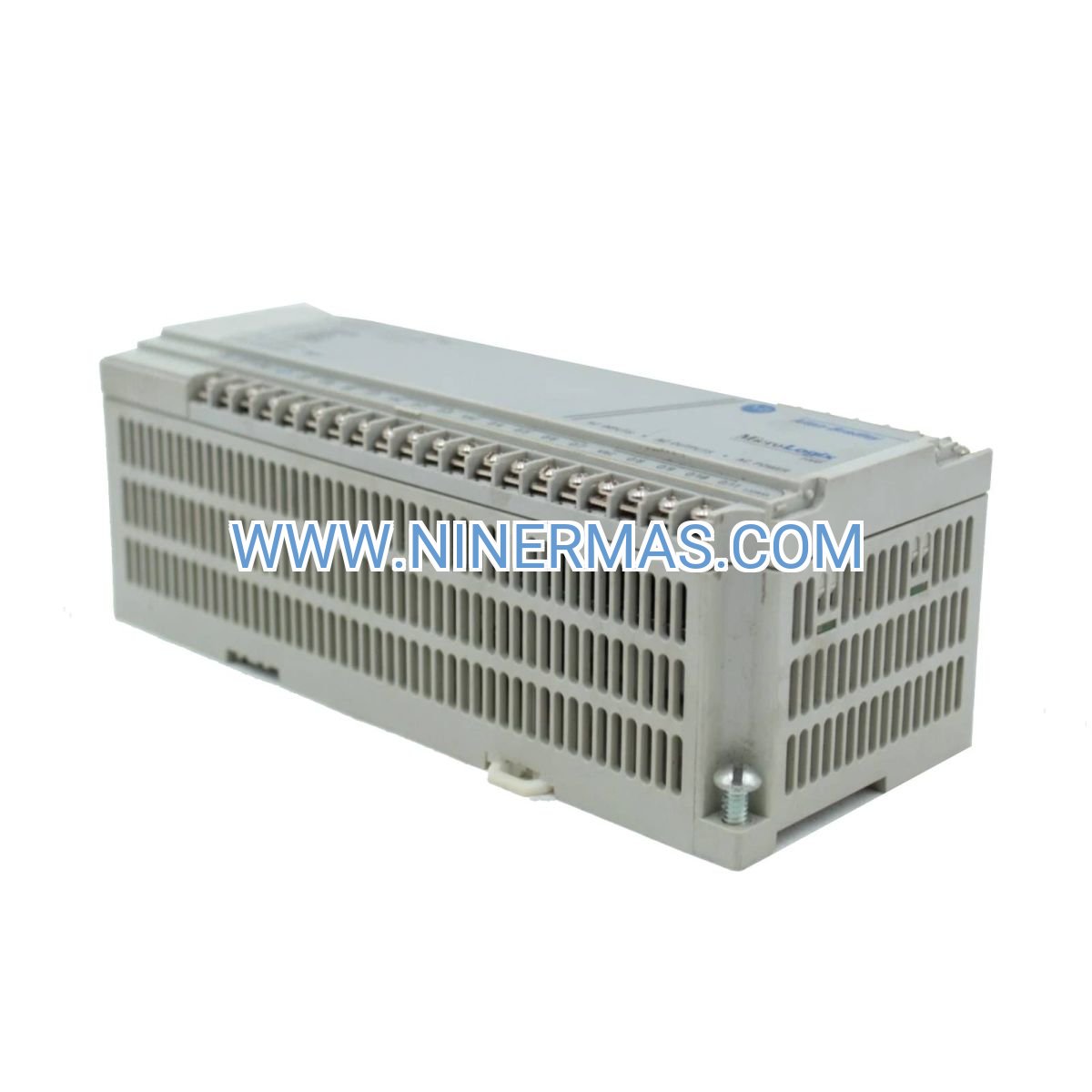

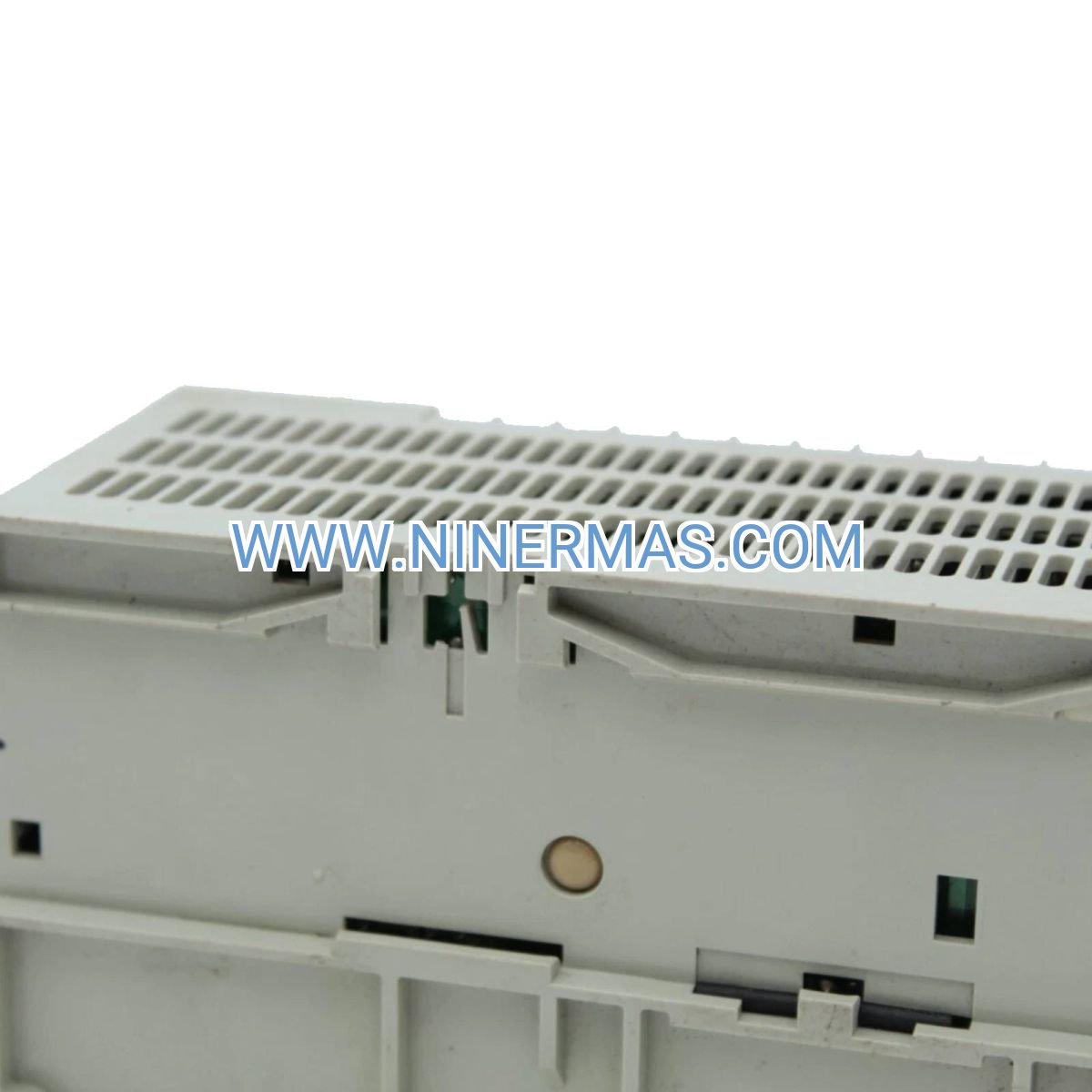

Allen-Bradley 1761-L32AAA MicroLogix 1000 PLC (Industrial-Grade Programmable Controller)

The Allen-Bradley 1761-L32AAA MicroLogix 1000 is a compact programmable logic controller designed for small to medium-scale industrial automation applications. Through advanced relay output technology and flexible I/O configuration, it delivers reliable control for discrete manufacturing, process automation, and building management systems.

Ideal for manufacturing plants, packaging lines, HVAC systems, material handling equipment, and machine control applications, this controller helps solve challenges including inconsistent process control, limited I/O expansion capability, complex wiring requirements, and inadequate diagnostic feedback in legacy relay-based systems.

With standardized design and customizable programming options, the 1761-L32AAA offers fast commissioning, proven reliability, easy maintenance, and excellent compatibility with Rockwell Automation ecosystems. Suitable for system integrators, OEM machine builders, plant engineers, and automation professionals. Contact our engineering team for application guidance and technical specifications.

Core Features & Advantages

• Flexible I/O Configuration
  32 integrated I/O points (20 DC inputs, 12 relay outputs) provide versatile control options for diverse automation tasks, eliminating the need for external relay modules and reducing panel space requirements.
• Proven Relay Output Technology
  Relay outputs rated for 2A per point handle inductive loads, motor starters, solenoid valves, and pilot lights directly, offering electrical isolation and compatibility with various voltage levels up to 250VAC.
• Compact & Cost-Effective Design
  Small footprint (90mm × 87mm × 40mm) fits standard DIN rail mounting, reducing enclosure size and installation costs while maintaining industrial-grade performance for budget-conscious projects.
• Comprehensive Protection Features
  Built-in overload protection, short-circuit detection, input filtering, and watchdog timer safeguard against electrical faults, extend equipment lifespan, and minimize unplanned downtime.
• User-Friendly Programming Environment
  Compatible with RSLogix 500 software, supporting ladder logic, function block, and structured text programming. Online editing and real-time monitoring accelerate troubleshooting and reduce commissioning time.
• Reliable Communication Options
  RS-232 serial port enables connection to HMI panels, SCADA systems, and other controllers. Optional communication modules support DeviceNet, Ethernet/IP, and Modbus protocols for networked automation architectures.

Typical Application Scenarios

This controller is engineered for applications requiring reliable discrete control, moderate I/O density, and straightforward programming, particularly in:

• Manufacturing & Assembly Lines
  Controls conveyor systems, pick-and-place units, indexing tables, and quality inspection stations. Manages sequential operations, interlocks, and safety circuits in automotive, electronics, and consumer goods production.
• Packaging & Material Handling
  Automates filling machines, labeling equipment, palletizers, and sorting systems. Coordinates motor drives, pneumatic actuators, and sensor inputs to optimize throughput and reduce product damage.
• HVAC & Building Automation
  Regulates air handling units, chiller plants, boiler controls, and lighting systems. Implements time-based scheduling, temperature/pressure setpoint control, and alarm notification for energy-efficient facility management.
• Water & Wastewater Treatment
  Operates pump stations, valve actuators, chemical dosing systems, and level control loops. Ensures process stability, regulatory compliance, and remote monitoring capability in municipal and industrial water systems.
• Machine Tool & CNC Integration
  Provides auxiliary control for coolant pumps, chip conveyors, tool changers, and workpiece clamping. Interfaces with CNC controllers via discrete I/O signals to synchronize machining cycles and improve productivity.

Technical Parameters & Selection Guide

To facilitate design and procurement, we provide standard configuration parameters and support custom solutions based on project requirements.

Selection Recommendations: When selecting a MicroLogix 1000 controller, consider total I/O count (including future expansion), input voltage compatibility (AC vs. DC), output type requirements (relay vs. transistor for high-speed switching), communication protocol needs, and environmental conditions (temperature, humidity, vibration). For applications requiring more than 32 I/O points, consider MicroLogix 1100 or 1400 series. If you need assistance, provide your application details—our engineers will recommend the optimal configuration.

Extended Functionality

• Expansion Modules: Add up to 7 expansion I/O modules (1762 series) for applications requiring additional discrete or analog points.
• Communication Adapters: Integrate Ethernet/IP (1761-NET-ENI) or DeviceNet (1761-NET-DNI) modules for networked control and remote diagnostics.
• HMI Integration: Connect PanelView or third-party HMI terminals via RS-232 or Ethernet for operator interface and data visualization.
• Data Logging: Implement recipe management, production counters, and alarm history using internal data files and communication protocols.
• Motion Control: Coordinate with PowerFlex drives or servo systems using discrete I/O handshaking or communication networks.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3–5 business days from stock. Custom-configured systems or bulk orders may require 7–14 days depending on specifications and quantity.

Warranty: All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Support: We provide pre-sales application consulting, installation guidance, programming assistance, and post-sales troubleshooting support. Remote technical support available via phone, email, or online meeting platforms (subject to regional availability).

Documentation Package: Each controller ships with complete technical documentation including product datasheet, user manual, wiring diagrams, I/O specifications, and programming examples. Additional resources available through Rockwell Automation Literature Library.

Quality Certifications: Products sourced from authorized distributors and verified for authenticity. Compliance with UL508, CE marking (Low Voltage Directive, EMC Directive), and RCM standards ensures global regulatory acceptance.

Frequently Asked Questions (FAQ)

Q: How do I connect the Allen-Bradley 1761-L32AAA MicroLogix 1000 PLC to my existing control system?
A: The controller features an RS-232 serial port supporting DH-485 protocol for communication with HMI panels, SCADA systems, or other PLCs. You'll need an appropriate programming cable (1761-CBL-PM02) and RSLogix 500 software for initial configuration. For Ethernet connectivity, add a 1761-NET-ENI communication adapter. Verify voltage compatibility (24VDC inputs, relay outputs rated for your load) and ensure proper grounding per NEC/IEC standards.

Q: What is the maximum number of I/O points I can achieve with this controller?
A: The base 1761-L32AAA provides 32 integrated I/O points. You can expand up to 144 total I/O points by adding up to seven 1762 series expansion modules via the expansion bus. Common expansion modules include 1762-IQ8 (8-point DC input), 1762-OW8 (8-point relay output), and 1762-IF4 (4-channel analog input).

Q: What programming software is required and what are the licensing costs?
A: RSLogix 500 software (part number 9324-RL0300ENE for standard edition) is required for programming MicroLogix controllers. Pricing varies by region and licensing model (perpetual vs. subscription). A free RSLogix Micro Starter Lite version is available with limited functionality for basic applications. Contact Rockwell Automation or authorized distributors for current pricing and licensing options.

Q: What are the environmental requirements for installation?
A: Operating temperature range is 0°C to 60°C (32°F to 140°F) with 5% to 95% relative humidity (non-condensing). The controller is rated for open-type installation and must be mounted inside a NEMA-rated enclosure (typically NEMA 12 or IP54 minimum) to protect against dust, moisture, and mechanical damage. Ensure adequate ventilation and maintain clearance per installation manual specifications. Avoid exposure to corrosive gases, excessive vibration, or electromagnetic interference.

Q: Does this controller support remote monitoring and data collection?
A: Yes, with appropriate communication modules. The 1761-NET-ENI Ethernet/IP adapter enables connection to FactoryTalk View SE, Ignition SCADA, or other Ethernet-based HMI/SCADA platforms. Data can be logged to local databases or cloud services using OPC-UA, Modbus TCP, or proprietary protocols. The controller supports up to 256 words of data file storage for internal logging, with external storage via communication networks.

Q: What is the expected relay output lifespan and how can I extend it?
A: Relay outputs are rated for approximately 100,000 mechanical operations at full load (2A resistive). Lifespan decreases with inductive loads, high switching frequency, or voltage spikes. To extend relay life: use RC snubber circuits across inductive loads, implement software debouncing to reduce unnecessary switching, consider solid-state relay modules for high-cycle applications, and perform periodic inspection/replacement during scheduled maintenance.

Request a Quote or Technical Consultation

To receive detailed application engineering support, pricing quotation, or custom configuration assistance, please provide the following information: project name and industry, application description (machine type, process overview), required I/O count and signal types, control logic complexity, communication protocol requirements, environmental conditions, and preferred delivery timeline. Our engineering team will respond within 24 business hours with tailored recommendations and competitive pricing.
