1757-SRC1 Redundancy Fiber Optic Cable for Allen-Bradley ControlLogix | Industrial-Grade

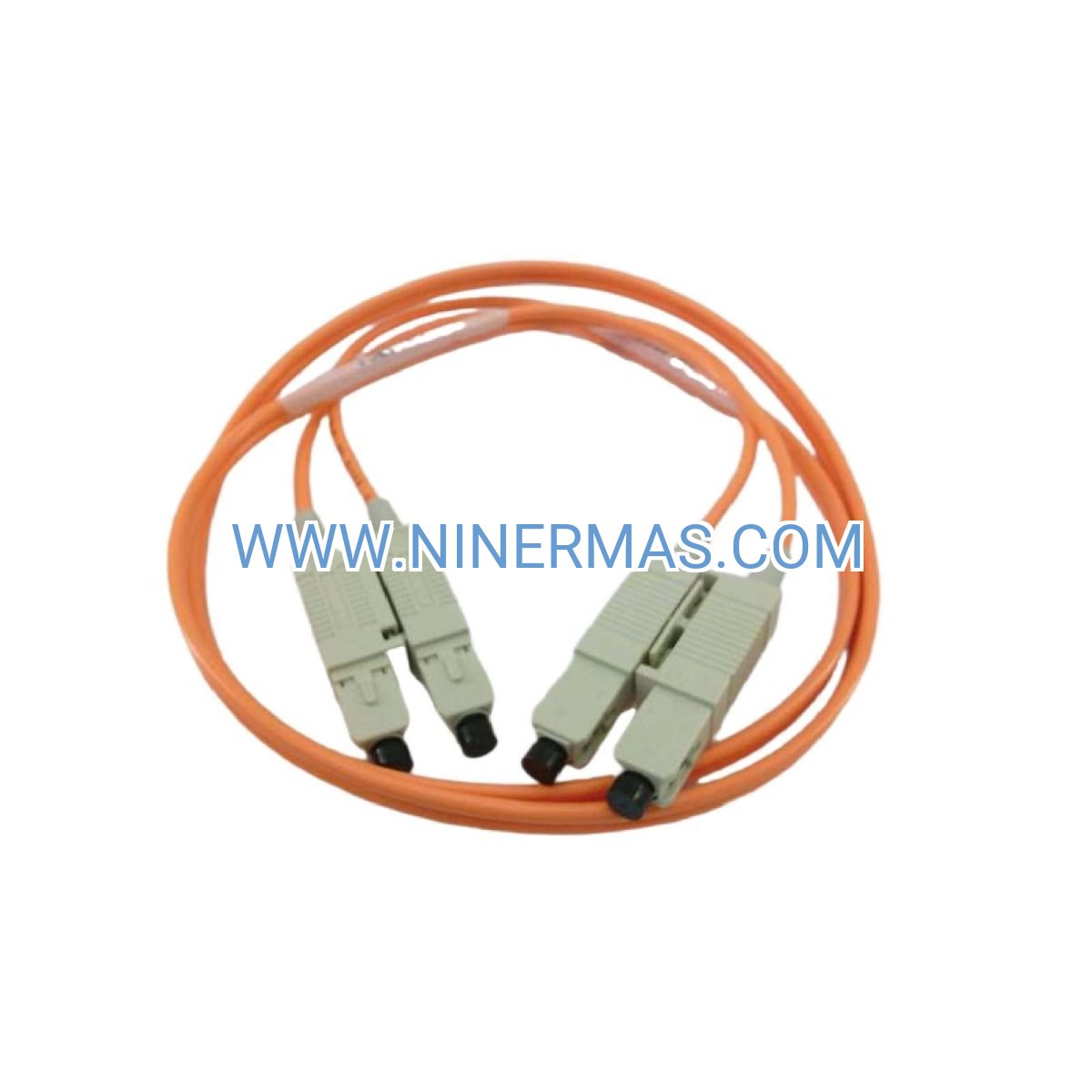

1757-SRC1 Redundancy Fiber Optic Cable (Industrial-Grade ControlLogix Synchronization Solution)

The 1757-SRC1 Redundancy Fiber Optic Cable is a specialized industrial connectivity component designed for Allen-Bradley ControlLogix redundancy systems. Through high-speed fiber optic transmission and dual-channel synchronization technology, it enables real-time data mirroring between primary and backup chassis, ensuring continuous operation, zero downtime, and mission-critical reliability.

Ideal for critical process control, power generation, oil & gas, pharmaceutical manufacturing, and water treatment facilities where system availability must exceed 99.9%. It addresses challenges such as single-point controller failures, unplanned downtime, data loss during switchover, and slow fault recovery in traditional architectures.

With standardized design and flexible configuration options, this cable delivers plug-and-play installation, hot-swappable redundancy, and seamless integration with existing ControlLogix platforms. Suitable for system integrators, control panel builders, plant engineers, and OEM equipment manufacturers. Contact our engineering team for application-specific configuration guidance and technical documentation.

Core Features & Advantages

• High-Speed Redundancy Synchronization
  Utilizes fiber optic transmission to achieve microsecond-level data synchronization between 1757-SRM modules, ensuring instantaneous failover with zero process interruption during primary controller failure.
• Enhanced System Availability
  Compared to single-controller architectures, redundancy configurations can achieve up to 99.99% uptime, significantly reducing production losses caused by unexpected shutdowns in continuous process industries.
• Dual-Channel Fault Isolation
  Supports independent monitoring of primary and backup communication paths. Automatic switchover occurs upon cable or module failure, maintaining system integrity without manual intervention.
• Comprehensive Diagnostic Capabilities
  Integrated with RSLogix 5000 software for real-time monitoring of cable status, signal strength, synchronization health, and fault alerts, enabling predictive maintenance and rapid troubleshooting.
• Robust Industrial Construction
  Features reinforced fiber optic core, industrial-grade connectors, and EMI/RFI shielding. Rated for harsh environments with resistance to vibration, temperature extremes (-40°C to +70°C), and electromagnetic interference.
• Plug-and-Play Integration
  Direct compatibility with 1757-SRM redundancy modules and ControlLogix chassis. No special configuration required—simply connect between redundant controllers and configure via programming software.

Typical Application Scenarios

This redundancy cable is engineered for industries and processes where control system failure is unacceptable:

• Power Generation & Distribution
  Ensures uninterrupted control of turbine governors, generator protection systems, and substation automation. Prevents costly grid disturbances and regulatory non-compliance due to control failures.
• Oil & Gas Production & Refining
  Maintains continuous operation of compressor stations, pipeline SCADA systems, and refinery process units. Eliminates safety risks and environmental hazards associated with sudden shutdowns.
• Pharmaceutical & Biotech Manufacturing
  Protects batch processes, cleanroom environmental controls, and critical utility systems. Prevents product loss and ensures compliance with FDA 21 CFR Part 11 data integrity requirements.
• Water & Wastewater Treatment
  Guarantees reliable operation of pump stations, chemical dosing systems, and SCADA networks. Avoids service interruptions and regulatory violations in municipal infrastructure.
• Chemical Processing & Petrochemicals
  Safeguards continuous reactors, distillation columns, and safety instrumented systems (SIS). Reduces risk of hazardous material releases and production downtime.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, please review the following technical parameters:

Selection Considerations:
When specifying this cable, confirm the following project requirements: distance between redundant chassis (standard 1m cable or custom lengths available), environmental conditions (temperature, vibration, chemical exposure), existing ControlLogix platform version (firmware compatibility), and redundancy architecture (1:1 controller redundancy or chassis-level redundancy). For custom cable lengths or specialized environmental ratings, consult with our application engineers who can recommend tailored solutions.

System Integration & Configuration

• Hardware Installation: Connect the 1757-SRC1 cable between the fiber optic ports on two 1757-SRM modules installed in separate ControlLogix chassis. Ensure secure connector engagement and verify LED indicators on SRM modules.
• Software Configuration: Use RSLogix 5000 or Studio 5000 to configure redundancy parameters, including primary/backup roles, synchronization mode, and failover behavior. Enable diagnostic monitoring for proactive fault detection.
• Network Architecture: Integrate with EtherNet/IP or ControlNet networks for distributed I/O and HMI connectivity. Redundancy cable operates independently of process network, ensuring isolated fault domains.
• Compliance & Documentation: Maintain as-built documentation including cable routing diagrams, module serial numbers, and configuration backups to support regulatory audits and maintenance procedures.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from stock. Custom cable lengths or bulk orders typically require 10-15 business days.

Warranty: All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Support: Comprehensive support includes pre-sales application consulting, installation guidance, configuration assistance, and post-sales troubleshooting. Remote diagnostics and on-site commissioning services available based on project location.

Documentation Package: Each shipment includes product datasheet, installation instructions, fiber optic handling guidelines, and compatibility matrix. Complete electrical schematics and integration manuals available upon request.

Quality Certifications: Manufactured to ISO 9001 quality standards with full traceability. Products undergo 100% factory testing including optical signal integrity verification and connector continuity checks.

Frequently Asked Questions (FAQ)

Q: How does the 1757-SRC1 redundancy fiber optic cable integrate with existing ControlLogix systems?
A: The cable connects directly to 1757-SRM redundancy modules installed in separate ControlLogix chassis. It requires no special adapters—simply plug into the fiber optic ports on each SRM module. Configuration is performed via RSLogix 5000/Studio 5000 software to define primary/backup roles and synchronization parameters. Compatible with all ControlLogix processor families (L6x, L7x, L8x series).

Q: What is the maximum distance supported between redundant controllers using this cable?
A: The standard 1757-SRC1 cable is 1 meter in length, suitable for chassis mounted in the same control cabinet. For longer distances (up to 100 meters), custom fiber optic cable assemblies are available. Contact our engineering team with your specific layout requirements for extended-length solutions.

Q: What level of energy savings or performance improvement can be achieved with redundancy?
A: While redundancy does not directly reduce energy consumption, it prevents costly unplanned downtime. In continuous process industries, a single hour of downtime can cost $100,000-$1,000,000+ in lost production. Redundancy systems typically achieve 99.99% availability, reducing annual downtime from days to minutes, delivering substantial ROI through avoided losses.

Q: What are the environmental and installation requirements for this fiber optic cable?
A: Operating temperature range is -40°C to +70°C with 5-95% non-condensing humidity. The cable features industrial-grade construction with vibration and shock resistance per IEC standards. Avoid sharp bends (minimum bend radius 10x cable diameter) and protect from crushing or abrasion. Suitable for NEMA-rated enclosures and hazardous area installations when properly enclosed.

Q: Can this cable support remote monitoring and data acquisition via industrial protocols?
A: The 1757-SRC1 cable itself is dedicated to controller-to-controller synchronization. However, the ControlLogix redundancy system fully supports EtherNet/IP, ControlNet, DeviceNet, and Modbus TCP for SCADA integration, remote HMI access, and data historian connectivity. Redundancy status and diagnostics are accessible via these networks for centralized monitoring.

Q: Is the cable hot-swappable, and what happens during a cable failure?
A: The cable is not designed for hot-swapping during normal operation—replacement should occur during planned maintenance windows. If a cable failure occurs, the redundancy system will detect loss of synchronization and trigger an alarm. The backup controller continues operating independently, but redundancy protection is temporarily lost until the cable is replaced and synchronization is restored.

Request Technical Support & Custom Solutions

To receive detailed application engineering support, product quotations, or custom cable configurations, please provide the following information: project name, application industry, required cable length, environmental conditions (temperature/vibration/hazardous area classification), ControlLogix platform details (processor model, firmware version, chassis type), and quantity requirements. Our engineering team will respond within 24 hours with tailored recommendations and pricing.
