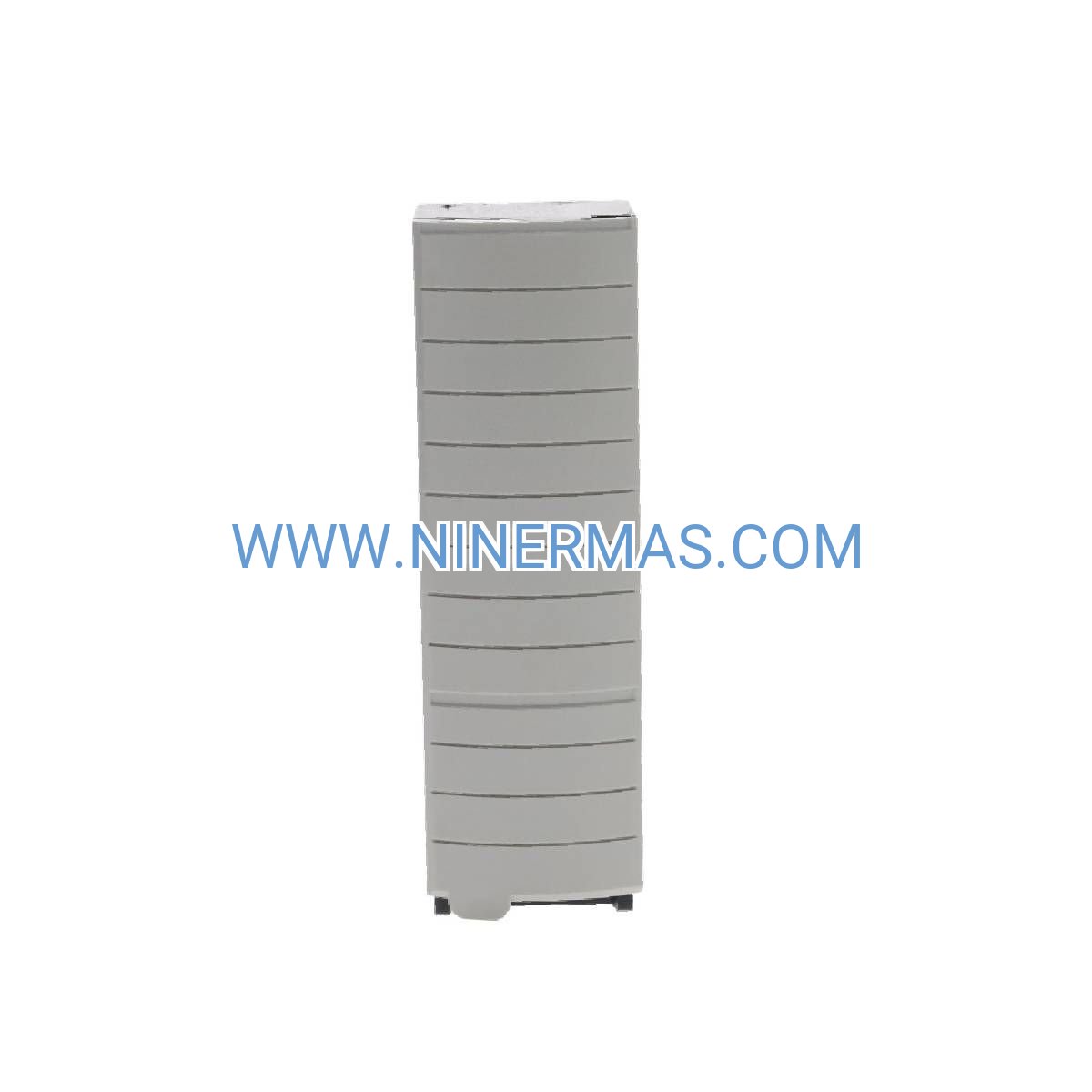

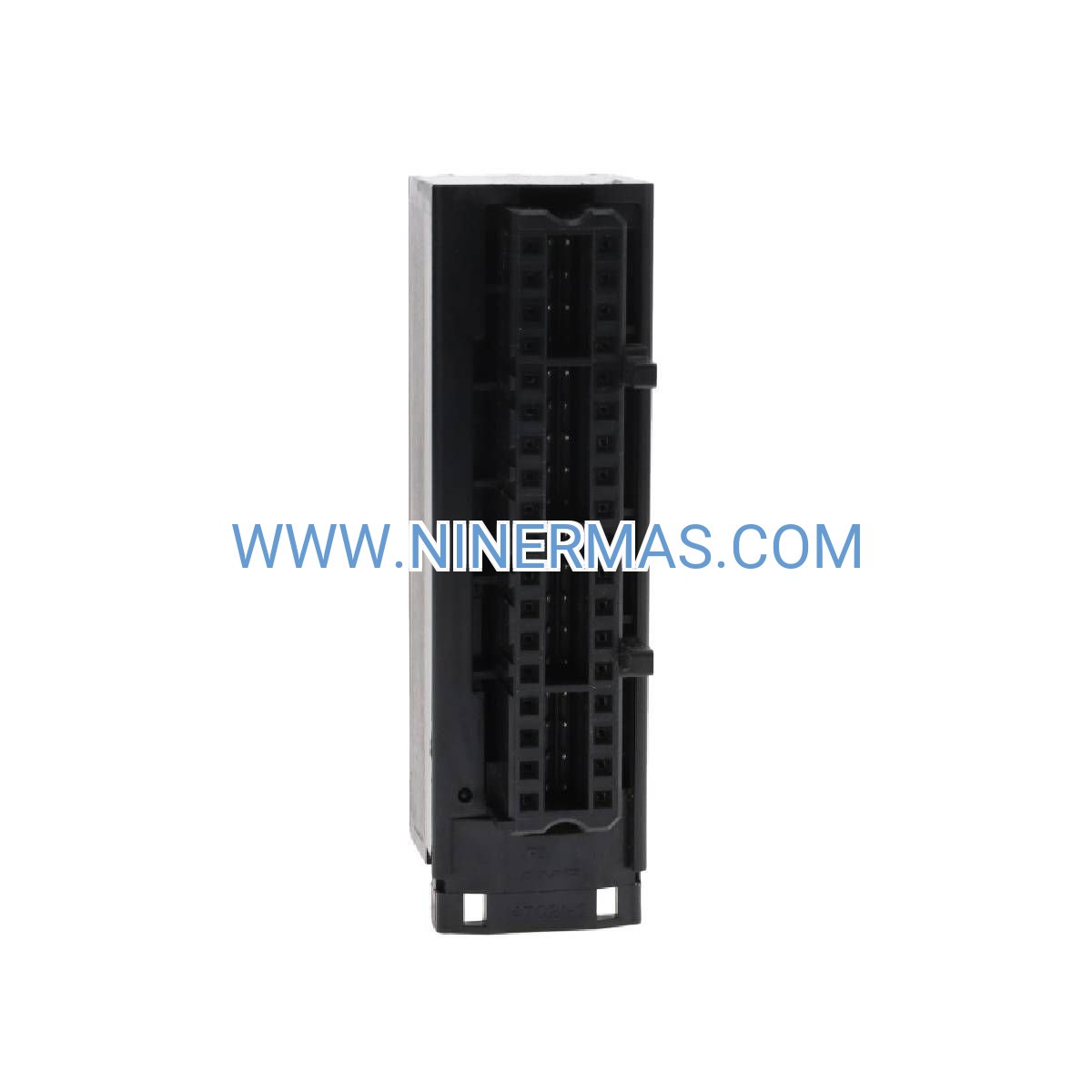

1756-TBCH Terminal Block (Industrial-Grade AC Digital Input Interface)

The 1756-TBCH represents a critical connectivity solution for ControlLogix automation architectures requiring robust AC voltage signal conditioning. This removable terminal block delivers channel-isolated digital input interfacing for high-voltage sensor networks, combining field-proven reliability with maintenance-friendly design. Engineered for process control, power monitoring, and safety-critical applications, the 1756-TBCH ensures signal integrity across demanding industrial environments where electromagnetic interference and ground potential differences challenge conventional I/O systems.

Industrial facilities deploying ControlLogix platforms face persistent challenges: minimizing unplanned downtime during I/O maintenance, protecting sensitive logic circuitry from voltage transients, and maintaining wiring accuracy across complex multi-cabinet installations. The 1756-TBCH addresses these operational pain points through hot-swappable architecture, per-channel optical isolation rated to 1500V, and color-coded screw terminals that reduce commissioning errors by up to 40% compared to unmarked connection points.

Whether you're integrating limit switches in chemical batch reactors, monitoring circuit breaker auxiliary contacts in electrical distribution systems, or connecting photoelectric sensors on high-speed packaging lines, the 1756-TBCH provides the rugged interface layer your ControlLogix system demands. Dual voltage range capability (85-132 VAC / 170-265 VAC) accommodates global power standards without module substitution, while DIN rail compatibility streamlines panel layout and future expansion.

Core Features & Benefits

→ Removable Screw-Terminal Design
Field technicians can disconnect and reconnect wiring without removing the I/O module from the chassis, reducing maintenance windows by 60% and eliminating the risk of adjacent module disturbance during service operations.

→ 1500V Channel-to-Channel Isolation
Optical isolation barriers protect ControlLogix backplane circuitry from voltage spikes, ground loops, and common-mode noise inherent in industrial power distribution networks, extending system MTBF beyond 100,000 hours.

→ Dual Voltage Range Compatibility
Automatic sensing across 85-265 VAC eliminates the need for voltage-specific terminal blocks, reducing spare parts inventory costs and simplifying global equipment standardization for multinational operations.

✓ Hot-Swap Capability
Replace terminal blocks during live operation without chassis power-down, maintaining production continuity during preventive maintenance or emergency repairs—critical for 24/7 process industries.

✓ Visual Diagnostic Indicators
Integrated LED status lights provide instant channel-level fault identification, reducing troubleshooting time from hours to minutes and empowering maintenance teams to resolve issues before they escalate to production stoppages.

✓ Wide Operating Temperature Range
0°C to 60°C operational envelope supports installation in non-climate-controlled environments including outdoor enclosures, factory floors, and utility substations without derating or auxiliary cooling.

Application Scenarios

Chemical Process Control
Monitor high-voltage limit switches, pressure relief valve position indicators, and emergency shutdown interlocks in hazardous area control panels. The 1756-TBCH's isolation architecture prevents ground faults in intrinsically safe circuits from propagating to the ControlLogix backplane, maintaining SIL-rated safety integrity.

Power Generation & Distribution
Interface with circuit breaker auxiliary contacts, motor contactor status signals, and transformer tap position indicators across utility substations and co-generation facilities. Dual voltage range support accommodates both 120VAC control circuits and 230VAC European standards within a single platform.

Automotive Manufacturing
Connect AC-powered photoelectric sensors, inductive proximity switches, and machine guard interlocks on robotic welding cells and assembly line conveyors. Hot-swap capability enables sensor replacement during model changeovers without halting adjacent production zones.

Water & Wastewater Treatment
Acquire pump motor run status, valve limit switch positions, and level sensor signals in SCADA-controlled lift stations and treatment plants. The terminal block's corrosion-resistant construction withstands high-humidity environments where condensation challenges standard connection systems.

Material Handling Systems
Monitor conveyor zone sensors, diverter gate positions, and emergency stop circuits in warehouse automation and distribution center sortation systems. Color-coded terminals accelerate commissioning of complex multi-zone installations with hundreds of discrete input points.

Technical Parameters & Selection Guide

Selection Criteria: Verify your ControlLogix I/O module catalog number supports AC digital inputs before ordering. For DC voltage applications (12-24 VDC), specify the 1756-TBNH terminal block instead. When deploying in explosive atmospheres, confirm ATEX/IECEx certification requirements with your safety engineer. For applications requiring conformal coating or extended temperature ranges (-25°C to 70°C), consult factory application engineering for custom solutions.

Extended Functions

IoT Integration Readiness
When paired with ControlLogix Ethernet I/P modules and FactoryTalk Edge Gateway, the 1756-TBCH enables cloud-connected predictive maintenance strategies. Monitor input signal quality metrics, detect intermittent wiring faults, and trend channel utilization patterns through MQTT-based data pipelines to AWS IoT Core or Azure Industrial IoT platforms.

Advanced Diagnostic Capabilities
Leverage ControlLogix's built-in I/O diagnostics to track per-channel on/off transition counts, detect stuck-at faults, and log timestamp data for regulatory compliance audits. Diagnostic data integrates seamlessly with FactoryTalk Historian for long-term trend analysis and OEE optimization.

Customization Options
For OEM machine builders requiring private-label branding or non-standard wire termination methods (spring-clamp, push-in), Rockwell Automation offers custom terminal block configurations with minimum order quantities starting at 50 units. Contact our application engineering team for feasibility assessment and lead time quotations.

Delivery & Service Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Expedited same-day shipping available for critical downtime situations (additional fees apply). Custom configurations require 4-6 weeks manufacturing lead time plus transit.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Warranty includes free replacement and return shipping for confirmed manufacturing defects. Does not cover damage from improper installation, overvoltage events, or environmental contamination.

Technical Support: Unlimited access to application engineers via phone, email, and remote desktop support during business hours (8 AM - 6 PM CST, Monday-Friday). Emergency after-hours support available for Tier-1 customers with active service agreements. Average first-response time: 2 hours.

Documentation Package: Each terminal block ships with installation quick-start guide, wiring diagrams, dimensional drawings (DXF/PDF), and certification declarations. Complete user manuals, 3D CAD models (STEP/IGES), and EPLAN macros available for download from the Rockwell Automation Literature Library.

Frequently Asked Questions

How do I verify compatibility between the 1756-TBCH terminal block and my existing ControlLogix I/O module?
Cross-reference your I/O module catalog number with the ControlLogix Terminal Block Selection Guide (publication 1756-SG001). The 1756-TBCH pairs exclusively with AC digital input modules such as 1756-IA16, 1756-IA8D, and 1756-IA32. Attempting to use this terminal block with DC input or output modules will result in improper operation and potential equipment damage.

What wire preparation methods ensure reliable long-term connections with screw terminals?
For stranded wire (recommended for vibration-prone environments), crimp ferrules per DIN 46228 standards to prevent strand breakage and ensure full contact area engagement. Torque screw terminals to 0.5-0.6 Nm (4.4-5.3 lb-in) using a calibrated torque screwdriver. Re-torque connections after 24 hours of initial operation and annually thereafter as part of preventive maintenance protocols.

Can the 1756-TBCH terminal block reduce installation time compared to direct module wiring?
Field studies demonstrate 35-50% reduction in commissioning time for systems with 100+ I/O points. Pre-wiring terminal blocks on the bench before chassis installation, combined with hot-swap capability during troubleshooting, delivers measurable labor cost savings. For projects exceeding 500 I/O points, ROI typically occurs within the first installation.

Does this terminal block support remote monitoring of wiring integrity?
When used with diagnostic-capable I/O modules (1756-IA16I, 1756-IA8D), the ControlLogix platform can detect open-circuit and short-circuit faults at the channel level. Configure diagnostic alarms in RSLogix 5000/Studio 5000 to trigger email notifications or HMI alerts when wiring faults occur, enabling proactive maintenance before production impact.

What environmental factors affect the 1756-TBCH's operational lifespan?
Primary degradation mechanisms include thermal cycling (expansion/contraction loosening screw terminals), corrosive atmospheres (sulfur compounds attacking copper), and vibration (mechanical fatigue of solder joints). Installations in climate-controlled enclosures with vibration isolation typically achieve 15+ year service life. Outdoor or high-vibration applications may require inspection intervals every 6-12 months.

Are there energy efficiency benefits to using isolated terminal blocks?
While the terminal block itself is a passive component, the optical isolation architecture eliminates ground loop currents that can increase panel heating by 5-15W per chassis in electrically noisy environments. This thermal reduction extends cooling system lifespan and reduces HVAC energy consumption in large control rooms with 20+ cabinets.
