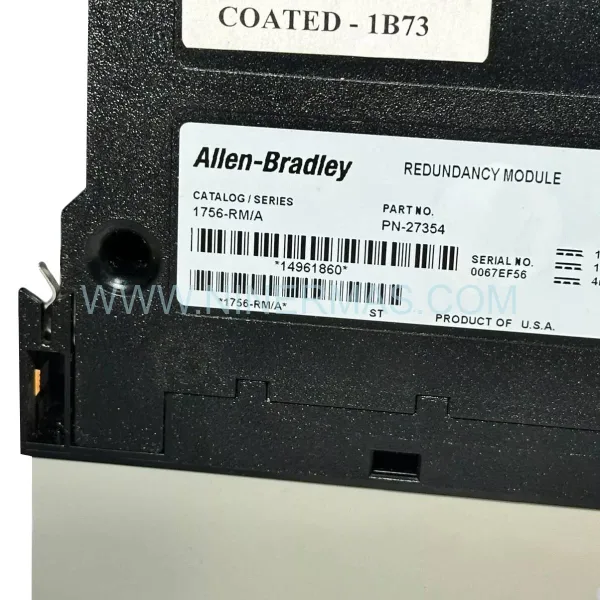

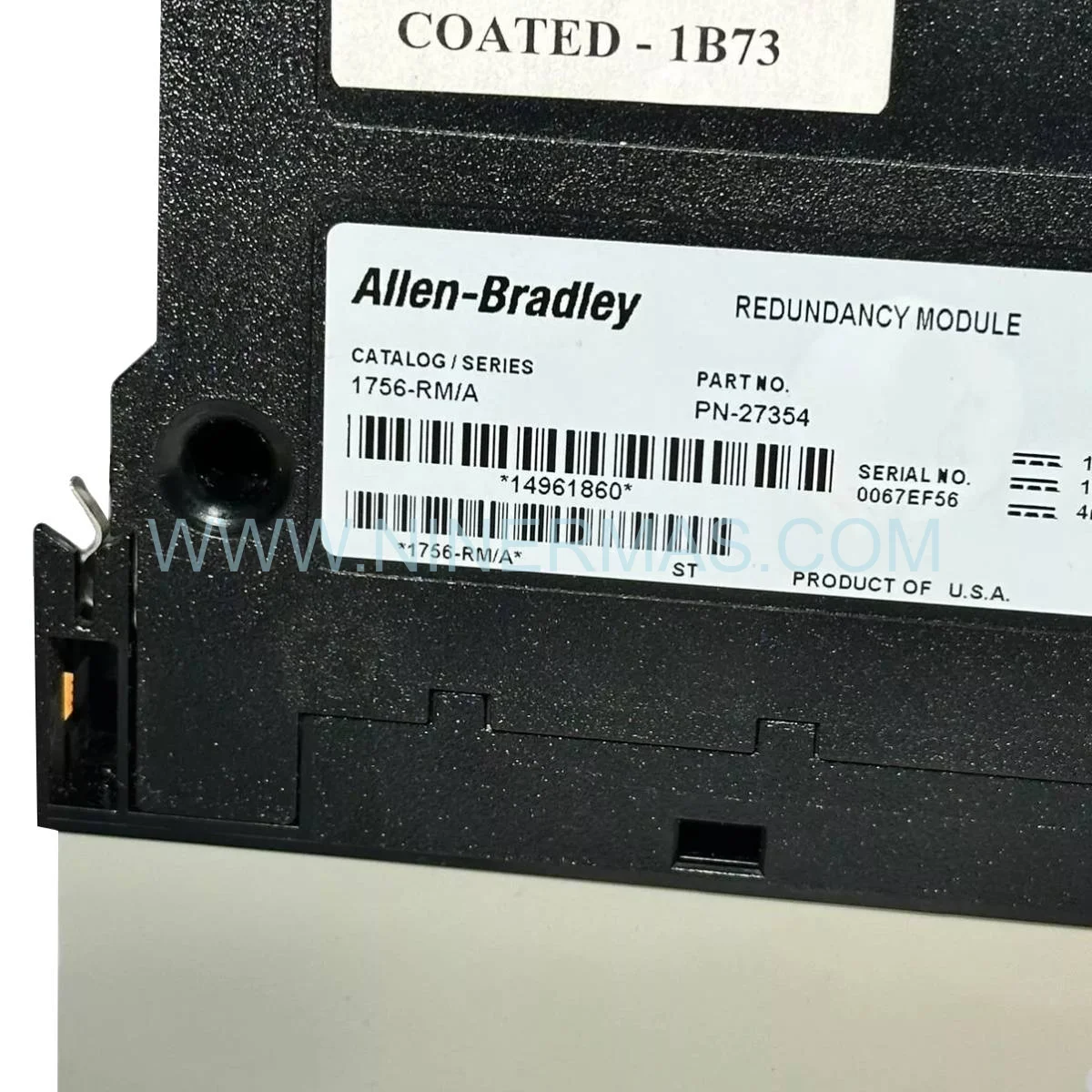

Allen-Bradley 1756-RM/A Redundancy Module | ControlLogix High Availability

Allen-Bradley 1756-RM/A | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Allen-Bradley 1756-RM/A stands as a cornerstone of system availability strategy. This Enhanced Redundancy Module integrates directly into ControlLogix chassis architectures, enabling deterministic 1:1 controller failover that eliminates single points of failure across mission-critical automation networks. Its sub-50ms switchover capability ensures that I/O states, produced/consumed tags, and active CIP connections are preserved without scan-cycle interruption non-negotiable requirement in sectors where process uptime directly governs revenue continuity.

Engineered to withstand the thermal cycling, vibration, and electromagnetic interference inherent to heavy industrial environments, the Allen-Bradley 1756-RM/A operates reliably across a 0°C to 60°C ambient range. Installation demands careful attention to chassis slot adjacency he module must be positioned immediately beside the redundant controller pair nd firmware parity between primary and backup processors is mandatory prior to commissioning. Backplane current draw (800mA @ 5VDC) should be factored into chassis power budget calculations to prevent supply saturation in densely populated racks.

For maintenance planners and procurement engineers alike, stocking the 1756-RM/A as a critical spare is a calculated risk-mitigation decision. As a legacy-compatible yet performance-validated component, its availability in original factory packaging ensures that emergency replacement scenarios do not compromise system integrity or void existing certifications. Operational excellence in automation begins with proactive inventory of components that anchor your redundancy architecture.

Key Operational Features

Sub-50ms Automatic Failover — Seamless controller switchover preserves scan integrity and active I/O states with zero process disruption.
Hot-Swap Serviceability — Replace or service the redundant controller while the module maintains live process control, supporting 24/7 operational continuity.
Redundancy & High Availability Architecture — 1:1 controller pairing with synchronized logic and I/O mapping eliminates single points of failure across the backplane.
Seamless Integration with ControlLogix Ecosystem — Drop-in compatibility with 1756 chassis; no proprietary backplane required. Supports standard I/O modules and EtherNet/IP communication cards.
Diagnostic LED Array — Real-time visual status indicators for primary/backup controller health, communication integrity, and module fault conditions educing MTTR during incident response.
Process Optimization via State Synchronization — Continuous backplane-level state mirroring ensures the backup controller is always ready to assume control without re-initialization delays.

Maintenance & Performance Benchmarks

The 1756-RM/A is architected to serve as the reliability backbone across diverse industrial network scales rom compact single-chassis deployments to distributed multi-rack ControlLogix systems spanning geographically separated control rooms.

In small-to-mid-scale installations, the module pairs with two ControlLogix 5570 or 5580 controllers sharing a common chassis, delivering full redundancy with minimal footprint. For large-scale system integration scenarios uch as refinery-wide DCS migrations or multi-unit power generation facilities he 1756-RM/A supports coordinated redundancy across fiber-linked chassis using EtherNet/IP ring topologies, ensuring that network segmentation does not compromise failover determinism.

Performance benchmarks confirm that switchover events generate no detectable process upsets in properly configured systems: analog output modules hold last state, digital outputs maintain commanded positions, and HMI communications re-establish within one scan cycle. This level of operational excellence is what distinguishes Allen-Bradley’s redundancy platform as the industry benchmark for mission-critical automation components.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 1756-RM/A unit dispatched from our inventory is sourced directly from authorized distribution channels and ships in original factory packaging with full traceability documentation ncluding calibration certificates and country-of-origin records. This ensures that your incoming inspection process is streamlined and that module authenticity is never in question.

For procurement teams managing EOL (End-of-Life) or legacy ControlLogix infrastructure, we maintain a dedicated global supply network specifically for discontinued and hard-to-source automation components. Same-day dispatch is available for in-stock units confirmed before the daily cut-off, with worldwide express logistics options including DHL Express, FedEx International Priority, and UPS Worldwide Expedited nsuring your production line is back online with minimal lead time regardless of your facility’s location.

All shipments are fully insured and tracked end-to-end. Export documentation, including commercial invoices and HS-coded packing lists, is prepared to facilitate smooth customs clearance across major industrial markets in North America, Europe, Southeast Asia, and the Middle East.

Engineering Support & FAQ

Q1: What are the installation prerequisites before commissioning the 1756-RM/A in an existing ControlLogix system?
Both the primary and backup controllers must be running identical firmware revisions and project files. The module must occupy a chassis slot directly adjacent to the redundant controller pair. Verify chassis power budget accommodates the additional 800mA @ 5VDC draw before insertion. Disable any online edits and perform a full project download to both controllers post-installation.

Q2: Which firmware versions are compatible with the 1756-RM/A Series A module?
The 1756-RM/A Series A is compatible with RSLogix 5000 / Studio 5000 firmware revisions 16.x through 32.x on supported ControlLogix 5550-5580 controllers. Always cross-reference the Rockwell Automation Product Compatibility and Download Center (PCDC) for the specific firmware matrix applicable to your controller catalog number.

Q3: How does the module handle I/O module states during a failover event?
Analog output modules hold their last commanded value; digital outputs maintain their current state. The backup controller assumes the primary’s IP identity and CIP connection ownership within the switchover window, preventing downstream device timeouts. Produced/Consumed tag states are transferred via backplane synchronization prior to the switchover event.

Q4: Can the 1756-RM/A support redundancy across multiple chassis or remote I/O racks?
Yes. When combined with redundant EtherNet/IP communication modules (e.g., 1756-EN2TR) configured in a Device-Level Ring (DLR) topology, the redundancy architecture extends across remote I/O racks and distributed chassis. The 1756-RM/A coordinates controller-level failover while the network layer handles media redundancy independently.

Q5: What is the warranty claim process for a 1756-RM/A purchased through your store?
All units carry a 12-month warranty from the date of shipment. To initiate a warranty claim, contact our technical support team at sale@ninermas.com with your order reference, module serial number, and a description of the observed fault. We will issue a Return Merchandise Authorization (RMA) within 24 business hours and arrange prepaid return logistics for confirmed warranty cases.

Q6: Is online programming supported while the 1756-RM/A is active in redundant mode?
Limited online editing is supported on the primary controller for non-safety logic modifications. However, all changes must be manually synchronized to the backup controller via Studio 5000’s redundancy synchronization utility before the edits are considered fully committed. Unsynchronized changes will be lost if a failover occurs before synchronization is complete.
